Oil Less ISO Tank Gas Refrigerant Recovery Unit Freon Recovery Pump 25HP R134a R32 AC Refrigerant Recovery Recharge Machine
-
Highlight
25HP Refrigerant Charging Unit
,R32 Refrigerant Charging Unit
,25HP Refrigerant Filling Machine
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)920
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeCOMPRESSOR
-
Warranty1 Year
-
ColorBlue
-
RefrigerantR290/R600A/R32/R410A/R134a/R22/R407C Etc.
-
CompressorOil-free 25HP
-
Model NoCM580 Refrigerant ISO Tank Vapor Recovery Machine
-
Vapor Recovery Rate≤350Kg/h
-
Pull/push Recovery Rate≤15000Kg/h
-
Compressor Displacement57m³/h
-
CoolingAir Cooled
-
Power380~460V 50Hz 3Phase
-
CertificateCE ATEX
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM580
-
Minimum Order Quantity1 Unit
-
Price$22,800.00/units 1-1 units
-
Packaging DetailsPlywood case on pallet<br>CM580 Explosion Proof Refrigerant Recovery Machine for R290 R600A
-
Supply Ability50 Unit/Units per Month AC Refrigerant Recovery Unit
Oil Less ISO Tank Gas Refrigerant Recovery Unit Freon Recovery Pump 25HP R134a R32 AC Refrigerant Recovery Recharge Machine
25HP oil less refrigerant tank recovery unit R134a R32 recovery charging machine ac charging station gas recovery pump

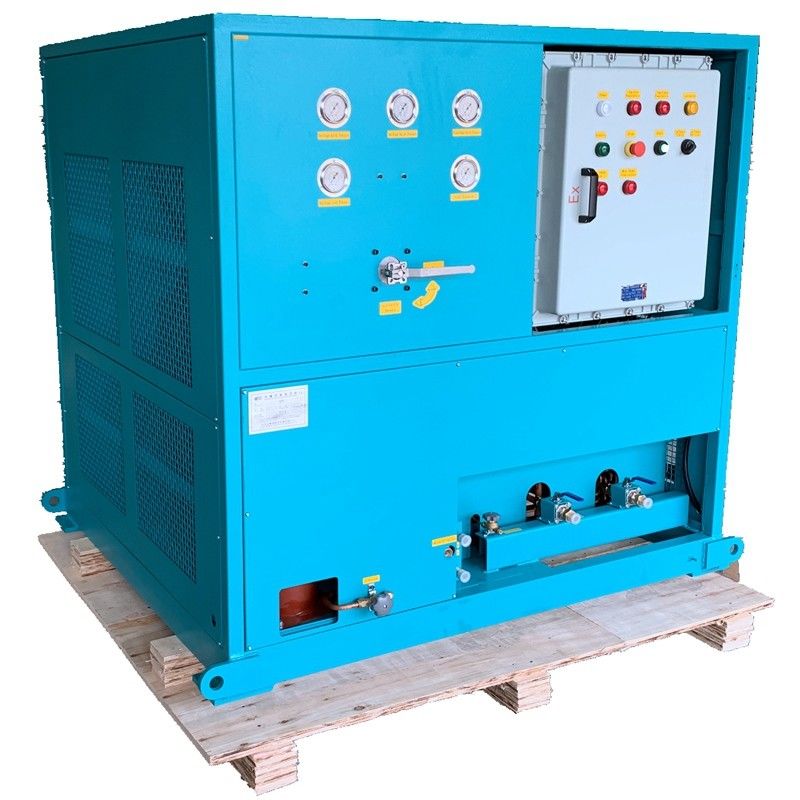

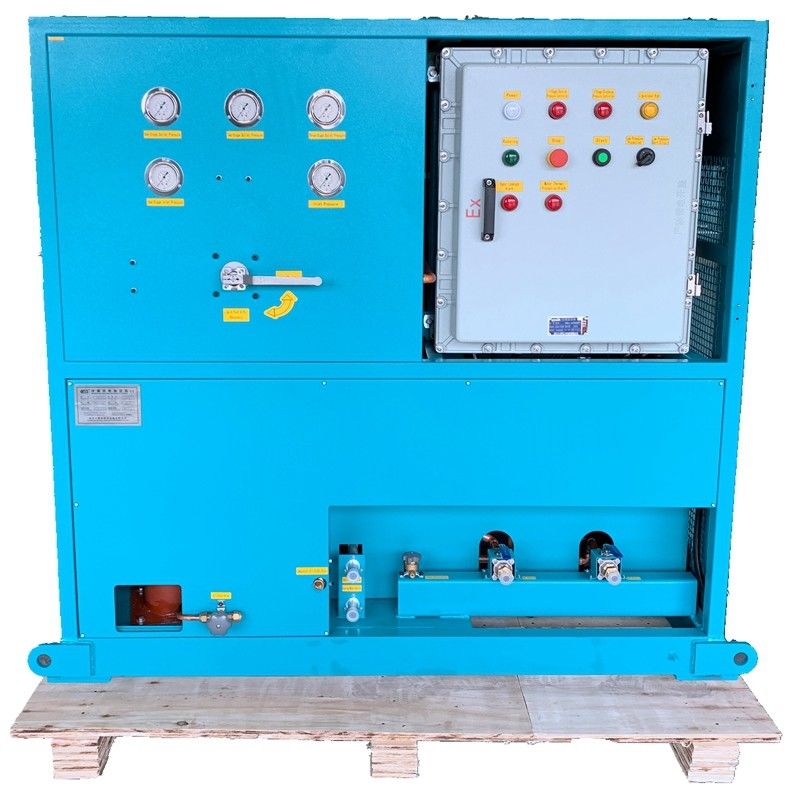

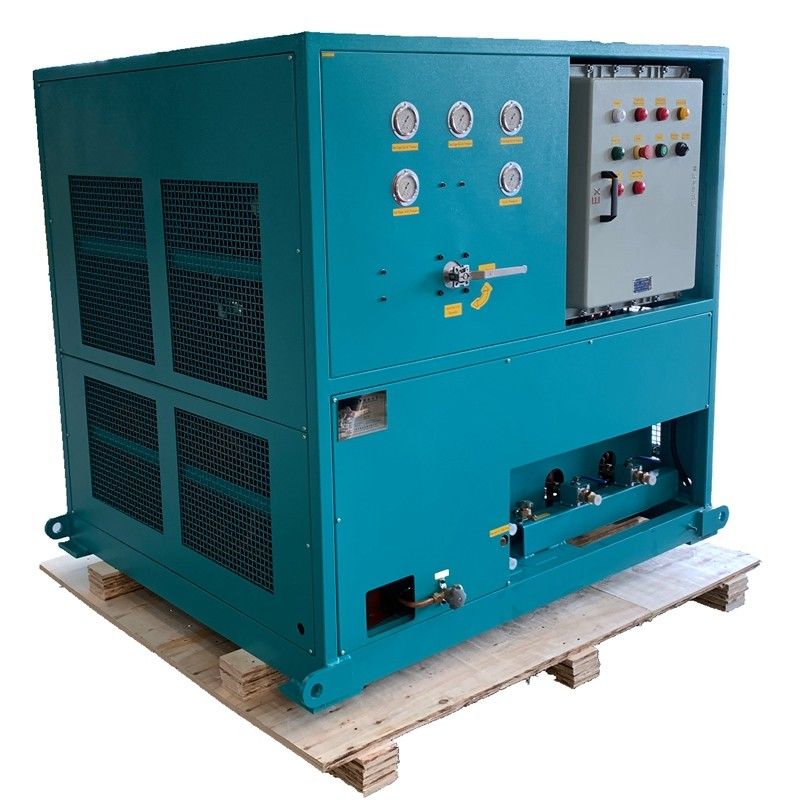

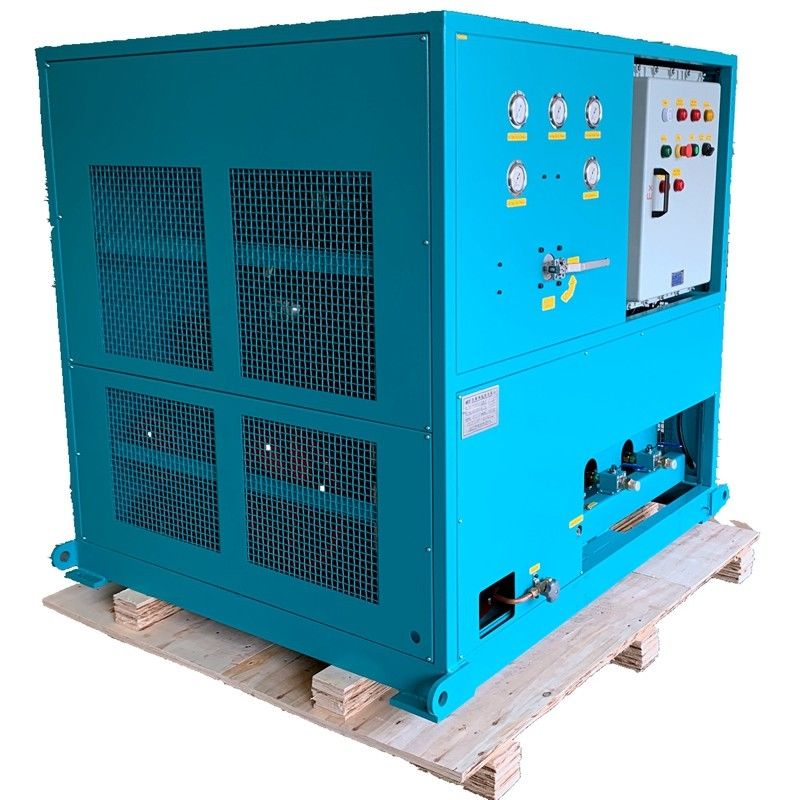

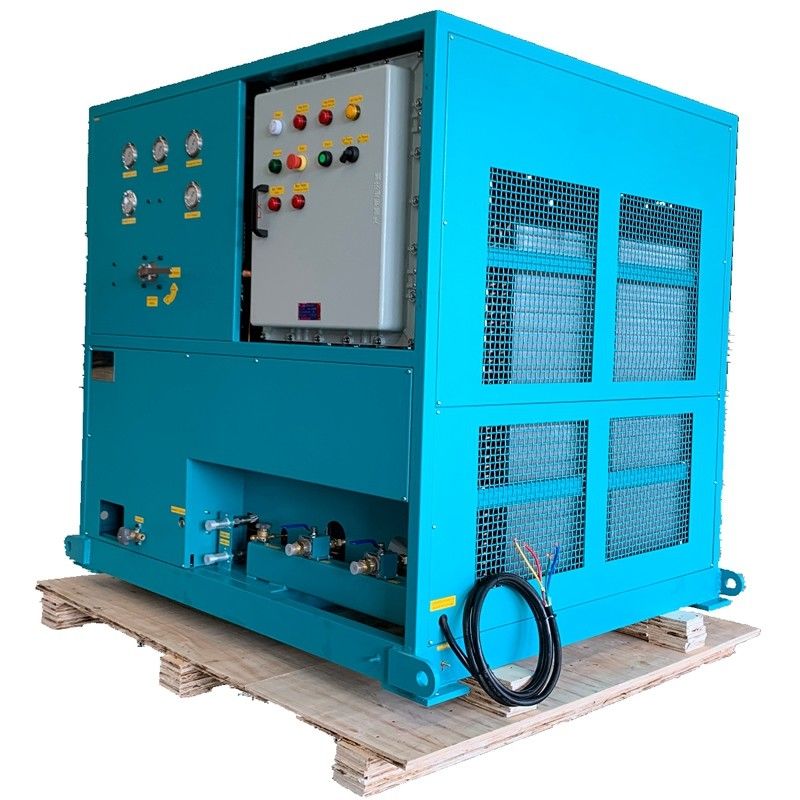

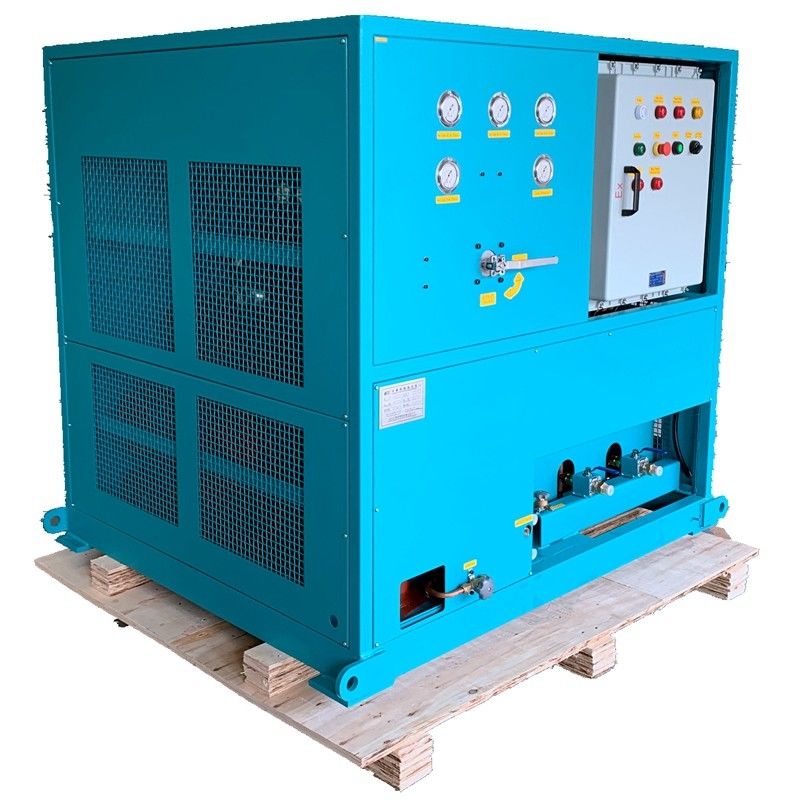

CM580 Series Refrigerant Recovery Machine for Refrigerant Plant
Product Introduction
CM580 S series refrigerant recovery machine is specially designed for waste air condition and refrigerator disassembly line with high efficiency recovery rate,it utilizes three -stage oil less compressor with explosion proof motor and electrical control box can be used to recovery various flammable and common refrigerants,the machine can also remove the oil and impurity from your dirty refrigerant during recovery process.
Features & Advantages
·Powerful oil less compressor compatible with CFC/HCFC/HFC refrigerants·Ultra fast recovery rate for vapor refrigerants
·Simple operation in vapor and liquid push/pull recovery exchange
·Perfect protection cut-out function – safe credibility
·Two stage cooling for high efficiency heat exchange rate
·High vacuum degree -0.09Mpa allow recovery more refrigerant for avoid refrigerant lose
·Equipped with explosion proof motor and control box for flammable refrigerant
·Once recovery finished,machine stop automatically
·High efficiency oil separator and filter drier for removing oil and moisture
|
Product Name
|
Refrigerant Recovery Machine
|
|
Model
|
CM580
|
|
Horsepower
|
25HP
|
|
Compressor Displacement
|
57m³/h
|
|
Compressor Type
|
Three-stage compression oil-free reciprocating
|
|
Vapor Recovery
|
≤350Kg/h
|
|
Liquid Push&Pull Recovery Rate
|
≤15000Kg/h
|
|
Cooling
|
Air Cooled&Water Cooled
|
|
Applicable Refrigerant
|
R290/R600A/R32/R410A/R134a/R22/R407C etc.
|
|
Gas Leakage Monitoring
|
Yes
|
|
HP Shut-off
|
Yes
|
|
LP Shut-off
|
Yes
|
|
Oil Separator
|
Yes
|
|
Power Source
|
380~460V 50Hz 3Phase
|
|
Certification
|
ATEX
|
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
