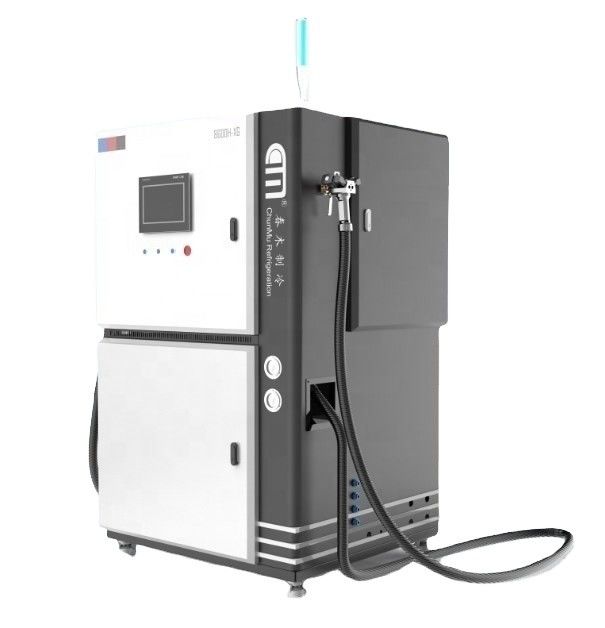

Fully Automatic Refrigerant Recovery Charging Machine R22 R410a Recovery Unit Air Conditioning Charging Station
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)300
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
Resolution0.1g
-
Voltage380V/50HZ
-
RefrigerantR22/R410A/R407C/R134A
-
Model NoDual System Car A/c Refrigerant Recharge Filling Machine
-
Precision±0.5%
-
Vacuum Degree5Pa~10Pa
-
Charging Speed60~260g/s
-
ApplicationAir Conditioner, Water Dispenser, Freezer, Refrigerator
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE, ATEX
-
Model NumberCM8600T
-
Minimum Order Quantity1 Unit
-
Price$27,000.00/units 1-1 units
-
Packaging Detailswooden case, pallet for CM8600 Fully Automatic Car A/C Refrigerant Charging Machine AC Charging Station
-
Supply Ability50 Unit/Units per Month
Fully Automatic Refrigerant Recovery Charging Machine R22 R410a Recovery Unit Air Conditioning Charging Station

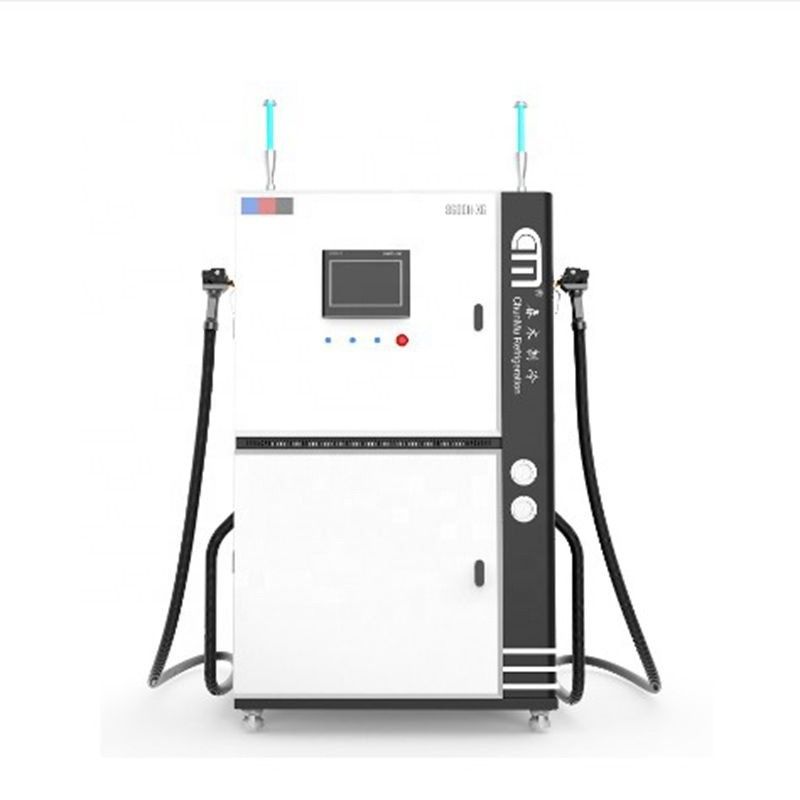

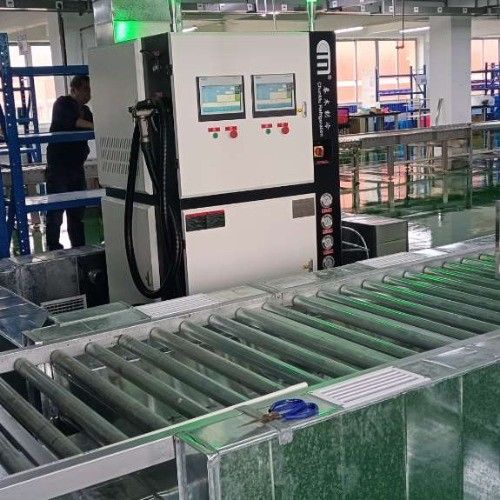

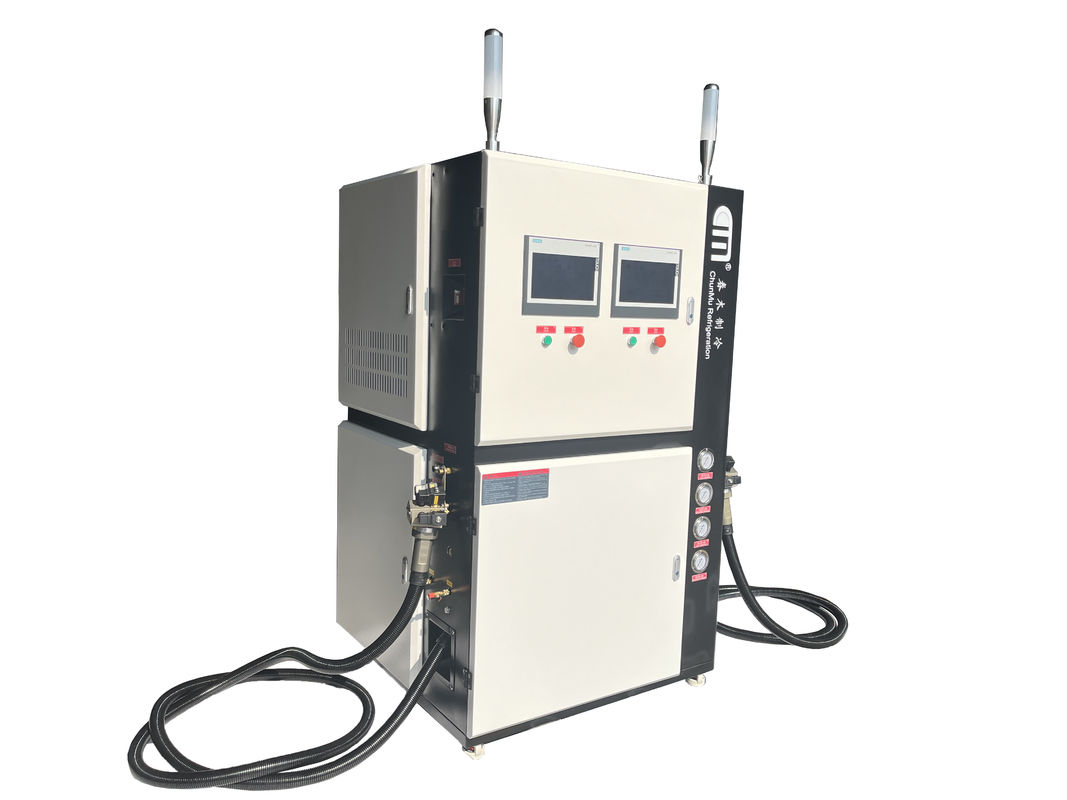

CM8600 dual system refrigerant charging machine for refrigerator assembly line
CM86 refrigerant charging machine is specially designed for the fast speed refrigerant charging at production line. It features for its high speed of charging, high accuracy. multiple function etc. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Features
1. Adpot CNC technology allow the data processing capability witP1060073h accurate and easy operation.
2.Charing/filling liquid gas r134a, r22, r407c, r410a etc.(for r600a, r290,r32 can custom).
3. Siemens PLC and colorful touch sreen control system.
4. Adopt high accuracy flow sensors make this machine can get accurate data, and the resolution has reached to 1~0.1g.
5. The Wonfulay(our own brand) Pneumatic booster to ensure stable pressure and the supply of large charging quantity.
6. The continous charging/filling quantity up to 99999g, and the charging rate is 60g~260g.
7. There's a automatic prompts function when the refrigerant in the cylinder is lack.
8. The vacuum time and inspection leak time can be adjusted according to your requirements.
9. Adopt Wonfulay(our own brand) filling gun in the filling interface which improve the charging/filling speed.
10. With Wonfulay(our own brand) high vacuum pump makes it with quick vacuum, the vacuum has reached to 5~10pa.
11. This mahcine has vacuum, inspection leak, charging/filling, recovery refrigerant function.
12. Repeat filling accuracy is ≤ ± 0.5%.
13. Easy to move
Specification
|
Model
|
CM8600 (T)
|
|
|
|
|
||||
|
Series No.
|
T40
|
T60
|
T80
|
T100
|
T150
|
||||
|
Charging Speed
|
≥40 g/s
(2.4 kg/min) |
≥60 g/s
(3.6 kg/min) |
≥80 g/s
(4.8kg/min) |
≥100 g/s
(6.0kg/min) |
≥150-200 g/s
(9-12kg/min) |
||||
|
Charging capacity
(for one time)
|
10-99999g
|
|
|
20-9999999g
|
|
||||
|
Charging accuracy
|
＜100g,±0.5g
100g—2000g,≤±0.5% ＞2000g,≤±0.3% |
|
|
＜500g,≤2g
500-2000g,≤±0.5% ＞2000g,≤±0.3% |
|
||||
|
Charging technology
|
RRT turbine flowmeter (RHEONIK mass flowmeter is optional)
|
|
|
|
|
||||
|
Resolution
|
0.1g
|
|
|
|
|
||||
|
Certification
|
CE
|
|
|
|
|
||||
|
Vacuum pump
|
4L/S
|
|
|
8L/S
|
|
||||
|
Vacuum degree
|
3-5pa
|
|
|
|
|
||||
|
Injector connection
|
Hansen 1/4” or 3/8”
|
|
|
|
|
||||
|
Charging hose length
|
3m - 20m
|
|
|
|
|
||||
|
Communication interface
|
RS485/RS232/
|
|
|
|
|
||||
|
Pre-set Channel
|
100
|
|
|
|
|
||||
|
Compressed Air
|
0.5-0.7Mpa
|
|
|
|
|
||||
|
PLC
|
Siemens
|
|
|
|
|
||||
|
Power Supply
|
380V 50HZ 3Ph or 220V 50Hz 1Ph
|
|
|
|
|
||||
|
Approved Refrigerants
|
R134a,R22,R513a,R404A,R410A,R406A.etc
|
|
|
|
|
||||
|
Application
|
Air Condition,Water Cooler,Beer Machine,Freezers, refrigerators, chillers, heat pumps
|
|
|
|
|
||||
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/recharge/reclaim/vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
Our products are sold all over the world, you can rest assured.
