Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine

Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine

Products - Refrigerant Recovery Machine
  • Condition
    New
  • Weight (KG)
    280
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Compressor
  • Type
    Oil-less
  • Warranty
    1 Year, 1 Year
  • Product Name
    Refrigerant Recovery System
  • Compressor Type
    Oil-free Twin-cylinder
  • Vapor Recovery Rate
    No More Than 60 Kg/h
  • Pull/Push Recovery Rate
    No More Than 1300kg/h
  • Voltage
    220-380V/50Hz
  • After-sales Service Provided
    Video Technical Support
  • Approved Refrigerants
    R32 R410A R600 R290 R134A
  • Application
    Refrigerant Factory,etc
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE
  • Model Number
    CM-V400
  • Minimum Order Quantity
    1 Unit
  • Price
    $7,100.00/cartons 1-1 cartons
  • Packaging Details
    Fully closed carton
  • Supply Ability
    200 Unit/Units per Month

Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine

  • Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine
  • Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine
  • Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine
  • Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine
  • Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine
Get Price Contact Now
Product Description
Refrigerant Recovery System Products in CM-V400 commercial refrigerant recovery machine series are universal for most common and flammable refrigerants. It equipped with powerful stainless steel two stage oil-less compressor which allow machine recovery refrigerant fast flow rate and long working life,it is specially designed for chiller service and ton tank residual gas recovery from ton tank or cylinder for reduce refrigerant waster during operation.
Details Images

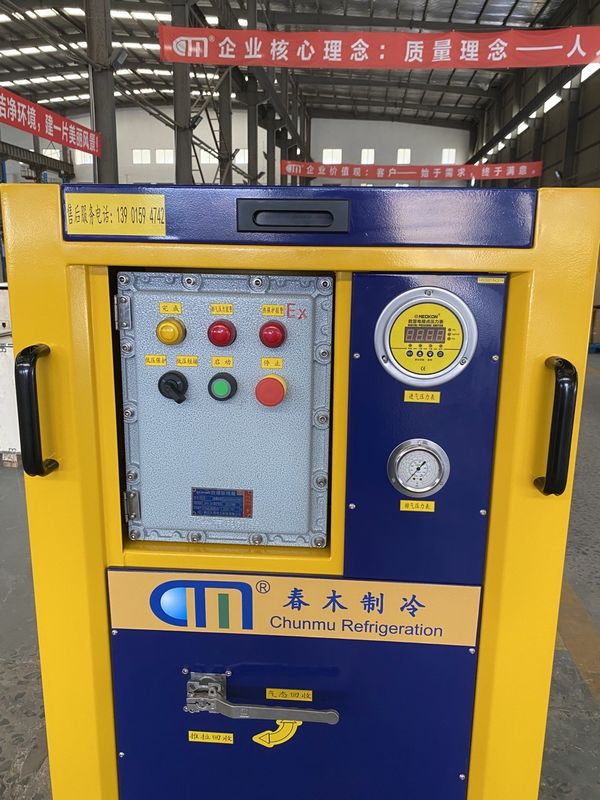

Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 0

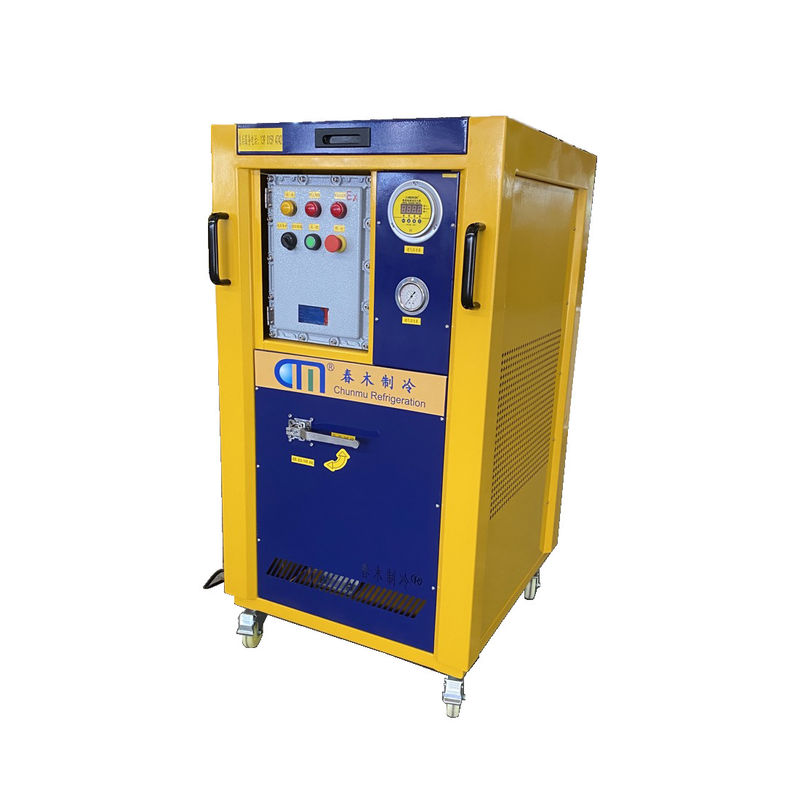

Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 1
Our Advantages

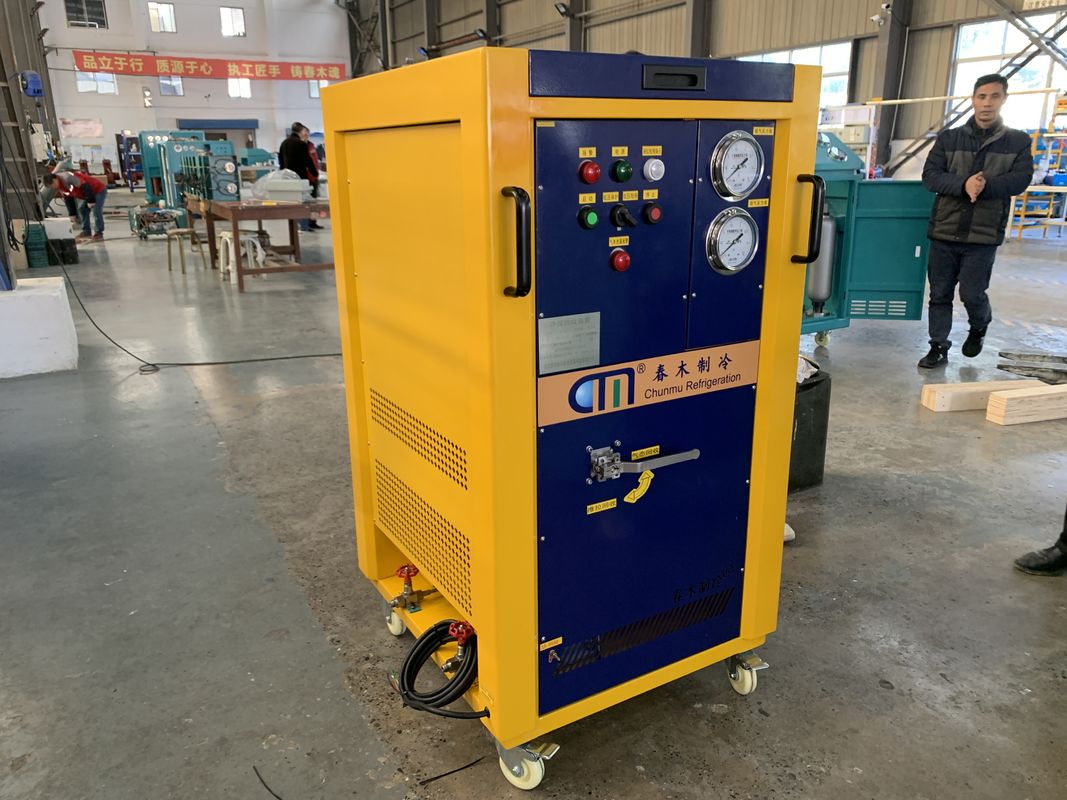

Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 2
FEATURES

1. Explosion-proof design to recycle gas, liquid and gas-liquid refrigerant.
2. Extra large fan and high efficient condenser design for faster recycling and charging.
3. Work 24 hours continuously.
4.High and low pressure shut-off function

5. Multi-functional valve design to clean the internally residual refrigerants in the machine automatically and pretend pollution
within the refrigerants.
6. Complete protection for high pressure and electric current, to giving the security for the system operation.
7. Equipped with oil separator and filter drier
8. Large displacement oil less compressor with ultra fast recovery rate
9.ATEX&CE Certification
Product Paramenters
Model
Refrigerant Recovery System CM-V400(5IIA3EP)
Horsepower
4HP
Vapor Recovery Rate
≤ 60 kg/h
Liquid Push&Pull Recovery Rate
≤ 1300 kg/h
Standard Voltage
380V 50Hz 3ph
Approved Refirgerants
R32 R410A R600 R290 R134A
Net Weight
280KG
Remark: other special voltage is also customized
-0.04 to +0.6Mpa
Cooperation Partners & Cases
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 3
We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.
No.
Partner Name
Main Product Type
Cooperation Time
1
YORK Air Conditioning
Refrigerant recovery machine
11 years
2
CARRIER Air Conditioning
Refrigerant recovery/recharge machine
06 years
3
MCQUAY Air Conditioning
Refrigerant recovery/recharge machine
09 years
4
CLIMAVENETA Air Conditioning
Refrigerant recovery/recharge machine
04 years
5
TICA Air Conditioning
Refrigerant recovery/recharge machine
08 years



CERTIFICATES
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 4




Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 5







PROJECT CASES
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 6



SPECIAL UNITS:
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 7
Packing&Shipping
1. Single packing: Mini wooden pallet + Carton
2. Bulk packing: Large pallet + Straps + Wrapping film
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 8
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 9
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 10
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 11
Company Introduction
CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 12
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 13
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 14
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 15
Gas Freon Recovery Machine R134 4HP Recoery Unit Air Conditioning Recovery Recharge Machine 16




WHY CHOOSE CM REFRIGERATION

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.

>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.

>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.

>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.

>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.

>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
