R600A Refrigerant Air Condition Refrigerant Charging Station

R600A Refrigerant Air Condition Refrigerant Charging Station

  • Condition
    New
  • Applicable Industries
    Garment Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Construction Works , Energy & Mining, Advertising Company
  • Weight (KG)
    250
  • Showroom Location
    United States, Saudi Arabia, Spain
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Pump
  • Type
    Refrigerant Filling Machine
  • Warranty
    1 Year
  • Model
    CM8600
  • Product Name
    Refrigerant Charging Machine
  • Refrigerant
    R410A R32 R134A R22
  • Charging Rate
    20g~260g/s
  • Accuracy
    ≤±0.05%
  • Power
    380v/50hz
  • Horse Power
    2HP
  • Brand
    CM
  • Marketing Type
    New Product 2020
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE
  • Model Number
    CM8600
  • Minimum Order Quantity
    1 Unit
  • Price
    $30,000.00/sets >=1 sets
  • Packaging Details
    wood case
  • Supply Ability
    100 Set/Sets per Month

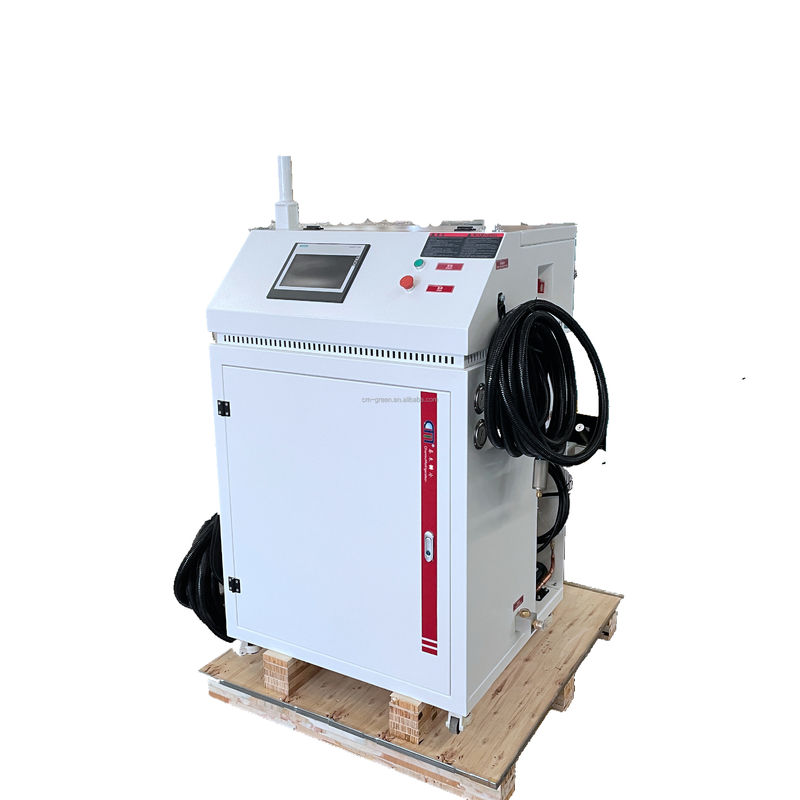

R600A Refrigerant Air Condition Refrigerant Charging Station

Product Description

R600A Refrigerant Air Condition Refrigerant Charging Station 0R600A Refrigerant Air Condition Refrigerant Charging Station 1



CM86 Refrigerant Charging System



CM86 production line freon filling equipment series is specially designed for refrigeration equipment production line,it's suitable for various application which includes chiller,air condition,

refrigerator or beer machine



The entire system was controller by Siemens PLC technology with full automatic operation. It featured for its high speed of charging, high accuracy. multiple function etc. CM8600 production line freon filling equipment are compatible with refrigerants of CFC,HFC,HC,etc. The production line freon filling equipment can also be customized according to your special requirements.



Features



(1) Full Automatic Control system, with the most accurate data processing capacity;

(2) Colorful touch screen, with smart control panel in both English and Chinese
(3) Suitable for various refrigerant,such as R134a, R22,R410a ,R407c,R32,R404a,R1234yf etc.
(4) Equipped with high resolution sensor flowmeter;
(5) Have the functioning of detecting vacuuming and leakage for workpiece;
(6) Efficient for improving production and charging quality;
(7) The barcode reader can be optional, save more than 40 different product items;
(8) Smart refrigerant charging gun to ensure the vacuuming efficiency, refilling accuracy and reliability;





Specification



Suitable Refrigerant
R134A.R404A.R22.R410A.R290 etc.
Working pressure
1.8MPa-2.8MPa
Refrigerant Charging Accuracy
±0.5%
Charging Speed
20g/s-200g/s
Vacuum Degree
≤5Pa
Charging range
0-50KG adjustable
Vacuum speed
8L/S
Pre-set channel
100
Gauge meter
Mass flow meter
Vacuum inspect
10-300Pa
Charging Gun Connection
Hansen 1/4"&3/8"
Length of filling pipe
3-10M
Power and voltage
380V 50Hz 3Ph & 220V 50Hz 1Ph
compressed air pressure
6-8Bar
Product Dimension
950W*750D*1450Hmm
Net weight
250kg



R600A Refrigerant Air Condition Refrigerant Charging Station 2R600A Refrigerant Air Condition Refrigerant Charging Station 3R600A Refrigerant Air Condition Refrigerant Charging Station 4R600A Refrigerant Air Condition Refrigerant Charging Station 5R600A Refrigerant Air Condition Refrigerant Charging Station 6R600A Refrigerant Air Condition Refrigerant Charging Station 7R600A Refrigerant Air Condition Refrigerant Charging Station 8R600A Refrigerant Air Condition Refrigerant Charging Station 9R600A Refrigerant Air Condition Refrigerant Charging Station 10R600A Refrigerant Air Condition Refrigerant Charging Station 11

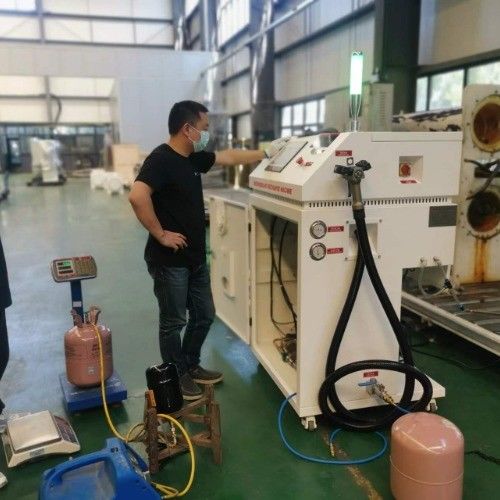

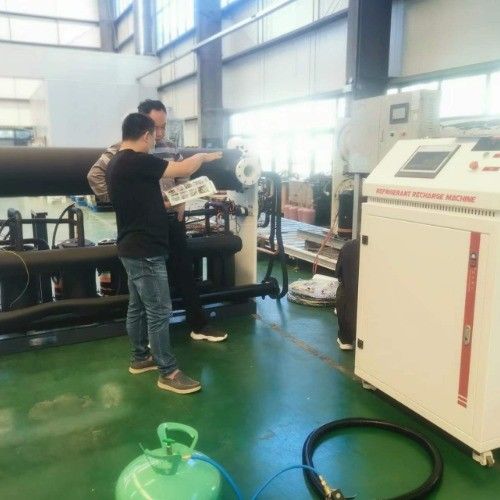

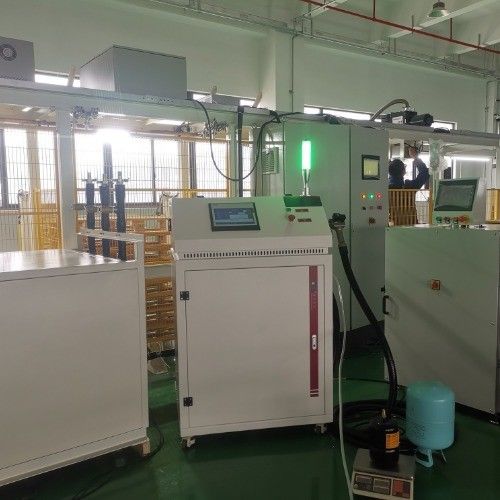

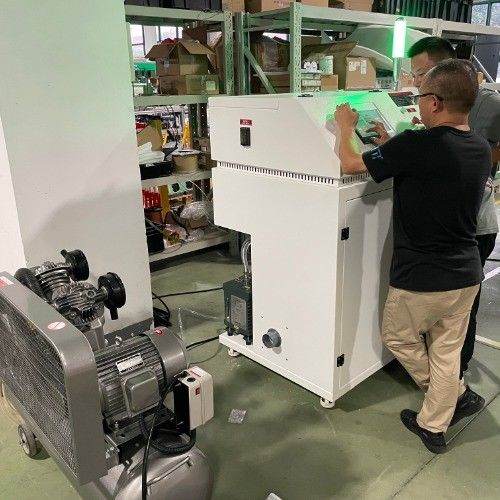

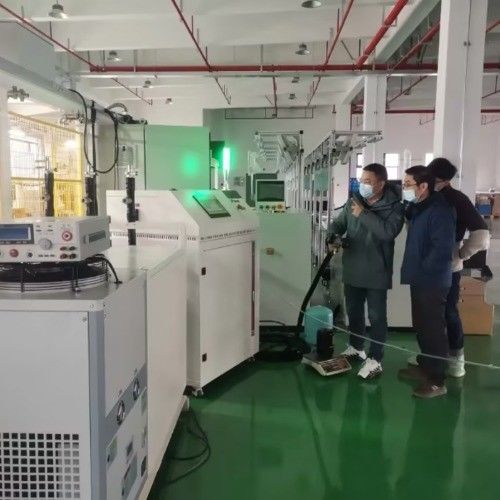

Customer Project
