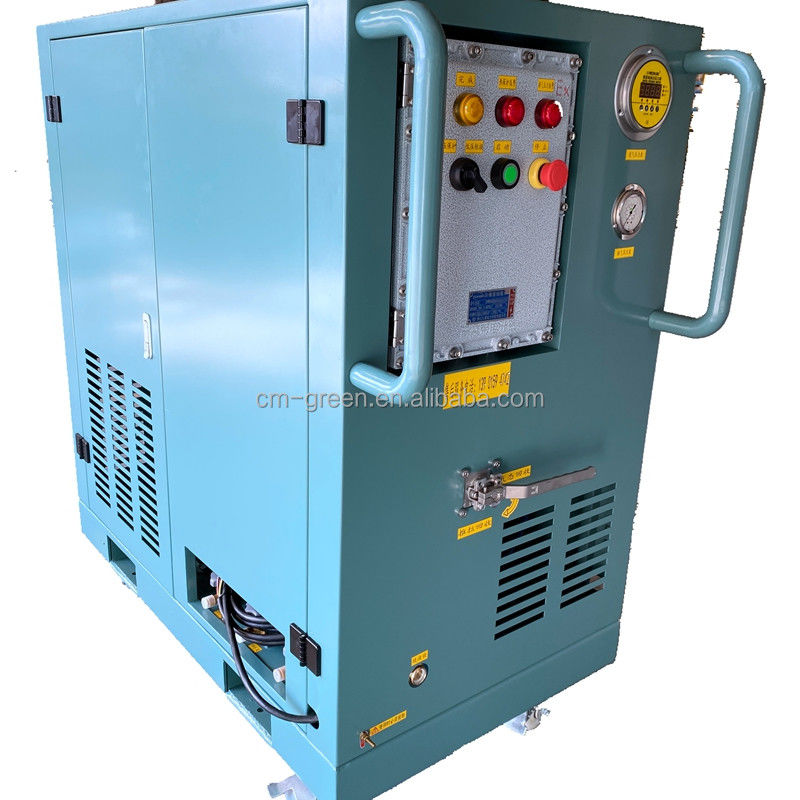

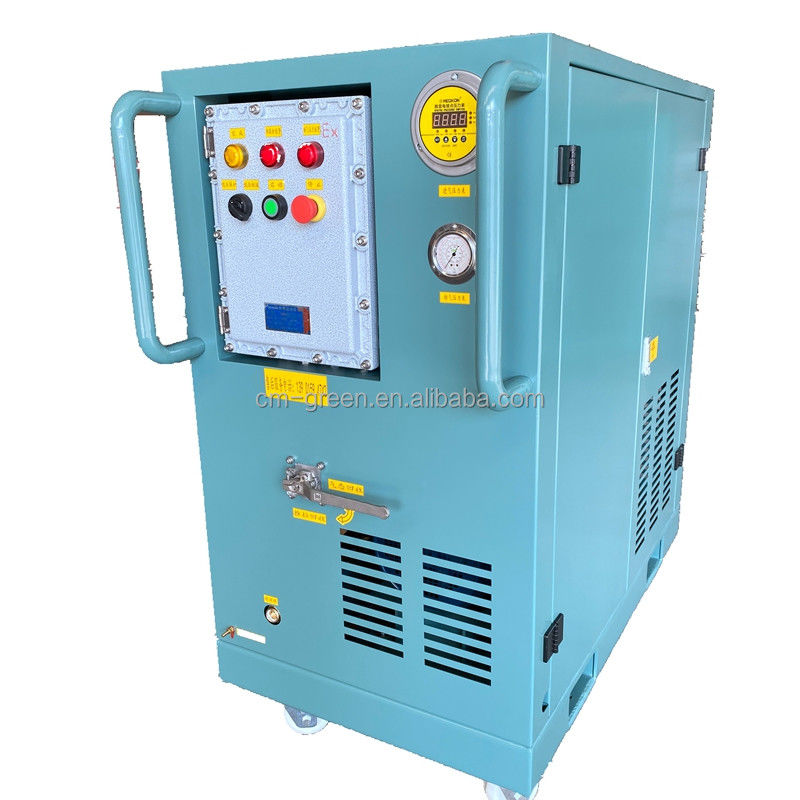

CE Certificated WFL Refrigerant Recycling Machine R134a Freon Recovery Unit 5HP 7HP Chiller Recovery Machine

WFL16/WFL18 R22 refrigerant auto ac recharge and recovery machine

Advantages
• Performance has become a forefront of the industry and meet ARI-700 standards;
• Universal for CFC/HCFC/HFC of medium & low pressure refrigerants;
• 24-hour continuous working;
• No need for special maintenance when recovery different refrigerants, just evacuation.
• No cross contamination;
• High performance/price ratio - rapid investment return Maintenance is simple.

Product Feature of WFL16/WFL18 R22 refrigerant auto ac recharge and recovery machine
• Oil-free lubricating compressor - compatible with CFC/HCFC/HFC refrigerants
• Fast recovery recharging rate for both liquid and vapor refrigerants
• Multi-function valve design- simple operation in vapor and push/pull recovery
• Perfect protection system - safe credibility;
• Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04Mpa
• Easy to operate and convenient to move;
• Perfect protection system- safe credibility;
• Water/cooled design - Effective heat dissipation;
• For 3000kg cooling system, finish all the refrigerant recovery within 5 hours;

Working & Environmental Temp.: -10-60 degree
Cooling Type: water cooled( air cooled is optional)
Recovery Mode: Vapor & Push/Pull Liquid Recovery
Hose: 3/4"

Voltage of WFL16 R22 refrigerant auto ac recharge and recovery machine (optional)
50Hz/3PH/380V 50Hz/3PH/400V
50Hz/3PH/415V 60Hz/3PH/380V
60Hz/3PH/440V 60Hz/3PH/460V

1/2" connecting hose(length is customizable)
3/8" connecting hose(length is customizable)
5/8" connecting hose(length is customizable)
3/4" connecting hose(length is customizable)
3/4" to 3/8" adapter
3/4" to 1/4" adapter
3/4" to 5/8" adapter
3/4" filter
Cylinder (20L-1000L) customizable
Float switch for cylinder
(length of power cord is customizable)

Transfer refrigerants from ISO tank to tonnage tank;
Service chillers & other large & medium cooling systems below 3000 cooling ton;
Large & medium central A/C factories;
On site maintenance of lage & medium HVAC/R products

Electric Oil Pump

Manual Oil Pump

Steel Cylinder

Vacuum Pump

Trolley Tube Pipe Cleaner

Portable Tube Pipe Cleaner

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.

CM(ChunMu)@ChinaRefrigerationExpo

Packing: carton, pallet, wooden case.

Delivery time: within 7-30 days after receiving the payment.
