CM8600 Refrigerant Fluid Gas Charging Equipment Automatic PLC Air Condition Charging Station R134a R410A
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)370
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsPump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
Product NameCM8600 Single Charging Refrigerant Filling Machine
-
RefrigerantR600a R32 R290 R134a, R22, R513A, R404A, R410A, R406A
-
Power Supply380V50Hz 3Ph/220V50Hz 1Ph
-
ApplicationAir Conditioner, Water Cooler, Freezer, Refrigerators, Chillers,etc
-
Charging Speed40g/s - 200g/s
-
Charging Capacity10-99999g
-
Charging Accuracy+/-0.5g, ≤+/-0.5%, ≤+/-0.3%
-
Resolution0.1g
-
Injector ConnectorHansen 1/4" Or 3/8"
-
Charging Hose Length3m
-
PortShanghai Ningbo Tianjin Qingdao Shenzhen
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationISO CE
-
Model NumberCM8600
-
Minimum Order Quantity1
-
Price$13,800.00/units >=1 units
-
Packaging DetailsPlywood Case on Pallet CM8600 Single System AC Refrigerant Freon Gas Charging Machine
-
Supply Ability50 Unit/Units per Month
CM8600 Refrigerant Fluid Gas Charging Equipment Automatic PLC Air Condition Charging Station R134a R410A

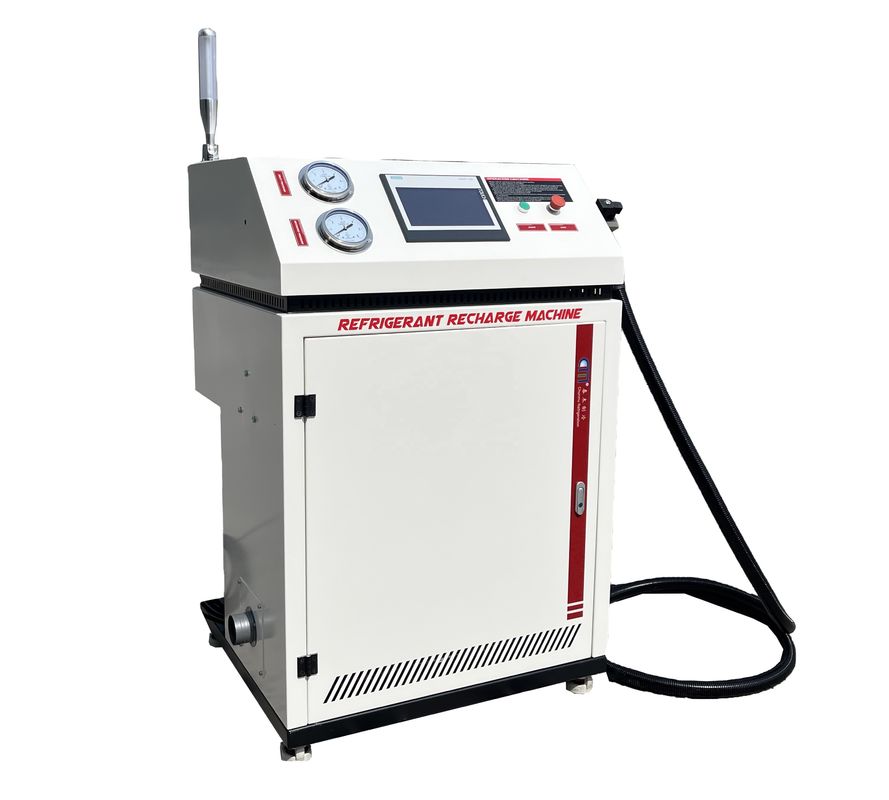

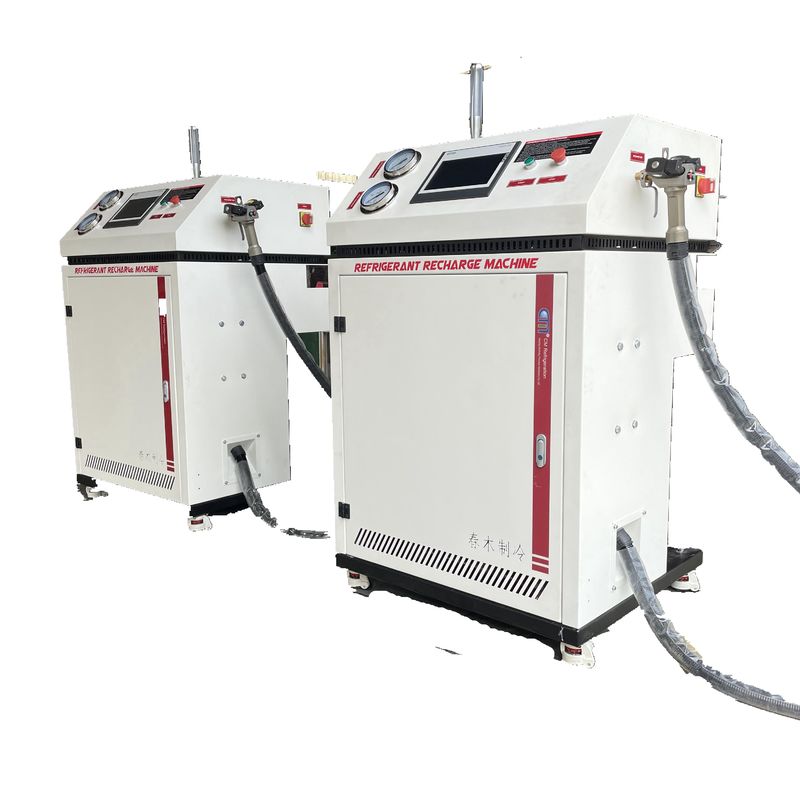

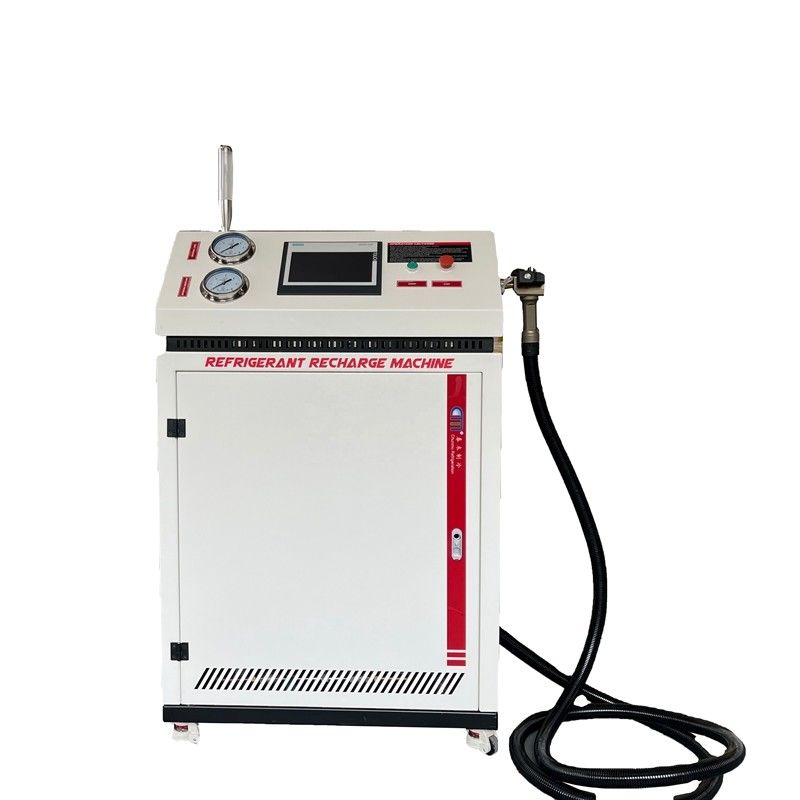

CM8600 (Single System) High Speed Refrigerant Charging Machine
Specification
| Equipment model | CM 8600 S Series |
| Device Serial Number | S 100 |
| Filling speed | ≥100 g/s (6 kg/min) |
| Single charge amount | 20-9999999 g |
| Filling accuracy | ≤2 g ;500 g-2000 g,≤±0.5% ;>2000 g,≤±0.3% |
| Measurement methods | RRT American Ruby Flow Meter |
| Resolution ratio | 0.1 g |
| Equipment certification | CE |
| Vacuum rate | 8 L/S |
| Vacuum degree of machine | 3-5 pa |
| Filling gun port | Hansen 1/4 or 3/8 quick connectors |
| Length of filling gun | Standard with 3 meters, other specifications 3-10 meters optional |
| Communication interface | RS485/RS232/Ethernet |
| Channels quantity | 100 |
| Compressed air pressure | 0.5-0.7Mpa |
| Programmer | Siemens |
| Power supply | 380V 50Hz 3Phase or 220V 50Hz 1Phase |
| Dimension | 900*800*1340 mm |
| Approved refrigerants | R134a, R22, R513a, R404A, R410A, R406A etc. |
Features
ChunMu Refrigeration,well know as "CM" was established in 1998, a comprehensive hi-tech enterprise specialized in R&D, manufacturing oil less refrigerant recovery,reclaim and charging equipment in HVAC/R industry. In the past 24 years,CM provides one stop engineering and manufacturing designed to provide its’ customers with customized solutions
to meet their commercial and residential HVAC service needs. Whatever your HVAC service needs may be, CM has the knowledge and expertise to solve your problems.With the environmental pollution of traditional refrigerants a large number of traditional refrigerants need to be recycled and reused, and new environmentally friendly refrigerants have been invented in recent years, giving the company a development belt. With new opportunities, CM has continuously increased its R&D investment in recent years. It has developed many new products such as R600/R290/R1234yf to meet the individual needs of different customers and helped many companies reduced refrigerant waste in production and maintenance process and save large amount funds for, protecting the environment.
History
| 1998 |
CM founded in 1998, entered the HVACR industry as refrigerant recovery,reclaim and charging solution provider and manufacturer |
| 2004-2006 |
2004,successfully launched first generation portable type residential refrigerant recovery unit,featured by compact design,fast recovery rate with pull rod design,after then,it certificated by CE and ISO-9001 and become the most popular recovery unit in the world. |
| 2007-2009 |
2009,successfully launched commercial and industrial refrigerant recovery recycling system and been authorized by York of Johnson Control to be manufacture refrigerant recovery system with York brand,meanwhile,the industrial recovery machine passed the inspection of York engineering team which capable o |
| 2010-2014 |
2010,York ex chief engineer Dr Lee joined CM R&D engineering team, meanwhile 25HP rapid refrigerant recovery machine lanuched and been export to Saudi Arabia Ghawar oil field.By the fast recovery rate and unmatched performance,it's been highly praised by the users. f recovering 3 tons refrigerant within 4hours. |

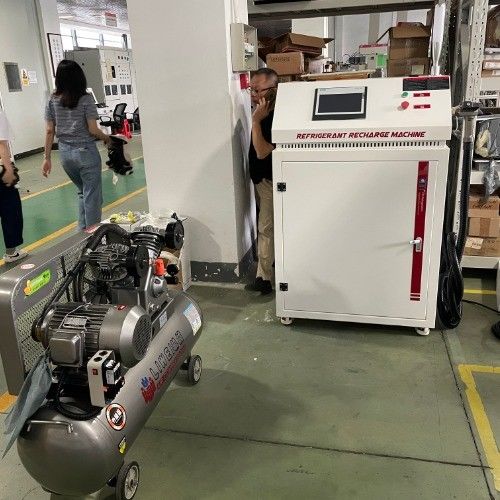

Workshop
Exhibition and Clients' Visit
Our products are sold all over the world, you can rest assured.
