R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station

R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station

  • Condition
    New
  • Applicable Industries
    Manufacturing Plant
  • Weight (KG)
    250
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Pump
  • Type
    Refrigerant Filling Machine
  • Warranty
    1 Year
  • Product Name
    Refrigerant Charging Machine
  • Refrigerant
    R410A R32 R134A R22
  • Charging Rate
    60g~260g/s
  • Accuracy
    ≤±0.05%
  • Power
    380v/50hz
  • Horse Power
    2HP
  • Marketing Type
    New Product 2020
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE
  • Model Number
    CM8600
  • Minimum Order Quantity
    1 Unit
  • Price
    $16,200.00/sets >=1 sets
  • Packaging Details
    wood case
  • Supply Ability
    100 Set/Sets per Month

R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station

Product Description

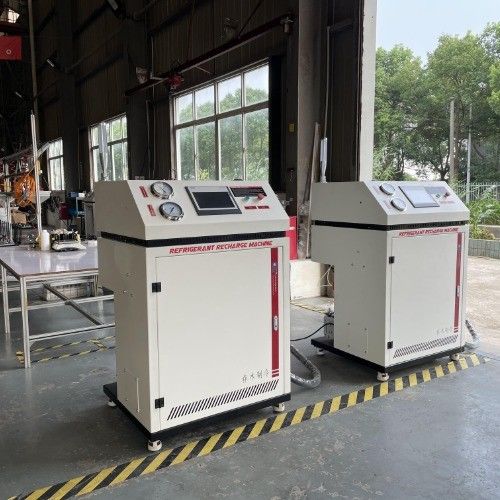

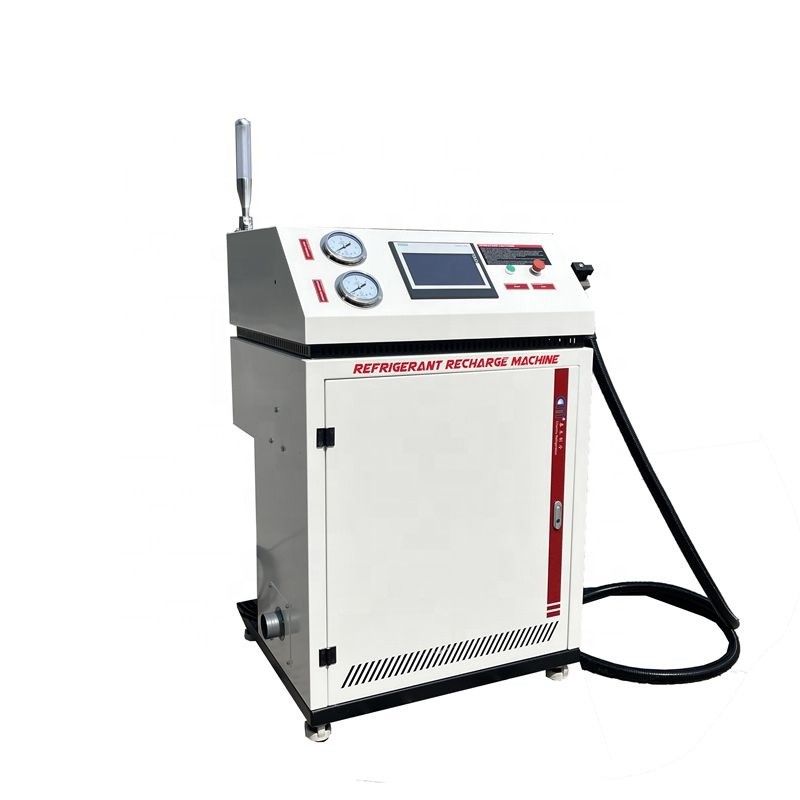

 R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 0











CM86 Refrigerant Charging System



CM86 production line freon filling equipment series is specially designed for refrigeration equipment production line,it's suitable for various application which includes chiller,air condition,

refrigerator or beer machine



The entire system was controller by Siemens PLC technology with full automatic operation. It featured for its high speed of charging, high accuracy. multiple function etc. CM8600 production line freon filling equipment are compatible with refrigerants of CFC,HFC,HC,etc. The production line freon filling equipment can also be customized according to your special requirements.



Features



(1) Full Automatic Control system, with the most accurate data processing capacity;

(2) Colorful touch screen, with smart control panel in both English and Chinese
(3) Suitable for various refrigerant,such as R134a, R22,R410a ,R407c,R32,R404a,R1234yf etc.
(4) Equipped with high resolution sensor flowmeter;
(5) Have the functioning of detecting vacuuming and leakage for workpiece;
(6) Efficient for improving production and charging quality;
(7) The barcode reader can be optional, save more than 40 different product items;
(8) Smart refrigerant charging gun to ensure the vacuuming efficiency, refilling accuracy and reliability;





Specification





Model
CM86
Suitable for refrigerant
Applicablerefrigerants
         R134a, R410a, R407c, R406,           R22,R32,R1234yf,R12, etc.
Filling quantity range(g)
50-99999g
Filling speed
Chargingspeed(g/s)
80-120
Traffic resolution
Resolution
0.1g
Local vacuum rate
Vacuumspeed
4L/S
Vacuum Degree
≤0.5Pa
Detecting vacuum
Detectionvacuum
5Pa-1000Pa
Preset channel
Defaultchannelnumber
100
Compressed air supply  pressure
0.5-0.8MPa
Touch screen, controller,module

Siemens 7"
Power supply
AC380V50HZor AC22050HZ60HZ



Optional Equipment



Pre-Vacuum System

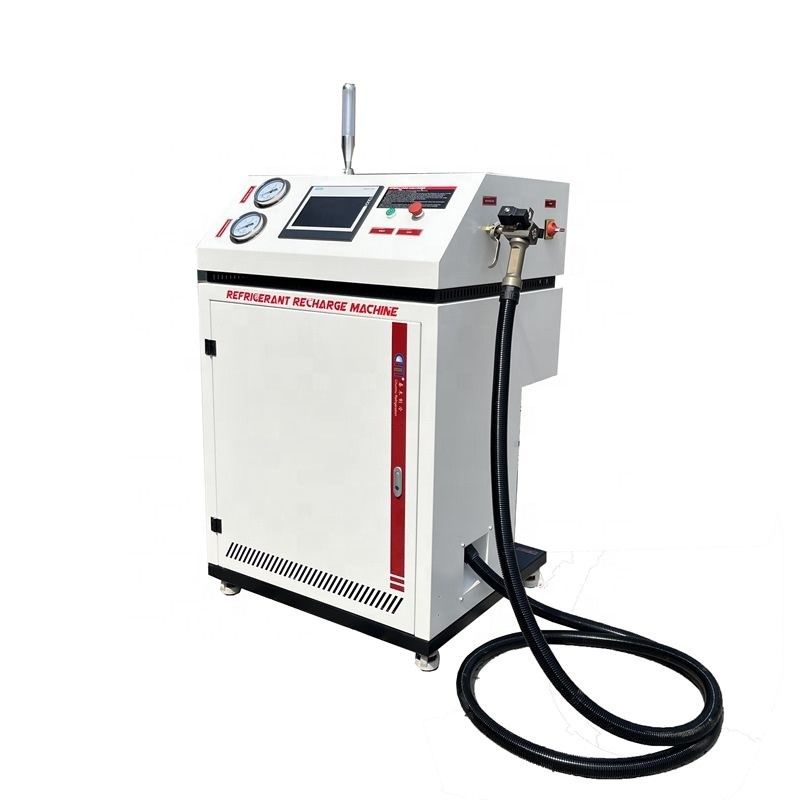

R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 1

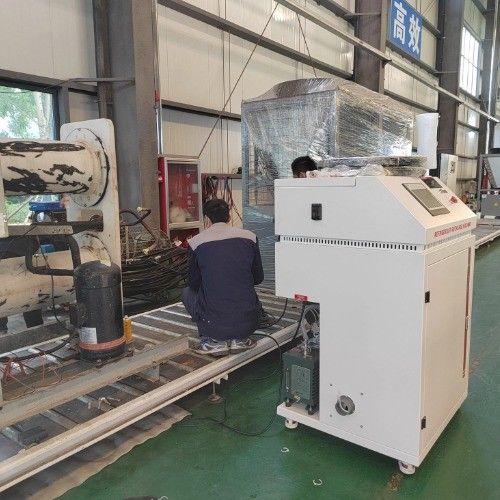

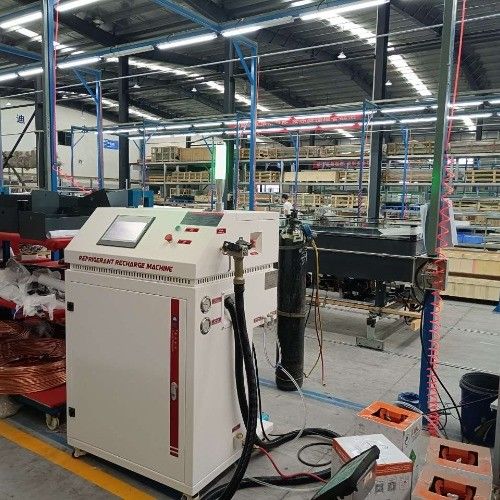

Customer Project

 R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 2R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 3R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 4R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 5R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 6





R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 7R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 8R22 R134A refrigerant recharge machine flammable refrigerant charging machine R32 R290 charging station 9
