CM580 Fast transfer machine Fast gas recovery machine equipment refrigerant recovery machine R32 R134A R410A

CM580 Fast transfer machine Fast gas recovery machine equipment refrigerant recovery machine R32 R134A R410A

Product Description of CM580 Refrigerant recovery machine
Performance has become a forefront of the industry and meet ARI-700 standards;
Universal for CFC/HCFC/HFC of medium & low pressure refrigerants;
24-hour continuous working;
No need for special maintenance when recovery different refrigerants, just evacuation. No cross contamination;
High performance/price ratio - rapid investment return Maintenance is simple.

Applicable Refrigerants: R134A, R407C, R22, R410A

Product Feature of CM580 Refrigerant recovery machine
Oil-free lubricating compressor - compatible with CFC/HCFC/HFC refrigerants
Fast recovery recharging rate for both liquid and vapor refrigerants
Multi-function valve design- simple operation in vapor and push/pull recovery
Perfect protection system - safe credibility;
Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04Mpa
Easy to operate and convenient to move;
Perfect protection system- safe credibility;
Water/cooled design - Effective heat dissipation
For 10000kg cooling system, finish all the refrigerant recovery within few hours;

Product Specification/Models

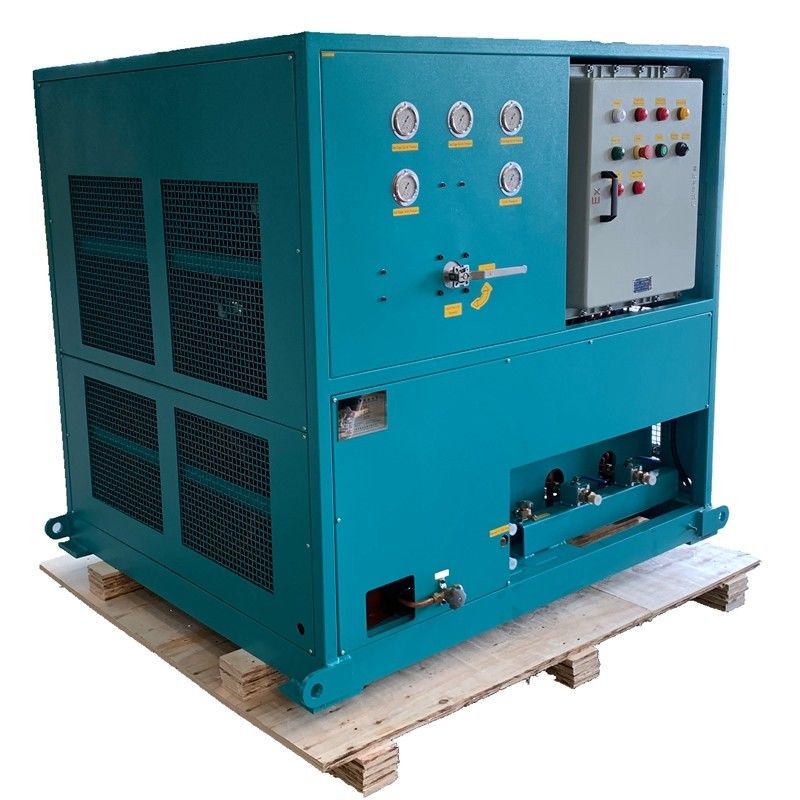

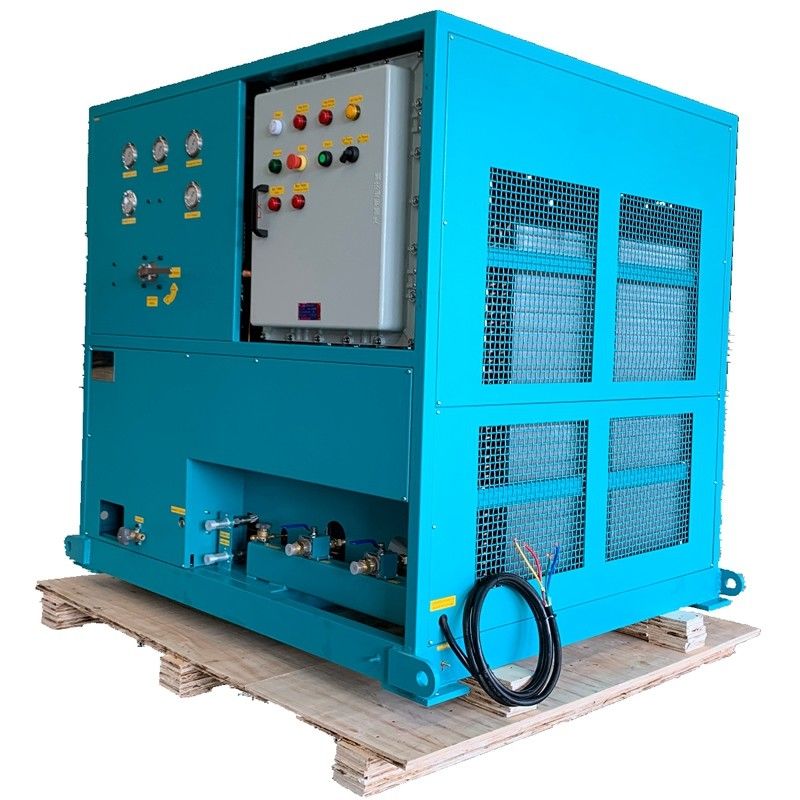

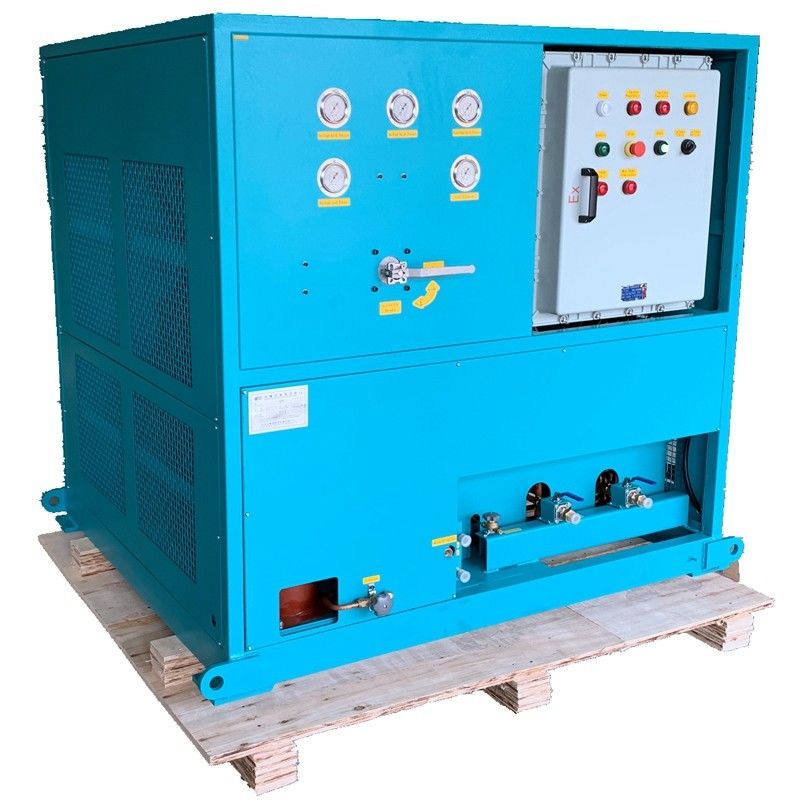

Model: CM580 Refrigerant recovery machine
Compressor: 15HP, oil free
Vapor Recovery Rate: less than13.2lbs/min(360kg/h)
Push/Pull Recovery Rate: less than 660lbs/min(18000kg/h)
Working & Environmental Temp.: -10 to 60 degree
Cooling Type: air cooled( water cooled is optional)
Recovery Mode: Vapor & Push/Pull Liquid Recovery
Hose: 2"
Voltage of WFL36 Refrigerant recovery machine(optional)
50Hz/3PH/380V 50Hz/3PH/400V
50Hz/3PH/415V 60Hz/3PH/380V
60Hz/3PH/440V 60Hz/3PH/460V

Optional accessories of CM580 Refrigerant recovery machine
1/2" connecting hose(length is customizable)
3/8" connecting hose(length is customizable)
5/8" connecting hose(length is customizable)
3/4" connecting hose(length is customizable)
2" flang hose(length is customizable)
2" filter
2" adapter is customizable
Cylinder (20L-1000L) customizable
Float switch for cylinder
( length of power cord is customizable)

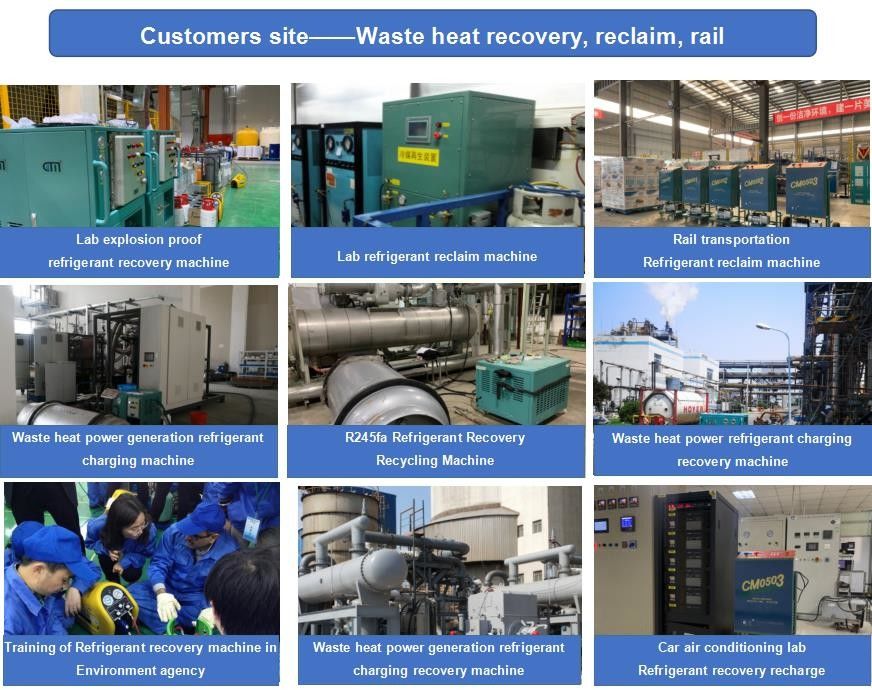

Application of CM580 Refrigerant recovery machine
Transfer refrigerants;
Service chillers & other large & medium cooling systems below 10000 cooling ton;
Large & medium central A/C factories;
On site maintenance of lage & medium HVAC/R products

Other Information of CM580 Refrigerant recovery machine
Included with Purchase(standard)
Recovery system 1set;
Operating manual 1pc
Certification of quality 1pc

Payment
T/T

Delivery
35 days

Origin
China

Minimum Order
1

Packaging
wood case

Inspection
1-year guarantee

Samples
Charge

Remarks
1-year guarrantee, forever technic support
