R32 R410a oil less refrigerant ISO tank recovery unit 4HP explosion proof recovery machine ac charging recharge machine

Condition

New
Applicable Industries

Manufacturing Plant
Weight (KG)

300
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Not Available
Warranty Of Core Components

1 Year
Core Components

Motor
Type

Refrigerant Recovery Machine
Warranty

1 Year
Product Name

Refrigerant Gas Recovery Machine
Compressor

4HP Oil-less Compressor
Refrigerant

R22/R134a/R410a/R407c.......
Voltage

380V/50Hz
Model No

CM-V400 Refrigerant Recycling Recovery Recharge Machine
Application

Refrigerant Factory, Lab, Chemical Factory, Etc
Vapor Recovery Rate

60kg/h
Liquid Recovery Rate

1300kg/h
Explosion Proof

Yes
Certificate

CE, ATEX
Port

Shanghai Ningbo Tianjin Qingdao
Place of Origin

Jiangsu, China
Brand Name

CM
Certification

CE ATEX
Model Number

CM-V400
Minimum Order Quantity

1 Unit
Price

$8,500.00/units 1-2 units
Packaging Details

Plywood case on pallet for CM-V400 4HP Explosion Proof Refrigerant Recovery Machine A/C Gas Charging Machine
Supply Ability

50 Unit/Units per Month

R32 R410a oil less refrigerant ISO tank recovery unit 4HP explosion proof recovery machine ac charging recharge machine

Name: R32 R410a oil less refrigerant ISO tank recovery unit 4HP explosion proof recovery machine ac charging recharge machine
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
SKU: CM-V400
Price: 1.00 USD
Availability: InStock

button button

Get Price Contact Now

Product Description

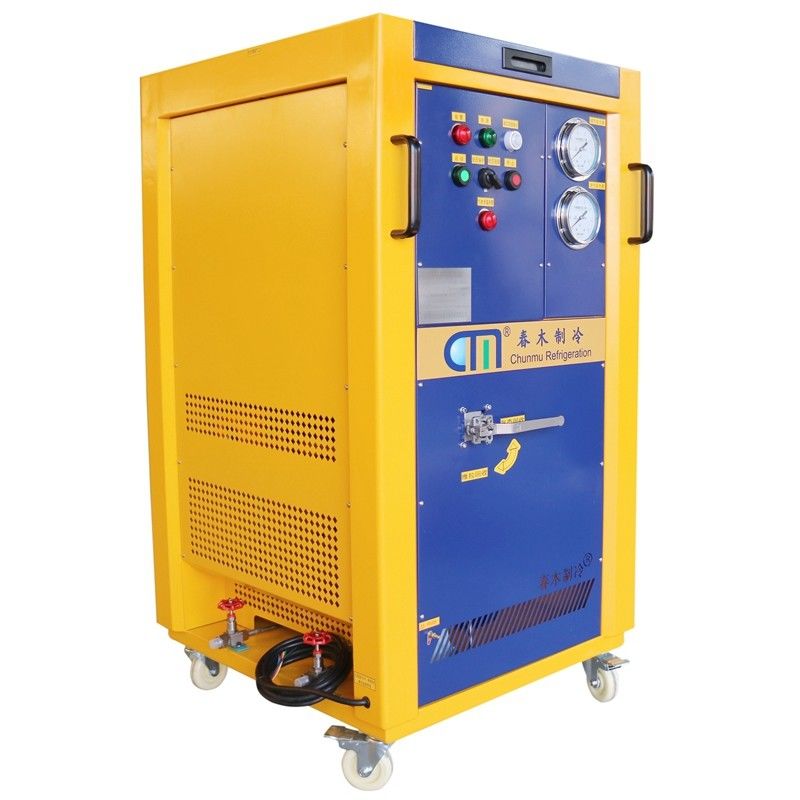

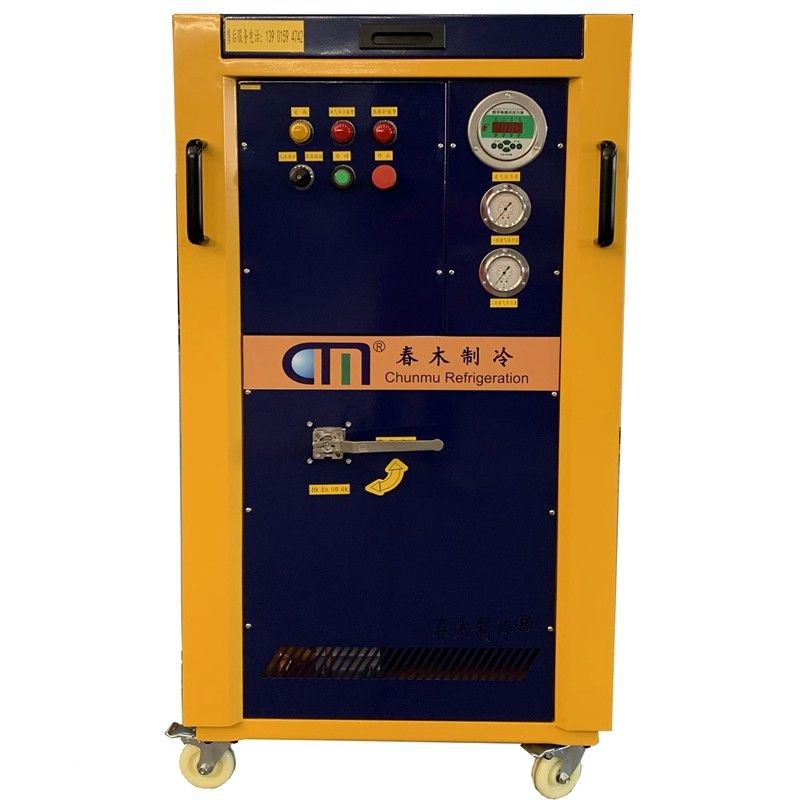

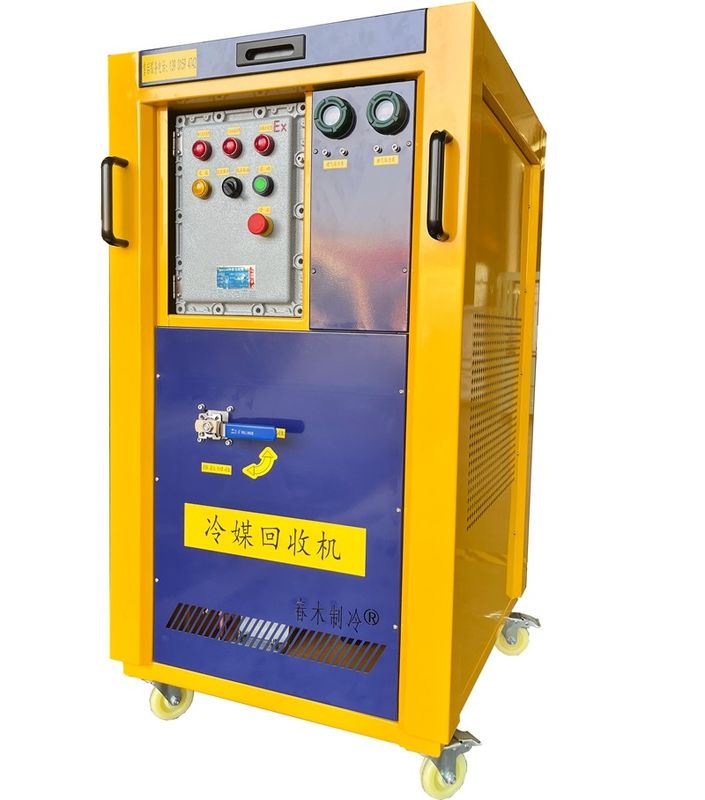

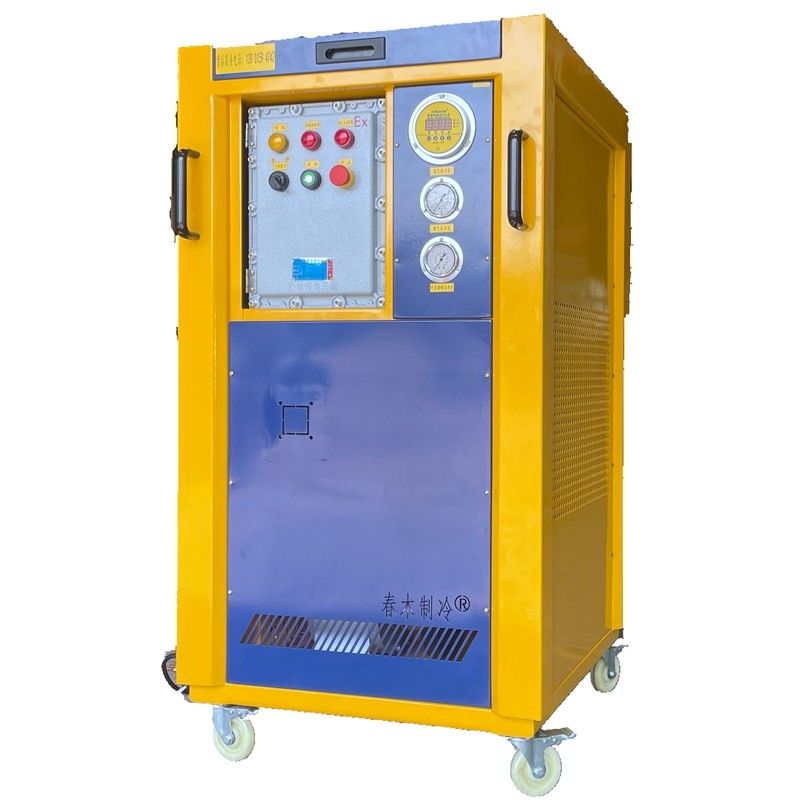

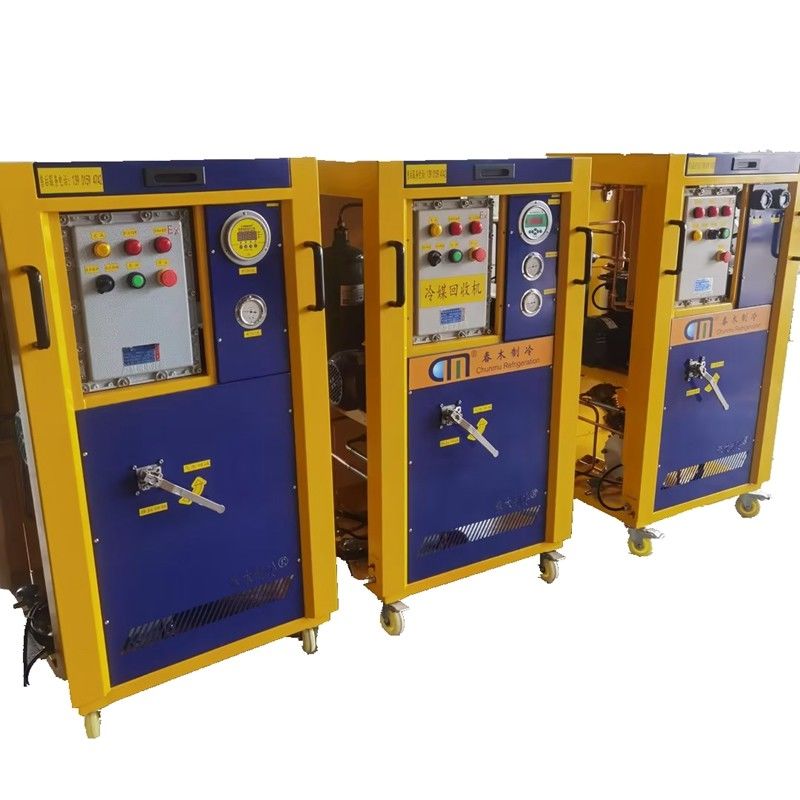

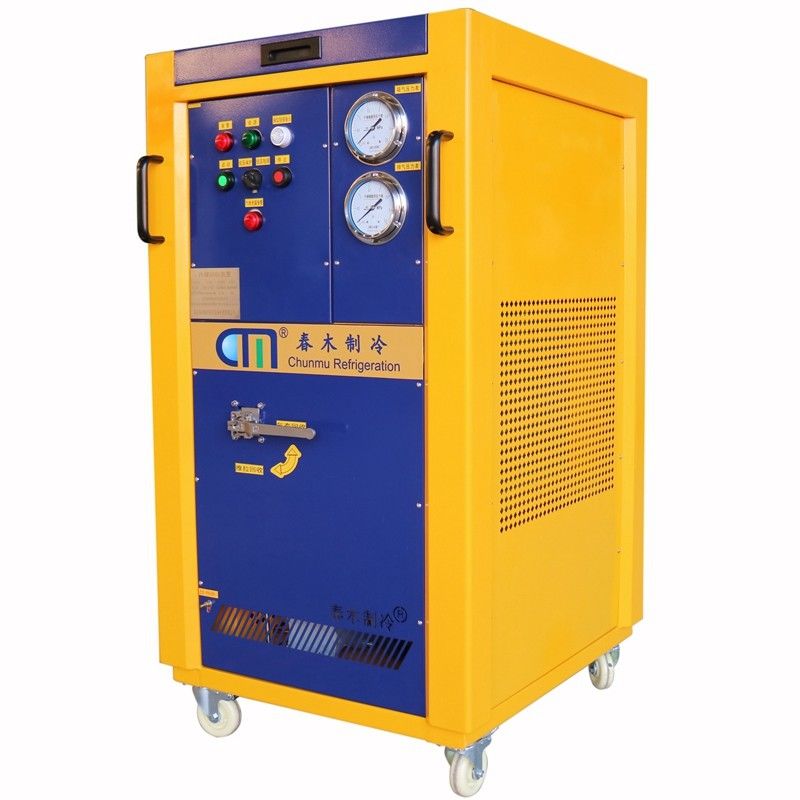

CM-V400 4HP Oil Less Large & Medium Refrigerant Recovery Charging Machine

CM-V400 commercial series refrigerant recovery machine is specially designed for HVAC equipment field service,it utilizes V-Twin oil less compressor,oversized condenser including pressure switches to be compatible with most CFC/HCFC/HFC refrigerants by fast recovery rate,it's a necessary tool for chiller maintenance technician.

Model	CM-V400-5IIA3EP
Horsepower	4HP
Compressor Displacement	5m³/h
Compressor Type	SS304 oil-free reciprocating
Vapor Recovery	≤60Kg/h
Liquid Push&Pull Recovery Rate	≤2000Kg/h
Cooling	Air Cooled
Applicable Refrigerant	R410A/R134a/R22/R290/R600A/R32etc.
Gas Leakage Monitoring	Yes
HP Shut-off	Yes
LP Shut-off	Yes
Oil Separator	Yes
Power Source	380V 50Hz 3Phase/220V 50Hz 1Phase
Certification	CE ATEX

Advantage and Features

·Oil-free compressor to be compatible with CFC/HCFC/HFC refrigerants
·Ultra fast recovery rate for both liquid and vapor refrigerants
·One valve to exchange vapor and liquid recovery without hose disconnection
·HP and LP shut off;
·Optional air cooled
·Low vacuum degree -0.07Mpa allow recovery more refrigerant
·Utilizes oil separator and filter drier
·Long compressor working life
·Continuously running for 24 hours duty cycle
·Can be customized for flammable refrigerants
Application
HVAC equipment field service
Refrigerant storage tank residual gas recovery

Related Product

Electric Oil Pump

Manual Oil Pump

Steel Cylinder

Vacuum Pump

Trolley Tube Pipe Cleaner

Portable Tube Pipe Cleaner

Why Choose Us

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and
service specialists available to discuss your needs.
>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the
rich experience and get you the correct solution to your problems.
>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique
needs.
>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems
solutions.
>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During
this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out
of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.
>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation
→Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales
support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and
hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting,
solutions, regular return visit etc.

Our Company

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
