refrigerant ISO tank split charging machine R134a R410a filling machine R404a cylinder refilling system
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)430
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
ApplicationFor Refilling Refrigerants To Cylinders From ISO Tank
-
CompressorOil-free
-
RefrigerantR404A/R438A/R134A/R22/R407C/R410A
-
Product NameCM20A Refrigerant Filling Machine R134a Charging Machine
-
Filling Accuracy0.5%
-
Filling Rate6kg/min
-
Scale Measurement Range40kg/100kg/150kg/200kg(optional)
-
Vacuum Pump4L/s (3 Units)
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Model NumberCM20A
-
Minimum Order Quantity1 Unit
-
Price$15,600.00/units 1-1 units
-
Packaging Detailswooden case, pallet<br>Refrigerant Split Charging Machine R134a Filling Recharge Machine
-
Supply Ability50 Unit/Units per Month
refrigerant ISO tank split charging machine R134a R410a filling machine R404a cylinder refilling system

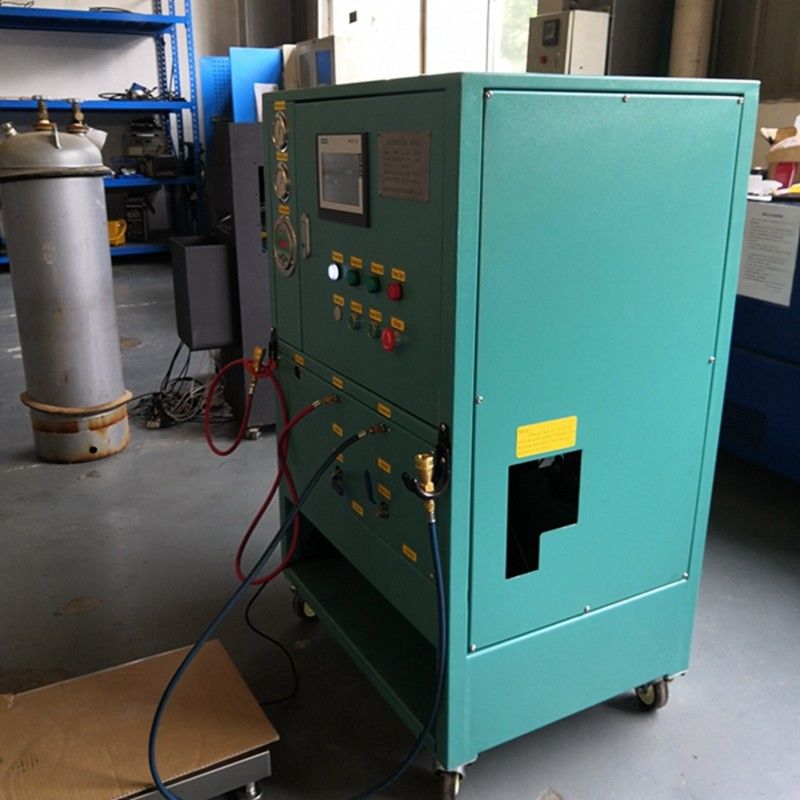

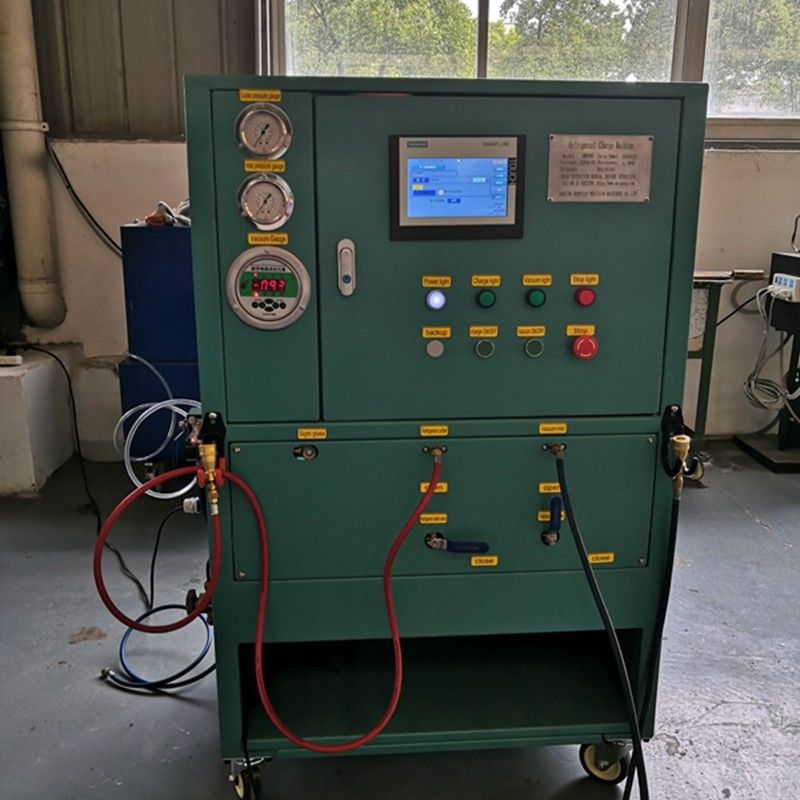

CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System
CM20/CM20A Multiple-Station Refrigerant Sub-packaging System is for the application that Transfer refrigerant from ISO TANK or 1000-400L tank to 12L-60L tank. It integrates functions of vacuum, recharge and pumpback. Three stations can work simultaneously, so subpackage efficiency is very high. The accuracy is 0.5%.
CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System Main features
1. Integrate functions of vacuum, filling, and pump-back- high efficiency and no refrigerant loss;
2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4. Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5. Three working-station design, high filling efficiency;
6. Overall protection system, safe credible;
7. Filling accuracy is 0.5%;
8. Can make according to customers' requirements.
|
CM20/CM20A Multiple-Stage Refrigerant Sub-Package System Specification
|
|
|
|
|
||||
|
Model
|
Booster Oil-free Compressor
|
Vacuum Pump
|
Filling Rate
|
Application Cylinder
|
||||
|
CM20-1S
|
1.5 HP
|
4 L/s * 1 unit
|
≤ 4kg/min
|
12 - 60L
|
||||
|
CM20A-3S
|
1.5 HP
|
4 L/s * 3 units
|
≤ 4kg/min*3
|
12 - 60L
|
||||
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM(ChunMu)@ChinaRefrigerationExpo
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
