R23 Oil Less Refrigerant Recycling Machine High Pressure Recovery Charging Machine Filling Equipment

Condition

New
Applicable Industries

Manufacturing Plant
Weight (KG)

150
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Not Available
Warranty Of Core Components

1 Year
Core Components

Motor
Type

COMPRESSOR
Warranty

1 Year
After-sales Service Provided

Engineers Available To Service Machinery Overseas
Compressor

Oil-free 2HP 2-stage Reciprocating
Refrigerant

R13, R23, R503, R508A, R14, R116, R508B,SF6
Application

Chiller Field Service, Storage Tank Gas Recovery
Product Name

R23 SF6 Refrigerant Recovery Machine
Max Working Pressure

100Bar
Vapor Recovery Rage

≤15kg/h
Power

220V50Hz 1PH/380V50Hz 3phase
Liquid Push&pull Recovery Rate

≤900kg/h
Cooling

Air Cooled And Cooling Unit
Port

Shanghai Ningbo Tianjin Qingdao
Place of Origin

Jiangsu, China
Brand Name

CM
Price

$8,700.00/units 1-1 units
Packaging Details

plywood case on pallet;<br>CM-R23 Ultra Low Temperature R23 SF6 High Pressure Refrigerant Recovery Charging Machine
Supply Ability

100 Unit/Units per Month

R23 Oil Less Refrigerant Recycling Machine High Pressure Recovery Charging Machine Filling Equipment

Name: R23 Oil Less Refrigerant Recycling Machine High Pressure Recovery Charging Machine Filling Equipment
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
Price: 1.00 USD
Availability: InStock

button button

Get Price Contact Now

Product Description

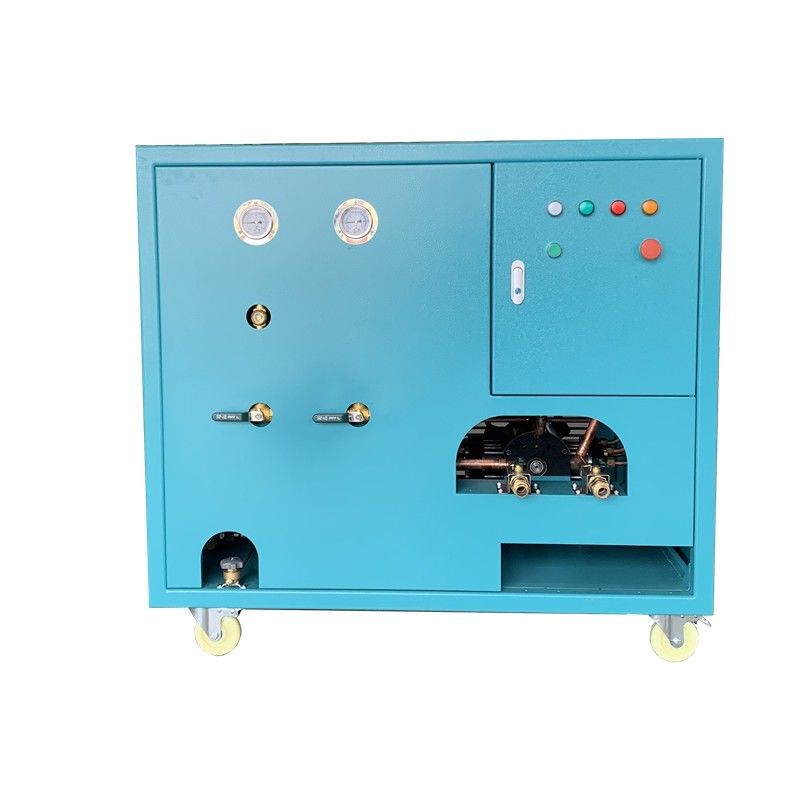

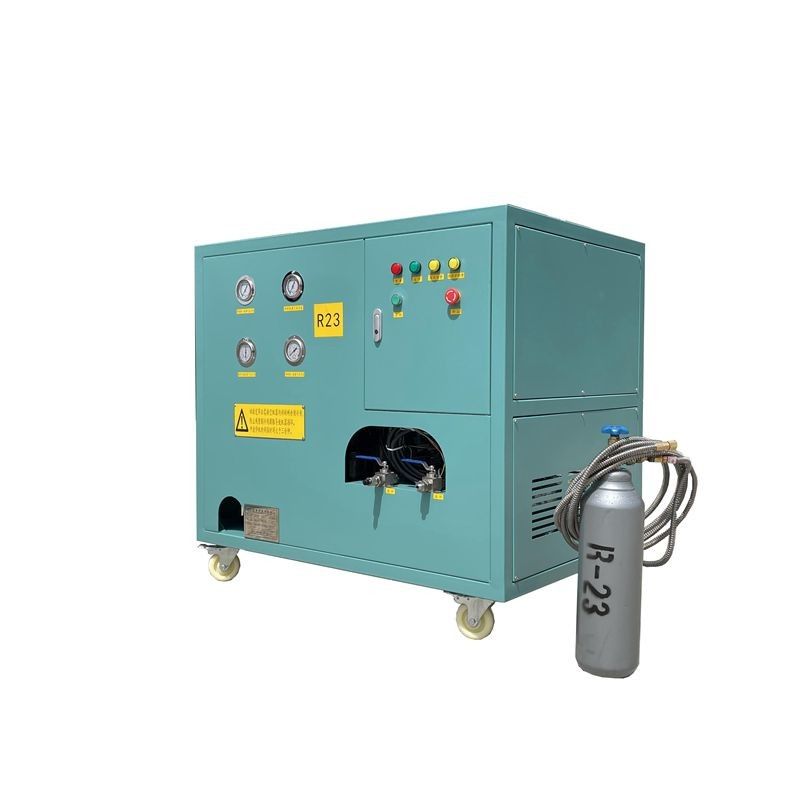

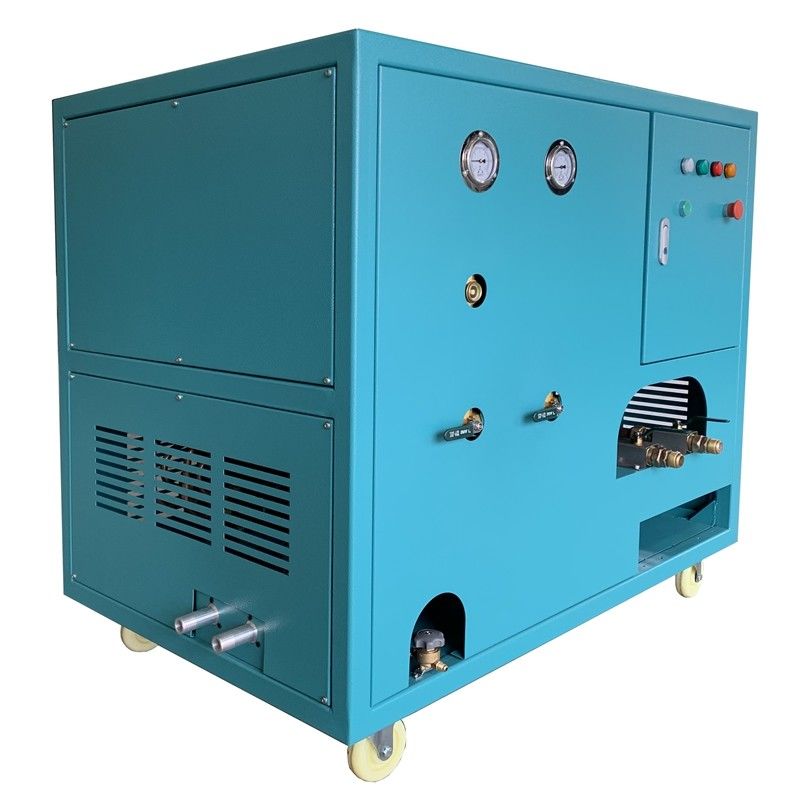

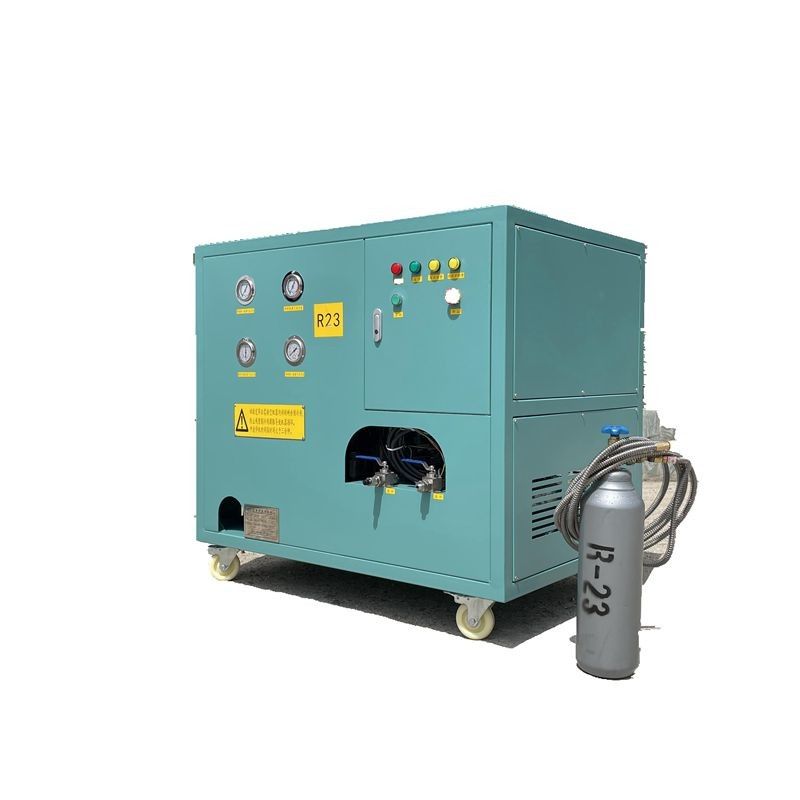

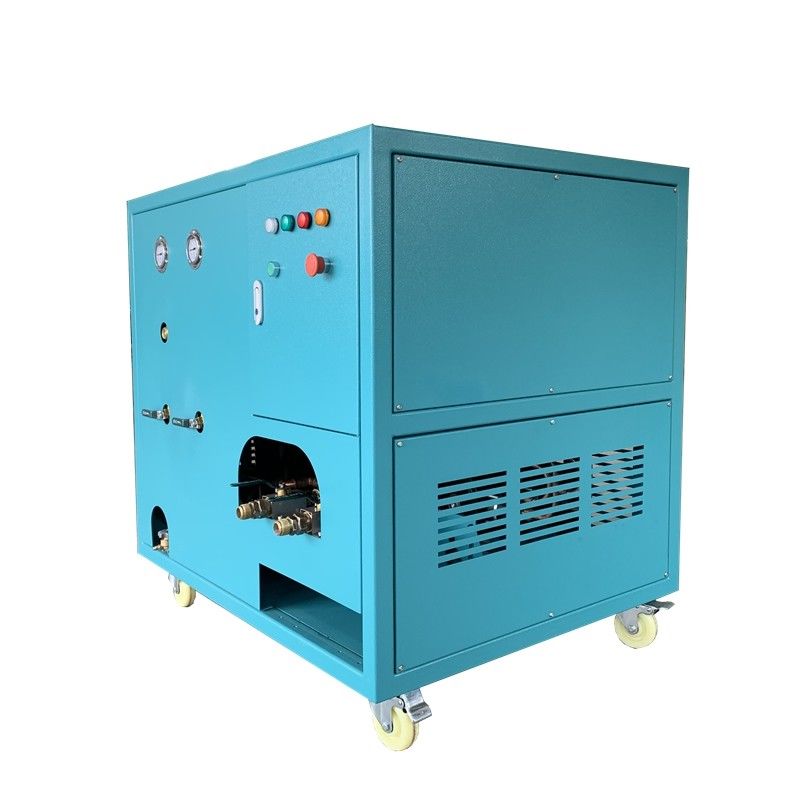

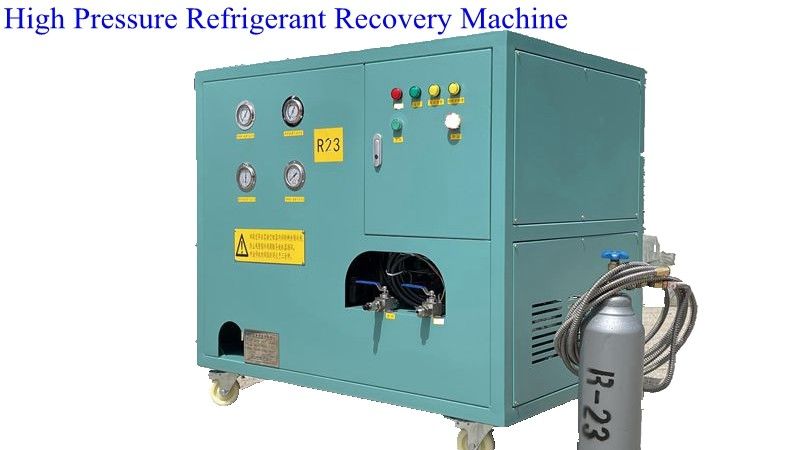

CM-R23 Ultra High Pressure Refrigerant Recovery Machine

CM-R23 refrigerant recovery system is specially designed for recovering ultra high pressure refrigerant from chiller or storage tank,it adopts oil less four-cylinder compressor without contamination during refrigerant recovery process,2-stage compression technology give you a fast recovery rate with deep vacuum degree based on CM 20 years’ compressor design and manufacture experience.

Model	CM-R23
Horsepower	2HP
Compressor displacement	1.5m3/h
Compressor	SS304 oil-free reciprocation
Vapor recovery Rate	≤15kg/h
Liquid push&pull recovery rate	≤900kg/h
Cooling	Chiller
Refrigerant	R23, SF6, R508B, R14, R508A, R116,etc
HP&LP shut off	Yes
Max working pressure	100Bar
Power source	380V50Hz 3phase/220V50Hz 1phase
Certification	CE

Advantage and Features

1. Specially designed for ultra-low temperature high pressure refrigerants.

2. Oil-free lubrication high pressure compressor have no pollution with high purity of refrigerant recovery

3. 2-Stage compression reciprocating compressor
4. Ultra fast recovery rate for vapor refrigerant
5. Max working pressure 100Bar
6. Capable of handling various refrigerant SF6/R23/R503/R508B etc.
7. Equipped with chiller for deep refrigerant cooling
8. Continuously running for 24 hours duty cycle
9. CE certification
10. High pressure shut-off device

11. 10Mpa pressure could be used for many ultra-low temperature high pressure
refrigerants.

12. High flow rate compressor is suitable for ultra-low temperature equipment factory and after-sales maintenance
