Single Filling System R410a Refrigerant Charging Machine 220V/50Hz
-
Highlight
Single Filling System Refrigerant Charging Machine
,R410a Refrigerant Charging Machine
,R410a refrigerant gas filling machine
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)370
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsPump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
Product NameCM8600 Single System R410a Refrigerant Filling Machine
-
RefrigerantR134a, R22, R513A, R404A, R410A, R406A
-
Power Supply380V50Hz 3Ph/220V50Hz 1Ph
-
ApplicationAir Conditioner, Water Cooler, Freezer, Refrigerators, Chillers,etc
-
Charging Speed40g/s - 200g/s
-
Charging Capacity10-99999g
-
Charging Accuracy+/-0.5g, ≤+/-0.5%, ≤+/-0.3%
-
Resolution0.1g
-
Injector ConnectorHansen 1/4" Or 3/8"
-
Charging Hose Length3m-20m
-
PortShanghai Ningbo Tianjin Qingdao Shenzhen
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Model NumberCM8600
-
Minimum Order Quantity1 Unit
-
Price$15,600.00/units 1-1 units
-
Packaging DetailsPlywood Case on Pallet CM8600 Fully Automatic Refrigerant Freon Gas Charging Machine for A/C Air Conditioning
-
Supply Ability50 Unit/Units per Month
Single Filling System R410a Refrigerant Charging Machine 220V/50Hz
Single Filling System PLC R22 R410a Automatic Refrigerant Charging Machine A/C Gas Recovery Recharge Machine
Product Description

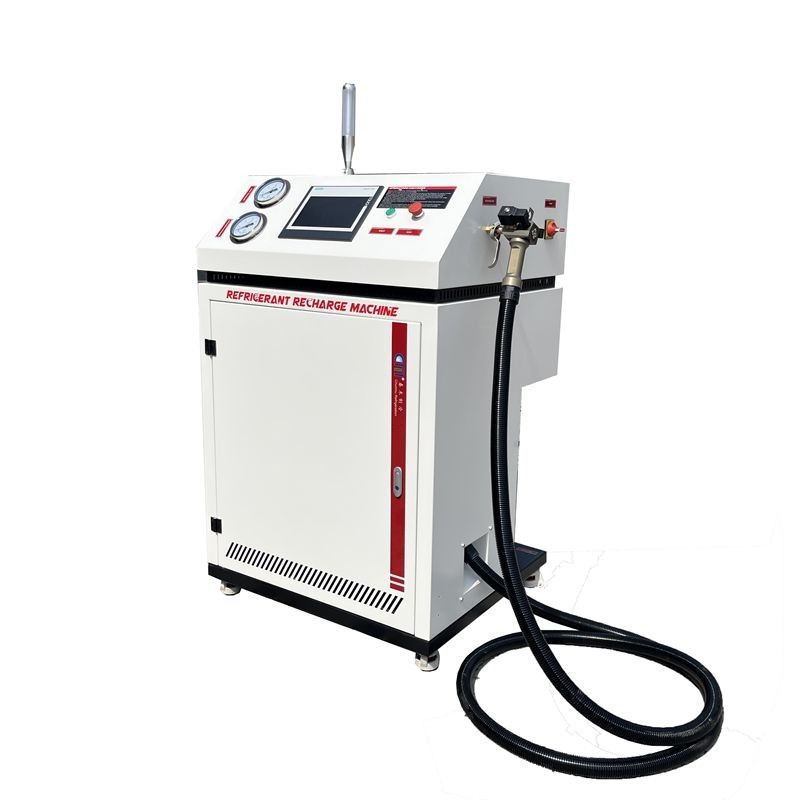

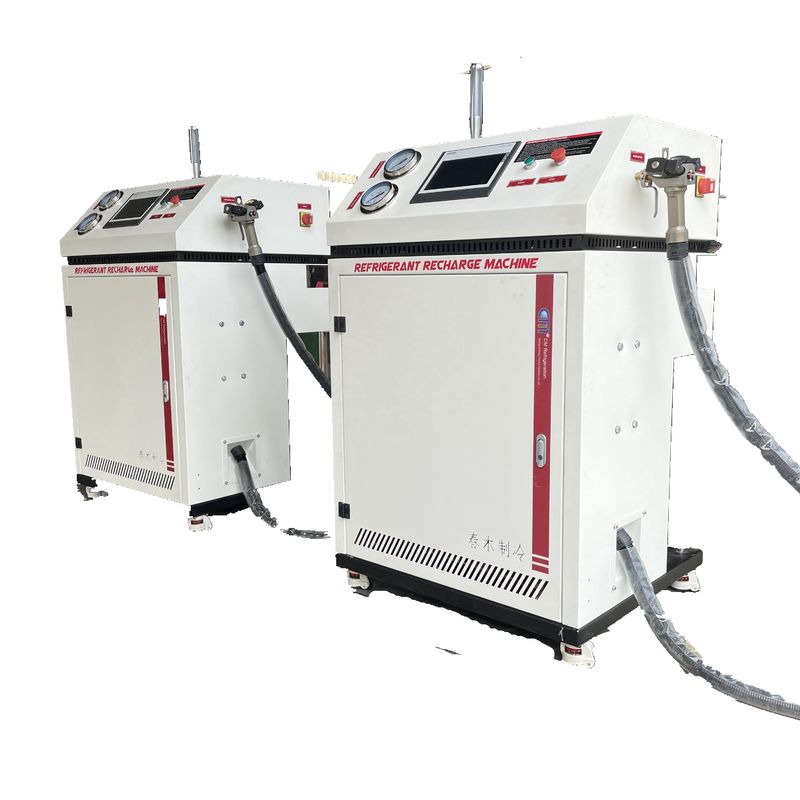

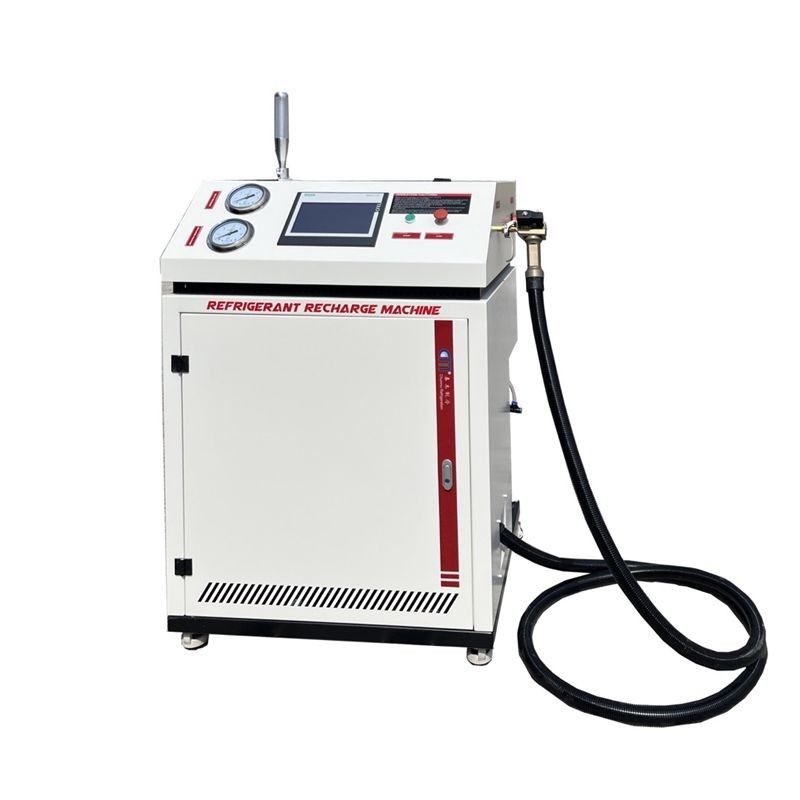

CM8600 (Single System) High Speed Refrigerant Charging Machine
CM8600 series refrigerant charging machine is specially designed to charge refrigerant fluid R134A,R410A...etc to refrigeration system assembly line. It combines all in one in order to perform evacuation, leak test and refrigerant charges to meet the customers demand for affordable high precision and high quality based on CM smart controltechnology, the charging machine uses the well known Siemens Programmer giving the user a colourful and convenient touch interface,you set the data,let the machine complete the job for you.
Specification
| Equipment model | CM 8600 S Series |
| Device Serial Number | S 100 |
| Filling speed | ≥100 g/s (6 kg/min) |
| Single charge amount | 20-9999999 g |
| Filling accuracy | ≤2 g ;500 g-2000 g,≤±0.5% ;>2000 g,≤±0.3% |
| Measurement methods | RRT American Ruby Flow Meter |
| Resolution ratio | 0.1 g |
| Equipment certification | CE |
| Vacuum rate | 8 L/S |
| Vacuum degree of machine | 3-5 pa |
| Filling gun port | Hansen 1/4 or 3/8 quick connectors |
| Length of filling gun | Standard with 3 meters, other specifications 3-10 meters optional |
| Communication interface | RS485/RS232/Ethernet |
| Channels quantity | 100 |
| Compressed air pressure | 0.5-0.7Mpa |
| Programmer | Siemens |
| Power supply | 380V 50Hz 3Phase or 220V 50Hz 1Phase |
| Dimension | 900*800*1340 mm |
| Approved refrigerants | R134a, R22, R513a, R404A, R410A, R406A etc. |
Features
·Siemens smart PLC technology for fast and accurate operation process
·Large colorful touch screen make the operation easy and simple
·High precision mass flowmeter technology ensures charging accuracy
·Powerful pneumatic booster pump for high speed charging rate
·The continuous charging quantity up to 99999g
·Automatic reminder function when the liquid supply tank is lack of refrigerant
·Combine vacuum, leakage inspection, refrigerant charging to all in one system
·Equipped with leakage alarm device
·High charging accuracy
