Multiple Stations Oil Less Refrigerant Filling System A/C Charging Station R134a R404a MO99 Charging Machine
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)430
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsPump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
ApplicationFor Refilling Refrigerants To Cylinders From ISO Tank
-
CompressorOil-free
-
RefrigerantR404A/R438A/R134A/R22/R407C/R410A
-
Product NameCM20A Refrigerant Filling Machine R134a Charging Machine
-
Filling Accuracy0.5%
-
Filling Rate6kg/min
-
Scale Measurement Range40kg/100kg/150kg/200kg(optional)
-
Vacuum Pump4L/s (3 Units)
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Price$15,600.00/units 1-1 units
-
Packaging Detailswooden case, pallet<br>Refrigerant Split Charging Machine R134a Filling Recharge Machine
-
Supply Ability50 Unit/Units per Month
Multiple Stations Oil Less Refrigerant Filling System A/C Charging Station R134a R404a MO99 Charging Machine
CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System

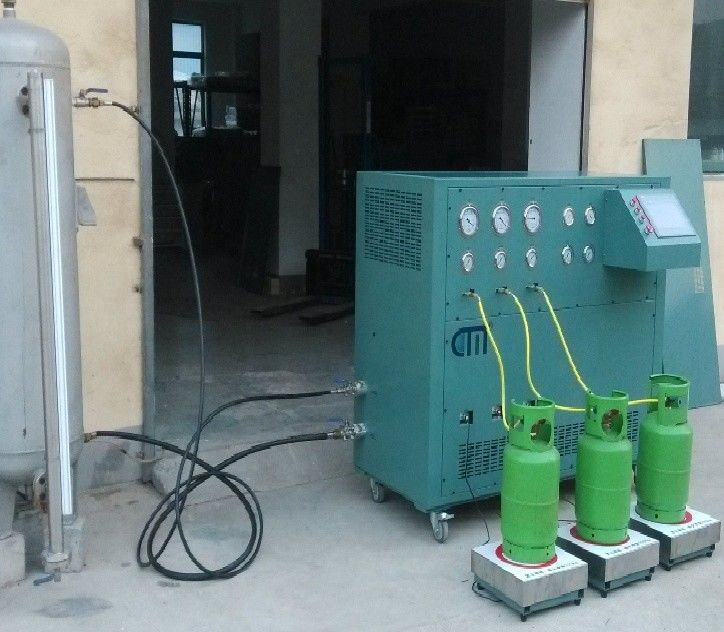

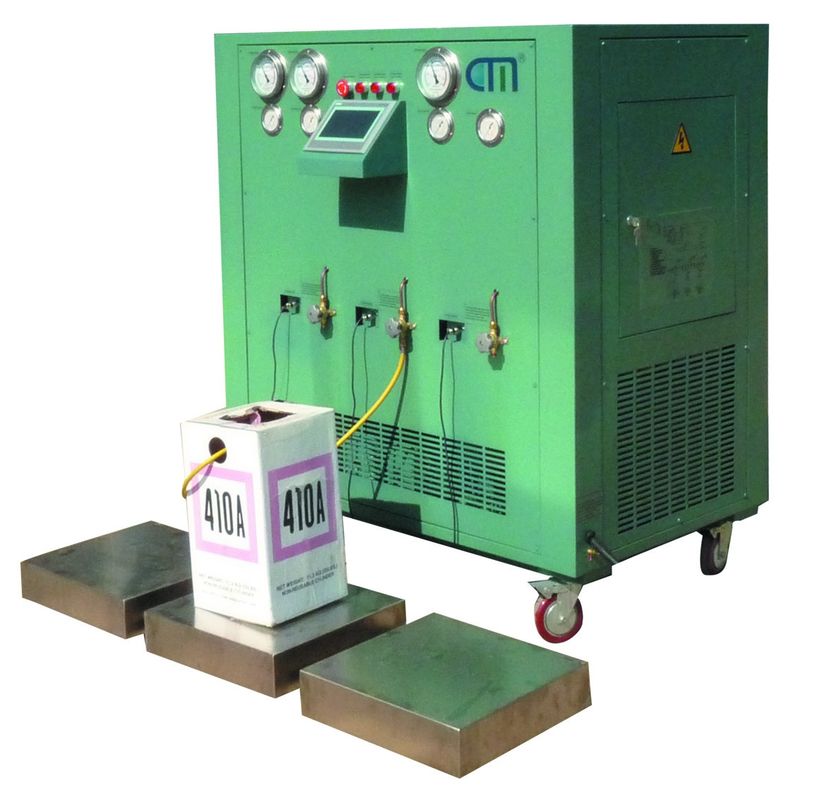

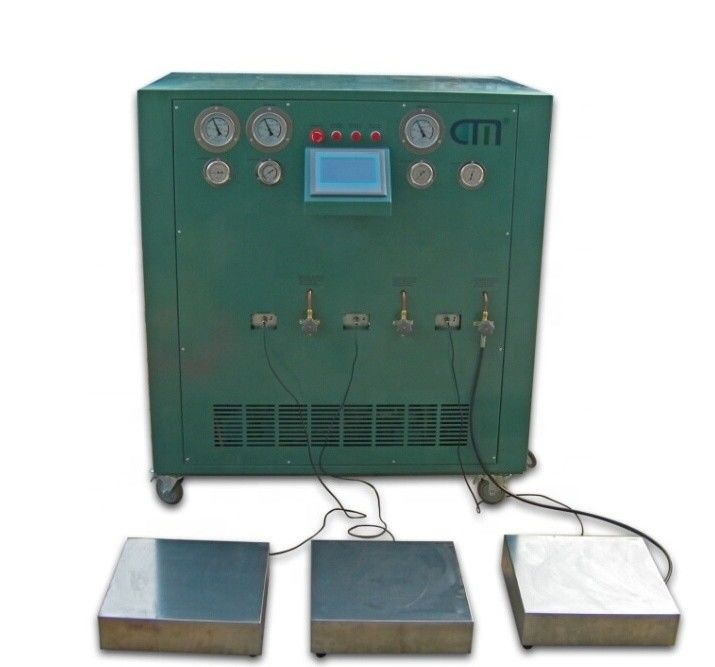

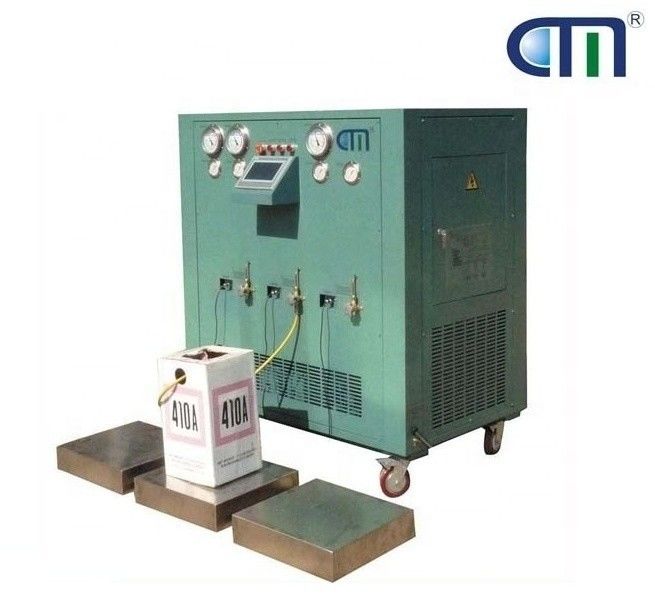

CM20/CM20A Multiple-Station Refrigerant Sub-packaging System is for the application that Transfer refrigerant from ISO TANK or 1000-400L tank to 12L-60L tank. It integrates functions of vacuum, recharge and pumpback. Three stations can work simultaneously, so subpackage efficiency is very high. The accuracy is 0.5%.
CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System Main features
1. Integrate functions of vacuum, filling, and pump-back- high efficiency and no refrigerant loss;
2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4. Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5. Three working-station design, high filling efficiency;
6. Overall protection system, safe credible;
7. Filling accuracy is 0.5%;
8. Can make according to customers' requirements.
|
CM20/CM20A Multiple-Stage Refrigerant Sub-Package System Specification
|
|
|
|
|
||||
|
Model
|
Booster Oil-free Compressor
|
Vacuum Pump
|
Filling Rate
|
Application Cylinder
|
||||
|
CM20-1S
|
1.5 HP
|
4 L/s * 1 unit
|
≤ 4kg/min
|
12 - 60L
|
||||
|
CM20A-3S
|
1.5 HP
|
4 L/s * 3 units
|
≤ 4kg/min*3
|
12 - 60L
|
||||
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
