·Siemens smart PLC technology for fast and accurate operation process
·Large colorful touch screen make the operation easy and simple
·High precision mass flowmeter technology ensures charging accuracy
·Powerful pneumatic booster pump for high speed charging rate
·The continuous charging quantity up to 99999g
·Automatic reminder function when the liquid supply tank is lack of refrigerant
·Combine vacuum, leakage inspection, refrigerant charging to all in one system
·Equipped with leakage alarm device
·High charging accuracy
R134a R1234yf Refrigerant Charging Machine Dual Charging System Flammable Refrigerant Recovery Recharge Machine
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)300
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
Resolution0.1g
-
Voltage380V/50HZ
-
RefrigerantR22/R410A/R407C/R134A
-
Model NoCM8600 Car A/c Dual Filling System Refrigerant Charging Machine
-
Precision±0.5%
-
Vacuum Degree5Pa~10Pa
-
Charging Speed60~260g/s
-
ApplicationAir Conditioner, Water Dispenser, Freezer, Refrigerator
-
PortShanghai Ningbo Tianjin Qingdao
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE, ATEX
-
Model NumberCM8600
-
Minimum Order Quantity1 Unit
-
Price$30,100.00/units 1-1 units
-
Packaging Detailswooden case, pallet for CM8600 Fully Automatic Car A/C Refrigerant Charging Machine AC Charging Station
-
Supply Ability50 Unit/Units per Month
R134a R1234yf Refrigerant Charging Machine Dual Charging System Flammable Refrigerant Recovery Recharge Machine
Product Description

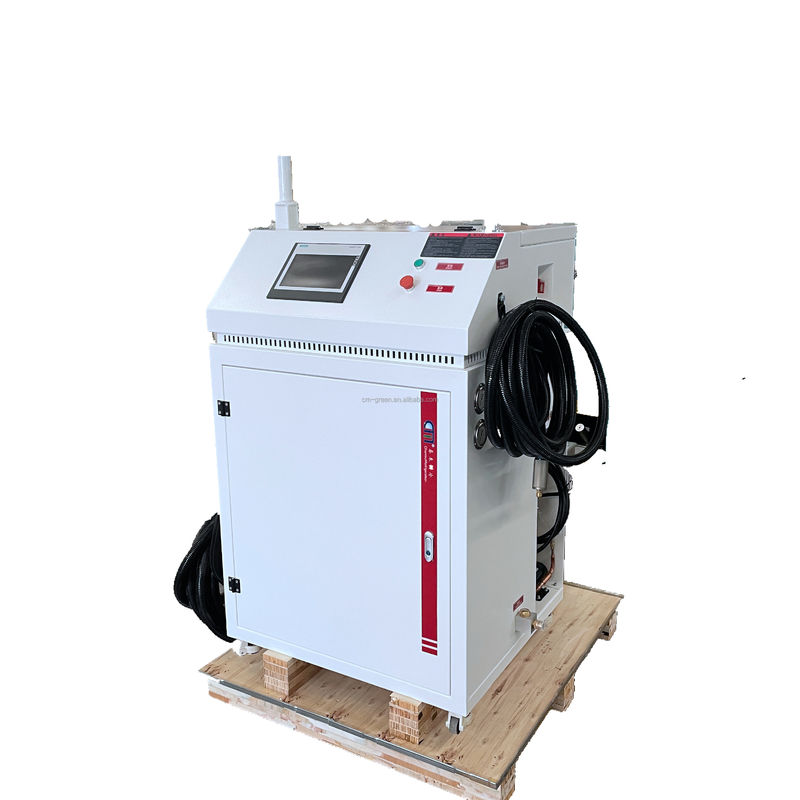

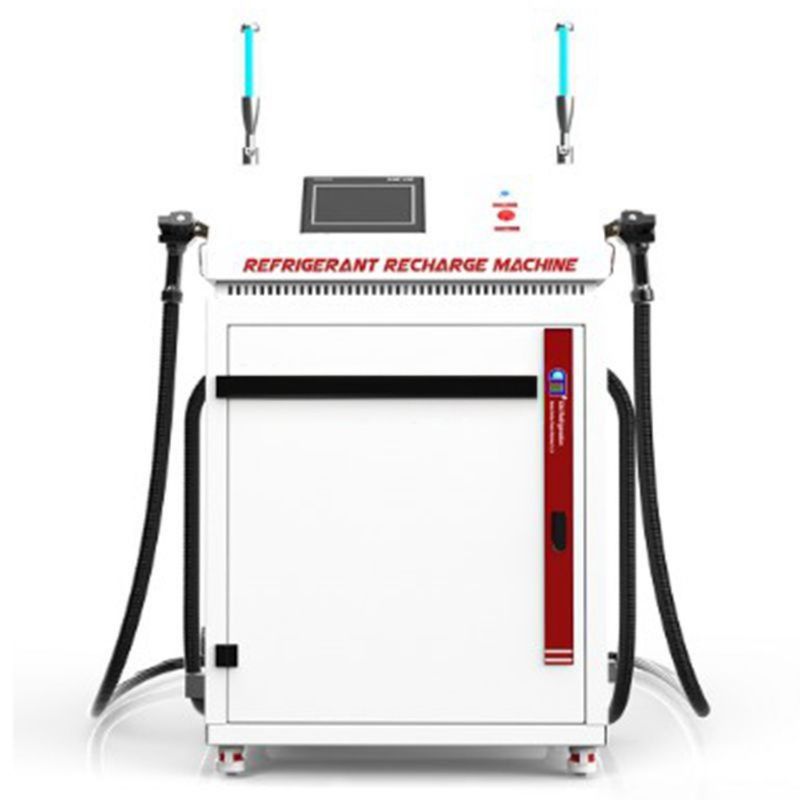

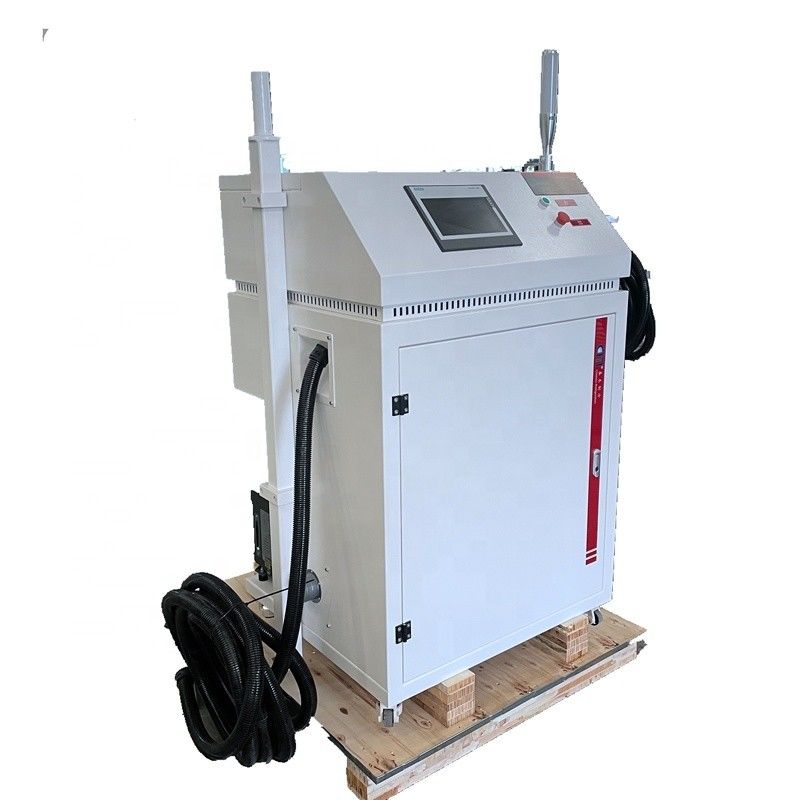

CM8600 dual charging gun twin system refrigerant charging machine for refrigerator assembly line
CM8600(ExT)series Dual System A3 refrigerant charging machine was specially designed for Flammable and explosive refrigerants and to be used in any kind of assembly lines of cooling system (refrigerators, water cooler,heat pump, air conditioners etc...) to perform evacuation, leakage test and refrigerant charging. This model equipped with 2 charging system allowed 2 charging gun work at same time. This model also have recovery function option which can meet the requires of mix production line. The whole system was CE and ATEX certificated.
Specification
|
Model
|
CM8600 (ExT)
|
Resolution
|
|
|
Series No.
|
ExT40
|
ExT60
|
|
|
Charging Speed
|
≥40g/s (2.4kg/min)
|
≥60-80g/s (3.6-4.8kg/min)
|
|
|
Charging capacity
(for one time)
|
10-999999g
|
|
|
|
Charging accuracy
|
＜100g,±0.5g
100g—2000g,≤±0.5%
＞2000g,≤±0.3%
|
|
|
|
Charging technology
|
RRT turbine flowmeter (RHEONIK mass flowmeter is optional)
|
|
|
|
Resolution
|
0.1g
|
|
|
|
Certification
|
CE,ATEX
|
|
|
|
Vacuum pump
|
4L/S
|
8L/S
|
|
|
Vacuum degree
|
3-5 pa
|
|
|
|
Injector connection
|
Hansen 1/4” or 3/8”
|
|
|
|
Charging hose length
|
3m - 20m
|
|
|
|
Communication interface
|
RS485/RS232/Enternet
|
|
|
|
Pre-set Channel
|
100
|
|
|
|
Compressed Air
|
0.5-0.7Mpa
|
|
|
|
PLC
|
Siemens
|
|
|
|
Power Supply
|
380V 50Hz 3Ph/220V 50HZ 1Ph
|
|
|
|
Approved Refrigerants
|
R600a,R290,R32,R1234ze,R1234YF,R134A
|
|
|
|
Application
|
Air Condition,Water Cooler,Beer Machine,Freezers, Refrigerators, chillers, heat pumps
|
|
|
Features
Main Features & Advantages

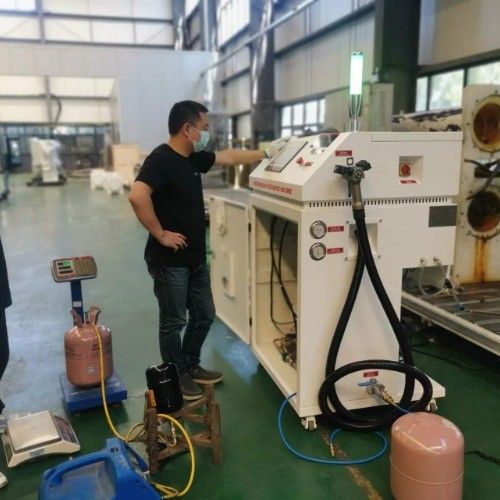

Customer Project
Related Product
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Our Company
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/recharge/reclaim/vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Exhibition
Packing & Delivery
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
