Flammable Refrigerant Recovery Charging Machine Air Conditioner R134a Recovery Station Automatic Ac Recharge Machine

Condition

New
Applicable Industries

Manufacturing Plant
Weight (KG)

300
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Not Available
Warranty Of Core Components

1 Year
Core Components

Motor, Pump
Type

COMPRESSOR
Warranty

1 Year
After-sales Service Provided

Engineers Available To Service Machinery Overseas
Resolution

0.1g
Voltage

380V/50HZ
Refrigerant

R32/R1234yf/R600/R22/R410A/R407C/R134A
Model No

CM8600 Vehicle A/c Refrigerant Charging Machine
Precision

±0.5%
Vacuum Degree

5Pa~10Pa
Charging Speed

60~260g/s
Application

Air Conditioner, Water Dispenser, Freezer, Refrigerator
Place of Origin

Jiangsu, China
Brand Name

CM
Certification

CE, ATEX
Price

$20,600.00/units 1-1 units
Packaging Details

export standard plywood case on pallet for CM8600 Fully Automatic Car A/C Refrigerant Charging Machine AC Gas Recharge Machine
Supply Ability

50 Unit/Units per Month

Flammable Refrigerant Recovery Charging Machine Air Conditioner R134a Recovery Station Automatic Ac Recharge Machine

Name: Flammable Refrigerant Recovery Charging Machine Air Conditioner R134a Recovery Station Automatic Ac Recharge Machine
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
Price: 1.00 USD
Availability: InStock

button button

Get Price Contact Now

Product Description

CM8600 single system refrigerant charging machine for refrigerator assembly line

CM86 refrigerant charging machine is specially designed for the fast speed refrigerant charging at production line. It features for its high speed of charging, high accuracy. multiple function etc. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.

Features
1. Adpot CNC technology allow the data processing capability witP1060073h accurate and easy operation.
2.Charing/filling liquid gas r134a, r22, r407c, r410a etc.(for r600a, r290,r32 can custom).
3. Siemens PLC and colorful touch sreen control system.
4. Adopt high accuracy flow sensors make this machine can get accurate data, and the resolution has reached to 1~0.1g.
5. The Wonfulay(our own brand) Pneumatic booster to ensure stable pressure and the supply of large charging quantity.
6. The continous charging/filling quantity up to 99999g, and the charging rate is 60g~260g.
7. There's a automatic prompts function when the refrigerant in the cylinder is lack.
8. The vacuum time and inspection leak time can be adjusted according to your requirements.
9. Adopt Wonfulay(our own brand) filling gun in the filling interface which improve the charging/filling speed.
10. With Wonfulay(our own brand) high vacuum pump makes it with quick vacuum, the vacuum has reached to 5~10pa.
11. This mahcine has vacuum, inspection leak, charging/filling, recovery refrigerant function.
12. Repeat filling accuracy is ≤ ± 0.5%.
13. Easy to move

Specification

Model	CM8600 (EXS)		Resolution
Series No.	ExS40	ExS60
Charging Speed	≥40g/s (2.4kg/min)	≥60-80g/s (3.6-4.8kg/min)
Charging capacity (for one time)	10-999999g
Charging accuracy	＜100g,±0.5g 100g—2000g,≤±0.5% ＞2000g,≤±0.3%
Charging technology	RRT turbine flowmeter (RHEONIK mass flowmeter is optional)
Resolution	0.1g
Certification	CE,ATEX
Vacuum pump	4L/S or 8L/S
Vacuum degree	3-5 pa
Injector connection	Hansen 1/4” or 3/8”
Charging hose length	3m - 20m
Communication interface	RS485/RS232/Enternet
Pre-set Channel	100
Compressed Air	0.5-0.7Mpa
PLC	Siemens
Power Supply	380V 50Hz 3Ph/220V 50HZ 1Ph
Approved Refrigerants	R600a,R290,R32,R1234ze,R1234YF,R134A
Application	Air Condition,Water Cooler,Beer Machine,Freezers, Refrigerators, chillers, heat pumps

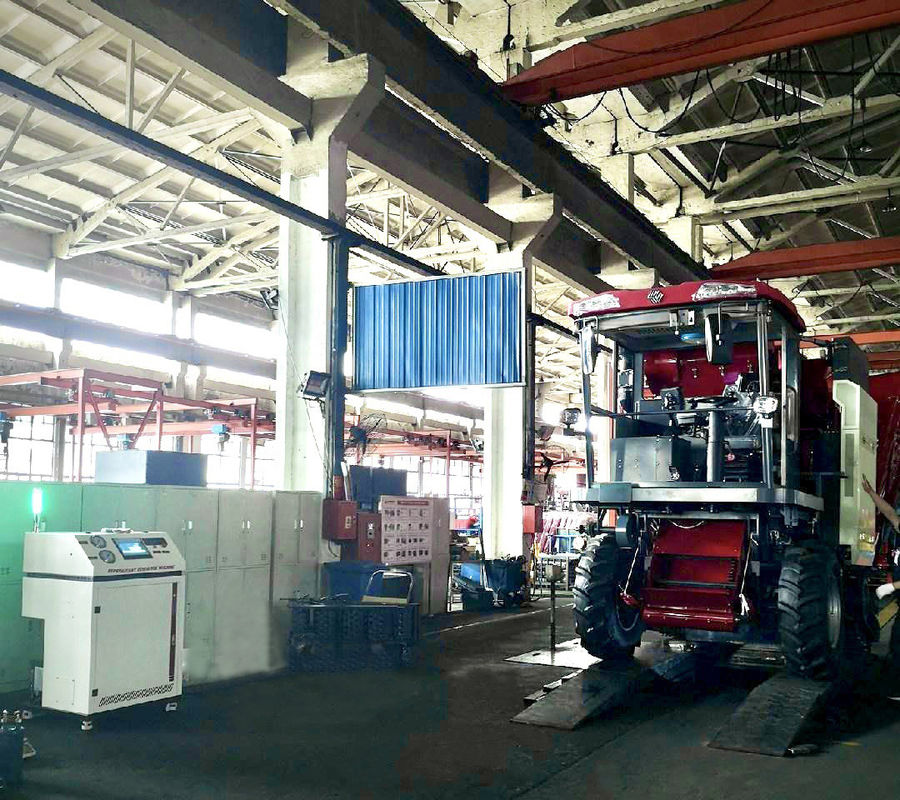

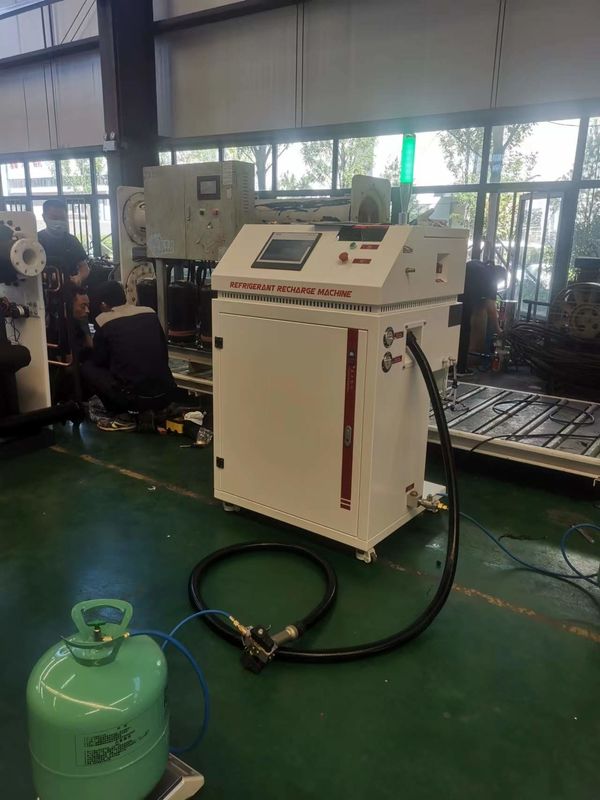

Customer Project
