25HP refrigerant vapor recovery pump old ac charging equipment R134a R410a ac charging disassembly recovery machine
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)300
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeCOMPRESSOR
-
Warranty1 Year
-
ColorBlue
-
RefrigerantR410A/R134a/R22/R407C Etc.
-
CompressorOil-free 15HP 20HP 25HP 30HP
-
Model NoCM580 Refrigerant Recovery Machine
-
Vapor Recovery Rate≤350Kg/h
-
Pull/push Recovery Rate≤15000Kg/h
-
Compressor Displacement57m³/h
-
CoolingAir Cooled
-
Power380~460V 50Hz 3Phase
-
CertificateCE
-
Place of OriginJiangsu, China
-
Brand NameCM
-
Model NumberCM580S
-
Price$22,800.00/units 1-1 units
-
Packaging DetailsPlywood case on pallet<br>Old Refrigerator Disassembly Line Refrigerant Recovery Machine CM580
-
Supply Ability50 Unit/Units per Month AC Refrigerant Recovery Unit
25HP refrigerant vapor recovery pump old ac charging equipment R134a R410a ac charging disassembly recovery machine

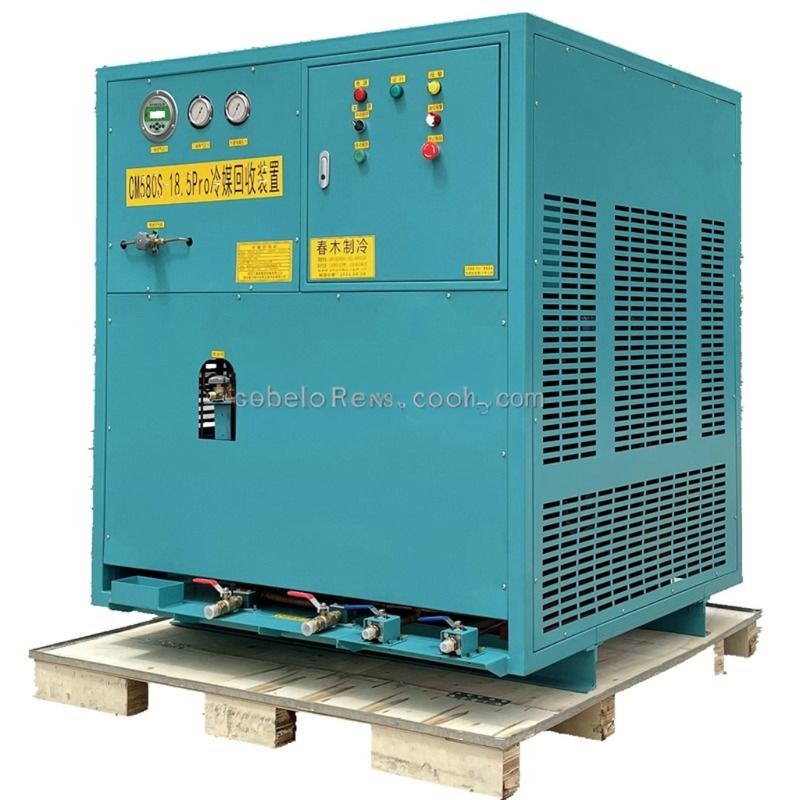

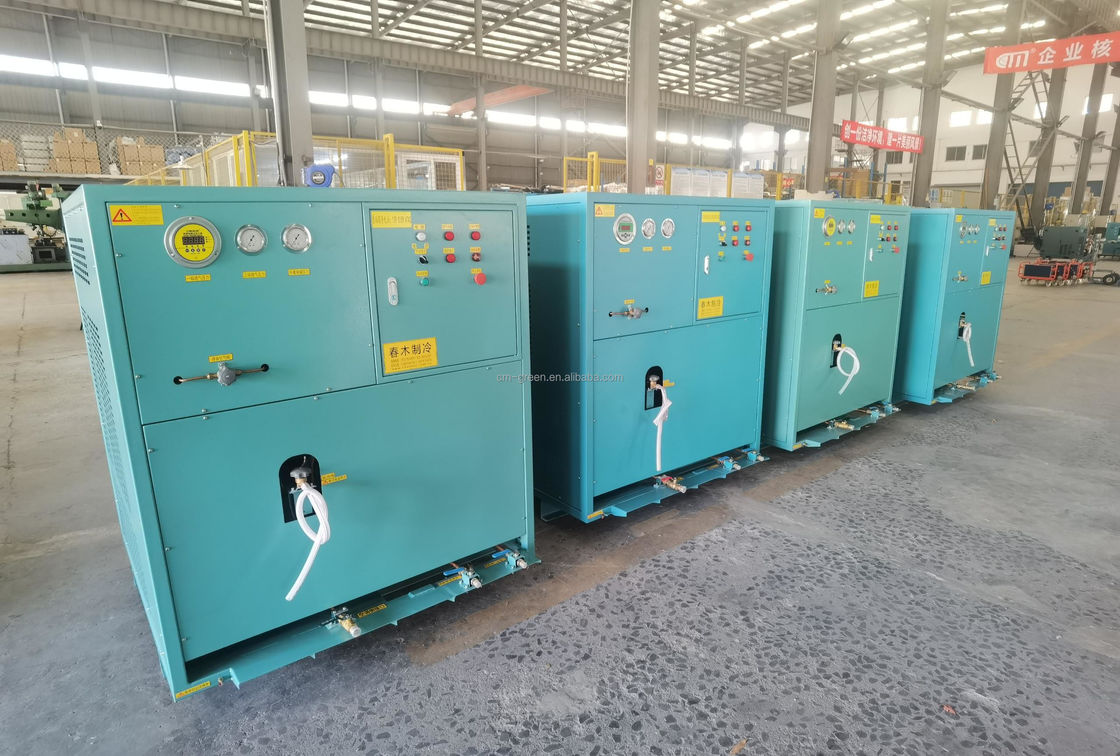

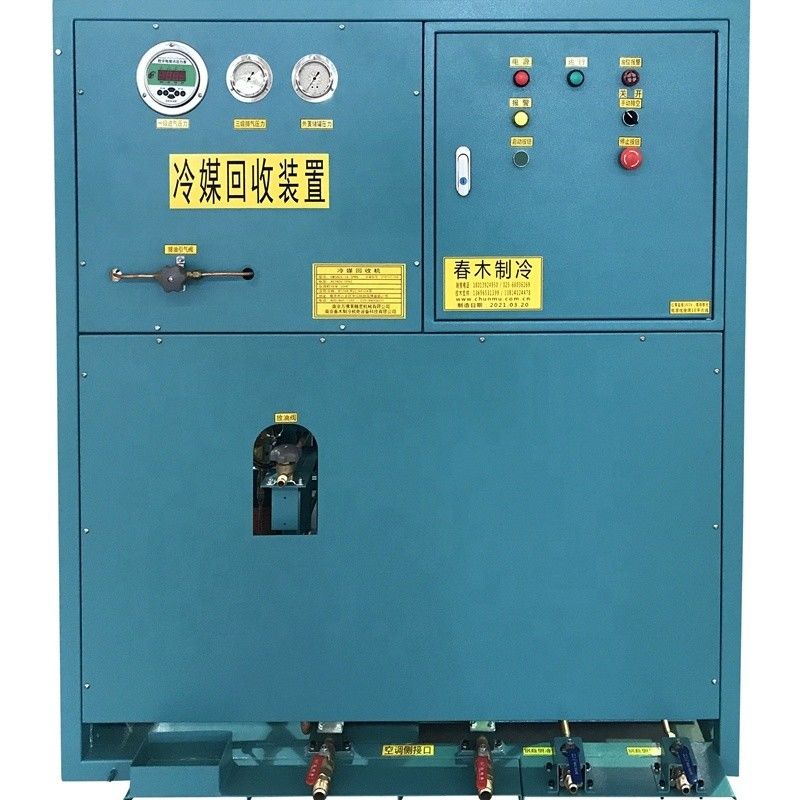

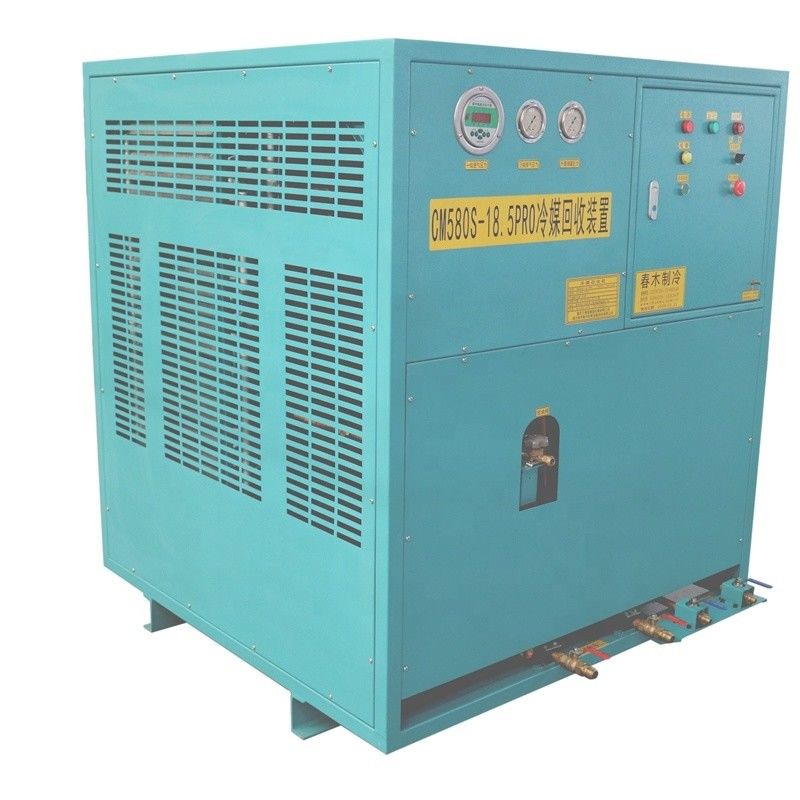

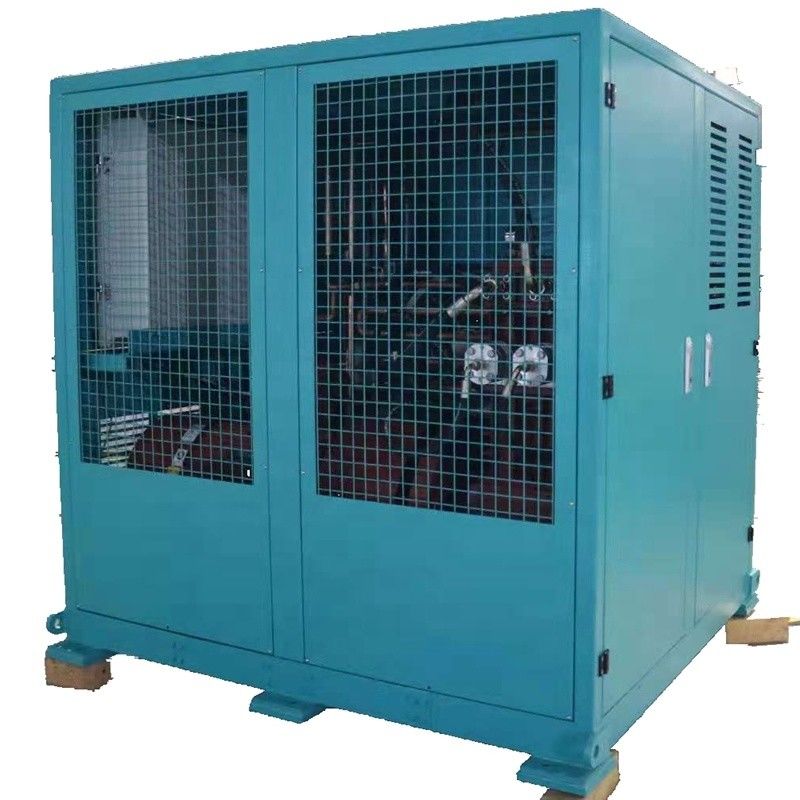

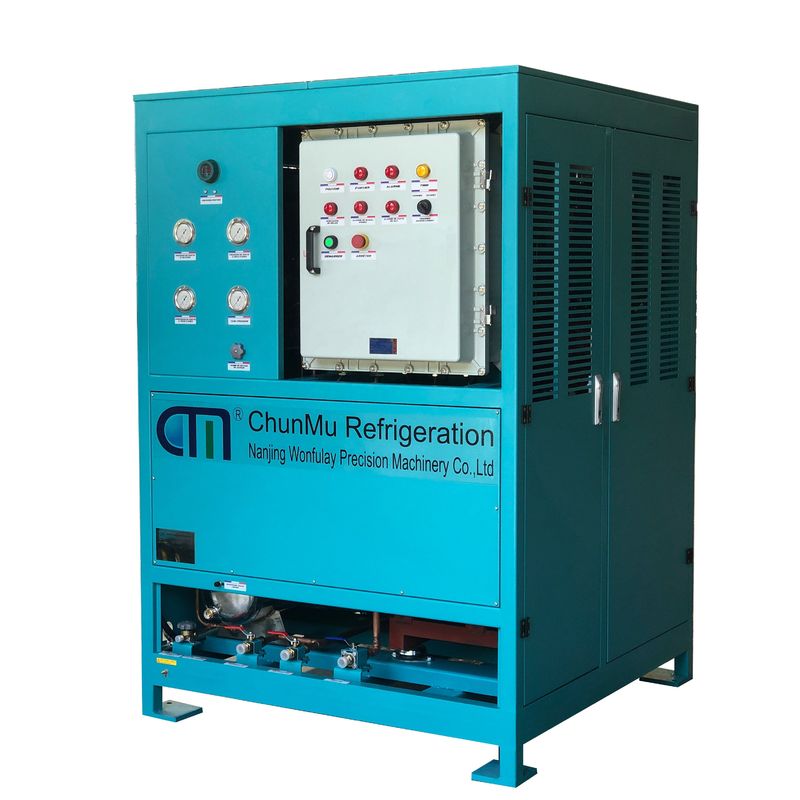

CM580 Series Refrigerant Recovery Machine for Old Air Conditioner/Refrigerator
Product Introduction
CM580 S series refrigerant recovery machine is specially designed for waste air condition and refrigerator disassembly line with high efficiency recovery rate,it utilizes three -stage oil less compressor with explosion proof motor and electrical control box can be used to recovery various flammable and common refrigerants,the machine can also remove the oil and impurity from your dirty refrigerant during recovery process.
Features & Advantages
1. Application for split air conditioner,fridge and so on；2. Provided with removing oil and impurity function；
3. Equipped with specially designed tank and clearly oil level；
4. Suction pressure low down to -0.08Mpa make sure no residual refrigerant left；
5. Suitable for common refrigerant type, such as R410A,R22,R134A etc；
6. Standardized Equip with 8 stations,max 15-25 stations with fast recovery rate；
7. Can be customized according to specific requirement.
8. Equipped with pressure detection device which more easier to check whether the A/C has refrigerant or not
|
Product Name
|
Refrigerant Recovery Machine
|
|
Model
|
CM580
|
|
Horsepower
|
25HP
|
|
Compressor Displacement
|
57m³/h
|
|
Compressor Type
|
Three-stage compression oil-free reciprocating
|
|
Vapor Recovery
|
≤350Kg/h
|
|
Liquid Push&Pull Recovery Rate
|
≤15000Kg/h
|
|
Cooling
|
Air Cooled&Water Cooled
|
|
Applicable Refrigerant
|
R290/R600A/R32/R410A/R134a/R22/R407C etc.
|
|
Gas Leakage Monitoring
|
Yes
|
|
HP Shut-off
|
Yes
|
|
LP Shut-off
|
Yes
|
|
Oil Separator
|
Yes
|
|
Power Source
|
380~460V 50Hz 3Phase
|
|
Certification
|
ATEX
|
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
CM(ChunMu)@ChinaRefrigerationExpo
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
Our products are sold all over the world, you can rest assured.
