freon gas manufacturing plant oil less compressor refrigerant reclaim system
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)300
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeCOMPRESSOR
-
Warranty1 Year
-
ApplicationRefrigerant Factory, Chemical Industry,etc
-
RefrigerantR290/R600A/R32/R410A/R134a/R22/R407C Etc.
-
CompressorOil-free 25HP
-
Model NoCM580 Gas Refrigerant Recovery Pump
-
Vapor Recovery Rate≤350Kg/h
-
Pull/push Recovery Rate≤15000Kg/h
-
Compressor Displacement57m³/h
-
CoolingAir Cooled Water-cooled
-
Power380V/ 50Hz 3Phase, Customized
-
CertificateATEX
-
PortShanghai Ningbo Tianjin Qingdao
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM-T1800
-
Price$22,800.00/units >=1 units
-
Packaging DetailsPlywood case on pallet<br>CM580 Explosion Proof Refrigerant Gas Recovery Machine for Large Storage Tank Residual Gas Recovery
-
Supply Ability50 Unit/Units per Month AC Refrigerant Recovery Unit
freon gas manufacturing plant oil less compressor refrigerant reclaim system

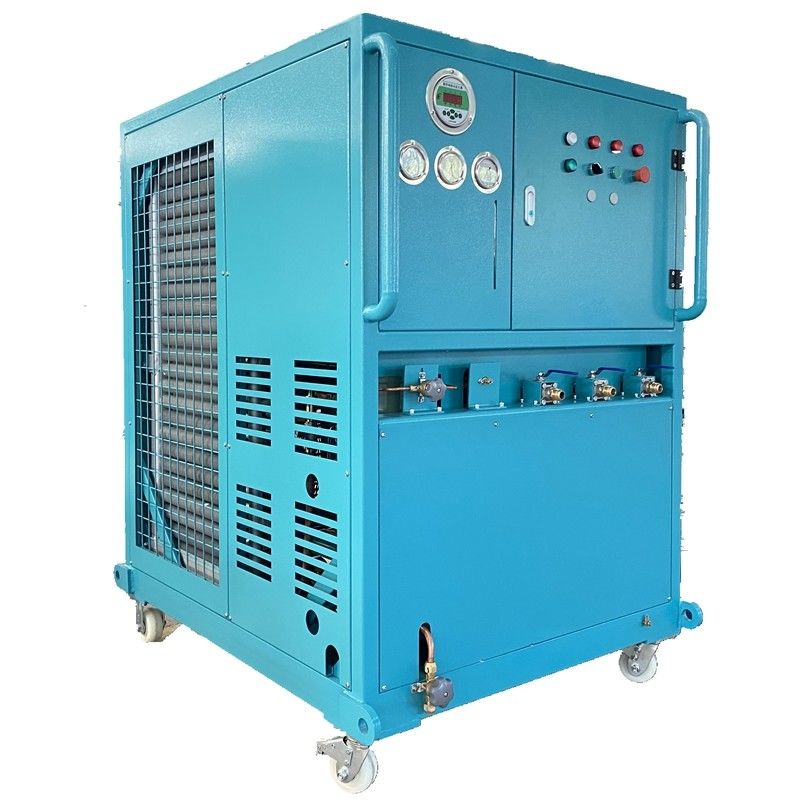

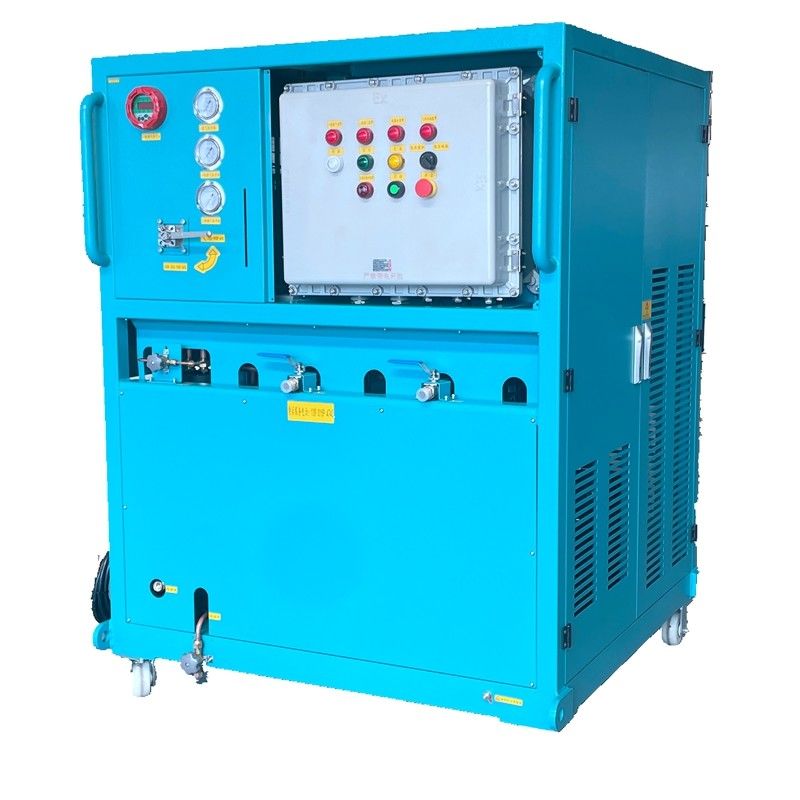

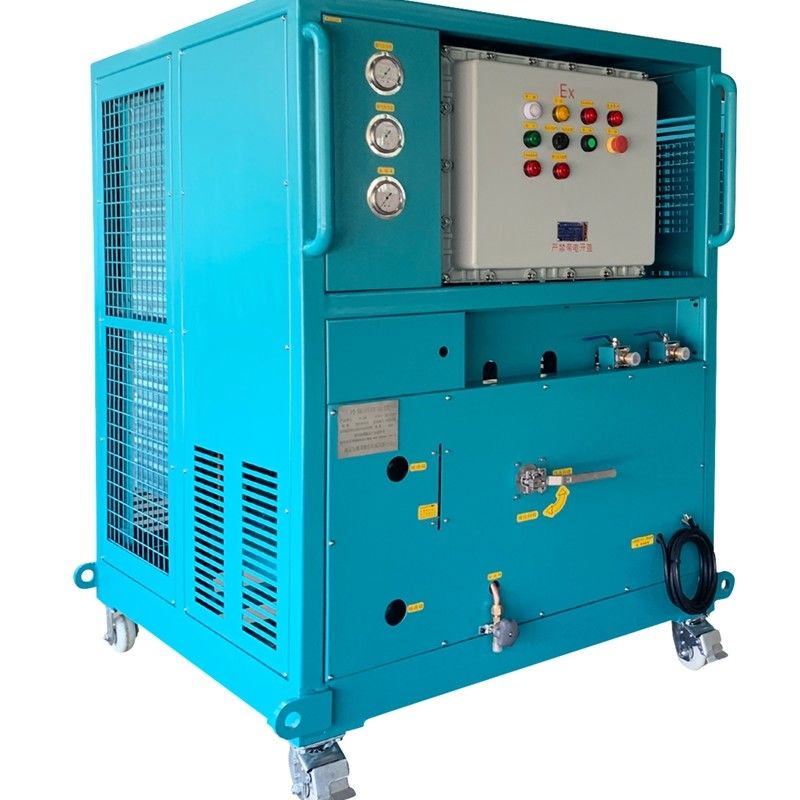

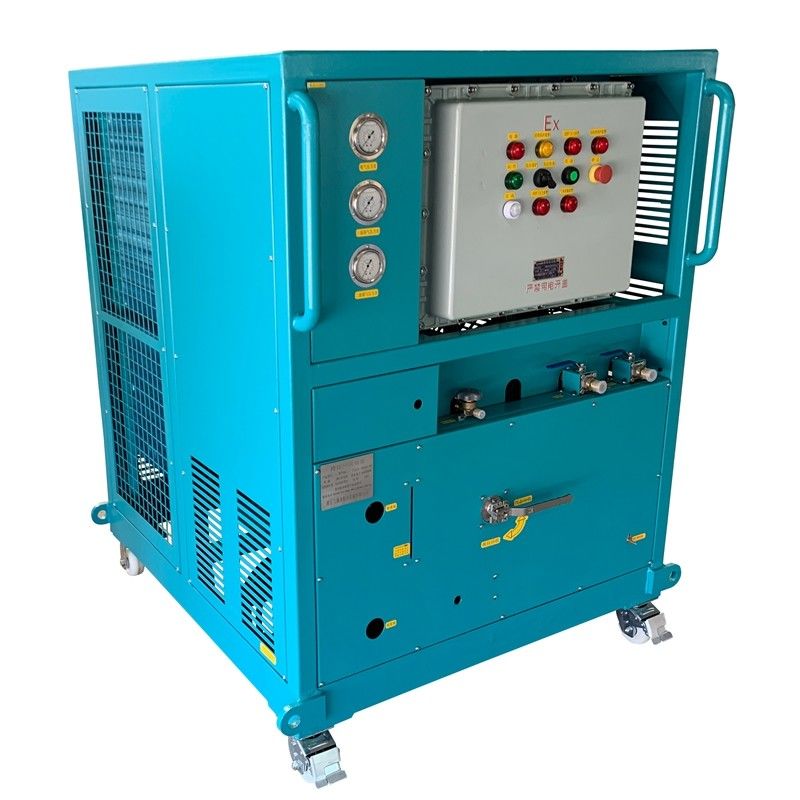

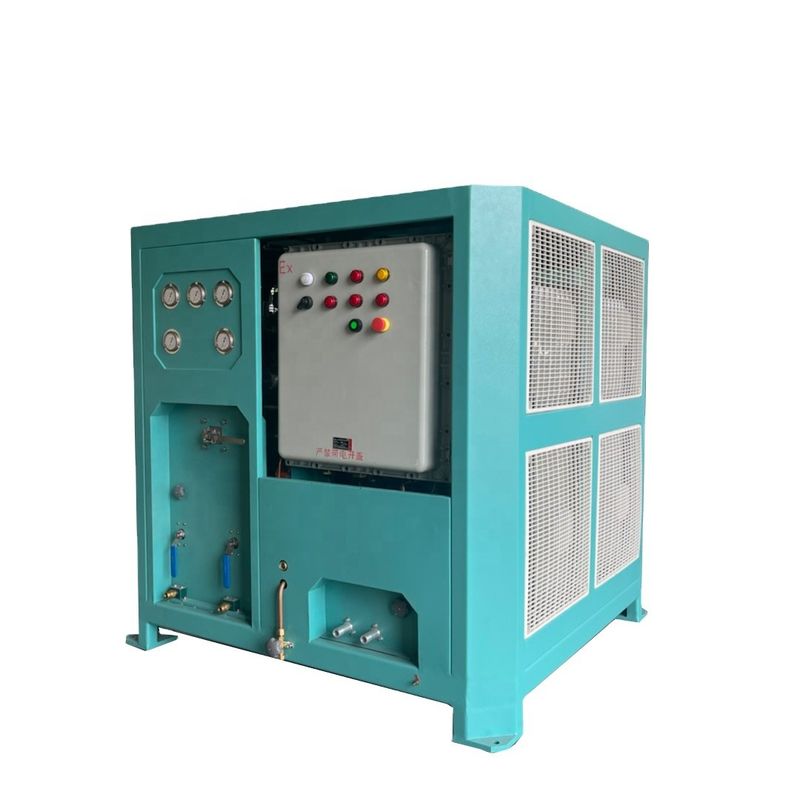

CM580 ISO Tank Refrigerant Recovery Machine for Refrigerant Plant/Chemical Factories
Product Introduction
CM580 refrigerant recovery machine is specially designed for recovery liquid and vapor refrigerant from ISO tank
or large storage tank,it featured by fast recovery rate and simple operation which is suitable for chemical and refrigerant
factory.
Features & Advantages
· 1. Adopt powerful 3-stage oil less compressor2. Fast recovery rate for both of vapor and liquid refrigerant
3. No refrigerant loss-machine automatically shut off when reach deep vacuum degree
4. Adopt air cooled and water cooled condenser which can be used in torrid zone country.
5. Design and manufacture according to explosion proof standard and passed ATEX certification.
|
Product Name
|
Residual Gas Refrigerant Recovery Machine for ISO Tank
|
|
Model
|
CM580
|
|
Horsepower
|
25HP
|
|
Compressor Displacement
|
57m³/h
|
|
Compressor Type
|
Three-stage compression oil-free reciprocating
|
|
Vapor Recovery
|
≤350Kg/h
|
|
Liquid Push&Pull Recovery Rate
|
≤15000Kg/h
|
|
Cooling
|
Air Cooled&Water Cooled
|
|
Applicable Refrigerant
|
R290/R600A/R32/R410A/R134a/R22/R407C etc.
|
|
Gas Leakage Monitoring
|
Yes
|
|
HP Shut-off
|
Yes
|
|
LP Shut-off
|
Yes
|
|
Oil Separator
|
Yes
|
|
Power Source
|
380~460V 50Hz 3Phase
|
|
Certification
|
ATEX
|
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
