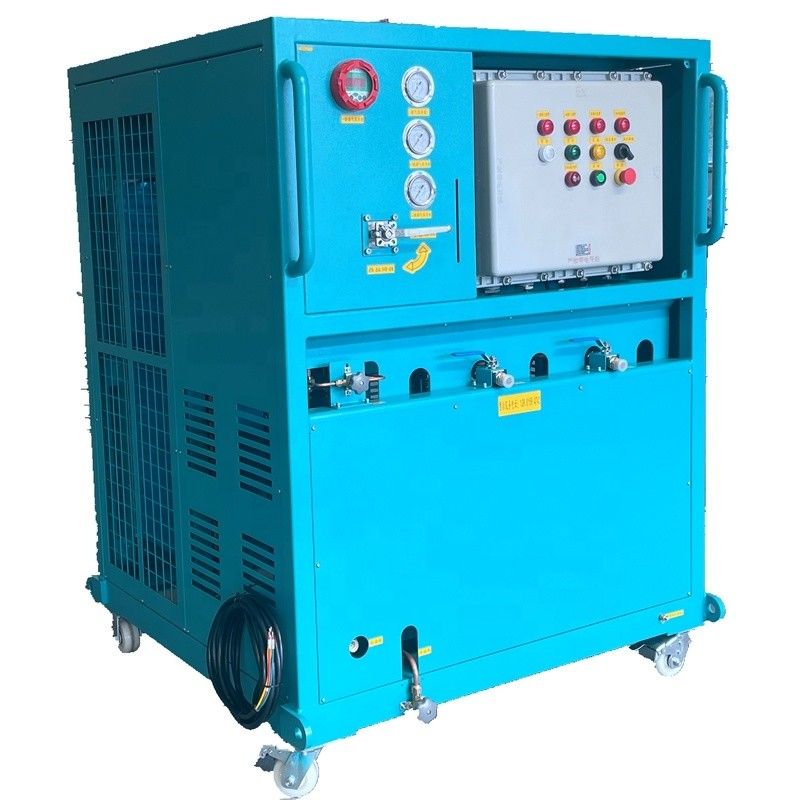

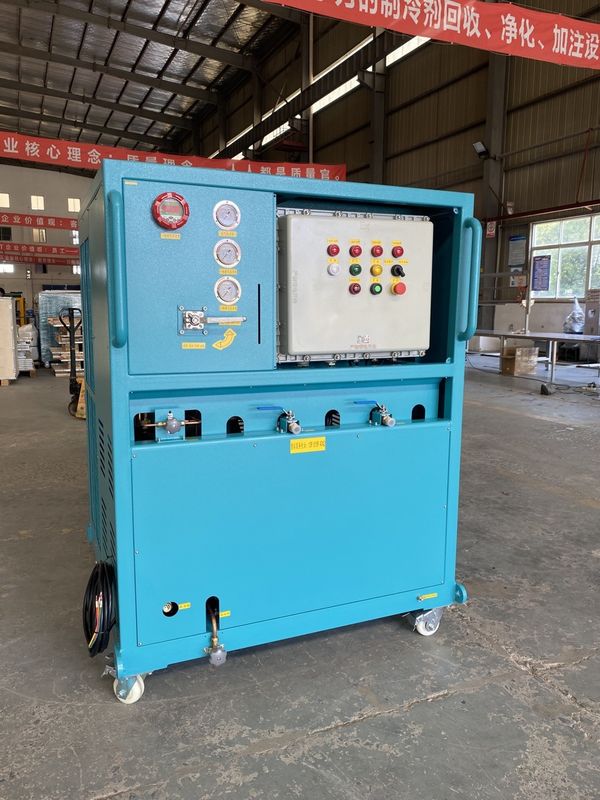

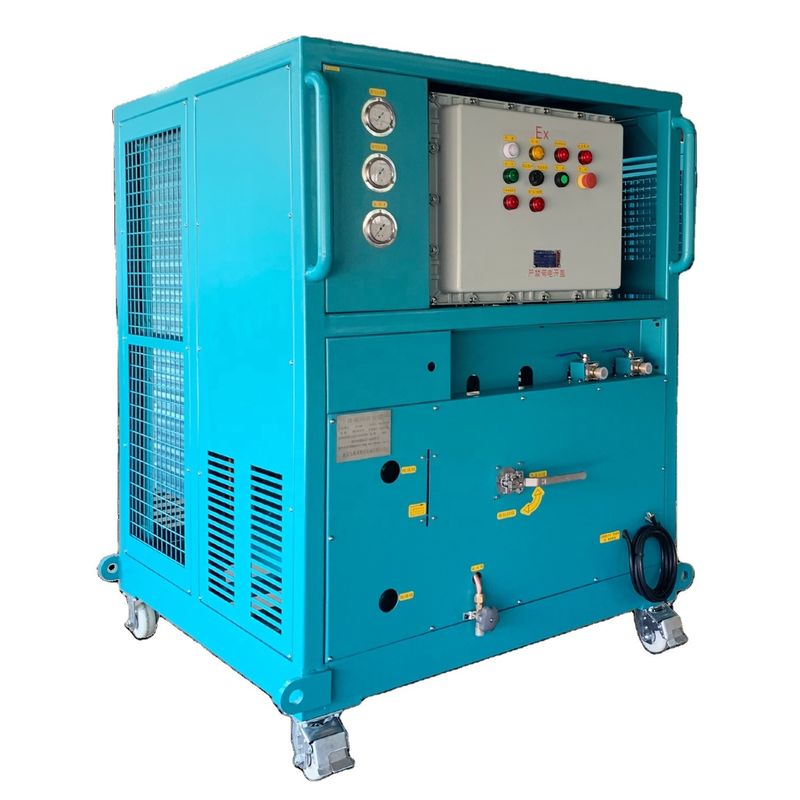

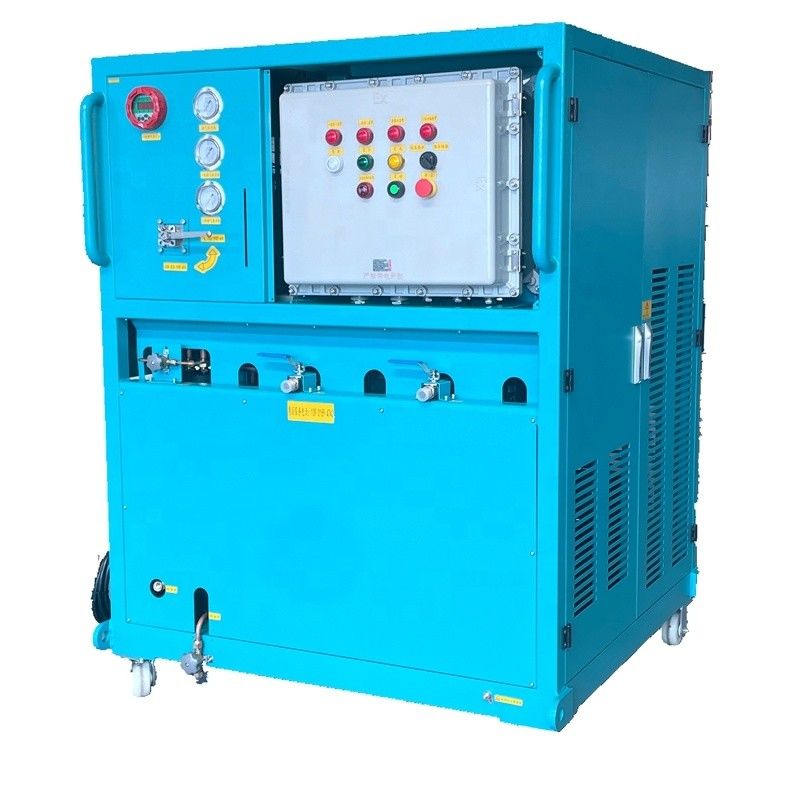

CM-T1800 Refrigerant Gas Recovery Machine 10HP Freon Gas Refrigerant Recycling Reclaim System AC Charging Machine
-
FeaturesNo Cross Pollution, With Protection System And Cooling System
-
ConditionNew
-
Applicable IndustriesManufacturing Plant, Other
-
Weight (KG)250
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
Horsepower10HP
-
Power Source380V 50Hz
-
RefrigerantR22 R410A R407C R134A
-
Vapor Recovery Rate120
-
Liquid Recovery Rate9000
-
CompressorOil Less Compressor
-
Product NameRefrigerant Gas Charging Machine
-
ApplicationRefrigeration Factory, Lab, Chemical Plant, Nuclear Power Station
-
PortShanghai Tianjin Qingdao Shenzhen
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Price$11,000.00/cartons 1-2 cartons
-
Packaging Detailsindustrial refrigerant charging machine<br>inner packed by carton box or plywood case, outer packed on pallet
-
Supply Ability100 Carton/Cartons per Month
CM-T1800 Refrigerant Gas Recovery Machine 10HP Freon Gas Refrigerant Recycling Reclaim System AC Charging Machine
CM-T1800 Refrigerant recovery & charging system
CM-T1800 series explosion proof refrigerant recovery machine is specially designed for recovering flammable refrigerants like (R290/R600a/R32/ R1234ze/R1234yf.etc)from large refrigeration system and ISO tank or ton tank,the product had passed the CE and ATEX certification. Application:Chemical factory,lab,nuclear power plant including other sites which required explosion proof demand Function:Ultra fast refrigerant recovery/charging
Specifications
| Model | CM-T1800 |
| Series No. | 20IIA7.5EP |
| Compressor | 10HP oil-free SS304 |
| Vapor recovery rate | ≤200kg/h |
| Liquid recovery rate | ≤9000kg/h |
| Voltage | 380V/50HZ ( made to order ) |
Voltage(optional)
| 50Hz/3PH/380V | 50Hz/3PH/400V |
| 50Hz/3PH/415V | 60Hz/3PH/380V |
| 60Hz/3PH/440V | 60Hz/3PH/460V |
Included with Purchase(standard)
Recovery/Recharging/Filling system 1set;
Operating manual 1pc
Certification of quality 1pc
CM-T1800 Refrigerant recovery & charging system
Optional accessories
1/2" connecting hose(length is customizable)
3/8" connecting hose(length is customizable)
5/8" connecting hose(length is customizable)
3/4" connecting hose(length is customizable)
3/4" to 3/8" adapter
3/4" to 1/4" adapter
3/4" to 5/8" adapter
3/4" filter
Cylinder (20L-1000L) customizable
Float switch for cylinder
( length of power cord is customizable)
Advantages and Main Features
1. Adopt powerful 10HP oil less stainless steel compressor
2. Suitable for various refrigerant without cross contamination
3. Exchange valve design-no need to exchange pipeline when recovery liquid/vapor
4. Excellent and reliable protection system
5. No refrigerant loss-machine shut off automatically when reach deep vacuum degree -0.04Mpa
6. Equipped with oil separator and filter frier for removing oil and moisture
7. Design and manufacture according to explosion proof standard and passed ATEX certificatio
Customer Projects
ChunMu Refrigeration(CM) is a 24-year comprehensive hi-tech enterprise in R&D, manufacturing oil less refrigerant recovery/reclaim/charging machine in HVAC/R industry. Our main products cover refrigerant recovey unit, refrigerant recovery and reclaim unit, refrigerant recovery recharge unit, R32 recovery unit, R1234yf recovery reclaim unit, high pressure/low pressure recovery unit, R290, R600 anti-explosive recovery machine, multiple-station refrigerant split filling machine,etc.
Our aim is to help clients fulfil Zero Refrigerants Discharge and eco-friendly life environment for our people.
History
| 1998 |
CM founded in 1998, entered the HVACR industry as refrigerant recovery,reclaim and charging solution provider and manufacturer |
| 2004-2006 |
2004,successfully launched first generation portable type residential refrigerant recovery unit,featured by compact design,fast recovery rate with pull rod design,after then,it certificated by CE and ISO-9001 and become the most popular recovery unit in the world. |
| 2007-2009 |
2009,successfully launched commercial and industrial refrigerant recovery recycling system and been authorized by York of Johnson Control to be manufacture refrigerant recovery system with York brand,meanwhile,the industrial recovery machine passed the inspection of York engineering team which capable o |
| 2010-2014 |
2010,York ex chief engineer Dr Lee joined CM R&D engineering team, meanwhile 25HP rapid refrigerant recovery machine lanuched and been export to Saudi Arabia Ghawar oil field.By the fast recovery rate and unmatched performance,it's been highly praised by the users. f recovering 3 tons refrigerant within 4hours. |
Workshop
Exhibition and Clients' Visit
Q1: Could I get some samples?
A1: Yes, sample orders welcomed, maybe you could purchase 1 sample for testing,sample not for free.
Q2:Do you have your own factory?
A2: Yes, we are professional manufacturer in this industry over 24 years.
Q3: Could I use my own logo or design on goods?
A3: Yes,Customized logo and design are available for mass production . but we have MOQ
for OEM.
Q4: May I visit your factory?
A4: Sure, warmly welcomed. Factory add.:No.27, Bofu Road, Intelligent Manufacturing Industry Zone, Liuhe District, Nanjing.
Q5: What is the payment team?
A5: T/T, L/C at sight, Western Union,etc.
Q6: What is the delivery time?
A6: Depends on the actual situation, if in stock, we can delivery goods within 2 days after getting the payment; Otherwise, our common lead time15-25 days after getting the deposit.
Q7: How can I trust you?
A7: We have our own factory in China, you can visit us for our field production any time. We also are "Alibaba" verified supplier over 10 years. You can place Trade Assurance Order and pay us through Alibaba, which is as the third party to assure our two sides profits, to be mutual and equal for us.
Q8: How long is your machine warranty period?
A8: The machine warranty period is 1 year after sale. After the warranty expires, we will provide technical and maintenance support for life. We also can supply the spare parts at favored price.
Q9: How do you obtain technical parameters of machine?
A9: Our technical parameters are our laboratory theoretical data, take refrigerant R410A for example, the numerical value of saturated gas pressure tested in the laboratory, under the actual on-site using condition, the machine has the highest initial recovery speed, but with the inlet pressure of the recycling machine will slowly become smaller and smaller, the recovery speed will also be slower and slower in parabola tendency.
