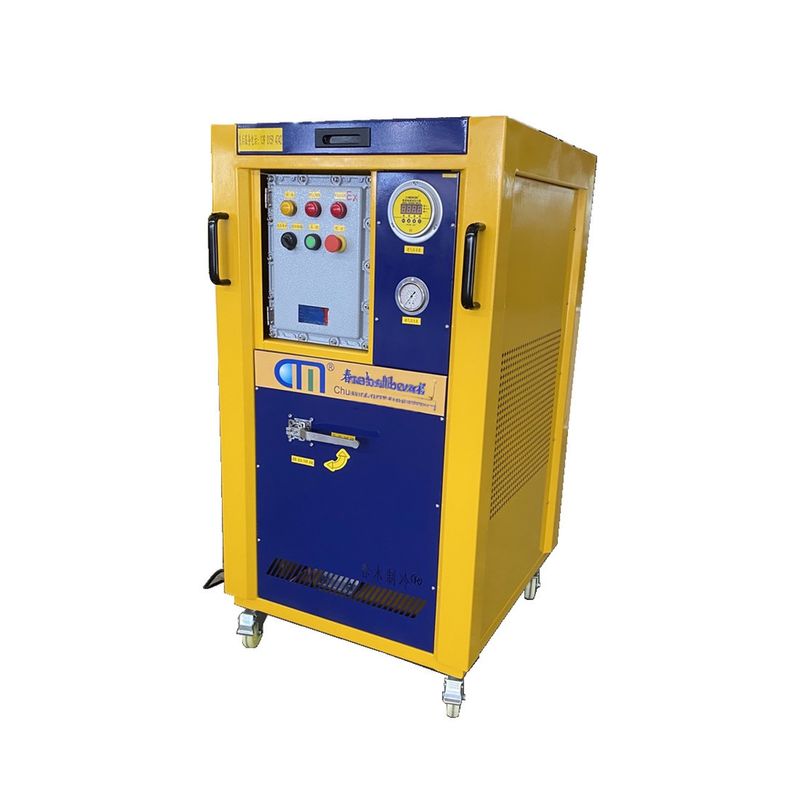

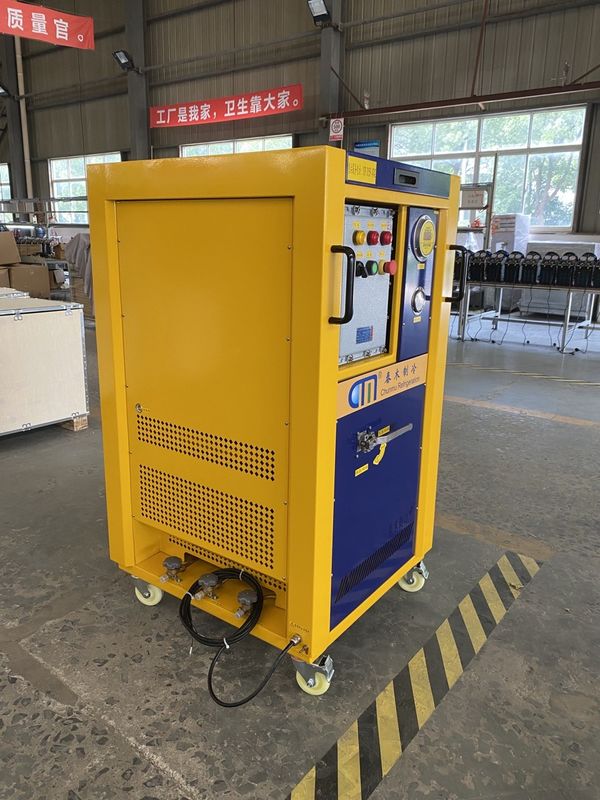

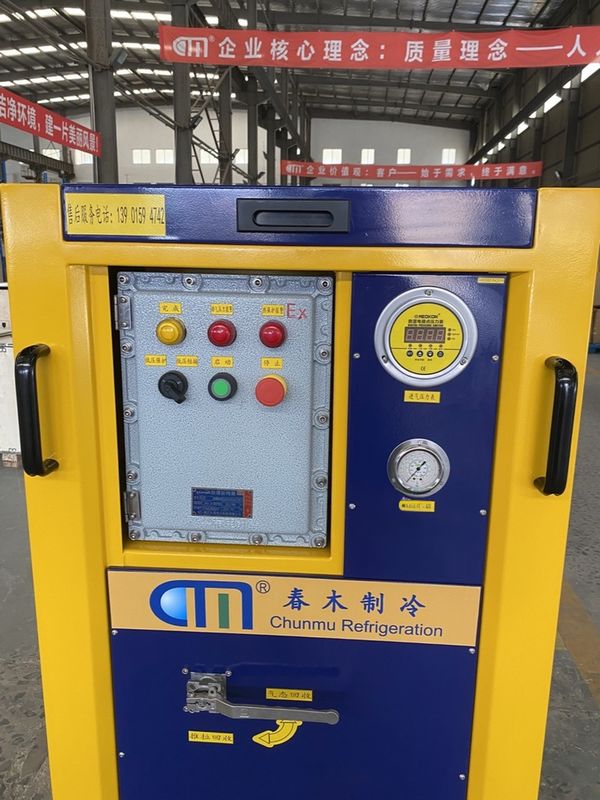

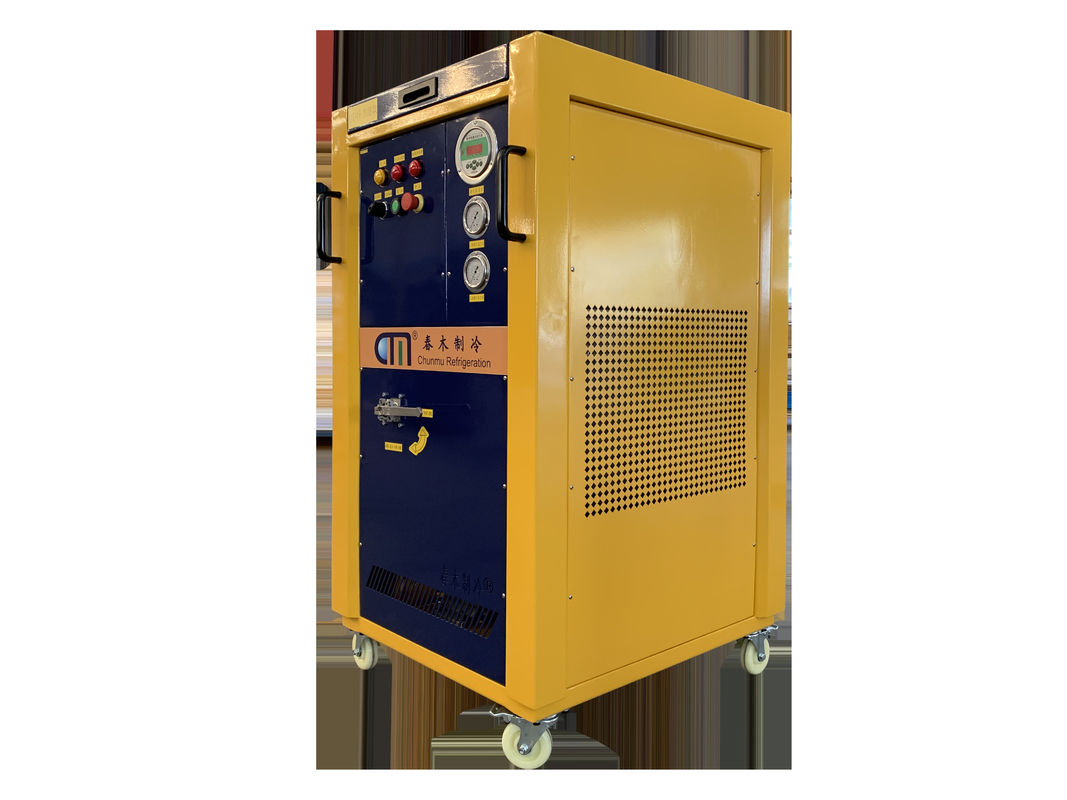

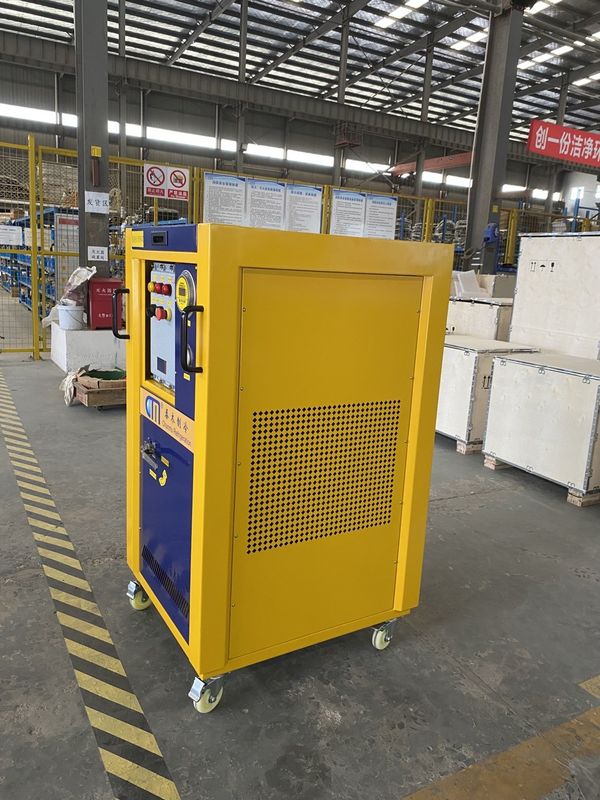

R32 Air Conditioning Hydrocarbon Refrigerant Gas Recovery Machine R134a R22 Refrigerant Recovery Charging Equipment
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant, Retail, Food & Beverage Shops, Air Conditioner Repair
-
Weight (KG)245
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportProvided
-
Warranty Of Core Components1 Year
-
Core ComponentsCompressor
-
TypeMotor
-
Warranty1 Year
-
Compressor4HP Oil Free
-
Vapor Recovery Rate≤ 50 Kg/h
-
Liquid Pull & Push Recovery Rate≤1300kg/h
-
Voltage380V/50Hz/3PH
-
After Warranty ServiceOnline Support
-
After Sales Service ProvidedVideo Technical Support
-
Approved RefrigerantsR290,R32,R1234ZE,R410A
-
Cooling TypeAir Cooling
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE,ATEX
-
Model NumberCM-V400
-
Minimum Order Quantity1 Unit
-
Price$8,000.00/cartons 1-4 cartons
-
Packaging DetailsFully closed carton
-
Supply Ability200 Unit/Units per Month
R32 Air Conditioning Hydrocarbon Refrigerant Gas Recovery Machine R134a R22 Refrigerant Recovery Charging Equipment
Product Description
Refrigerant Charging Equipment CM-V400 exploison proof is specially designed for recovering flammable refrigerants like (R290/R600A/R32/R1234ZE/R1234YF.ect) from large refrigerant system and ISO tank or ton tank,the product had passed the CE & ATEX certification .
Application
Chemical factory ,lab,nuclear power plant including other sites which required explosion proof demand
Fuction
Ultra fast refrigerant recovery/chaging
Main Features
1.Adopt powerful 4HP oil free stainless steel compressor
2.Suitable for various refrigerant without cross contamination
3.Exchange valve design no need to exchange pipeline when recovery liquid /vapor
4.Excellent and reliable protection system
5.No refrigerant loss machine shut off automatically when reach deep vacuum degree -0.04Mpa
6.Compressor equipped with individual cooling system can be used in torrid zone country
7.Equipped with oil separator and filter frier for removing oil and moisture
8.Design and manufacture according to explosion proof standard and passed ATEX certification
Chemical factory ,lab,nuclear power plant including other sites which required explosion proof demand
Fuction
Ultra fast refrigerant recovery/chaging
Main Features
1.Adopt powerful 4HP oil free stainless steel compressor
2.Suitable for various refrigerant without cross contamination
3.Exchange valve design no need to exchange pipeline when recovery liquid /vapor
4.Excellent and reliable protection system
5.No refrigerant loss machine shut off automatically when reach deep vacuum degree -0.04Mpa
6.Compressor equipped with individual cooling system can be used in torrid zone country
7.Equipped with oil separator and filter frier for removing oil and moisture
8.Design and manufacture according to explosion proof standard and passed ATEX certification
Product Paramenters
|
Model
|
Refrigerant Charging Equipment CM-V400
|
|
Refrigerant Number
|
R134A,R22 , R410A ,R32,R290,R1234YF ect
|
|
Refrigerant Number
|
CFC,HCFC,HFC
|
|
Compressor
|
4HP Oil-freeType
|
|
Vapor Recovery Rate
|
≤ 60kg/h
|
|
Liquid Push&Pull Recovery Rate
|
≤ 1300 kg/h
|
|
Voltage
|
380V 50HZ(also customizable)
|
|
Size
|
720*740*1440mm
|
|
Weight
|
245kg
|
|
Certificate
|
CE,ATEX
|
Cooperation Partners & Cases
We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.
|
No.
|
Partner Name
|
Main Product Type
|
Cooperation Time
|
|
1
|
YORK Air Conditioning
|
Refrigerant recovery machine
|
11 years
|
|
2
|
CARRIER Air Conditioning
|
Refrigerant recovery/recharge machine
|
06 years
|
|
3
|
MCQUAY Air Conditioning
|
Refrigerant recovery/recharge machine
|
09 years
|
|
4
|
CLIMAVENETA Air Conditioning
|
Refrigerant recovery/recharge machine
|
04 years
|
|
5
|
TICA Air Conditioning
|
Refrigerant recovery/recharge machine
|
08 years
|
CERTIFICATES
PROJECT CASES
SPECIAL UNITS:
Packing&Shipping
Bulk packing: Large pallet + Straps + Wrapping film
Company Introduction
CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.
>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.
>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.
>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.
>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.
>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.
>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.
>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.
>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.
>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.
>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
