3 Workstations Refrigerant Recovery Filling System Oil Less Recovery Ac Gas Charging Machine Split Charging Station

Condition

New
Applicable Industries

Machinery Repair Shops, Manufacturing Plant
Weight (KG)

430
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Not Available
Warranty Of Core Components

1 Year
Core Components

Motor, Pump
Type

COMPRESSOR
Warranty

1 Year
After-sales Service Provided

Engineers Available To Service Machinery Overseas
Application

For Refilling Refrigerants To Cylinders From ISO Tank
Compressor

Oil-free
Refrigerant

R134A/R22/R407C/R410A
Product Name

CM20A Refrigerant Split Filling System Charging Machine
Filling Accuracy

0.5%
Filling Rate

6kg/min
Scale Measurement Range

40kg/100kg/150kg/200kg(optional)
Vacuum Pump

4L/s (3 Units)
Place of Origin

Jiangsu, China
Brand Name

CM
Certification

CE
Price

$21,600.00/units 1-1 units
Packaging Details

wooden case, pallet<br>refrigerant split charging machine refrigerant sub-package filling system
Supply Ability

50 Unit/Units per Month

3 Workstations Refrigerant Recovery Filling System Oil Less Recovery Ac Gas Charging Machine Split Charging Station

Name: 3 Workstations Refrigerant Recovery Filling System Oil Less Recovery Ac Gas Charging Machine Split Charging Station
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
Price: 1.00 USD
Availability: InStock

button button

Get Price Contact Now

Product Description

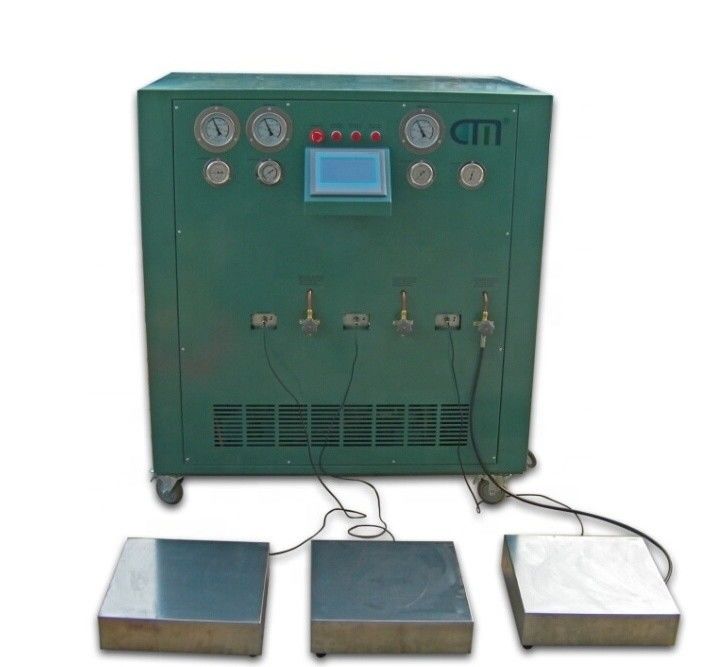

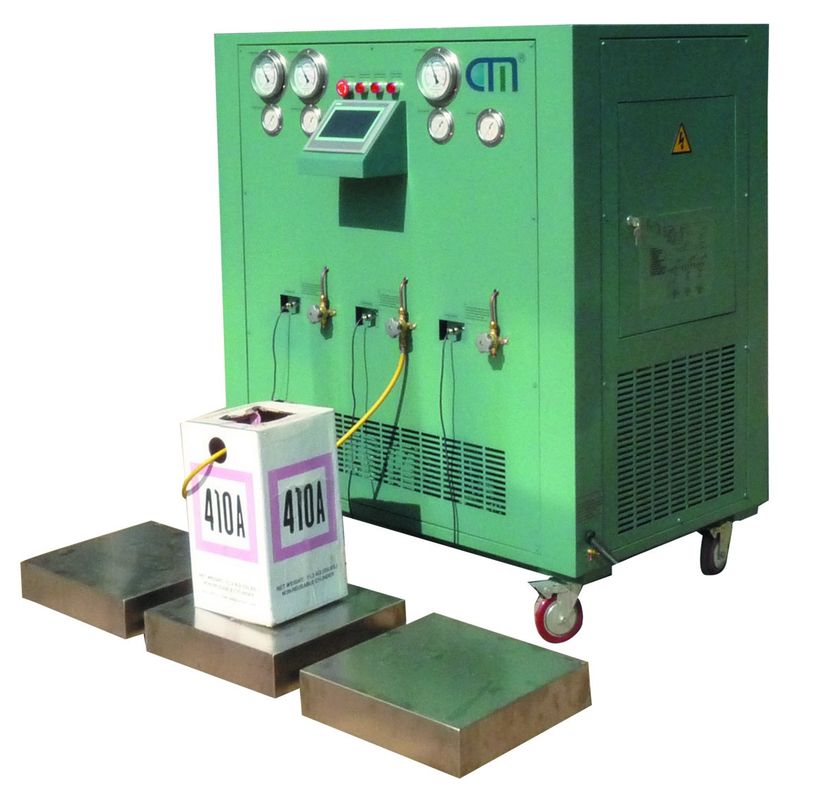

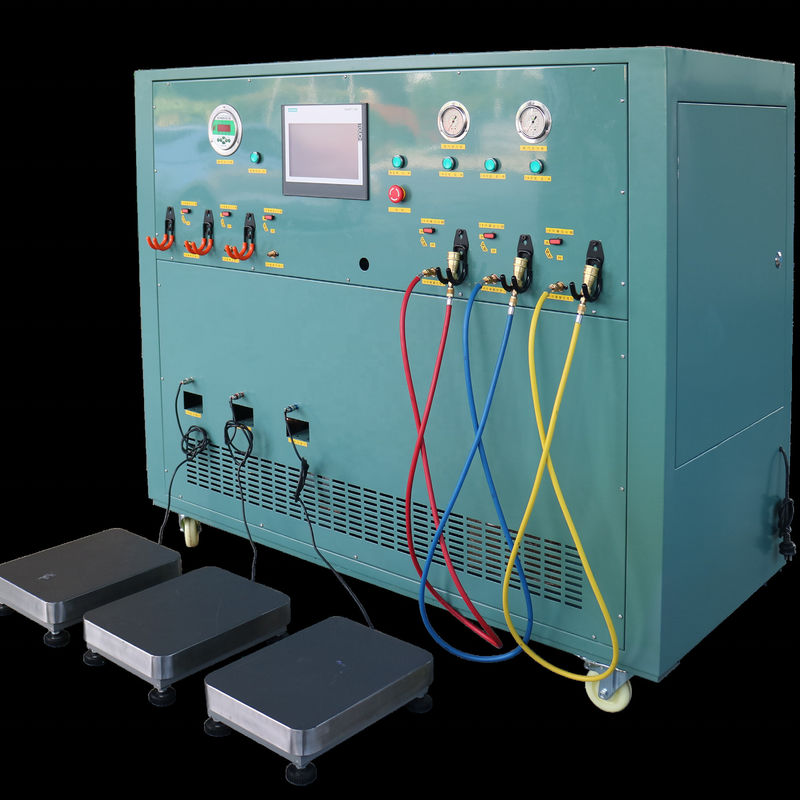

CM20/CM20A Multiple-Stage Refrigerant Split Sub-Packaging System Refrigerant Charging Filling Machine

CM20A Multiple-Stations refrigerant filling system is specially designed for filling refrigerant from ISO tank or storage tank to
10L-100L cylinder,it integrated filling and vacuum functions with Siemens PLC programmer control system, standard three stations can work at the same time to improve production capacity,multiple stations can be customized.

CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System Main features
1. Integrate functions of vacuum, filling, and pump-back- high efficiency and no refrigerant loss;
2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4. Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5. Three working-station design, high filling efficiency;
6. Overall protection system, safe credible;
7. Filling accuracy is 0.5%;
8. Can make according to customers' requirements.

CM20/CM20A Multiple-Stage Refrigerant Sub-Package System Specification
Model	Booster Oil-free Compressor	Vacuum Pump	Filling Rate	Application Tank
CM20	1.5 HP	2 L/s * 3 units	≤ 3kg/min	≤ 20L
CM20A	1.5 HP	4 L/s * 3 units	≤ 3kg/min	≤ 60L

Advantage and Features

1. Integrates vacuum and split filling functions, smart PLC control.

2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc,

3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder; 4. Transfer speed is fast, 4kg/min for each filling station. 5. Filling accuracy is 0. 5%;

6. Without any loss of refrigerant during transfer process.

7. Daily transfer capacity is 100-600pcs of 13.6L(30lbs) cylinders.

8. Low investment, fast return, compact design is convenient for moving and using.
