Nanjing Wonfulay Precision Machinery Co., Ltd. 86-25-8562-2796 cm.david@cm-green.com

R23 R508 Recovery Refrigerant Ultra High Pressure Refrigerant Charging Machine

Condition

New
Applicable Industries

Machinery Repair Shops, Manufacturing Plant, Retail, Air Conditioner Repair
Weight (KG)

250
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Provided
Warranty Of Core Components

1 Year
Core Components

PLC, Pressure Vessel, Pump, Compressor
Type

Oil-less
Warranty

1 Year, 1 Year
Name

Refrigerant Charging Machine
Voltage

220V-380V/50-60HZ
Application

Ac,refrigerator,heat Pump,condensing Unit
Charging Speed

150g/s
Vacuum Rate

8L/S
Vacuum Degree

≤ 5Pa
Charging Amount Range

20-999999g
Refrigerants Type

R13,R14,R23,R503,etc
Port

Shanghai
Place of Origin

Jiangsu, China
Brand Name

ChunMu
Certification

CE
Price

$8,999.00/cartons 1-9 cartons
Packaging Details

Fully closed carton
Supply Ability

200 Unit/Units per Month

R23 R508 Recovery Refrigerant Ultra High Pressure Refrigerant Charging Machine

Name: R23 R508 Recovery Refrigerant Ultra High Pressure Refrigerant Charging Machine
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
Price: 4.00 USD
Availability: InStock

button button

Get Price Contact Now

Product Description

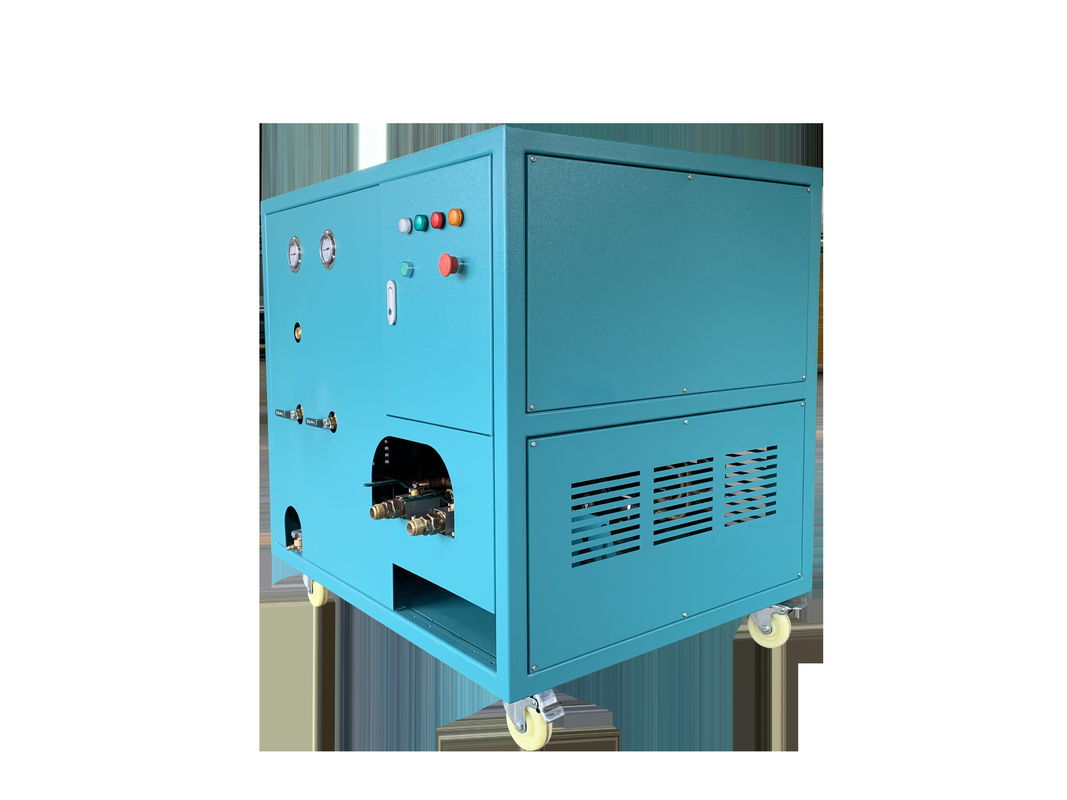

Refrigerant Charging Machine CM-R23 series high pressure refrigerant recovery machine is suitable for low temperature refrigerant,like R13
R23,SF6,R508B...etc,it's specially designed for recovering large quantity refrigerant from chiller or air conditioner,it adopts
large displacement oil less piston compressor to offer fast recovery rate to maintenance technician with long working life.

Item.

Refrigerant Charging Machine CM-R23

Details Images

Our Advantages

FEATURES

1. Application for R13/R23/ SF6/R14/R508B/R116...... etc;

2. Four-cylinder oil-less piston compressor

3. Equipped with chiller for deep refrigerant cooling

4. Ultra fast recovery rate for liquid and vapor refrigerant

5.Max working pressure 100Bar

6. Automatic high pressure and low pressure shut-off
7. Low RPM with large compressor flow rate make it durable with long working life

8. Deep vacuum degree allow recovery more refrigerant for avoid refrigerant lose

9. Continuously running for 24 hours duty cycle

10. Operational oil separator and filter drier for removing oil and moisture

Product Paramenters

Model	Refrigerant Charging Machine CM-R23
Refrigerant Type	SF6/R13/R23/R503/R508A/R14/R116/R508B
Vapor Recovery	15Kg/h
Inlet&Outlet Size	M14*1.5 Male
Voltage	380V 50Hz 3PH
Certification	CE
Cooling	Air Cooled
Working Temp.	-10°C ~ 40°C

Cooperation Partners & Cases

We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.

No.	Partner Name	Main Product Type	Cooperation Time
1	YORK Air Conditioning	Refrigerant recovery machine	11 years
2	CARRIER Air Conditioning	Refrigerant recovery/recharge machine	06 years
3	MCQUAY Air Conditioning	Refrigerant recovery/recharge machine	09 years
4	CLIMAVENETA Air Conditioning	Refrigerant recovery/recharge machine	04 years
5	TICA Air Conditioning	Refrigerant recovery/recharge machine	08 years

CERTIFICATES

SPECIAL UNITS:

Packing&Shipping

1. Single packing: Mini wooden pallet + Carton

2. Bulk packing: Large pallet + Straps + Wrapping film

Company Introduction

CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.

WHY CHOOSE CM REFRIGERATION

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.

>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.

>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.

>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.

>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.

>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
