R134a R404a Refrigerant Filling Recovery System Air Conditioning Ac Recovery Gas Charging Machine
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)200
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
ColorBlue
-
CompressorOil-free
-
RefrigerantR134A/R22/R407C/R410A
-
Product NameCM20A Refrigerant Recovery Charging Unit
-
Filling Accuracy0.5%
-
Filling Rate4kg/min
-
Scale Measurement Range40kg/100kg/150kg/200kg(optional)
-
Vacuum Pump4L/s (3 Units)
-
Cylinder Capacity13.6L(30lbs)
-
Place of OriginJiangsu, China
-
Brand NameCM
-
Price$19,200.00/units 1-1 units
-
Packaging DetailsPlywood case on pallet for CM20A Refrigerant Split Charging Machine Refrigerant Filling Recharge Machine
-
Supply Ability50 Unit/Units per Month
R134a R404a Refrigerant Filling Recovery System Air Conditioning Ac Recovery Gas Charging Machine

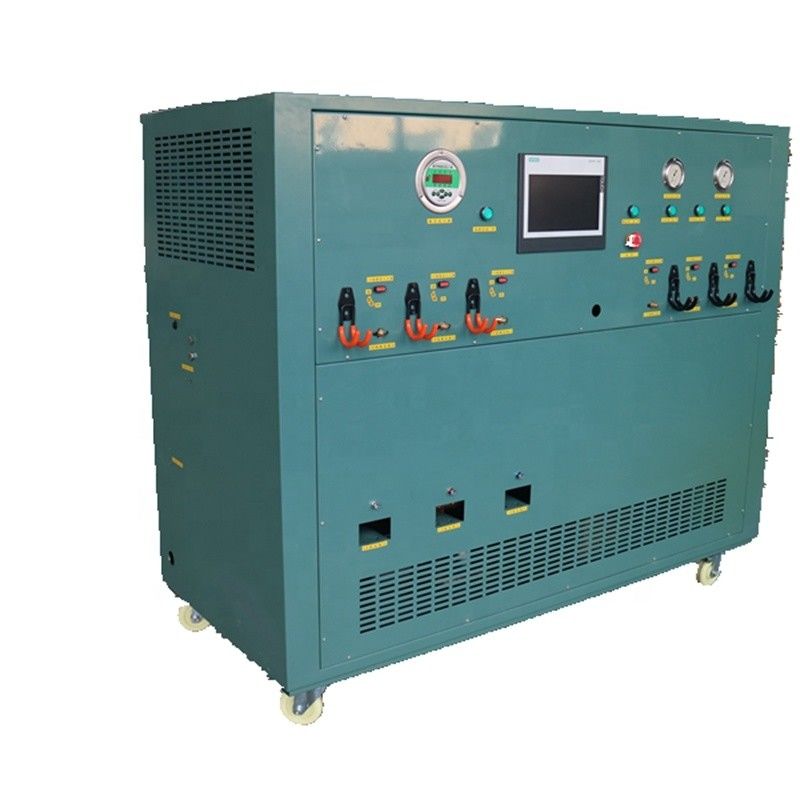

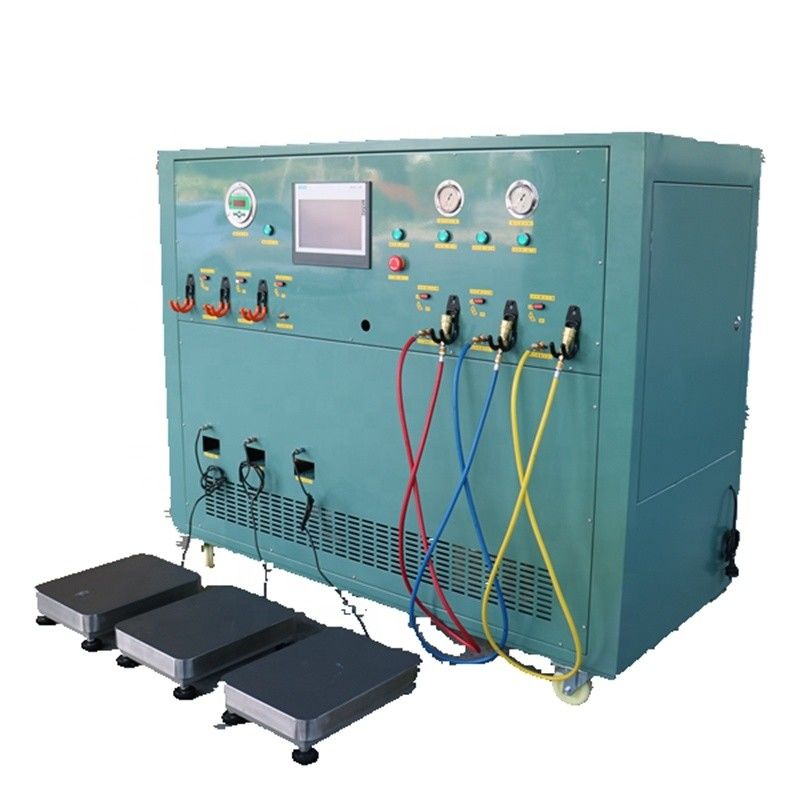

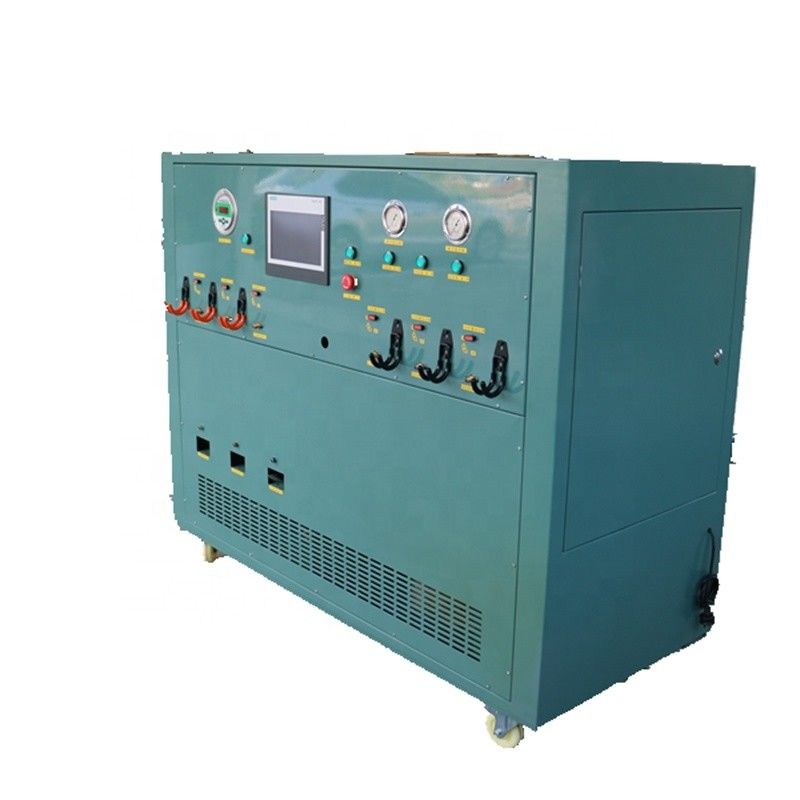

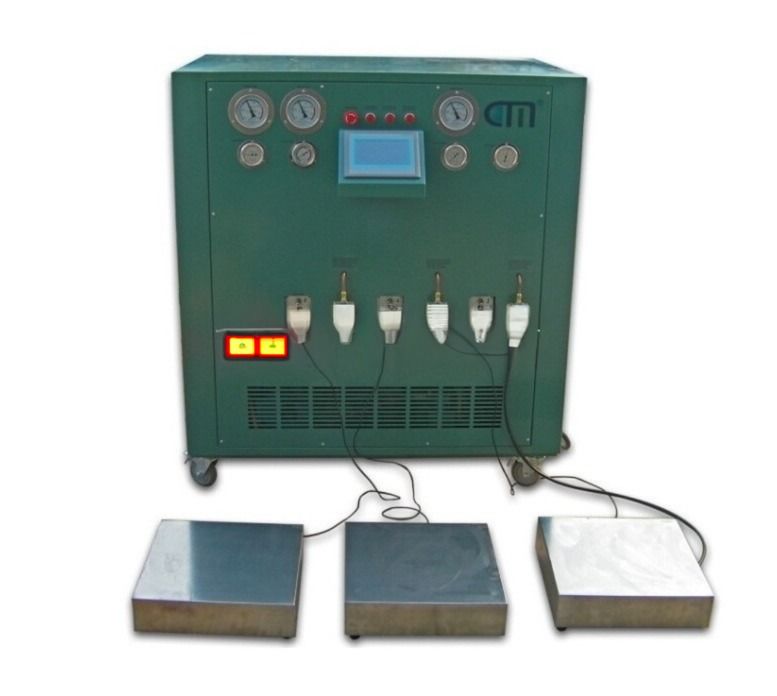

CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System

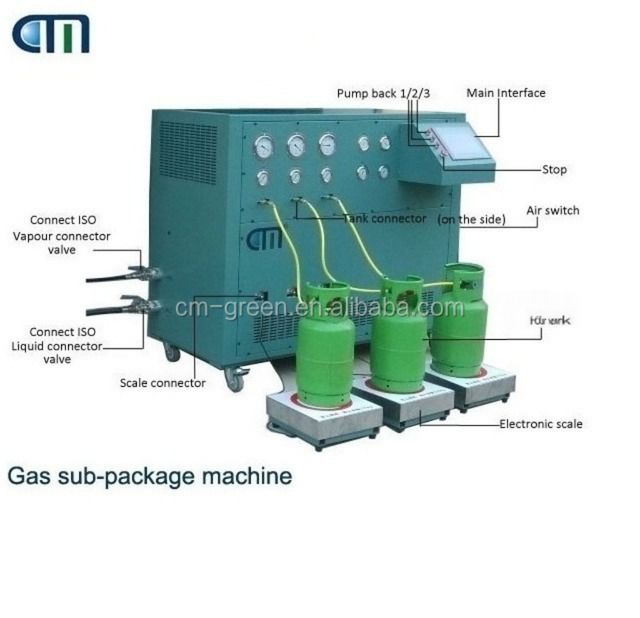

CM20/CM20A Multiple-Station Refrigerant Sub-packaging System is for the application that Transfer refrigerant from ISO TANK or 1000-400L tank to 12L-60L tank. It integrates functions of vacuum, recharge and pumpback. Three stations can work simultaneously, so subpackage efficiency is very high. The accuracy is 0.5%.
CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System Main features
1. Integrate functions of vacuum, filling, and pump-back- high efficiency and no refrigerant loss;
2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4. Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5. Three working-station design, high filling efficiency;
6. Overall protection system, safe credible;
7. Filling accuracy is 0.5%;
8. Can make according to customers' requirements.
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
