R290 Flammable Refrigerant Recovery Machine Air Conditioners AC Gas Charging Recharge 4HP Explosion Proof Gas Recovery System
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)300
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeRefrigerant Recovery Machine
-
Warranty1 Year
-
Product NameATEX Refrigerant Recovery Recharge Machine
-
Compressor4HP Oil-less Compressor
-
RefrigerantR290, R600A, R32, R1234ZE, R1234YF,R22
-
Voltage380V/50Hz
-
Model NoCM-V400 Explosion Proof Refrigerant Recovery Unit
-
ApplicationRefrigerant Factory, Lab, Chemical Factory, Etc
-
Vapor Recovery Rate60kg/h
-
Liquid Recovery Rate1300kg/h
-
Explosion ProofYes
-
CertificateCE, ATEX
-
PortShanghai Ningbo Tianjin Qingdao
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM-V400
-
Minimum Order Quantity1 Unit
-
Price$8,520.00/units 1-1 units
-
Packaging DetailsPlywood case on pallet for CM-V400 Explosion Proof Refrigerant Charging Machine
-
Supply Ability50 Unit/Units per Month

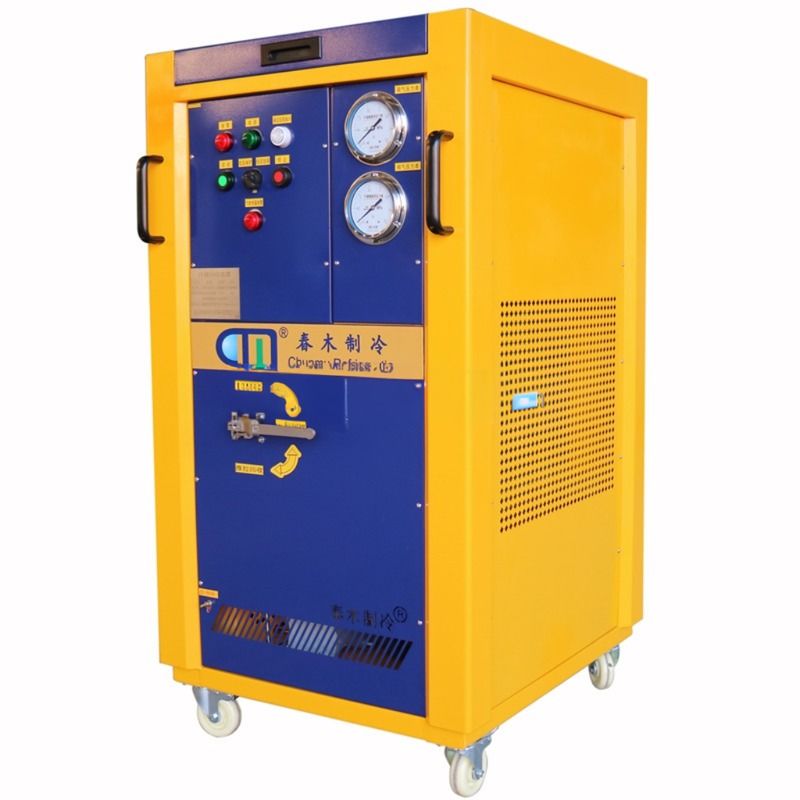

R290 Flammable Refrigerant Recovery Machine Air Conditioners AC Gas Charging Recharge 4HP Explosion Proof Gas Recovery System
|
Model
|
CM-V400-5IIA3EP
|
|
Horsepower
|
4HP
|
|
Compressor Displacement
|
5m³/h
|
|
Compressor Type
|
SS304 oil-free reciprocating
|
|
Vapor Recovery
|
≤60Kg/h
|
|
Liquid Push&Pull Recovery Rate
|
≤2000Kg/h
|
|
Cooling
|
Air Cooled
|
|
Applicable Refrigerant
|
R290/R600A/R32/R410A/R134a/R22 etc.
|
|
Gas Leakage Monitoring
|
Yes
|
|
HP Shut-off
|
Yes
|
|
LP Shut-off
|
Yes
|
|
Oil Separator
|
Yes
|
|
Power Source
|
380V 50Hz 3Phase/220V 50Hz 1Phase
|
|
Certification
|
ATEX
|
Features
·Oil-free compressor to be compatible with CFC/HCFC/HFC refrigerants
·Ultra fast recovery rate for both liquid and vapor refrigerants
·One valve to exchange vapor and liquid recovery without hose disconnection
·HP and LP shut off;
·Optional air cooled
·Low vacuum degree -0.07Mpa allow recovery more refrigerant
·Utilizes oil separator and filter drier
·Long compressor working life
·Continuously running for 24 hours duty cycle
·Can be customized for flammable refrigerants
Application
HVAC equipment field service
Refrigerant storage tank residual gas recovery
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
CM(ChunMu)@ChinaRefrigerationExpo
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Our products are sold all over the world, you can rest assured.
