Price Of Refrigerant Recovery Machine High Pressure Recycling Gas Recovery Station
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)150
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
CompressorOil-free 2HP 2-stage Reciprocating
-
RefrigerantR13, R23, R503, R508A, R14, R116, R508B,SF6
-
ApplicationChiller Field Service, Storage Tank Gas Recovery
-
Product NameCM-23 Recovery Recovery Charging Equipment
-
Max Working Pressure100Bar
-
Vapor Recovery Rage≤15kg/h
-
Power220V50Hz 1PH/380V50Hz 3phase
-
Liquid Push&pull Recovery Rate≤900kg/h
-
CoolingChiller
-
PortShanghai Ningbo Tianjin Qingdao
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Model NumberCM-R23
-
Minimum Order Quantity1 Unit
-
Price$8,740.00/units 1-1 units
-
Packaging Detailswooden case;<br>CM-R23 Ultra High Pressure Refrigerant Recovery System
-
Supply Ability100 Unit/Units per Month
Price Of Refrigerant Recovery Machine High Pressure Recycling Gas Recovery Station

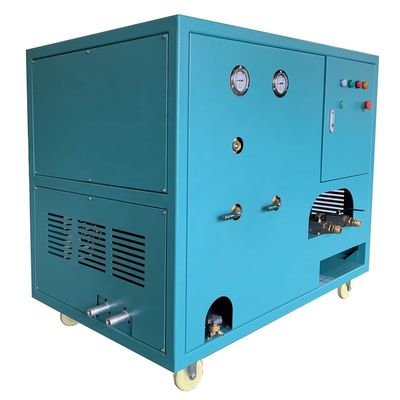

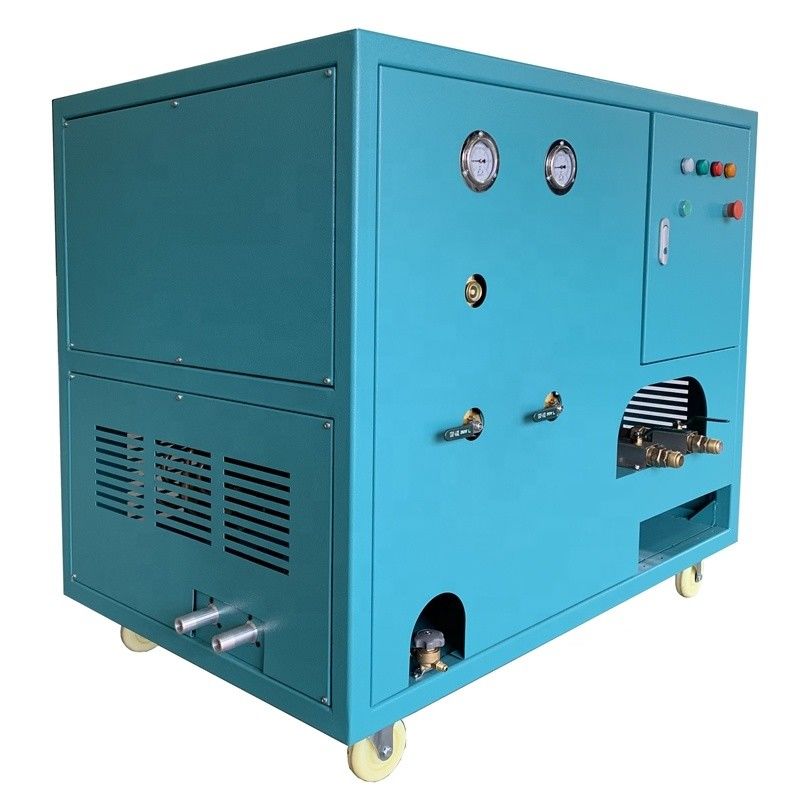

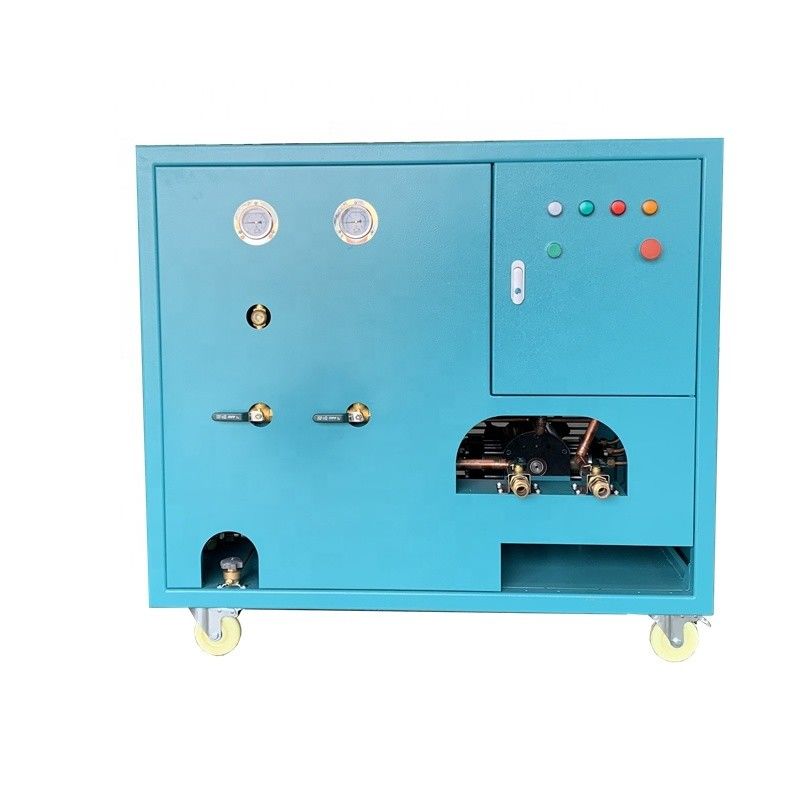

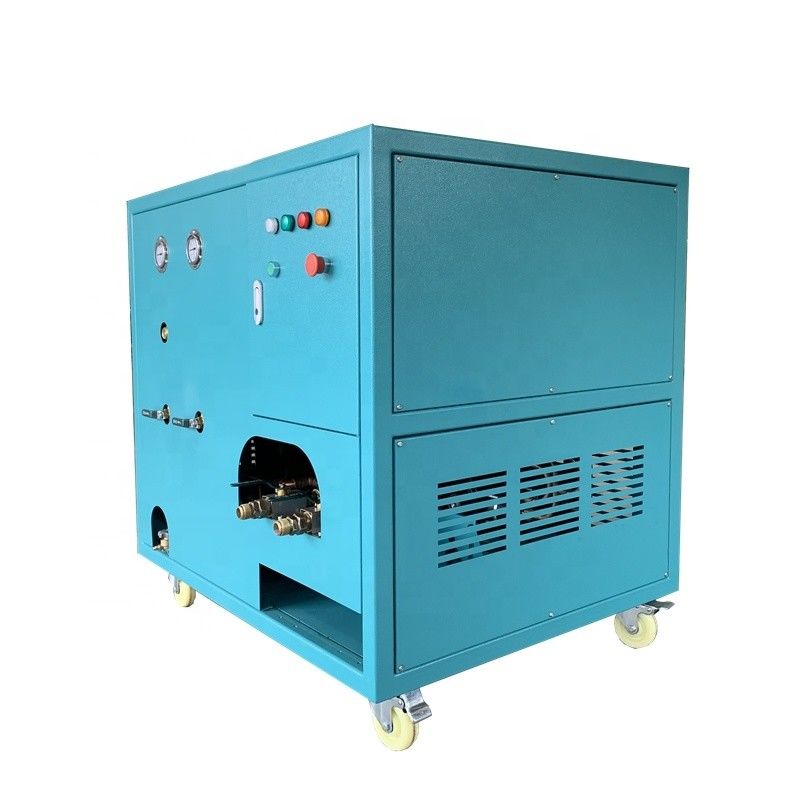

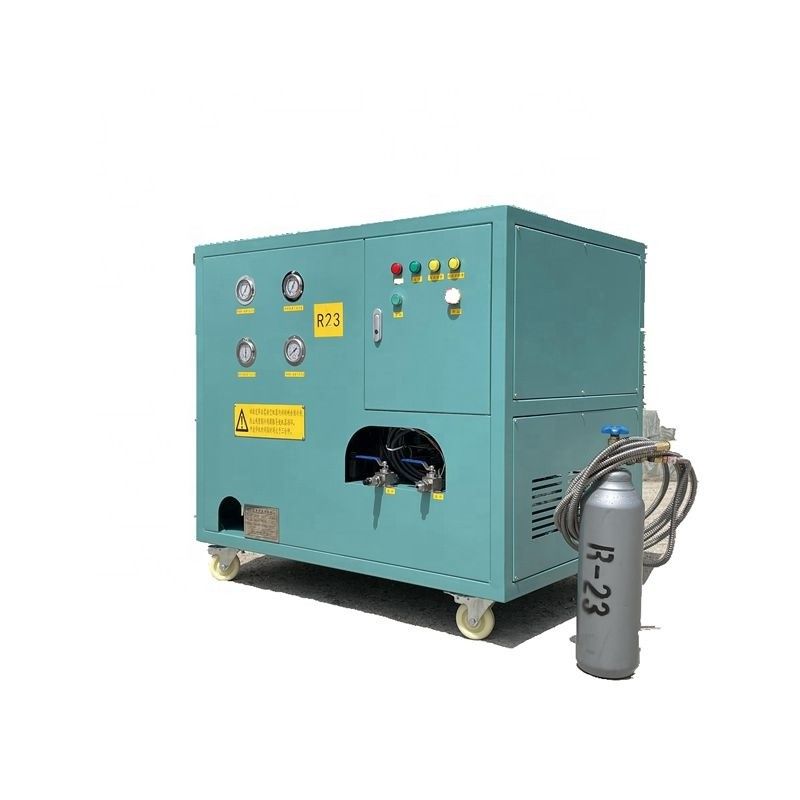

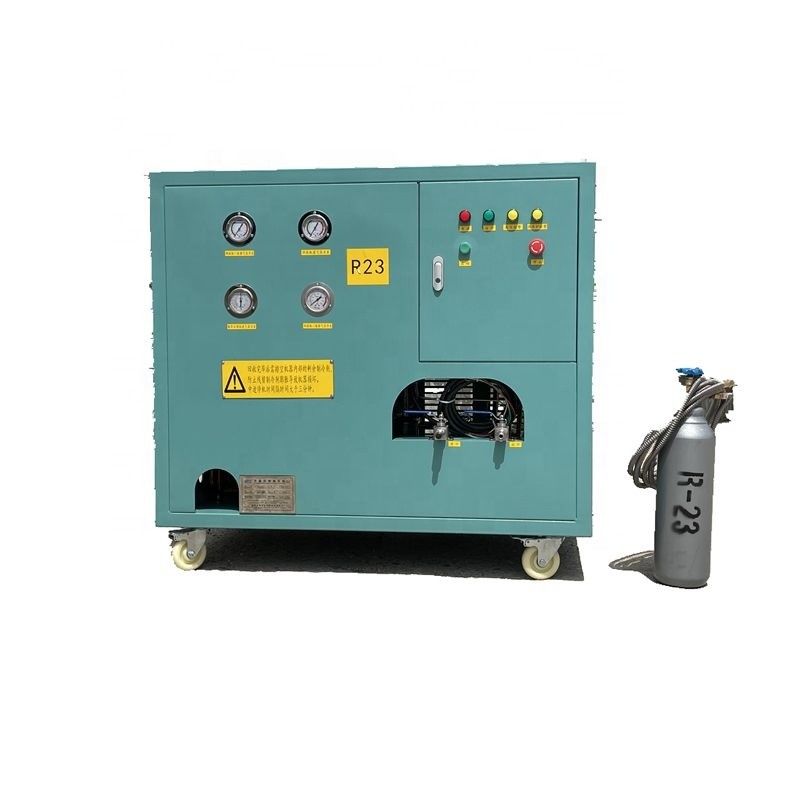

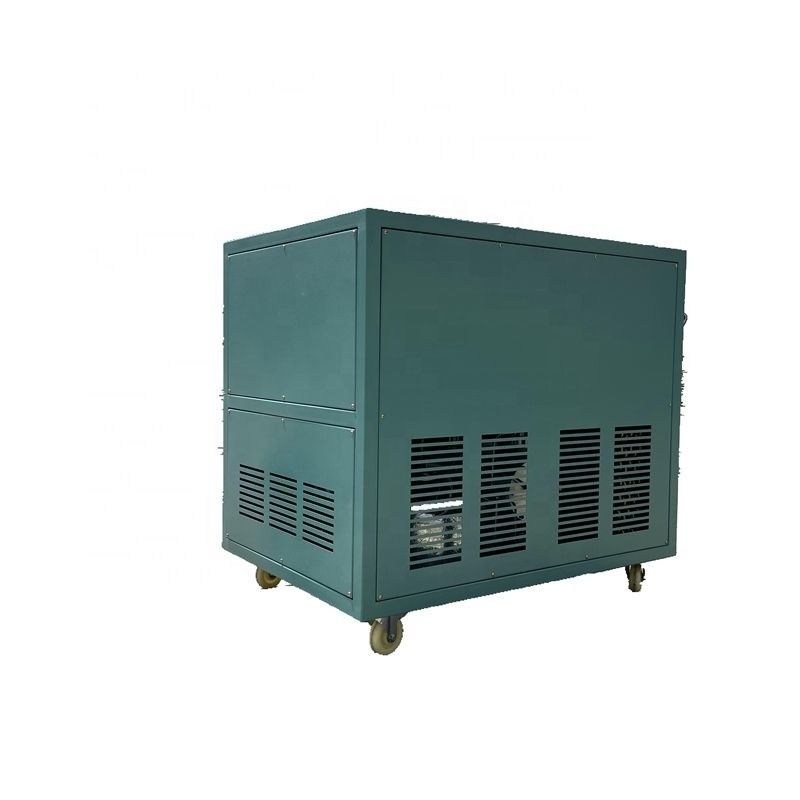

CM-R23 Ultra High Pressure Refrigerant Recovery Machine
CM-R23 refrigerant recovery system is specially designed for recovering ultra high pressure refrigerant from chiller or storage
tank,it adopts oil less four-cylinder compressor without contamination during refrigerant recovery process,2-stage compression
technology give you a fast recovery rate with deep vacuum degree based on CM 20 years’ compressor design and manufacture
experience
CM-R23 refrigerant recovery unit Main Features
·2-Stage compression reciprocating compressor
·Ultra fast recovery rate for vapor refrigerant
·Max working pressure 100Bar
·Capable of handling various refrigerant SF6/R23/R503/R508B etc.
·Equipped with chiller for deep refrigerant cooling
·Continuously running for 24 hours duty cycle
·CE certification
·High pressure shut-off device
·Special cooling system
|
Model
|
CM-R23
|
|
Horsepower
|
2HP
|
|
Compressor displacement
|
1.5m3/h
|
|
Compressor
|
SS304 oil-free reciprocation
|
|
Vapor recovery Rate
|
≤15kg/h
|
|
Liquid push&pull recovery rate
|
≤900kg/h
|
|
Cooling
|
Chiller
|
|
Refrigerant
|
R23, SF6, R508B, R14, R508A, R116,etc
|
|
HP&LP shut off
|
Yes
|
|
Max working pressure
|
100Bar
|
|
Power source
|
380V50Hz 3phase/220V50Hz 1phase
|
|
Certification
|
CE
|
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
CM(ChunMu)@ChinaRefrigerationExpo
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Our products are sold all over the world, you can rest assured.
