Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine

  • Condition
    New
  • Applicable Industries
    Manufacturing Plant
  • Weight (KG)
    300
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Not Available
  • Warranty Of Core Components
    1 Year
  • Core Components
    Motor, Pump
  • Type
    COMPRESSOR
  • Warranty
    1 Year
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Resolution
    0.1g
  • Voltage
    380V/50HZ
  • Refrigerant
    R22/R410A/R407C/R134A
  • Model No
    CM8600 Refrigerant Charging Station For Air Conditioner
  • Precision
    ±0.5%
  • Vacuum Degree
    5Pa~10Pa
  • Charging Speed
    60~260g/s
  • Application
    Air Conditioner, Water Dispenser, Freezer, Refrigerator
  • Port
    Shanghai Ningbo Tianjin Qingdao
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE, ATEX
  • Model Number
    CM8600
  • Minimum Order Quantity
    1 Unit
  • Price
    $15,600.00/units 1-1 units
  • Packaging Details
    wooden case, pallet for CM8600 Refrigerant Filling Recharge Machine
  • Supply Ability
    50 Unit/Units per Month

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 0

Product Description



CM8600 single system refrigerant charging machine for refrigerator assembly line

CM86 refrigerant charging machine is specially designed for the fast speed refrigerant charging at production line. It features for its high speed of charging, high accuracy. multiple function etc. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.



Features
1. Adpot CNC technology allow the data processing capability witP1060073h accurate and easy operation.
2.Charing/filling liquid gas r134a, r22, r407c, r410a etc.(for r600a, r290,r32 can custom).
3. Siemens PLC and colorful touch sreen control system.
4. Adopt high accuracy flow sensors make this machine can get accurate data, and the resolution has reached to 1~0.1g.
5. The Wonfulay(our own brand) Pneumatic booster to ensure stable pressure and the supply of large charging quantity.
6. The continous charging/filling quantity up to 99999g, and the charging rate is 60g~260g.
7. There's a automatic prompts function when the refrigerant in the cylinder is lack.
8. The vacuum time and inspection leak time can be adjusted according to your requirements.
9. Adopt Wonfulay(our own brand) filling gun in the filling interface which improve the charging/filling speed.
10. With Wonfulay(our own brand) high vacuum pump makes it with quick vacuum, the vacuum has reached to 5~10pa.
11. This mahcine has vacuum, inspection leak, charging/filling, recovery refrigerant function.
12. Repeat filling accuracy is ≤ ± 0.5%.
13. Easy to move

Specification

Model
Charging speed
Resolution
Precision
Vacuum degree
Gun connector
Vacuum pump
Power supply
CM8600A
80~150g/s
1g
±0.5%
5Pa~10Pa
1/4&3/8
8L/S
380V/50Hz
CM8600B
80~150g/s
1g
±0.5%
5Pa~10Pa
1/4&3/8
8L/S
380V/50Hz
CM8600C
80~150g/s
1g
±0.5%
5Pa~10Pa
1/4&3/8
8L/S
380V/50Hz
Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 1
Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 2

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 3Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 4Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 5Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 6

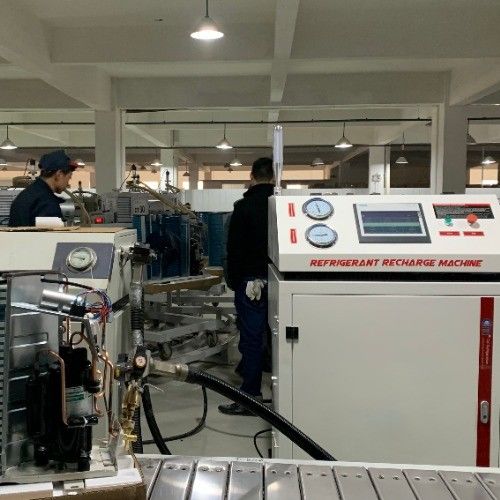

Customer Project

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 7Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 8Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 9Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 10Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 11Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 12Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 13Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 14Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 15

Related Product

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 16Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 17Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 18Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 19

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 20

Electric Oil Pump

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 21

Manual Oil Pump

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 22

Steel Cylinder

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 23

Vacuum Pump

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 24

Trolley Tube Pipe Cleaner

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 25

Portable Tube Pipe Cleaner

Packing & Delivery
Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 26
Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 27
Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 28
Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 29

Packing: carton, pallet, wooden case.

Delivery time: within 7-30 days after receiving the payment.

Our Company

Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 30Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 31Heat Pump R32 R290 Refrigerant Recovery Recharge Machine R134a Vapor Recovery Unit Fully Automatic Ac Charging Machine 32

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/recharge/reclaim/vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
