Explosion Proof Refrigerant Recovery Charging Machine Filling Equipment Ac Charging Station R32 R600 Hydrocarbon Recovery Pump
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)43
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsPump
-
TypeRefrigerant Recovery Pump
-
Warranty1 Year
-
ColorWhite
-
Voltage220V50Hz / 115V60Hz
-
RefrigerantR600A/R290/R32
-
Compressor1HP Oil-free Dual Cylinder
-
Vapor Recovery Rate≤71.6kg/h
-
Liquid Recovery Rate≤315kg/h
-
Push-Pull Recovery Speed≤1014kg/h
-
High Pressure Protection2.5mpa
-
ApplicationFor Hydrocarbon Refrigerant Recovery
-
PortShanghai Ningbo Tianjin Qingdao Shenzhen
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCMEP-OL
-
Minimum Order Quantity10 units
-
Price$3,120.00/units 10-19 units
-
Packaging Detailscarton box or plywood case on pallet for Explosion Proof Refrigerant Recovery Pump Price
-
Supply Ability100 Unit/Units per Week
Explosion Proof Refrigerant Recovery Charging Machine Filling Equipment Ac Charging Station R32 R600 Hydrocarbon Recovery Pump

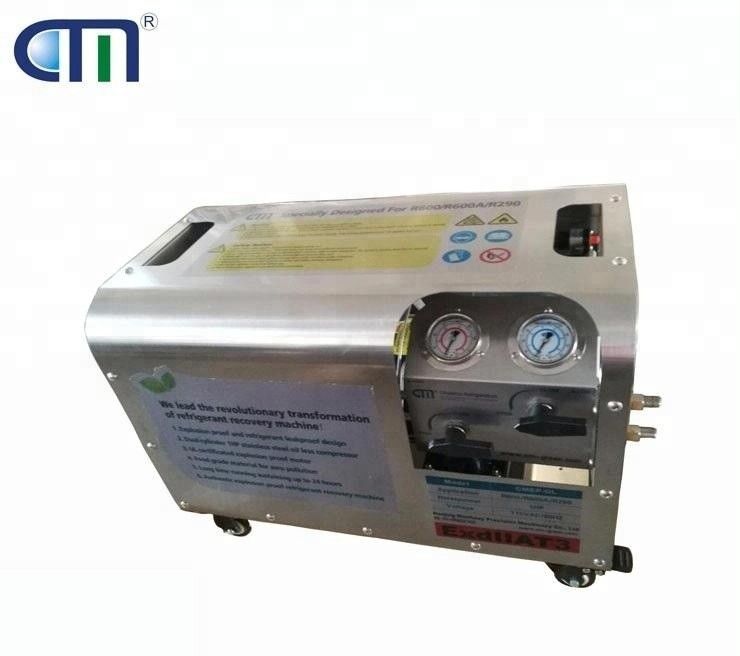

CMEP-OL oil less explosion proof refrigerant recovery machine
Authentic food grade OIL-LESS explosion proof refrigerant recovery pump

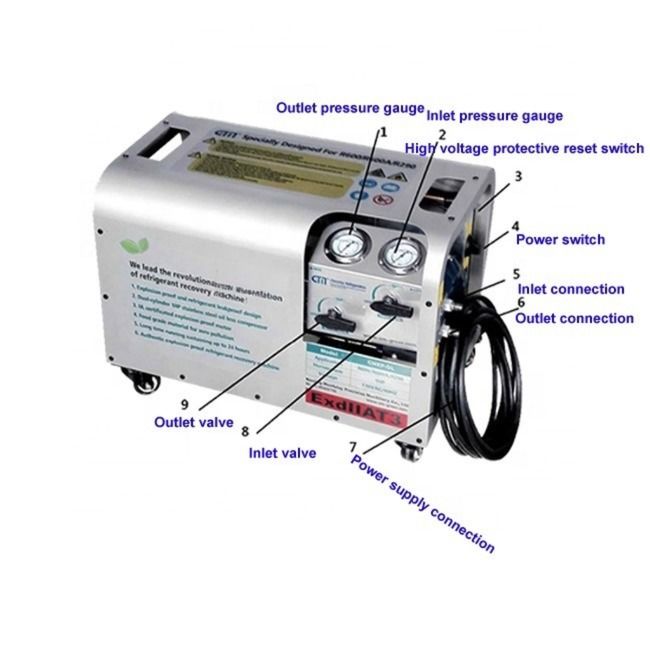

1. Outlet pressure gauge.
2. Inlet pressure gauge.
3. High voltage protective reset switch.
4. Power switch.
5. Inlet connection.
6. Outlet connection.
7. Power supply connection.
8. Inlet valve.
9. Outlet valve.
Specification
| Commodity | CMEP-OL Recovery Pump |
| Model | CMEP-OL |
| Refrigerant | R600, R600A, R290, hydrocarbon |
| Compressor | 1HP oil less stainless steel twin cylinder compressor |
| Voltage | 115V60Hz 1PH / 220V50Hz 1PH |
| Power consumption | 750 watts |
| Motor and Electrical | UL listed explosion proof motor and NEMA7 electrical enclosure |
| Compress displacement | 1.25CFM |
| Inlet&outlet ports | 3/8"NPT |
| Ultimate vacuum capacity | -29.48inHg |
| HP shut-off | 2.5Mpa |
| Application | for oil extraction industry, hydrocarbon refrigerant recovery |
| Weight | 94 lbs (43KG) |
| Certification | CE, ATEX |
Advantage
1.Specially designed for ligh hydrocarbon(HC Refrigerants);
2.Food grade material and PTFE seal;
3.explosion and leak proof design with UL listed explosion proof motor;
4.food grade 1HP oil less dual cylinder high efficiency compresor for 24 hours running;
5.high pressure protection for safety with deep ultimate vacuum;
6.UL certificate and patent is pending;
7.All of the fitting is designed according to UL explosion proof standard;
ChunMu Refrigeration,well know as "CM" was established in 1998, a comprehensive hi-tech enterprise specialized in R&D, manufacturing oil less refrigerant recovery,reclaim and charging equipment in HVAC/R industry. In the past 24 years,CM provides one stop engineering and manufacturing designed to provide its’ customers with customized solutions
to meet their commercial and residential HVAC service needs. Whatever your HVAC service needs may be, CM has the knowledge and expertise to solve your problems.With the environmental pollution of traditional refrigerants a large number of traditional refrigerants need to be recycled and reused, and new environmentally friendly refrigerants have been invented in recent years, giving the company a development belt. With new opportunities, CM has continuously increased its R&D investment in recent years. It has developed many new products such as R600/R290/R1234yf to meet the individual needs of different customers and helped many companies reduced refrigerant waste in production and maintenance process and save large amount funds for, protecting the environment.
