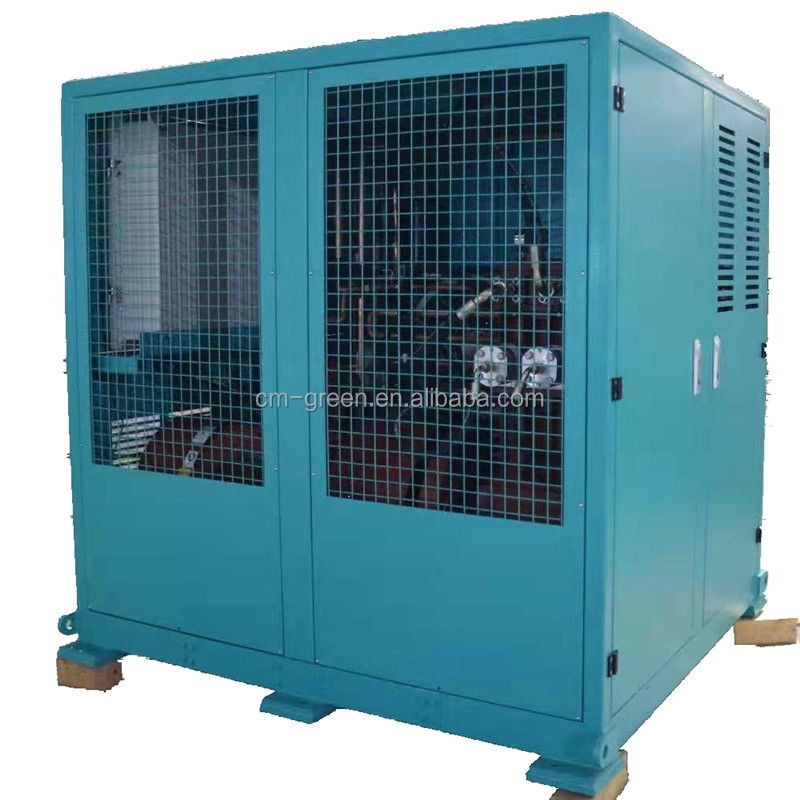

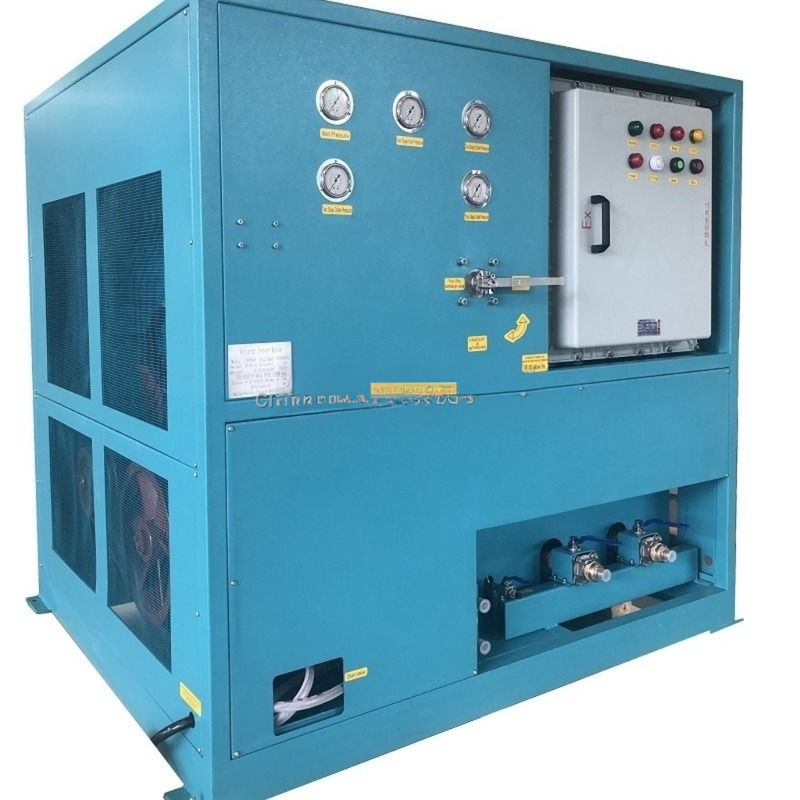

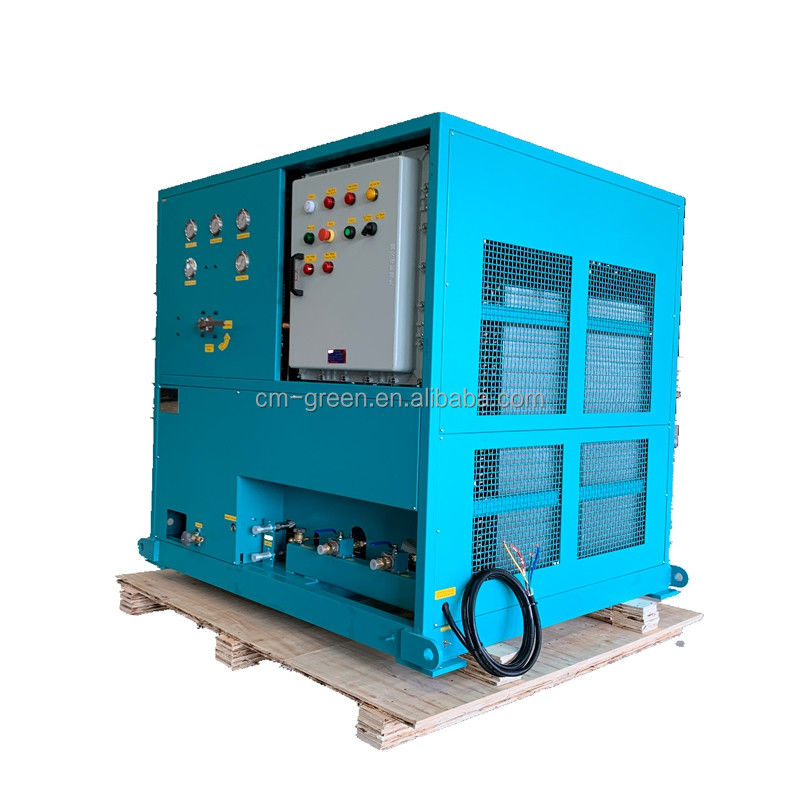

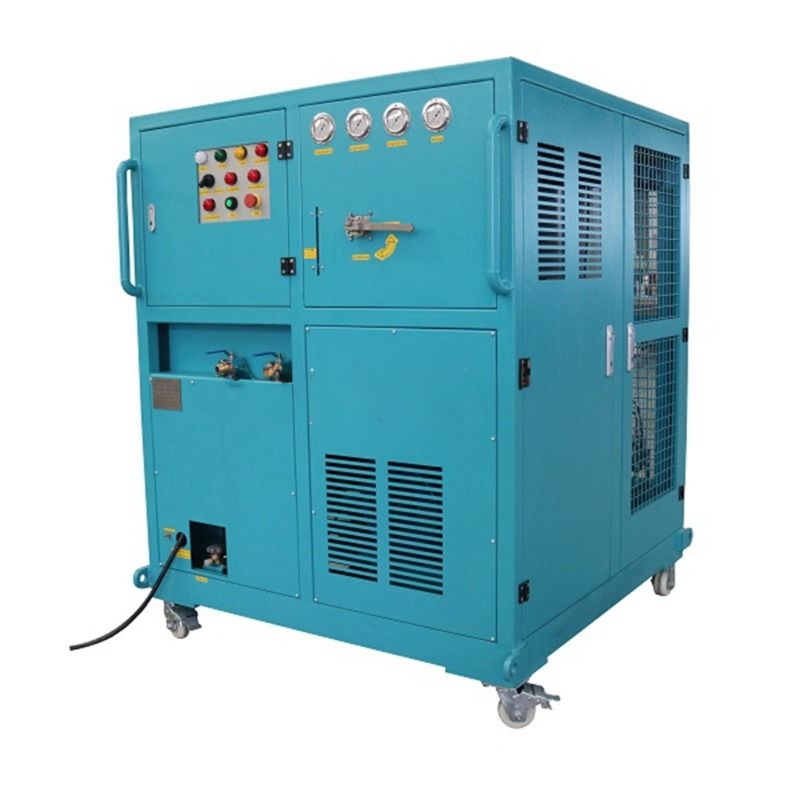

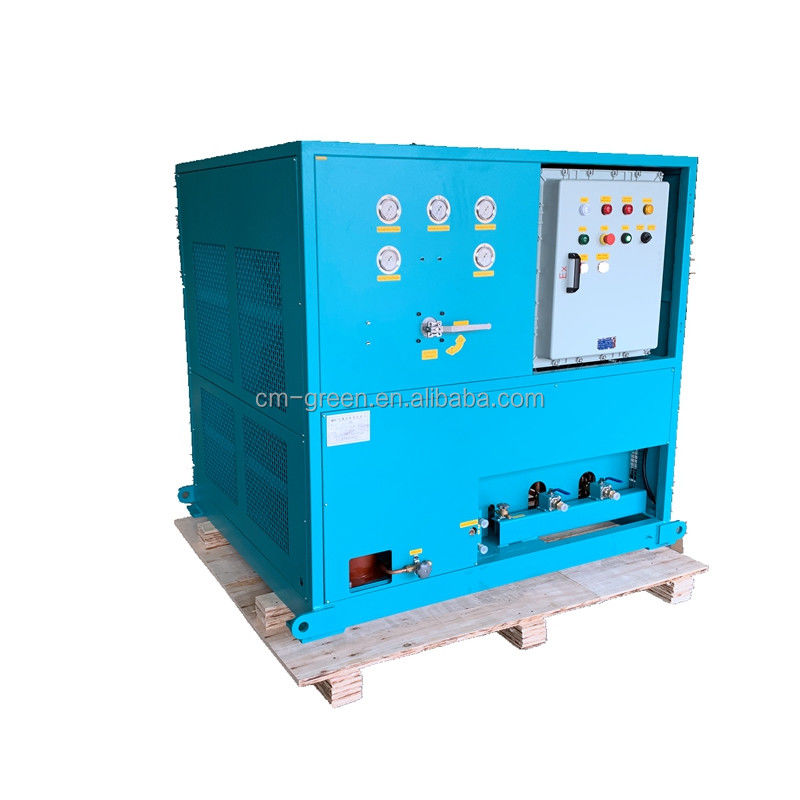

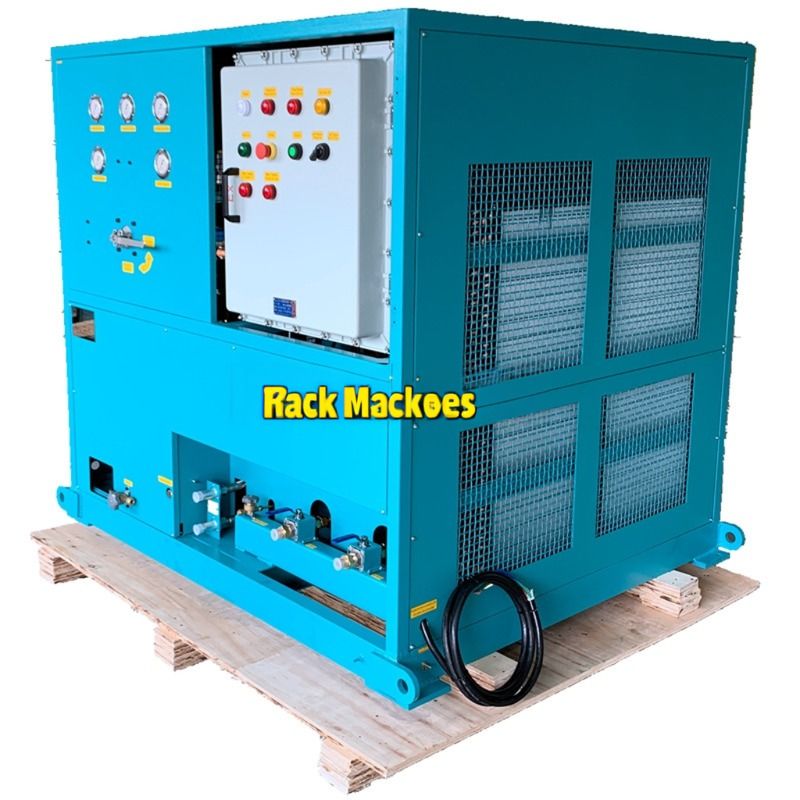

Oil Less 25HP ISO Tank Refrigerant Recovery Equipment ATEX Certification Residual Gas Recovery Machine
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)300
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeCOMPRESSOR
-
Warranty1 Year
-
ApplicationISO Tank Residual Gas Recovery, Chemical Industry, Refrigerant Plant
-
RefrigerantR290/R600A/R32/R410A/R134a/R22/R407C Etc.
-
CompressorOil Free 25HP
-
Model NoCM580 Explosion Proof Refrigerant Recovery Machine
-
Vapor Recovery Rate≤350Kg/h
-
Pull/push Recovery Rate≤15000Kg/h
-
Compressor Displacement57m³/h
-
CoolingAir Cooled
-
Power380V/50Hz 3Phase, Customized
-
CertificateATEX
-
PortShanghai Ningbo Tianjin Qingdao
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM580
-
Minimum Order Quantity1 Unit
-
Price$22,800.00/units 1-1 units
-
Packaging DetailsPlywood case on pallet<br>CM580 Explosion Proof Large Displacement Refrigerant Recovery Machine for Refrigerant Factory
-
Supply Ability50 Unit/Units per Month AC Refrigerant Recovery Unit
Oil Less 25HP ISO Tank Refrigerant Recovery Equipment ATEX Certification Residual Gas Recovery Machine
CM580 ISO Tank Refrigerant Residual Gas Recovery Machine for Refrigerant Plant/Chemical Factory
Product Introduction
CM580 refrigerant recovery machine is specially designed for recovery liquid and vapor refrigerant from ISO tank
or large storage tank,it featured by fast recovery rate and simple operation which is suitable for chemical and refrigerant factory
Features & Advantages
1. Adopt powerful 3-stage oil less compressor2. Fast recovery rate for both of vapor and liquid refrigerant
3. No refrigerant loss-machine automatically shut off when reach deep vacuum degree
4. Adopt air cooled and water cooled condenser which can be used in torrid zone country.
5. Design and manufacture according to explosion proof standard and pass ATEX certification
|
Product Name
|
Refrigerant Recovery Machine for ISO Tank Residual Gas Recovery
|
|
Model
|
CM580
|
|
Horsepower
|
25HP
|
|
Compressor Displacement
|
57m³/h
|
|
Compressor Type
|
Three-stage compression oil-free reciprocating
|
|
Vapor Recovery
|
≤350Kg/h
|
|
Liquid Push&Pull Recovery Rate
|
≤15000Kg/h
|
|
Cooling
|
Air Cooled&Water Cooled
|
|
Applicable Refrigerant
|
R290/R600A/R32/R410A/R134a/R22/R407C etc.
|
|
Gas Leakage Monitoring
|
Yes
|
|
HP Shut-off
|
Yes
|
|
LP Shut-off
|
Yes
|
|
Oil Separator
|
Yes
|
|
Power Source
|
380~460V 50Hz 3Phase
|
|
Certification
|
ATEX
|
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
