1- Oil free lubricating compressor, compatible with CFC/HCFC/HFC refrigerants;
2- Self-purging design, prevent cross contamination; 3- Multi-functional valve design, simple operation; 4- Perfect protection system, safe credibility; 5- Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04 MPA; 6- Light weight, air cooled type only 160 lbs, water cooled is much lighter.

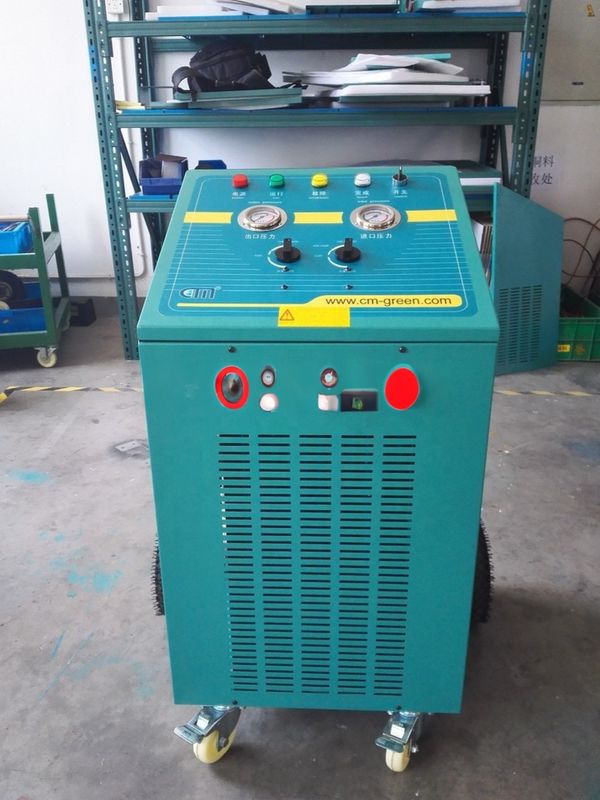

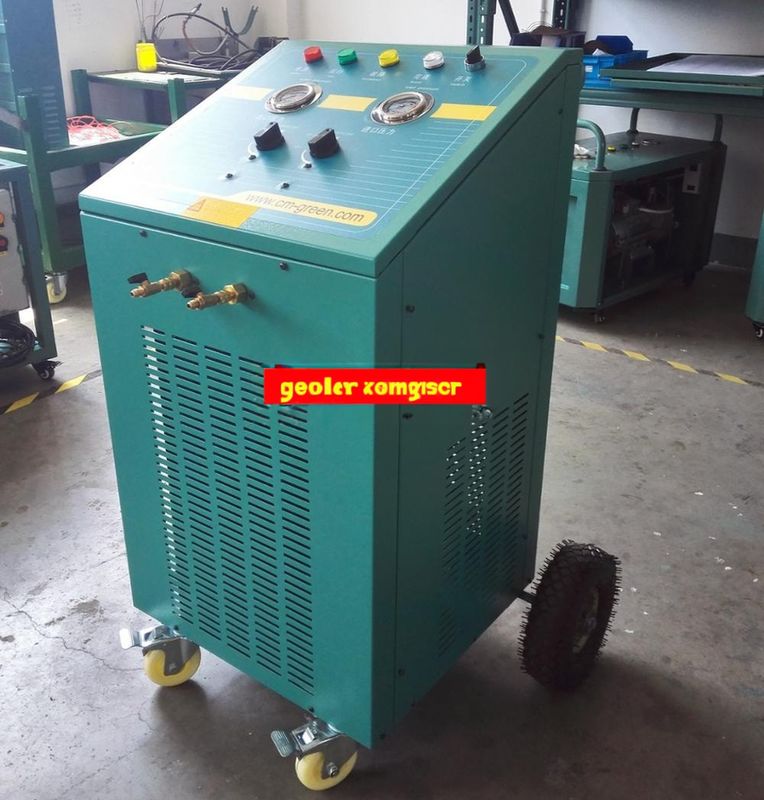

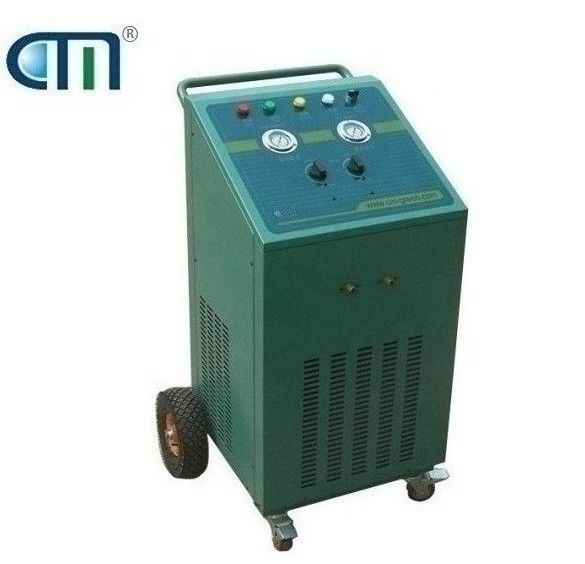

3HP Oil Free Recovery Machine Self-Purging Design Refrigerant Reclaim System
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant, Retail, Food & Beverage Shops, Air Conditioner Repair
-
Weight (KG)700
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportProvided
-
Warranty Of Core Components1 Year
-
Core ComponentsCompressor
-
TypeOil-less
-
Warranty1 Year, 1 Year
-
Product NameRefrigerant Reclaim System
-
Compressor Type2HP Oil-less
-
Vapor Recovery RateNo More Than 60 Kg/h
-
Liquid Recovery RateNo More Than 240kg/h
-
Pull/Push Recovery RateNo More Than 1300kg/h
-
Voltage380V/50Hz/3Ph
-
After-sales Service ProvidedOnline Video Technical Support
-
Approved RefrigerantsR410A, R22, R134A
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationISO CE
-
Minimum Order Quantity1 Unit
-
Price$2,800.00/cartons 1-4 cartons
-
Packaging DetailsFully closed carton
-
Supply Ability200 Unit/Units per Month
3HP Oil Free Recovery Machine Self-Purging Design Refrigerant Reclaim System
Product Description
Refrigerant Reclaim System CM7000 Refrigerant Recovery Unit can recover most positive pressure refrigerants efficiently and safety, such as R134a, R22, R407C, R410A of III & IV categories refrigerants specified in ARI standards. The equipment adopts oil-less compressor, maintenance free. The whole system is composed of compressor, air-cooled condenser, pressure gauge, manual directional valve, ball valves etc.
The equipment integrates functions of push/pull recovery & recharge, vapor recovery & recharge. Under push/pull recovery mode, the recovery machine pulls vapor from the tank to reduce the pressure. Then the gas is pressurized by compressor and sent to A/C system of vapor side. In this way, there is pressure difference between A/C system and tank. Use a hose(referred as liquid hose in this manual) to connect the liquid side in A/C system to the liquid side in tank. Under the influence of the pressure difference, liquid refrigerants in A/C is quickly transferred to tank. You can see this process by sight glass. Once the liquid refrigerants transferred completely, stop recovery machine and close valve on liquid hose. Turn the directional valve on recovery unit panel to vapor side and finish recovery the remaining vapor refrigerants.
|
No.
|
Item Name
|
|
1.
|
Power Indicator
|
|
2.
|
Running Indicator
|
|
3.
|
Breakdown Indicator
|
|
4.
|
Finish Indicator
|
|
5.
|
Switch
|
|
6.
|
Outlet Pressure Gauge
|
|
7.
|
Inlet Pressure Gauge
|
|
8.
|
Inlet Recover/Purge Switch
|
|
9.
|
Outlet Recover/Purge Switch
|
|
10.
|
Vapor Inlet Connection
|
|
11.
|
Outlet Recover/Purge Switch
|
|
12.
|
Movable Casters
|
Details Images
Our Advantages
FEATURES
Product Paramenters
|
Model
|
CM7000
|
|
Input Power
|
1.5 KW
|
|
Compressor
|
2 HP Oil-less Type
|
|
Vapor Recovery Rate
|
≤ 60 kg/h
|
|
Liquid Recovery Rate
|
≤ 240 kg/h
|
|
Push / Pull Recovery Speed
|
≤1300 kg/h
|
|
Operating Temperature Range
|
-5 C to 40 C
|
|
Suction Pressure
|
-0.04 to +1Mpa
|
|
Discharge Pressure
|
0 to 38Bar
|
|
Low-pressure Automatic Stop
|
-0.04Bar (Factory setting)
|
|
Over-pressure Protection
|
26Bar Automatic Reset
|
|
Applicable Refrigerant
|
R134a / R22 / R410A / R407C
|
|
Refrigerant Connecting Pipe
|
1/2 Inch
|
|
Applicable Unit
|
Medium&Small Central Air Conditioning System
|

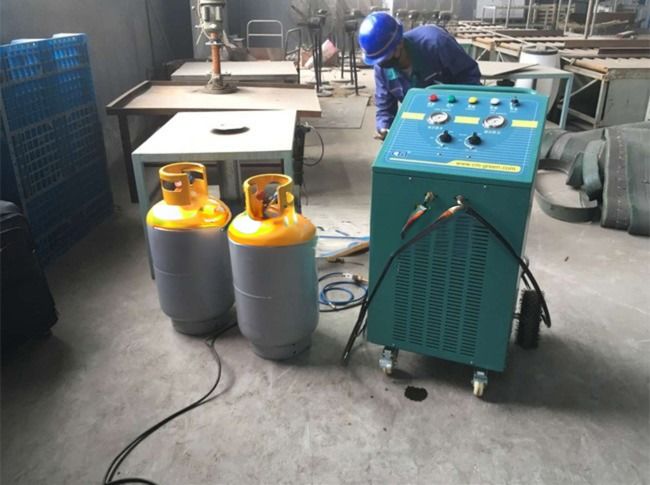

Recycling Operation
