CM20A Cylinder Filling Machine Refrigerant Sub-Package Charging Machine For ISO Tank
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)400
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
ColorBlue
-
CompressorOil-free
-
RefrigerantR134A/R22/R407C/R410A
-
Model NoCM20A
-
Filling Accuracy0.5%
-
Filling Rate6kg/min
-
Scale Measurement Range40kg/100kg/150kg/200kg(optional)
-
Vacuum Pump4L/s (3 Units)
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Model NumberCM20A
-
Minimum Order Quantity1 Unit
-
Price$19,200.00/units 1-4 units
-
Packaging Detailsplywood case for CM20A cylinder filling machine<br>pallet
-
Supply Ability50 Unit/Units per Month

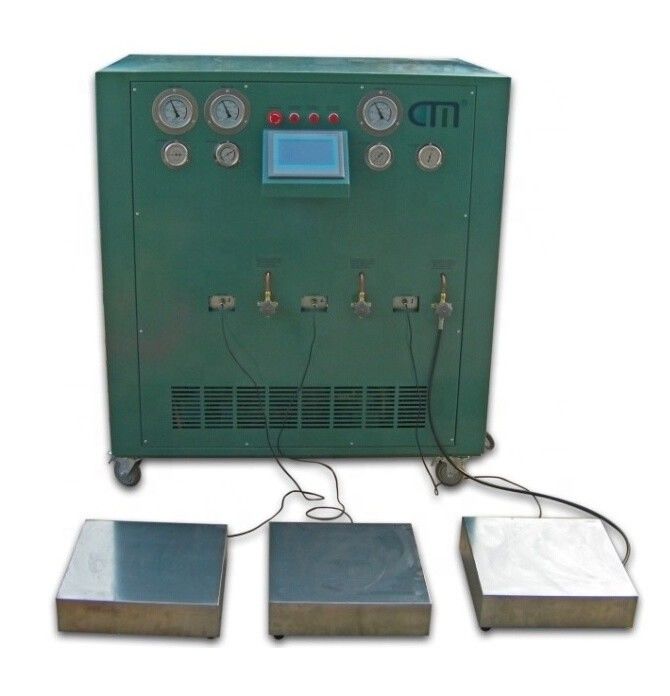

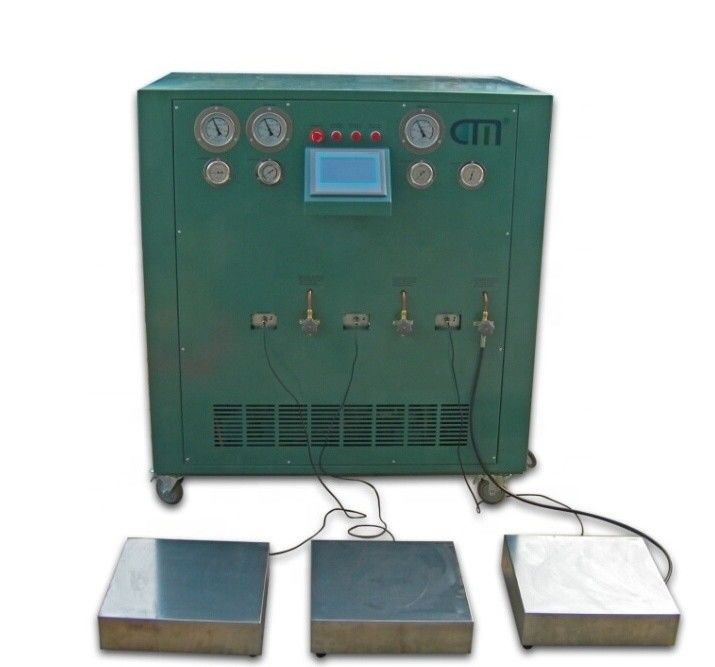

CM20A Cylinder Filling Machine Refrigerant Sub-Package Charging Machine For ISO Tank
CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System
CM20/CM20A Multiple-Station Refrigerant Sub-packaging System is for the application that Transfer refrigerant from ISO TANK or 1000-400L tank to 12L-60L tank. It integrates functions of vacuum, recharge and pumpback. Three stations can work simultaneously, so subpackage efficiency is very high. The accuracy is 0.5%.
CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System Main features
1. Integrate functions of vacuum, filling, and pump-back- high efficiency and no refrigerant loss;
2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4. Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5. Three working-station design, high filling efficiency;
6. Overall protection system, safe credible;
7. Filling accuracy is 0.5%;
8. Can make according to customers' requirements.
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
