3 Stages Refrigerant Refilling Recharge Machine Freon Charging Vacuum System CM20a
-
ConditionNew
-
Applicable IndustriesOther
-
Weight (KG)500
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportProvided
-
Warranty Of Core Components1 Year
-
Core ComponentsPLC, Pump
-
TypeRefrigerant Charging Machine
-
Warranty1 Year
-
NameRefrigerant Charging Machine
-
Model NoCM20A-3S
-
FunctionVacuum And Charging Refrigerant To 100L Or Smaller Cylinders
-
RefrigerantR32/R134A/R407C/R410A,ect.
-
Air Supply0.6-0.8Mpa
-
Charging Speed4kg/min Each Stage
-
Stage Number3
-
Vacuum Speed4L/S
-
CertificateISO9001,CE
-
Voltage220-240/50-60Hz
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM20A
-
Minimum Order Quantity1 Unit
-
Price$22,000.00/sets >=1 sets
-
Packaging Detailswooden/pallet
-
Supply Ability100 Set/Sets per Month

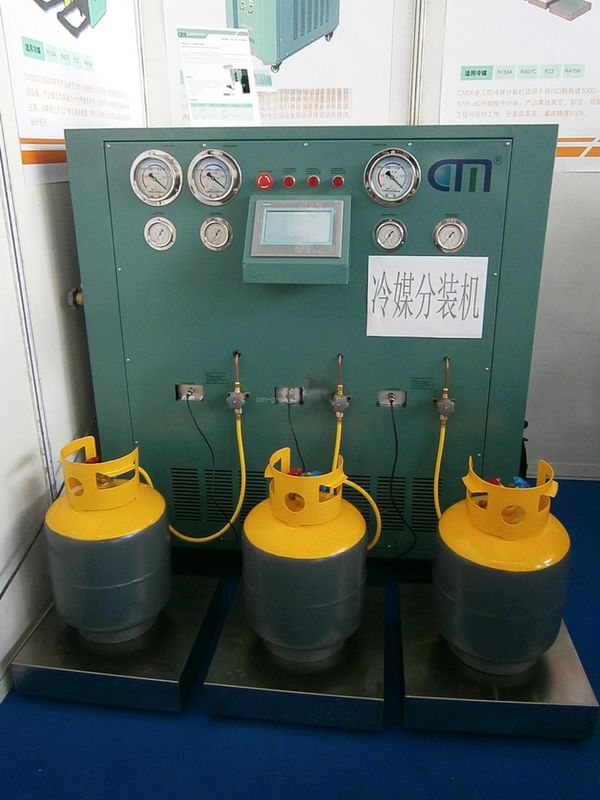

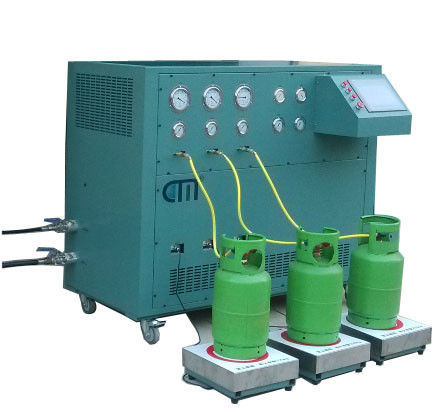

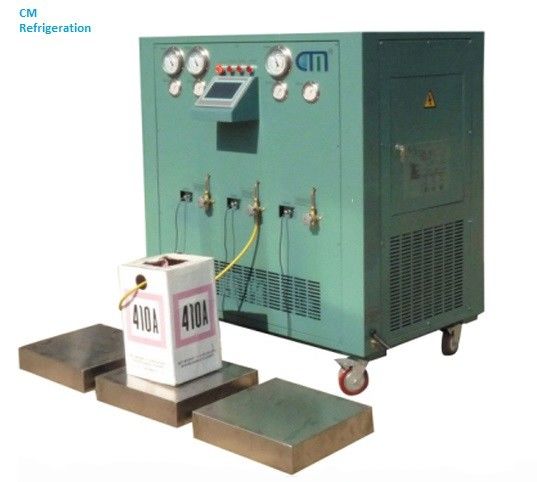

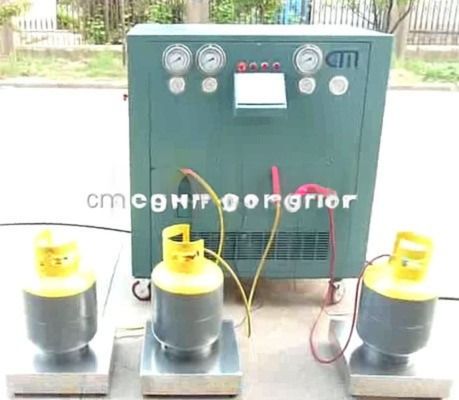

3 Stages Refrigerant Refilling Recharge Machine Freon Charging Vacuum System CM20a
Auto 3 stages refrigerant refilling recharge machine freon charging vacuum system CM20a

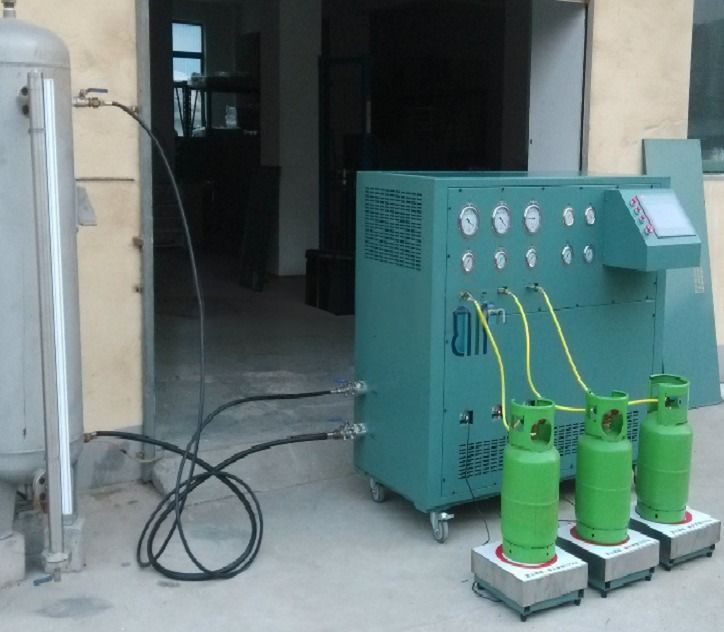

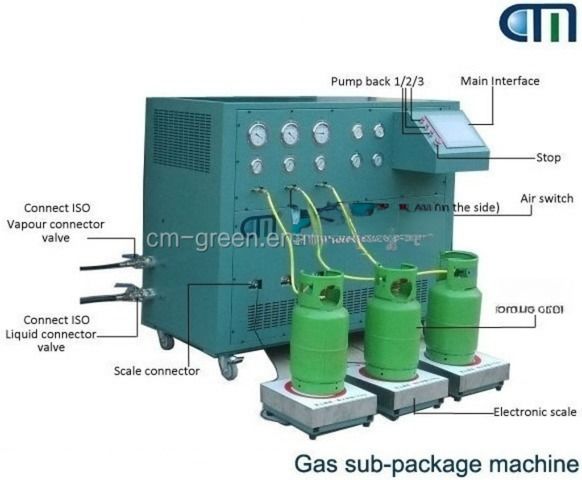

CM20A refrigerant charging machine is for the application that Transfer refrigerant
from ISOTANK or 1000-100L tank to 12L-100L tank. It integrates functions of vacuum, recharge.Three stations can work simultaneously,so sub-package efficiency is very high.The accuracy reach to is 99.5%.
Refrigerant charging machine Feature
1) Integrate functions of vacuum, filling, and pump back - high efficiency and no refrigerant loss;
2) Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/
R410A etc;
3) Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4) Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5) Three working-station design, high filling efficiency;
6) Overall protection system, safe credible;
7) Filling accuracy reach to 99.5%;
8) Accept processing customized.
Refrigerant charging machine Technology Data
| Model | Booster oil-free pump | Vacuum pump | Refrigerant | Filling speed | Cylinder |
| CM20A | 1.5HP | 2L/S*3pcs | R410A/R22/ R134A etc |
≤5kg/min | ≤100L |
