Oil Less Compressor Four-Cylinder Ac Recovery Machine

Oil Less Compressor Four-Cylinder Ac Recovery Machine

Products - Refrigerant Recovery Machine
  • Condition
    New
  • Applicable Industries
    Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory
  • Weight (KG)
    80
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Not Available
  • Warranty Of Core Components
    1 Year
  • Core Components
    Engine, Motor, Pump
  • Type
    Refrigerant Recovery Machine
  • Warranty
    1 Year
  • Color
    Yellow Or Green
  • Voltage
    230V/50~60Hz
  • Compressor
    Oil-free
  • Refrigerant
    R134A/R407C/R22/R410A
  • Model No
    CM2000A
  • Vapor Recovery Rate
    ≤21.8kg/h
  • Liquid Recovery Rate
    ≤156kg/h
  • Pull/push Recovery Rate
    ≤500kg/h
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE
  • Model Number
    CM5000
  • Minimum Order Quantity
    1 Unit
  • Price
    $8,000.00/units >=1 units
  • Packaging Details
    wooden case<br>pallet
  • Supply Ability
    500 Unit/Units per Month

Oil Less Compressor Four-Cylinder Ac Recovery Machine

  • Oil Less Compressor Four-Cylinder Ac Recovery Machine
  • Oil Less Compressor Four-Cylinder Ac Recovery Machine
  • Oil Less Compressor Four-Cylinder Ac Recovery Machine
  • Oil Less Compressor Four-Cylinder Ac Recovery Machine
  • Oil Less Compressor Four-Cylinder Ac Recovery Machine
Get Price Contact Now
Product Description



CM5000 commercial series refrigerant recovery machine is universal for CFC/HCFC/HFC refrigerants with ultra fast recovery rate,it equipped with a superior condenser and powerful compressor which all you recovery more refrigerant with pressure protection cut-out function.You will not be disappointed by its performance.
Application

`

On site maintenance of chiller including other HVAC equipment
Ton tank residual gas recovery
Features



1.Oil-free compressor – compatible with CFC/HCFC/HFC refrigerants
2.Ultra fast recovery rate for both liquid and vapor refrigerants
3.Multi-function valve design- simple operation in vapor and push/pull recovery
4.Perfect protection cut-out function – safe credibility;
5.Optional air cooled and water cooled version
6.High vacuum degree -0.04Mpa allow recovery more refrigerant for avoid refrigerant lose
7.Equipped with self-purge function for preventing cross contamination
8.Equipped with 80% float switch for avoid cylinder overfilling
9.Specially designed for chiller and central air condition
10.Continuously running for 24 hours duty cycle

Model
CM5000
Input Power
1.5 KW
Compressor
2 HP Oil-less Type
Vapor Recovery Rate
≤ 60 kg/h
Liquid Recovery Rate
≤ 240 kg/h
Push / Pull Recovery Speed
≤1300 kg/h
Using Temperature Range
-5 C to 40 C
Suction Pressure
-0.04 to +0.6Mpa
Discharge Pressure
0 to 26Bar
Low-pressure Automatic Stop
-0.04Bar (Factory setting)
Over-voltage Protection
26Bar Automatic Reset
Applicable Refrigerant
R134a / R22 / R410A
Refrigerant Connecting Pipe
1/2 Inch
Applicable Unit
Medium&Small Central Air Conditioning System

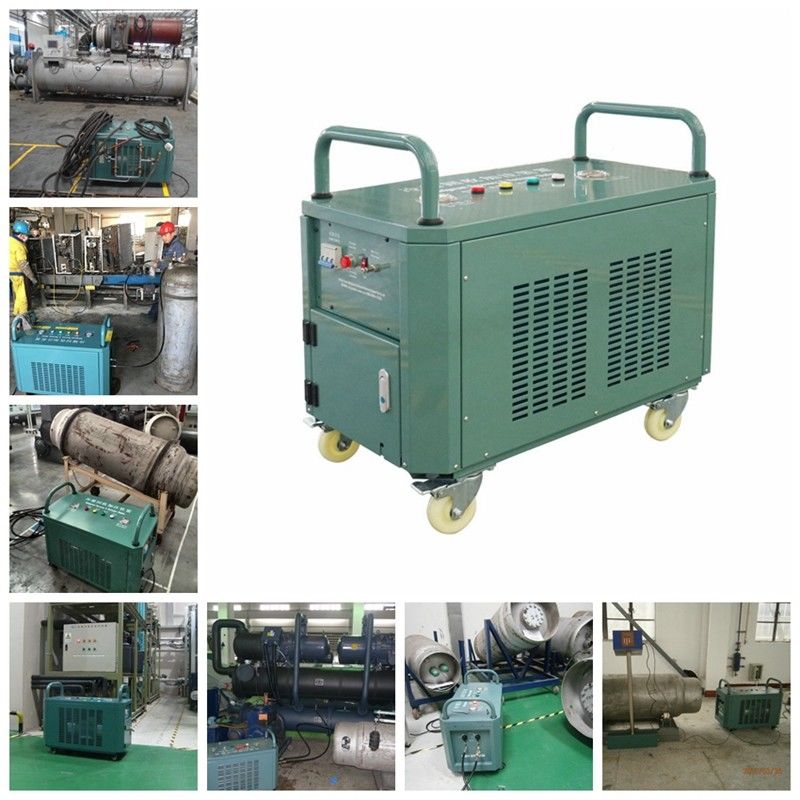

Customer Project

 Oil Less Compressor Four-Cylinder Ac Recovery Machine 0Oil Less Compressor Four-Cylinder Ac Recovery Machine 1Oil Less Compressor Four-Cylinder Ac Recovery Machine 2Oil Less Compressor Four-Cylinder Ac Recovery Machine 3
