Solvent Butane Recovery Pump CMEP-V400

Condition

New
Applicable Industries

Machinery Repair Shops, Manufacturing Plant, Retail, Air Conditioner Repair
Weight (KG)

60
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Provided
Warranty Of Core Components

1 Year
Core Components

Pump, Compressor
Type

Oil-less
Warranty

1 Year, 1 Year
Refrigerants Type

R600, R600A, R290 Ect
Compressor Type

Oil-free Twin-cylinder
Compressor Gas Displacement

1.25 CFM
Main Material

Stainless Steel 304 +PTFE
Inlet&Outlet Port

3/8'' MNPT
Ultimate Vacuum Capability

-29.48'' Hg
Explosion Proof Standards

ExdIIAT3
Power Consumption

750 Watts
After Sale Service

Online Video Support
Marketing Type

New Product 2022
Port

Shanghai
Place of Origin

Jiangsu, China
Brand Name

ChunMu
Price

$4,500.00/cartons 1-4 cartons
Packaging Details

Fully closed carton
Supply Ability

200 Unit/Units per Month

Solvent Butane Recovery Pump CMEP-V400

Name: Solvent Butane Recovery Pump CMEP-V400
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
Price: 2.00 USD
Availability: InStock

button button

Get Price Contact Now

Product Description

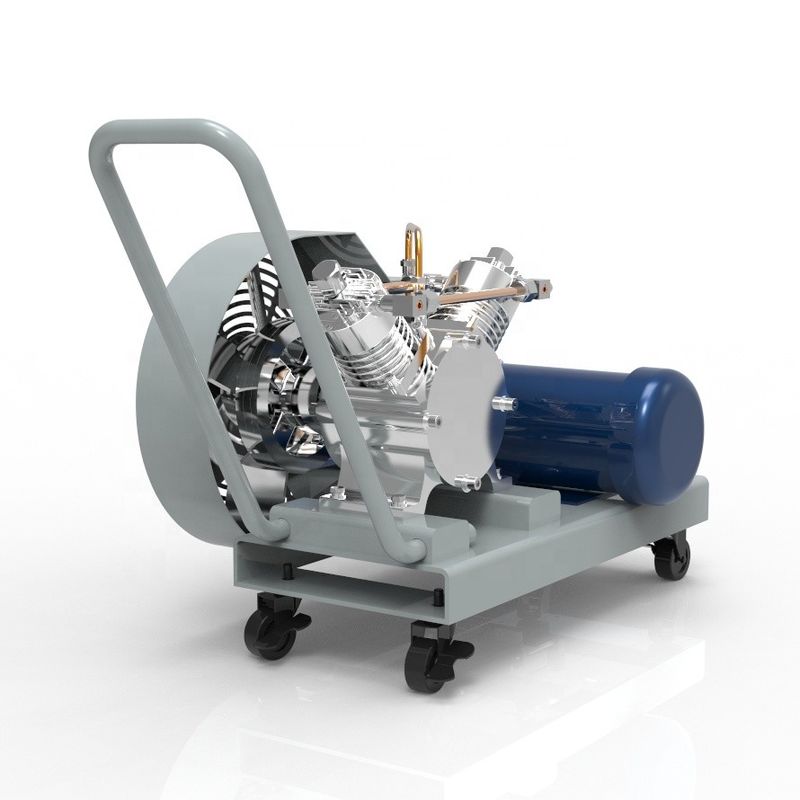

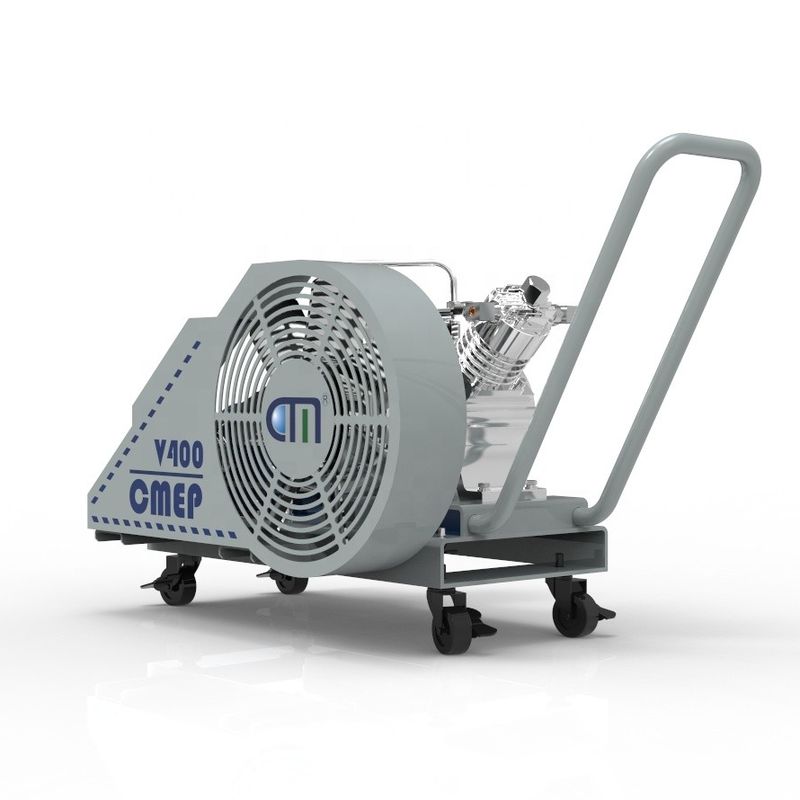

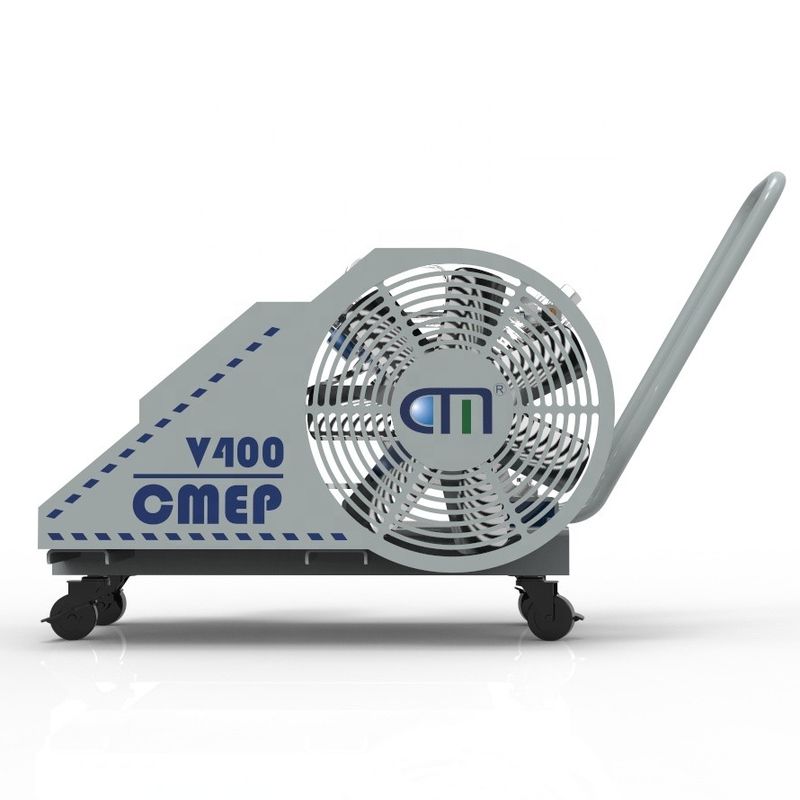

CMEP-V400 Explosion Proof Refrigerant Recovery Pump, compact and open type structure design for easy maintenance ,ergonomic well-balanced design for easy move,Brand new design V- Twin compressor with high performance ,food grade SS material compressor and pipeline,Specially designed & engineered for BHO extraction .

Model

CMEP-V400

Details Images

Our Advantages

FEATURES

1.Recovery hydrocarbon solvent at 4CFM

2.Max outlet pressure 160Psi rated for butane and propane including mixture

3.Powerful 2HP UL listed C1D1 explosion proof motor

4.3000 hours running time without maitenance

5.Air cooled design with oversized fan for high efficiency heat exchange,compliant with NFPA and UL explosion proof standard

Product Paramenters

Model	CMEP-V400
Gas Displacement	4 CFM
Propane Recovery Rate	1.1lbs/min(based on inlet pressure 29 PSI) 0.8lbs/min(based on inlet pressure 14.5PSI)
Butane Recovery Rate	1.3lbs/min(based on inlet pressure 29 PSI) 0.9lbs/min(based on inlet pressure 14.5PSI)
Max.Pumping-out Pressure	160 PSI
Inlet/Outlet Port Size	1/2" JIC Male
Ultimate Vacuum Degree	28 inHg(0.96 Bar)
Compressor Cooling Way	Air Cooling
Noise Level	70 dB
Horsepower	2 HP
Voltage	230V 60HZ 3PH or 460V 60HZ 3PH
Max.Amperage Load	5.2A or 2.6A
RPM	1725
Approval Standard	Class I Division I Group C&D
Compressor ,Valve & Pipeline	Food grade stainless steel
Piston Ring	PTFE
Net Weight	60 kg
Dimension	1020500680mm

Cooperation Partners & Cases

We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.

No.	Partner Name	Main Product Type	Cooperation Time
1	YORK Air Conditioning	Refrigerant recovery machine	11 years
2	CARRIER Air Conditioning	Refrigerant recovery/recharge machine	06 years
3	MCQUAY Air Conditioning	Refrigerant recovery/recharge machine	09 years
4	CLIMAVENETA Air Conditioning	Refrigerant recovery/recharge machine	04 years
5	TICA Air Conditioning	Refrigerant recovery/recharge machine	08 years

CERTIFICATES

SPECIAL UNITS:

Packing&Shipping

1. Single packing: Mini wooden pallet + Carton

2. Bulk packing: Large pallet + Straps + Wrapping film

Company Introduction

CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.

WHY CHOOSE CM REFRIGERATION

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.

>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.

>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.

>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.

>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.

>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
