Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump

Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump

Products - Refrigerant Charging Machine
  • Condition
    New
  • Applicable Industries
    Machinery Repair Shops, Manufacturing Plant, Retail, Air Conditioner Repair
  • Weight (KG)
    250
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Pressure Vessel, Pump, Compressor
  • Type
    Oil-less
  • Warranty
    1 Year, 3 Year
  • Model
    CMEP-710 Pro Recovery Pump
  • Voltage
    220V-380V/50-60HZ
  • Application
    Butane Recovery Pump
  • Vapor Recovery Rate
    150Kg/h
  • Push And Pull Recovery Rate
    1200KG/h
  • Compressor
    Piston Oil Less
  • Horsepower
    5HP
  • After Sale Service
    Online Video Support
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    ChunMu
  • Certification
    CE
  • Price
    $2,300.00/cartons >=1 cartons
  • Packaging Details
    Fully closed carton
  • Supply Ability
    200 Unit/Units per Month

Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump

  • Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump
  • Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump
Get Price Contact Now
Product Description

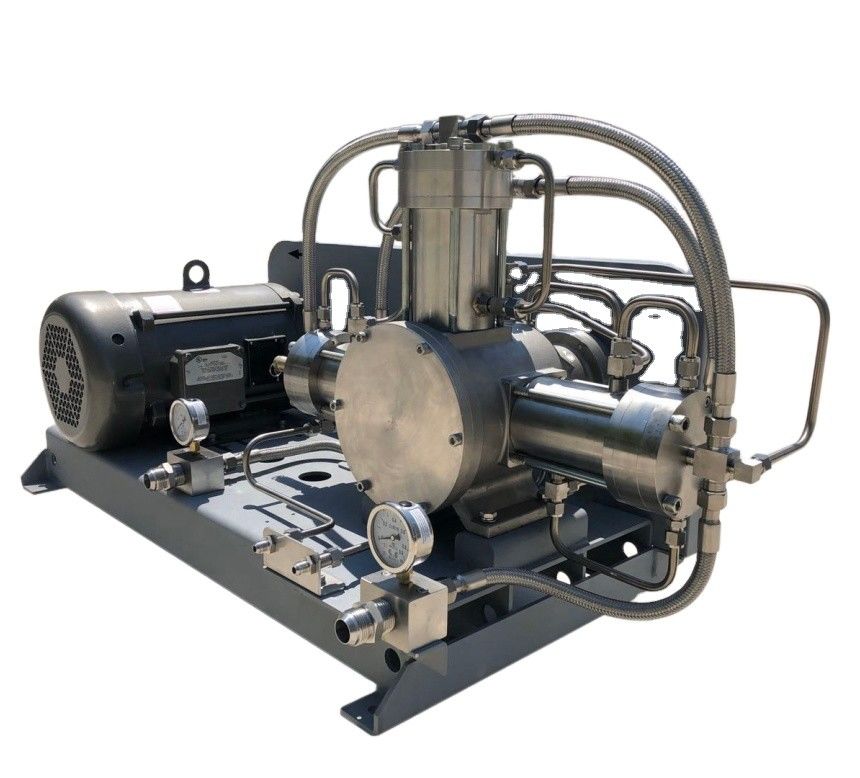

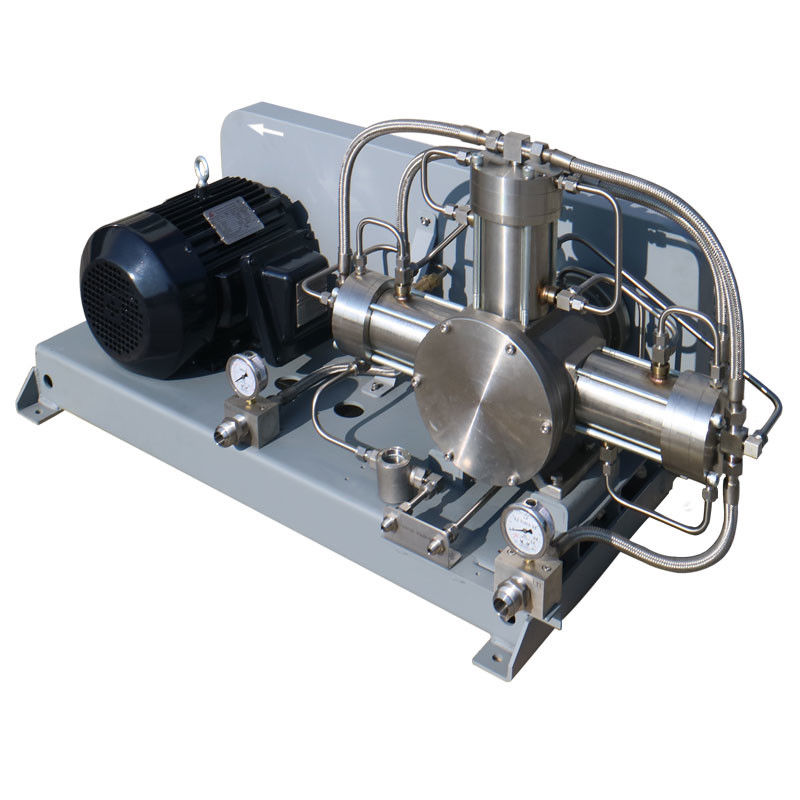

CMEP710 PRO oil less explosion proof butane propane recovery pump recovery pump is specially designed for oil extraction,it adopts
UL listed explosion proof motor and food grade stainless steel with ultra fast recovery rate
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 0
Item Name
CMEP710 PRO
Details Images
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 1
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 2
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 3
Our Advantages
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 4
FEATURES

1. Continuous 100% duty cycle with 3000 hours maintenance time
2. super fast recovery rate-two times faster than MVP
3. High working pressure rated for butane and propane
4. Specially designed for Hydrocarbon solvent extraction
5. Pulls deep vacuum degree
6. NEMA UL listed C1D1 5HP explosion proof motor for hazardous area
7. No air compressor required
8. Food grade stainless steel and PTFE seals
9. No CO2 gas pump head charge
10. No more heat and save some dry ice -water condenser for cooling solvent including water condensing compressor cylinder head
11. Easy maintenance operation
12. Recovers 100% solvent with recovery tank cooling

Product Paramenters
Model
CMEP-710 Pro
Application refrigerants
R600A/R600/R290,etc
Motor
UL C1D1 5HP
Recovery Rate
6lbs/min
Compressor flow rate
18CFM
High pressure protection
2.5Mpa
Ultimate Vacuum
-29.7inHg
Voltage
380V 50Hz 3PH/240V 60Hz 1PH
Weight
120Kg
Cooperation Partners & Cases
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 5
We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.
No.
Partner Name
Main Product Type
Cooperation Time
1
YORK Air Conditioning
Refrigerant recovery machine
11 years
2
CARRIER Air Conditioning
Refrigerant recovery/recharge machine
06 years
3
MCQUAY Air Conditioning
Refrigerant recovery/recharge machine
09 years
4
CLIMAVENETA Air Conditioning
Refrigerant recovery/recharge machine
04 years
5
TICA Air Conditioning
Refrigerant recovery/recharge machine
08 years



CERTIFICATES
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 6




Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 7







SPECIAL UNITS:
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 8
Packing&Shipping
1. Single packing: Mini wooden pallet + Carton
2. Bulk packing: Large pallet + Straps + Wrapping film
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 9
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 10
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 11
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 12
Company Introduction
CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 13
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 14
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 15
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 16
Explosion Proof 5HP Horsepower Piston Oil Less Compressor Butane Recovery Pump 17




WHY CHOOSE CM REFRIGERATION

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.

>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.

>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.

>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.

>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.

>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
