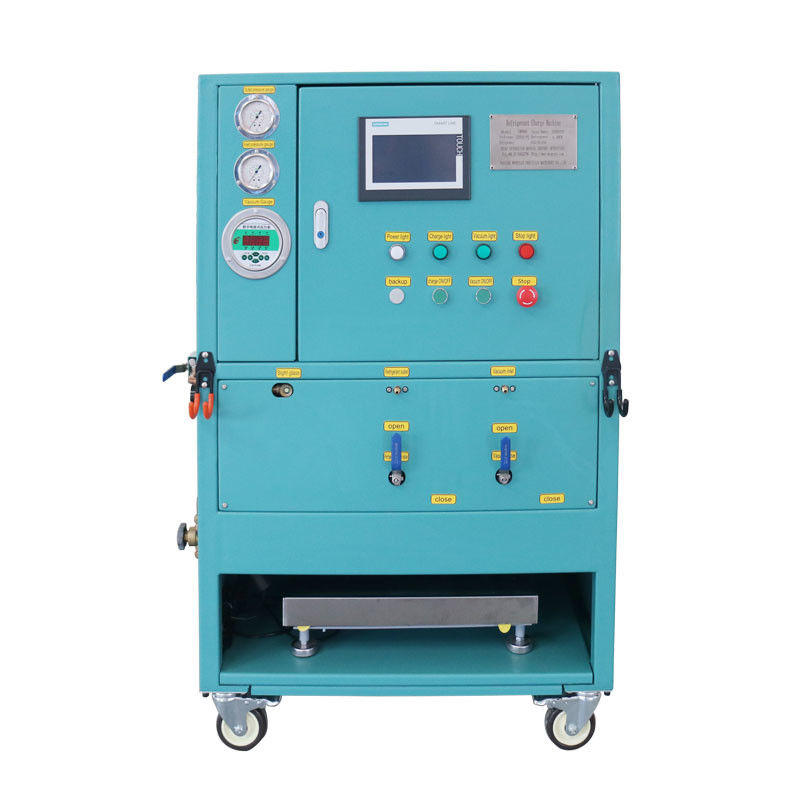

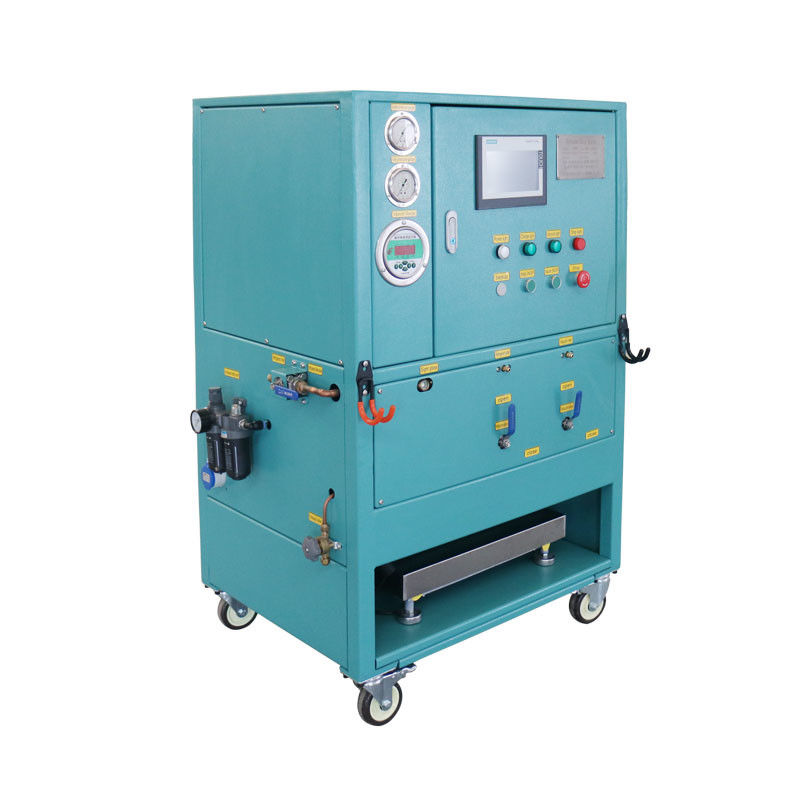

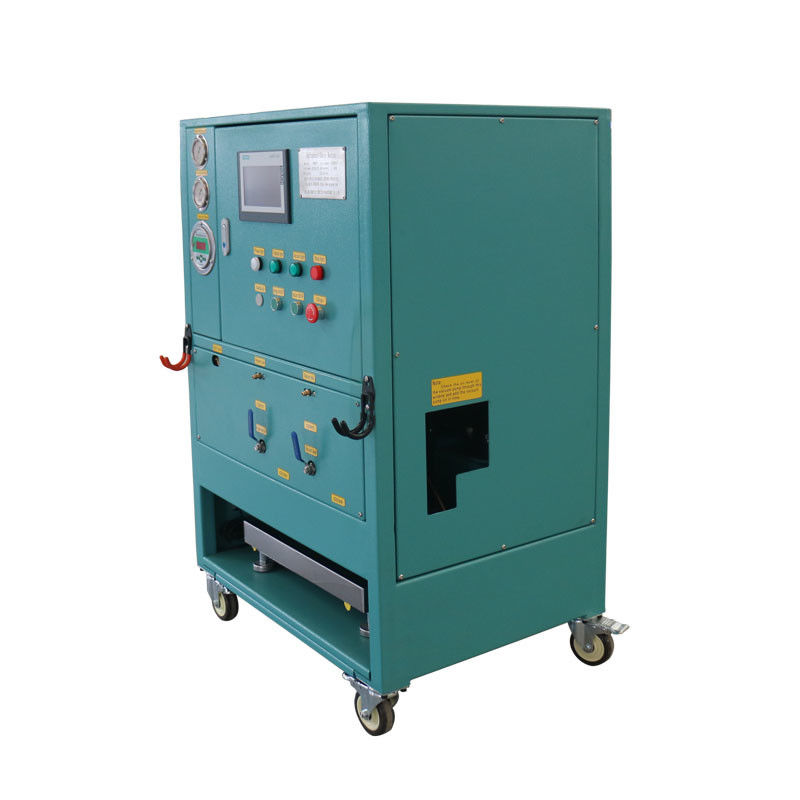

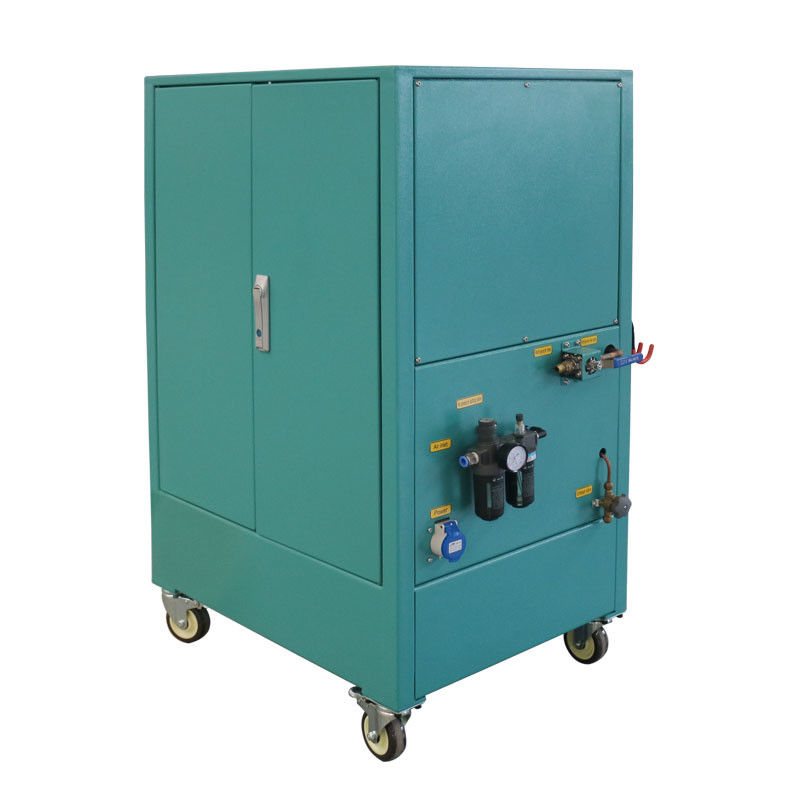

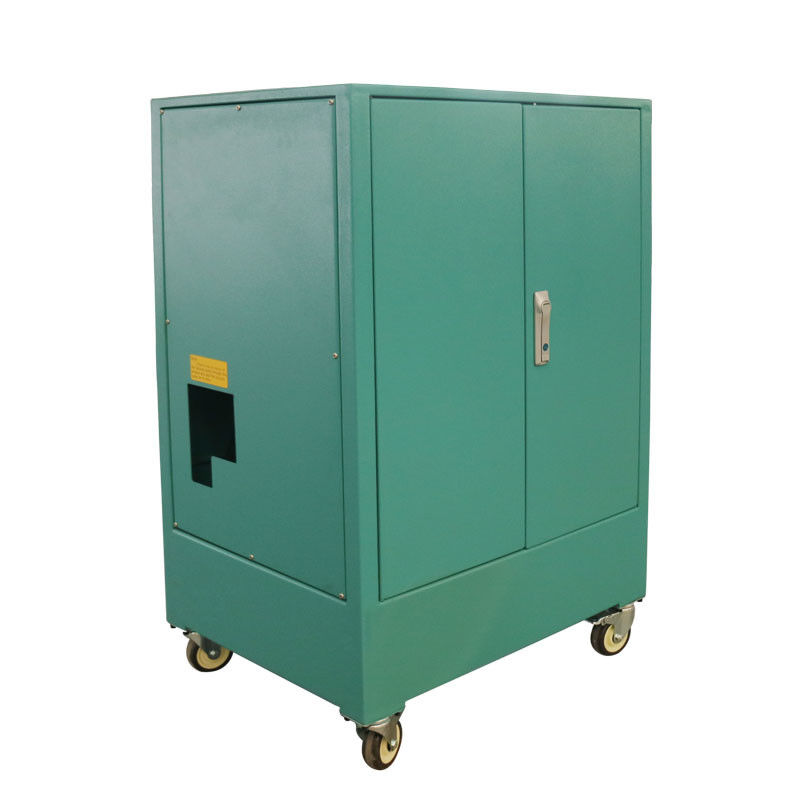

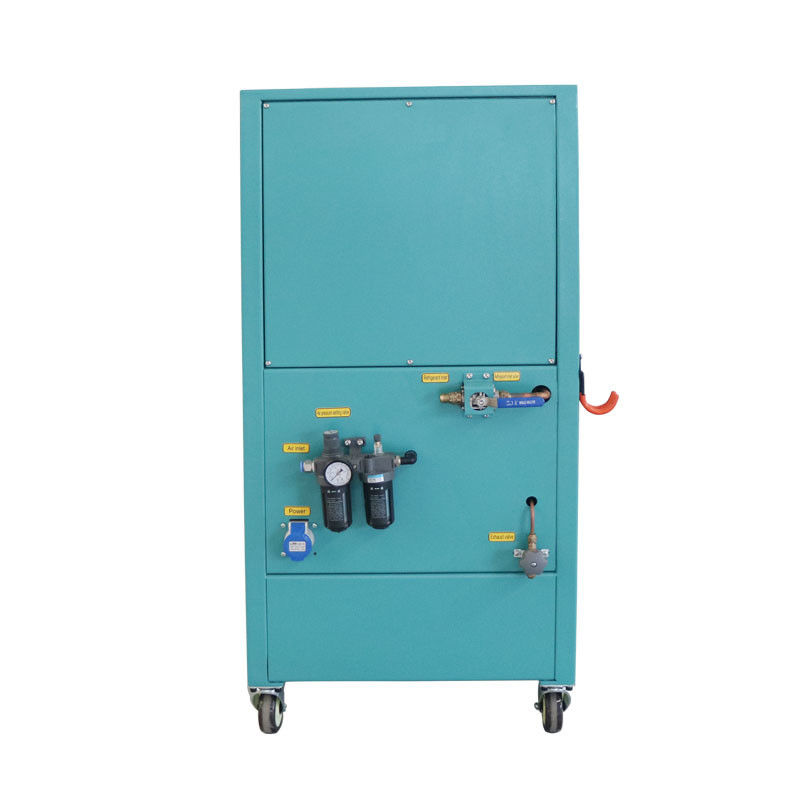

R410 Refrigerant Split Charging And Vacuum Pumping Unit

R410 Refrigerant Split Charging And Vacuum Pumping Unit

Products - Refrigerant Charging Machine
  • Condition
    New
  • Applicable Industries
    Machinery Repair Shops, Manufacturing Plant, Retail, Food & Beverage Shops, Air Conditioner Repair
  • Weight (KG)
    125
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Compressor
  • Type
    Oil-less
  • Warranty
    1 Year
  • Approved Refrigerants
    R410A, R22, R134A
  • Booster Pump Power
    1/2 HP
  • Vacuum Pump Flow
    4L/s
  • Liquid Inlet Port Size
    1/2''
  • Liquid Outlet Port Size
    1/4''(Standard)
  • Electronic Scale Size(L*W*H)
    360*360*120mm
  • Overall Dimension(L*W*H)
    700*500*1750mm
  • Package Size(L*W*H)
    750*620*1840mm
  • After-sales Service Provided
    Video Technical Support
  • Marketing Type
    New Product 2020
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE&ISO
  • Model Number
    CM20A
  • Minimum Order Quantity
    1 Unit
  • Price
    $5,000.00/cartons 1-9 cartons
  • Packaging Details
    Fully closed wood case
  • Supply Ability
    200 Unit/Units per Month

R410 Refrigerant Split Charging And Vacuum Pumping Unit

  • R410 Refrigerant Split Charging And Vacuum Pumping Unit
  • R410 Refrigerant Split Charging And Vacuum Pumping Unit
  • R410 Refrigerant Split Charging And Vacuum Pumping Unit
  • R410 Refrigerant Split Charging And Vacuum Pumping Unit
  • R410 Refrigerant Split Charging And Vacuum Pumping Unit
  • R410 Refrigerant Split Charging And Vacuum Pumping Unit
Get Price Contact Now
Product Description
CM8800 Refrigerant Split Charging Machine is used for transferring refrigerant from ISO tank or 400~1000L tank to 12L~ 60L tank. It integrates functions of vacuum, recharge and pump back with high speed and accuracy.

Functions:
1. Vacuum Separately: vacuum the gas from the recovery tank.
2. Pump out/Recharge: Pump out the store tank and recharge into a certain amount of refrigerant.
3. Recharge: Recharge a certain amount of refrigerant into the store tank with refrigerant already.

R410 Refrigerant Split Charging And Vacuum Pumping Unit 0
No.
Item Name
1.
Siemens PLC Contrller
2.
Name Plate
3.
Work Indicating Lamp
4.
Emergency Stop Switch
5.
Charge/Vacuum Switch
6.
Sight Glass
7./14.
Hanger
8.
Vacuum Inlet / Refrigerant Outlet
9.
Switch Valve
10.
Electronic Scale
11.
Outlet Pressure Gauge
12.
Inlet Pressure Gauge
13.
Vacuum Gauge
14.
Refrigerant Inlet Valve
15.
Air-pressure Setting Valve
16.
Power Interface
17.
Exhaust Valve
Details Images
R410 Refrigerant Split Charging And Vacuum Pumping Unit 1
R410 Refrigerant Split Charging And Vacuum Pumping Unit 2
R410 Refrigerant Split Charging And Vacuum Pumping Unit 3
R410 Refrigerant Split Charging And Vacuum Pumping Unit 4
R410 Refrigerant Split Charging And Vacuum Pumping Unit 5
Our Advantages
R410 Refrigerant Split Charging And Vacuum Pumping Unit 6
FEATURES
1. Adopt refrigerant split charging special use oil-less booster pump, suit for R134a, R22, R410A, etc.
2. Integrates multi-functions: recharge, pump out & recharge and vacuum.
3. High accuracy up to be 0.5% and resolving accuracy up to be 10g.
4. Without refrigerant loss in flexible shaft during refrigerant split charging process.
5. High vacuum speed, standard device with 4L/s vacuum pump.
6. Full protective functions.
7. High split charging speed up to 2.5 kg/min.
Product Paramenters
Model
CM8800
Booster Pump Power
1/2HP
Vacuum Pump Flow
 4L/S
Liquid Inlet Port Size
1/2''
Liquid Outlet Port Size
1/4'' (Standard); 3/8'' / 1/2''(Optional)
Electronic Scale Size(L*W*H)
360*360*120mm
Weighing Range
0~40kg (Standard); 0~100/150kg (Optional)
Weighing Accuracy
Up to 0.5%
Split Charging Speed
2.5 kg/min
Overall Dimension Size(L*W*H)
700*500*1750mm
Package Size(L*W*H)
750*620*1840mm
Package Weight
120kg



Recycling Operation
