R134A R410A Ac Gas Charging Machine Car Air Conditioner Recharge Machine
-
Highlight
R134A car air conditioner recharge machine
,R410A Ac Gas Charging Machine
,R134A Ac Gas Charging Machine
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)400
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsPump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
Product NameDual System Refrigerant Charging Equipment
-
Voltage380V50HZ 3Ph / 220V50Hz 1Ph
-
RefrigerantR22/R410A/R407C/R134A/R406A,etc
-
Model NoCM8600
-
Precision±0.5%
-
Vacuum Degree5Pa~10Pa
-
Charging Speed60~260g/s
-
ApplicationA/C, Freezers, Refrigerators, Chillers,etc
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Model NumberCM8600
-
Minimum Order Quantity1 Unit
-
Price$27,000.00/units 1-2 units
-
Packaging DetailsPlywood case Dual System Refrigerant Charging Machine CM8600
-
Supply Ability50 Unit/Units per Month
R134A R410A Ac Gas Charging Machine Car Air Conditioner Recharge Machine
R134A R410A Refrigerant Recharge System Dual System Refrigerant Charging Machine Gas Recovery Unit

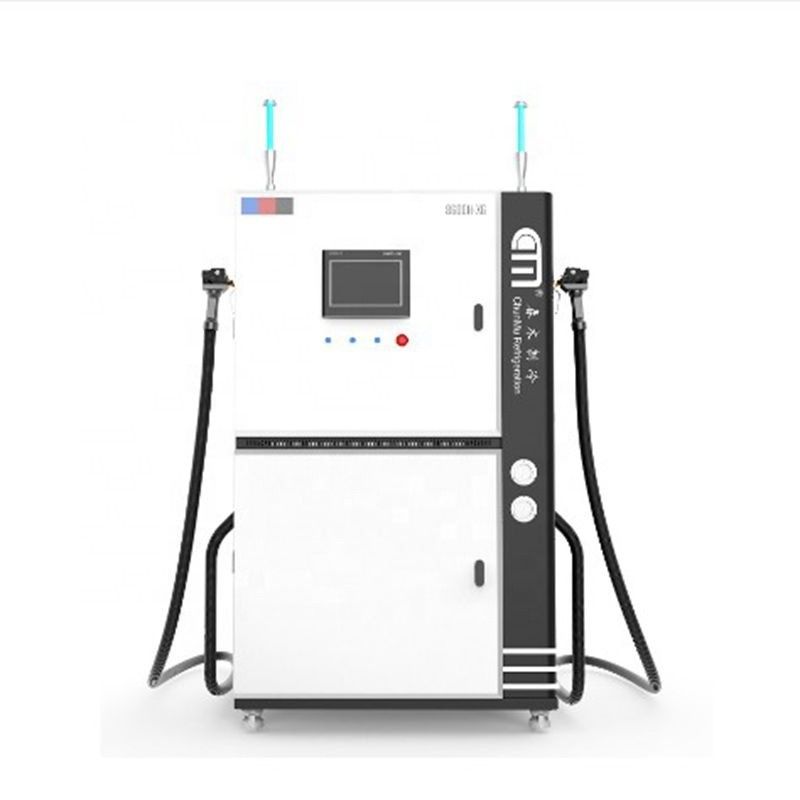

CM8600 dual system refrigerant charging machine for refrigerator assembly line
CM8600 T series dual system refrigerant charging machine was specially designed for charging two different refrigerants and to be used in any kind of assembly lines of cooling system (refrigerators, water cooler,heat pump, air conditioners etc...) to perform evacuation, leakage test and refrigerant charging. This model equipped with 2 charging system allowed 2 charging gun work at same time. This model also have recovery function option which can recovery residual gas from refrigerant storage tank to avoid refrigerant waste.
Features
·Siemens smart PLC technology for fast and accurate operation process
·Large colorful touch screen make the operation easy and simple
·High precision mass flowmeter technology ensures charging accuracy
·Powerful pneumatic booster pump for high speed charging rate
·The continuous charging quantity up to 99999g
·Automatic reminder function when the liquid supply tank is lack of refrigerant
·Combine vacuum, leakage inspection, refrigerant charging to all in one system
·Equipped with leakage alarm device
·High charging accuracy
Specification
|
Model
|
CM8600
|
Resolution
|
Precision
|
Vacuum degree
|
Gun connector
|
||||
|
Serial No.
|
T40
|
T60
|
T80
|
T100
|
T150
|
||||
|
Charging speed
|
≥40g/s
(2.4kg/min)
|
≥60g/s
(3.6kg/min)
|
≥80g/s
(4.8kg/min)
|
≥100g/s
(6kg/min)
|
≥150-200g/s
(9-12kg/min)
|
||||
|
Charging capacity
|
10-99999g
|
|
|
20-9999999g
|
|
||||
|
Charging accuracy
|
＜100g,±0.5g
100g—2000g,≤±0.5%
＞2000g,≤±0.3%
|
|
|
＜500g,≤2g
500-2000g,≤±0.5%
＞2000g,≤±0.3%
|
|
||||
|
Charging technology
|
RRT turbine flowmeter (RHEONIK mass flowmeter is optional)
|
|
|
|
|
||||
|
Resolution
|
0.1g
|
|
|
|
|
||||
|
Certification
|
CE
|
|
|
|
|
||||
|
Vacuum pump
|
4L/S
|
|
|
8L/S
|
|
||||
|
Vacuum degree
|
3-5Pa
|
|
|
|
|
||||
|
Injector connection
|
Hansen 1/4" or 3/8"
|
|
|
|
|
||||
|
Charging hose length
|
3m-20m
|
|
|
|
|
||||
|
Communication interface
|
RS485/RS232/Entel
|
|
|
|
|
||||
|
Pre-set channel
|
100
|
|
|
|
|
||||
|
Compressed Air
|
0.5-0.7Mpa
|
|
|
|
|
||||
|
PLC
|
Siemens
|
|
|
|
|
||||
|
Power supply
|
380V50Hz 3Ph / 220V50Hz 1Ph
|
|
|
|
|
||||
|
Refrigerants
|
R134a, R22, R513a, R404A, R410A, R406A, etc
|
|
|
|
|
||||
|
Application
|
Air conditioner, water cooler, beer machine, freezers, refrigerators, chillers, heat pumps
|
|
|
|
|
||||
|
Optional function
|
Refrigerant residual gas recovery
|
1g
|
±0.5%
|
5Pa~10Pa
|
1/4&3/8
|
||||
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/recharge/reclaim/vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Our products are sold all over the world, you can rest assured.
