CM8600 R600a R290 R32 Flammable Refrigerant Filling Machine Single System Charging Station For Heat Pump
-
Highlight
R32 Flammable Refrigerant Filling Machine
,Single System Refrigerant Filling Machine
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
ApplicationAir Conditioners, Refrigerator, Water Cooler, Heat Pump,etc
-
Voltage380V/50HZ
-
RefrigerantR600a/R290/R32/R1234YF/R134A
-
Model NoCM8600 Single System Flammable Refrigerant Charging Machine
-
Precision±0.5%
-
Vacuum Degree3Pa~5Pa
-
Charging Speed60~260g/s
-
Resolution0.1g
-
CertificateCE/ATEX
-
ConditionNew
-
Showroom LocationNone
-
Core ComponentsPump
-
TypeCOMPRESSOR
-
Weight (KG)370
-
PortShanghai Ningbo Tianjin Qingdao Shenzhen
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM8600
-
Minimum Order Quantity1 Unit
-
Price$19,780.00/units 1-2 units
-
Packaging DetailsPlywood case on pallet CM8600 Single System Refrigerant Charging Machine for Flammable Refrigerants
-
Supply Ability50 Unit/Units per Month

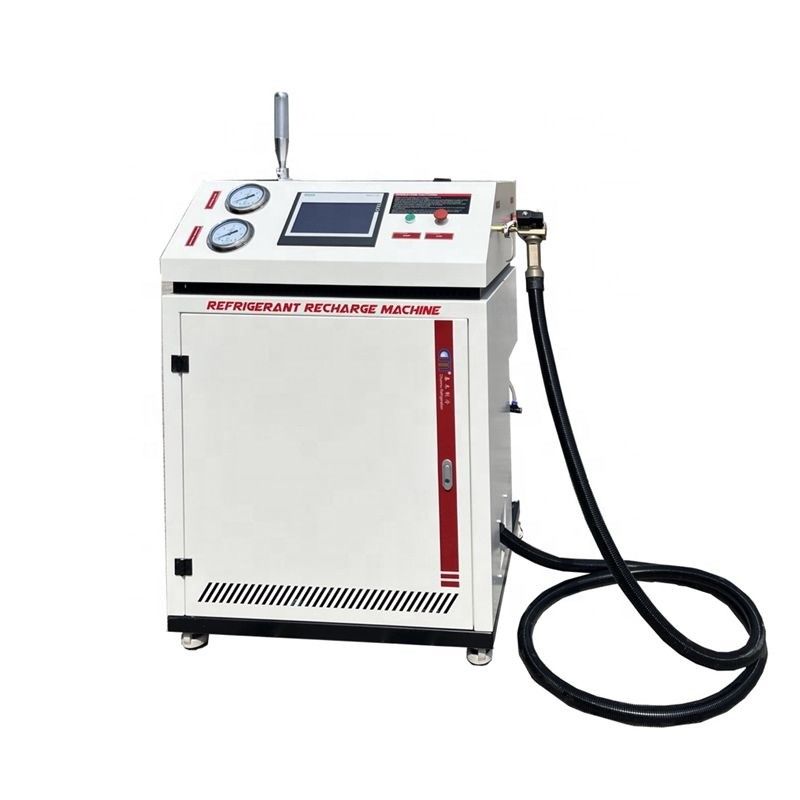

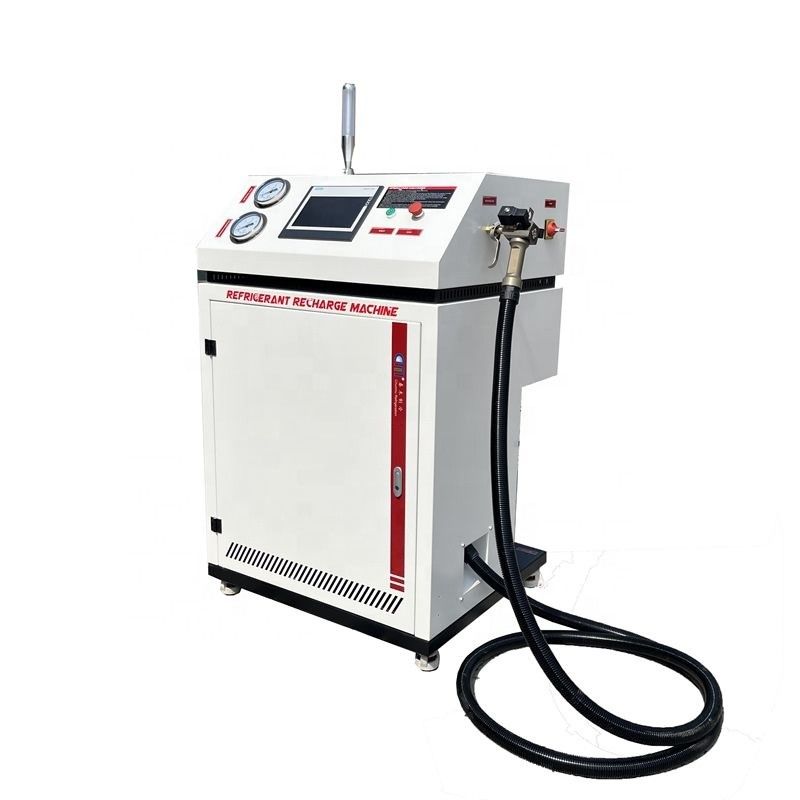

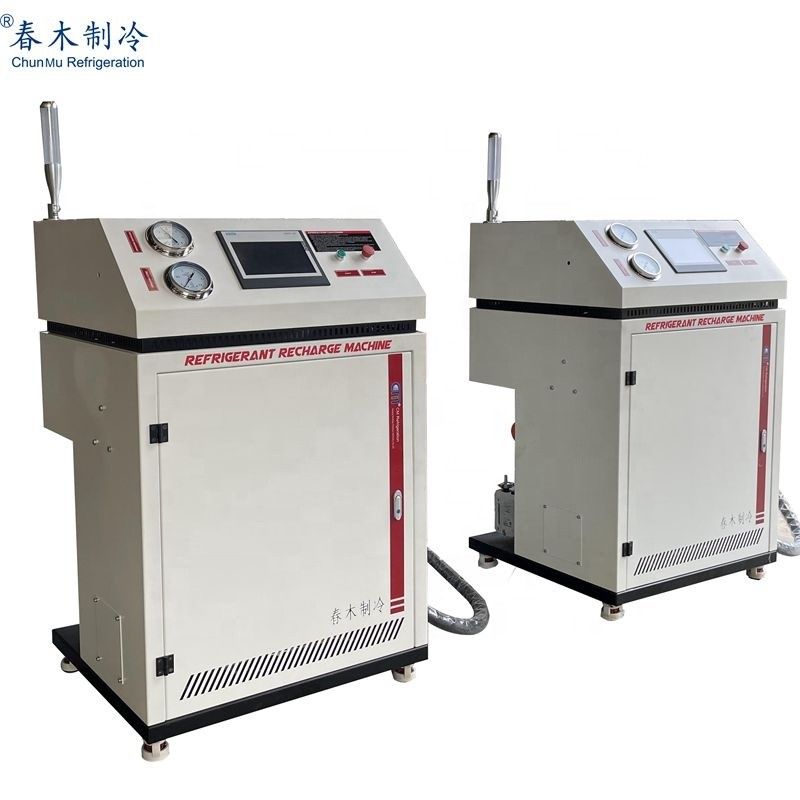

CM8600 R600a R290 R32 Flammable Refrigerant Filling Machine Single System Charging Station For Heat Pump
CM8600 Refrigerant Charging Machine for Refrigerator Assembly Line
CM8600 single system refrigerant charging machine is specially designed for the fast speed refrigerant charging at production line. It features for its high speed of charging, high accuracy. multiple function etc. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Features
1. Adpot CNC technology allow the data processing capability witP1060073h accurate and easy operation.
2.Charing/filling liquid gas for r600a, r290,r32, R1234YF, R134A,etc.
3. Siemens PLC and colorful touch sreen control system.
4. Adopt high accuracy flow sensors make this machine can get accurate data, and the resolution has reached to 1~0.1g.
5. The Wonfulay(our own brand) Pneumatic booster to ensure stable pressure and the supply of large charging quantity.
6. The continous charging/filling quantity up to 99999g, and the charging rate is 60g~260g.
7. There's a automatic prompts function when the refrigerant in the cylinder is lack.
8. The vacuum time and inspection leak time can be adjusted according to your requirements.
9. Adopt Wonfulay(our own brand) filling gun in the filling interface which improve the charging/filling speed.
10. With Wonfulay(our own brand) high vacuum pump makes it with quick vacuum, the vacuum has reached to 5~10pa.
11. This mahcine has vacuum, inspection leak, charging/filling, recovery refrigerant function.
12. Repeat filling accuracy is ≤ ± 0.5%.
13. Easy to move
Specification
|
Model
|
CM8600(ExTSeries)
|
|
|
|
Serial No.
|
ExT40
|
ExT60
|
|
|
Charging speed
|
≥40 g/s
(2.4 kg/min)
|
≥60-80 g/s
(3.6-4.8 kg/min)
|
|
|
Single charge amount
|
10-999999g
|
10-999999g
|
|
|
Charging accuracy
|
Less than 500 g, ≤2 g
500 g-2000 g,≤±0.5%
2000 g,≤±0.3%
|
|
|
|
Measurement methods
|
RRT American Ruby Flow Meter
|
|
|
|
Resolution ratio
|
0.1g
|
|
|
|
Certificate
|
CE/ATEX
|
|
|
|
Vacuum rate
|
4L/S
|
8L/S
|
|
|
Vacuum degree of machine
|
3-5pa
|
|
|
|
Charging gun port
|
Hansen 1/4 or 3/8 quick connectors
|
|
|
|
Length of charging gun
|
Standard with 3 meters, other specifications 3-10 meters optional
|
|
|
|
Communication interface
|
RS485/RS232/Ethernet
|
|
|
|
Channels quantity
|
100
|
|
|
|
Compressed air pressure
|
0.5-0.7Mpa
|
|
|
|
PLC
|
Siemens
|
|
|
|
Power supply
|
380V 50Hz 3Phase or 220V 50Hz 1Phase
|
|
|
|
Dimension
|
900*800*1340 mm
|
|
|
|
Approved refrigerants
|
R600a,R290,R32,R1234ze,R1234YF,R134A etc.
|
|
|
|
Application
|
Air Condition,Water Cooler,Beer Machine,Freezers, refrigerators, chillers, heat pumps,etc
|
|
|
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
