CM8600 Fully Automatic Refrigerant Filling Station R407C Refrigerant Recharge Machine
-
Highlight
Fully Automatic Refrigerant Filling Station
,R407C Refrigerant Filling Station
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)370
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
Product NameRefrigerant Single Charging System Filling Machine
-
Voltage380V/50HZ
-
RefrigerantR22/R410A/R407C/R134A
-
Model NoCM8600 Refrigerant Charging Station
-
Precision±0.5%
-
Vacuum Degree5Pa~10Pa
-
Charging Speed60~260g/s
-
Resolution0.1g
-
CertificateCE
-
PortShanghai Ningbo Tianjin Qingdao Shenzhen
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM8600
-
Minimum Order Quantity1 Unit
-
Price$15,600.00/units 1-1 units
-
Packaging DetailsPlywood case on pallet CM8600 Single Charging System Refrigerant Filling Machine
-
Supply Ability50 Unit/Units per Month
CM8600 Fully Automatic Refrigerant Filling Station R407C Refrigerant Recharge Machine

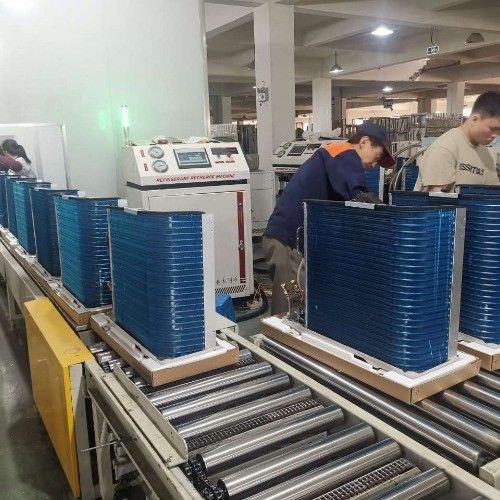

CM86 refrigerant charging machine for refrigerator assembly line
CM86 refrigerant charging machine is specially designed for the fast speed refrigerant charging at production line. It features for its high speed of charging, high accuracy. multiple function etc. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Features
1. Adpot CNC technology allow the data processing capability witP1060073h accurate and easy operation.
2.Charing/filling liquid gas r134a, r22, r407c, r410a etc.(for r600a, r290,r32 can custom).
3. Siemens PLC and colorful touch sreen control system.
4. Adopt high accuracy flow sensors make this machine can get accurate data, and the resolution has reached to 1~0.1g.
5. The Wonfulay(our own brand) Pneumatic booster to ensure stable pressure and the supply of large charging quantity.
6. The continous charging/filling quantity up to 99999g, and the charging rate is 60g~260g.
7. There's a automatic prompts function when the refrigerant in the cylinder is lack.
8. The vacuum time and inspection leak time can be adjusted according to your requirements.
9. Adopt Wonfulay(our own brand) filling gun in the filling interface which improve the charging/filling speed.
10. With Wonfulay(our own brand) high vacuum pump makes it with quick vacuum, the vacuum has reached to 5~10pa.
11. This mahcine has vacuum, inspection leak, charging/filling, recovery refrigerant function.
12. Repeat filling accuracy is ≤ ± 0.5%.
13. Easy to move
Specification
|
Equipment model
|
CM 8600 S Series
|
|
Device Serial Number
|
S 100
|
|
Filling speed
|
≥100 g/s (6 kg/min)
|
|
Single charge amount
|
20-9999999 g
|
|
Filling accuracy
|
＜500 g, ≤2 g ；500 g-2000 g,≤±0.5% ；＞2000 g,≤±0.3%
|
|
Measurement methods
|
RRT American Ruby Flow Meter
|
|
Resolution ratio
|
0.1 g
|
|
Equipment certification
|
CE
|
|
Vacuum rate
|
8 L/S
|
|
Vacuum degree of machine
|
3-5 pa
|
|
Filling gun port
|
Hansen 1/4 or 3/8 quick connectors
|
|
Length of filling gun
|
Standard with 3 meters, other specifications 3-10 meters optional
|
|
Communication interface
|
RS485/RS232/Ethernet
|
|
Channels quantity
|
100
|
|
Compressed air pressure
|
0.5-0.7Mpa
|
|
Programmer
|
Siemens
|
|
Power supply
|
380V 50Hz 3Phase or 220V 50Hz 1Phase
|
|
Dimension
|
900*800*1340 mm
|
|
Approved refrigerants
|
R134a, R22, R513a, R404A, R410A, R406A etc.
|
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
