Refrigerant Recovery Machine CM5000&CM6000

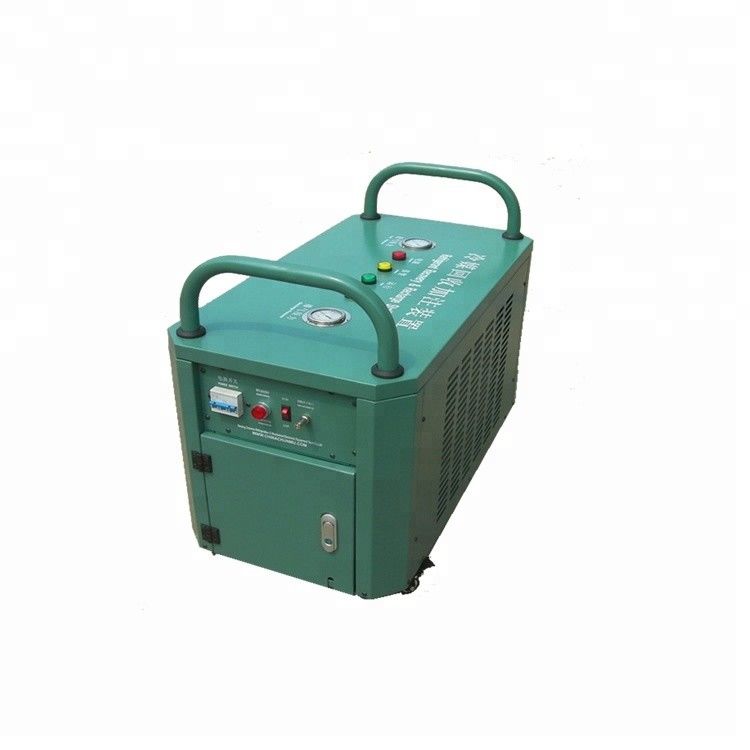

CM5000/6000 commercial refrigerant recovery machine

Products in CM5000/6000 series are special for screw type refrigeration unit. Performance of these medium refrigerant recovery equipments are with today’s national advanced level. Applications are as follows:

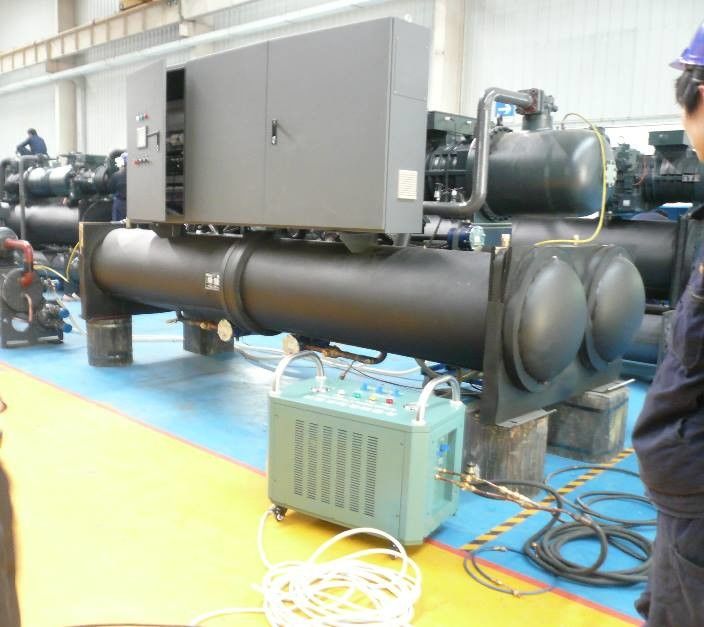

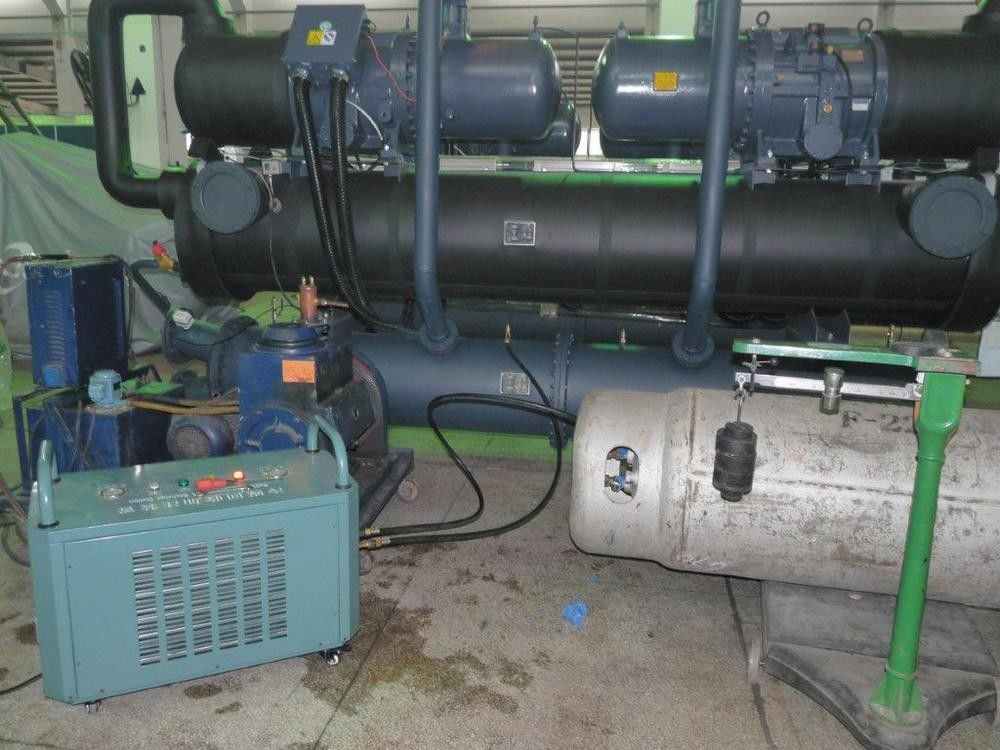

screw units, small & medium central A/C factories, on site maintenance of small & medium HVAC/R products ( industrial refrigerant  recovery machine )

Unique Advantages of CM5000/6000 refrigerant recovery machine

1. Oil-free lubricating compressor – compatible with CFC/HCFC/HFC refrigerant

2. Self-purging design – prevent cross contamination
3. Multi-function valve design- simple operation
4. Perfect protection system – safe credibility
5. Thorough recovery refrigerant and automatic stop when the suction pressure is up to --0.04Mpa

6. Light weight – air cooled type only 160lbs, water cooled is much lighter

7. Meet ARI-700 standards
8. 24-hour continuous working

Product Specification of CM5000 series refrigerant recovery machine

Model:CM5000 refrigerant recovery machine

Compressor: 2HP, oil free

Vapor Recovery Rate: less than 2.21lbs/min(60kg/h)
Direct Liquid Recovery Rate: less than 8.81lbs/min(240kg/h)
Push/Pull Recovery Rate: less than 48lbs/min(1300kg/h)
Working & Environmental Temp.: 0-50 degree
Cooling Type: Air cooled( water cooled is optional)
Recovery Mode: Vapor & Liquid Recovery
Weight: 160lbs(air cooled), water-cooled is lighter

Hose: 1/2"

Model:CM6000 refrigerant recovery machine

Compressor: 3HP, oil free

Vapor Recovery Rate: less than 2.21lbs/min(60kg/h)
Direct Liquid Recovery Rate: less than 8.81lbs/min(240kg/h)
Push/Pull Recovery Rate: less than 48lbs/min(1300kg/h)
Working & Environmental Temp.: 0-50 degree
Cooling Type: Air cooled( water cooled is optional)
Recovery Mode: Vapor & Liquid Recovery
Weight: 160lbs(air cooled), water-cooled is lighter

Hose: 1/2"

Data sheet of CM5000/6000 refrigerant recovery machine
