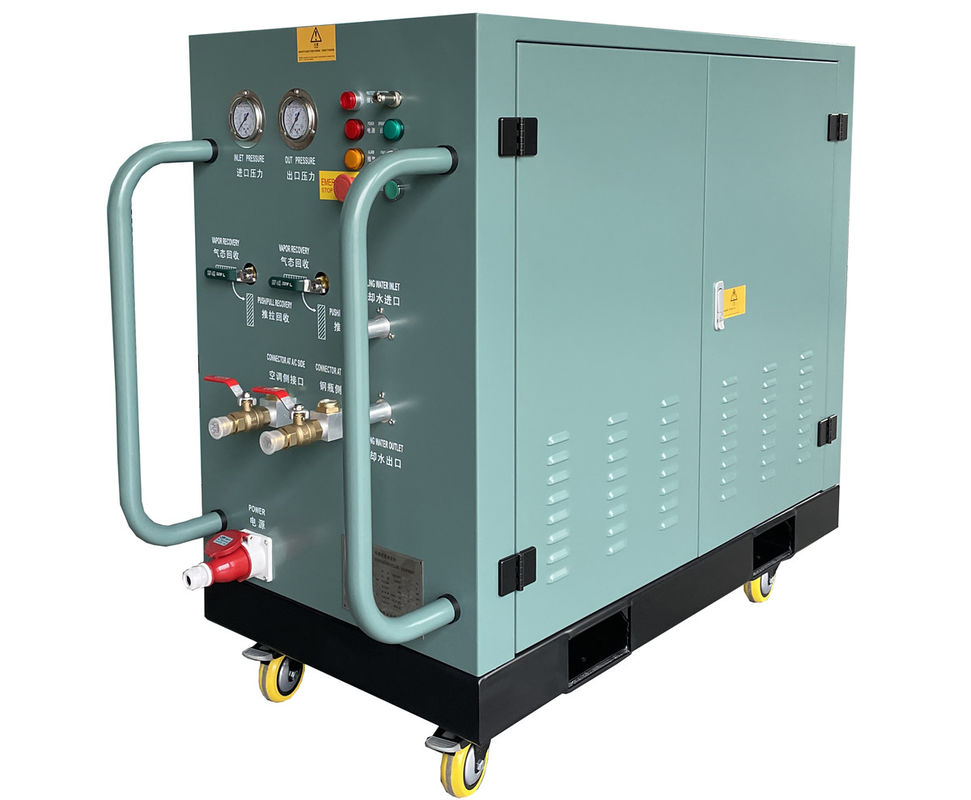

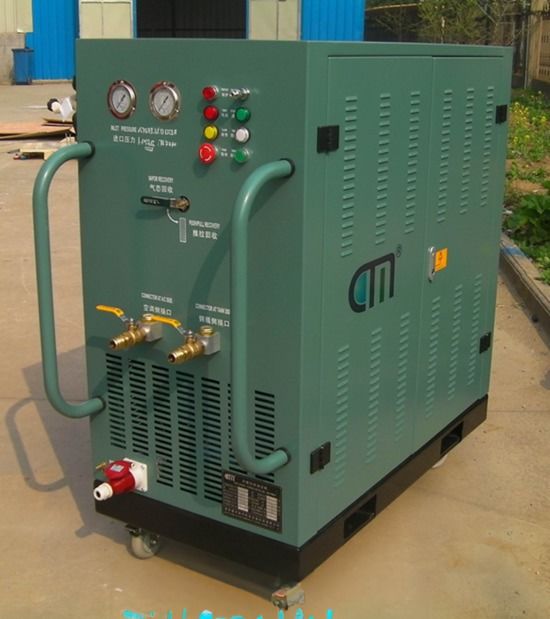

Refrigerant Gas Recovery Machine For Centrifugal Chiller Unit WFL18

Product Description:

Specifications

integrate functions of liquid push/pull recovery, direct liquid recovery, vapour recovery, self-purge and oil separating


 WFL18 Refrigerant recovery machine
Advantages of WFL18 Refrigerant recovery machine
Performance has become a forefront of the industry and meet ARI-700 standards;
Universal for CFC/HCFC/HFC of medium & low pressure refrigerants;
24-hour continuous working;
No need for special maintenance when recovery different refrigerants, just evacuation. No cross contamination;
High performance/price ratio - rapid investment return Maintenance is simple.

Product Feature of WFL18 Refrigerant recovery machine
Oil-free lubricating compressor - compatible with CFC/HCFC/HFC refrigerants
Fast recovery recharging rate for both liquid and vapor refrigerants
Multi-function valve design- simple operation in vapor and push/pull recovery
Perfect protection system - safe credibility;
Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04Mpa
Easy to operate and convenient to move;
Perfect protection system- safe credibility;
Water/cooled design - Effective heat dissipation
For 3000kg cooling system, finish all the refrigerant recovery within 5 hours;

Product Specification of WFL18 Refrigerant recovery machine
Model: WFL18 Refrigerant recovery machine
Compressor: 7.5HP, oil free
Vapor Recovery Rate: less than 6.6lbs/min(180kg/h)
Push/Pull Recovery Rate: less than 330lbs/min(9000kg/h)
Working & Environmental Temp.: -10-60 degree
Cooling Type: water cooled( air cooled is optional)
Recovery Mode: Vapor & Push/Pull Liquid Recovery
Hose: 3/4"

Voltage of WFL18 Refrigerant recovery machine (optional)

50Hz/3PH/380V 50Hz/3PH/400V
50Hz/3PH/415V 60Hz/3PH/380V
60Hz/3PH/440V 60Hz/3PH/460V

Optional accessories of WFL18 Refrigerant recovery machine
1/2" connecting hose(length is customizable)
3/8" connecting hose(length is customizable)
5/8" connecting hose(length is customizable)
3/4" connecting hose(length is customizable)
3/4" to 3/8" adapter
3/4" to 1/4" adapter
3/4" to 5/8" adapter
3/4" filter
Cylinder (20L-1000L) customizable
Float switch for cylinder
( length of power cord is customizable)

Application of WFL18 Refrigerant recovery machine
Transfer refrigerants;
Service chillers & other large & medium cooling systems below 3000 cooling ton;
Large & medium central A/C factories;
On site maintenance of lage & medium HVAC/R products
