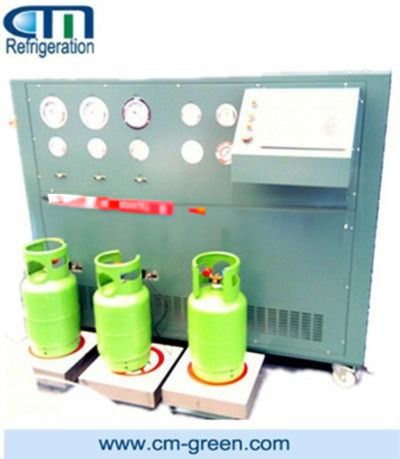

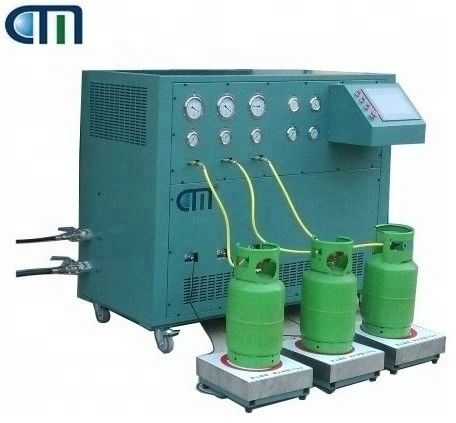

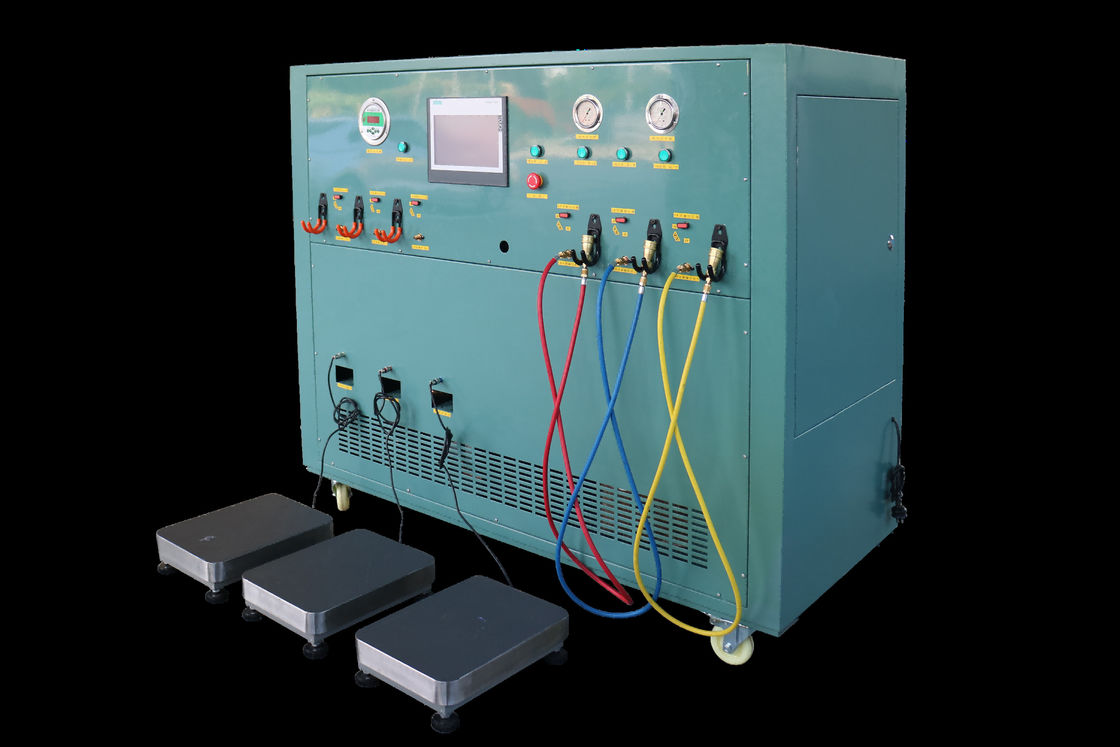

Air Conditioning Refrigerant Gas R134a R22 Charging Filling Station Machine CM20
-
Applicable IndustriesManufacturing Plant
-
Showroom LocationNone
-
TypeRefrigeration Compressor
-
ApplicationRefrigeration Parts
-
Warranty1 Year
-
After Warranty ServiceSpare Parts
-
Local Service LocationNone
-
After-sales Service ProvidedFree Spare Parts
-
Filling Rate4Kg/min
-
Product NameRefrigerant Filling Machine
-
Voltage380V/50HZ
-
Horse Power3 HP
-
Weight450Kg
-
ModelCM20A
-
PortSHANGHAIA
-
Place of OriginJiangsu, China
-
Brand NameCHUNMU
-
CertificationCE
-
Price$15,000.00 - $20,000.00/cartons
-
Packaging Detailswooden case
-
Supply Ability100 Case/Cases per Month
Air Conditioning Refrigerant Gas R134a R22 Charging Filling Station Machine CM20
INTRODUCTION:
CM20A multiple stage refrigerant sub-package system is for the application that Transfer refrigerant from ISO TANK or 1000-400L tank to 12L-60L tank. It integrates functions of vacuum, recharge and pump back. Three stations can work simultaneously, so sub-package efficiency is very high. The accuracy is 0.5%.
FEATURES:
Integrate functions of vacuum, filling, and pump back - high efficiency and no refrigerant loss;
Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
Three working-station design, high filling efficiency;
Overall protection system, safe credible;
Filling accuracy is 0.5%;
Can make according to customers' requirements.
SPECIFICATIONS:
| Model | Booster Oil-free Compressor |
Vacuum Pump |
Filling Rate |
Scale measurement range |
| CM20 | 1.5 HP | 2 L/s * 3 units | ||
| CM20A | 1.5 HP | 4 L/s * 3 units | ≤ 6kg/min | 40kg/100kg/150kg/200kg (optional) |
