4HP Three Cylinder Refrigerant Reclaim Machine Oil Free For Household A/C

Highlight

4HP Refrigerant Reclaim Machine
,
Three Cylinder Refrigerant Reclaim Machine
,
4HP freon reclaimer machine
Condition

New
Applicable Industries

Machinery Repair Shops, Manufacturing Plant
Weight (KG)

300
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Not Available
Warranty Of Core Components

1 Year
Core Components

Motor
Type

COMPRESSOR
Warranty

1 Year
After-sales Service Provided

Engineers Available To Service Machinery Overseas
Compressor

4HP Oil-free
Refrigerant

R134A/R407C/R22/R410A.......
Application

Household A/c,automotive A/c, Refrigerator And Freezer, Etc
Product Name

Refrigerant Recovery Reclaim Equipment Machine
Purge Rate

≤40kg/h
Oil Separate Effiency

≥99%
Purity

≥99.5%
Moisture

≤0.0025%
Port

Shanghai
Place of Origin

Jiangsu, China
Brand Name

CM
Certification

CE
Model Number

CM0901
Minimum Order Quantity

1 Unit
Price

$15,360.00/units 1-1 units
Packaging Details

wooden case;<br>CM0901 Oil Less 4HP A/C Repair Line Refrigerant Reclaim System Reclaiming Machine
Supply Ability

50 Unit/Units per Month

4HP Three Cylinder Refrigerant Reclaim Machine Oil Free For Household A/C

Name: 4HP Three Cylinder Refrigerant Reclaim Machine Oil Free For Household A/C
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
SKU: CM0901
Price: 1.00 USD
Availability: InStock

button button

Get Price Contact Now

4HP Commercial Refrigerant Recovery Recycling Machine Air Conditioner A/C Repair Line Reclaim Equipment

4HP refrigerant reclaim recovery machine air conditioner charging machine ac charging station filling reclaim equipment

Product Description

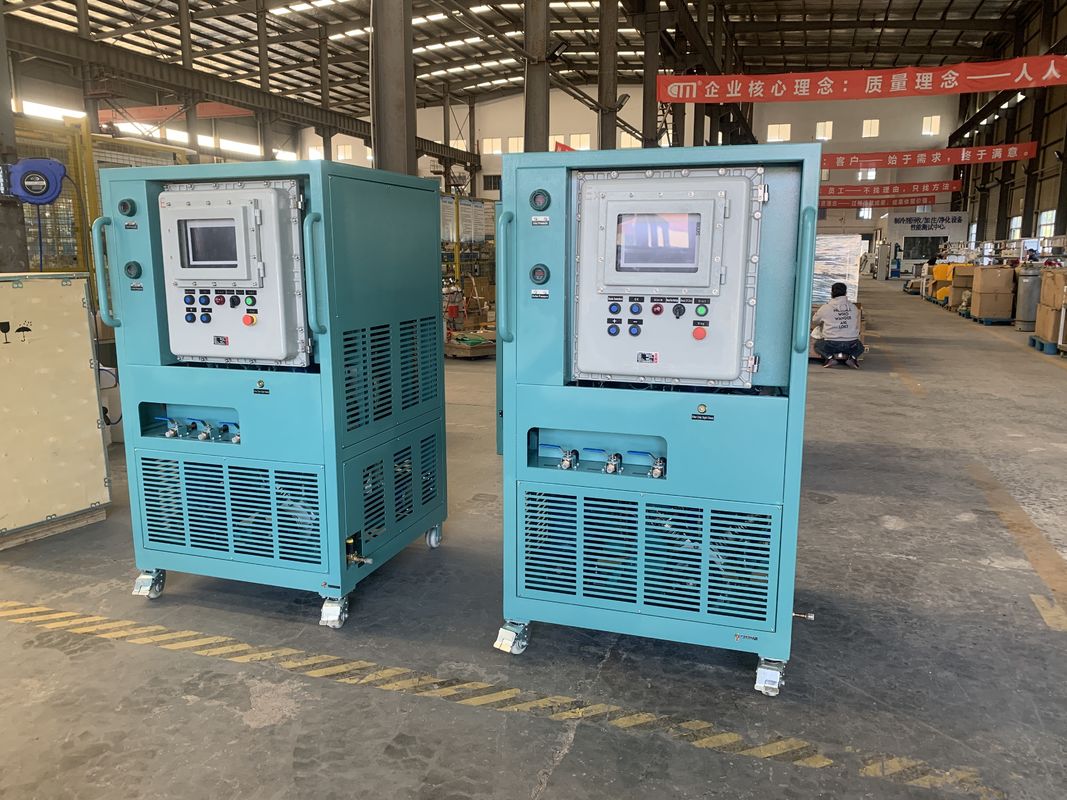

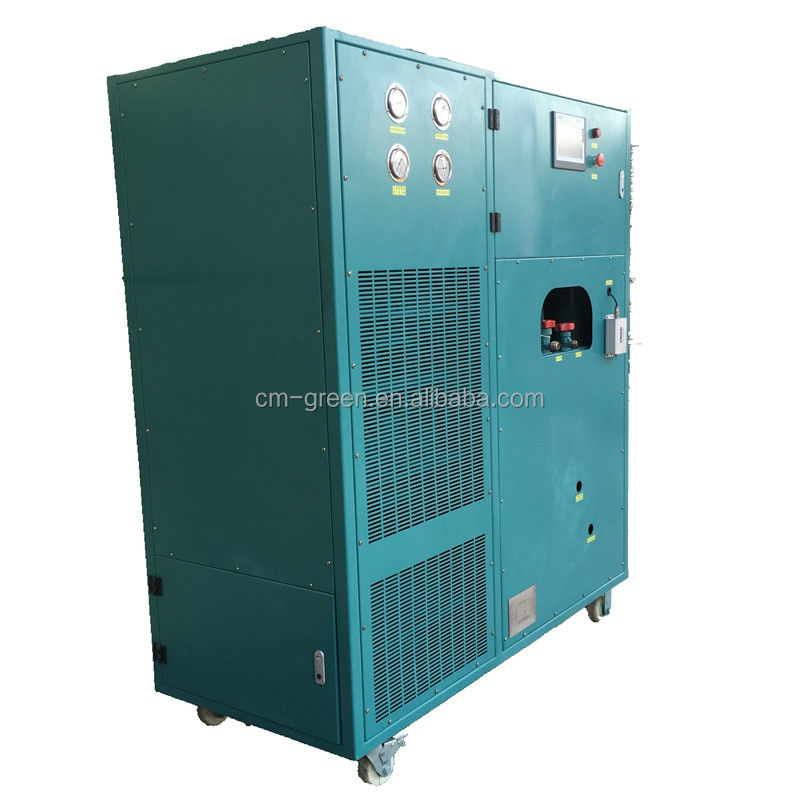

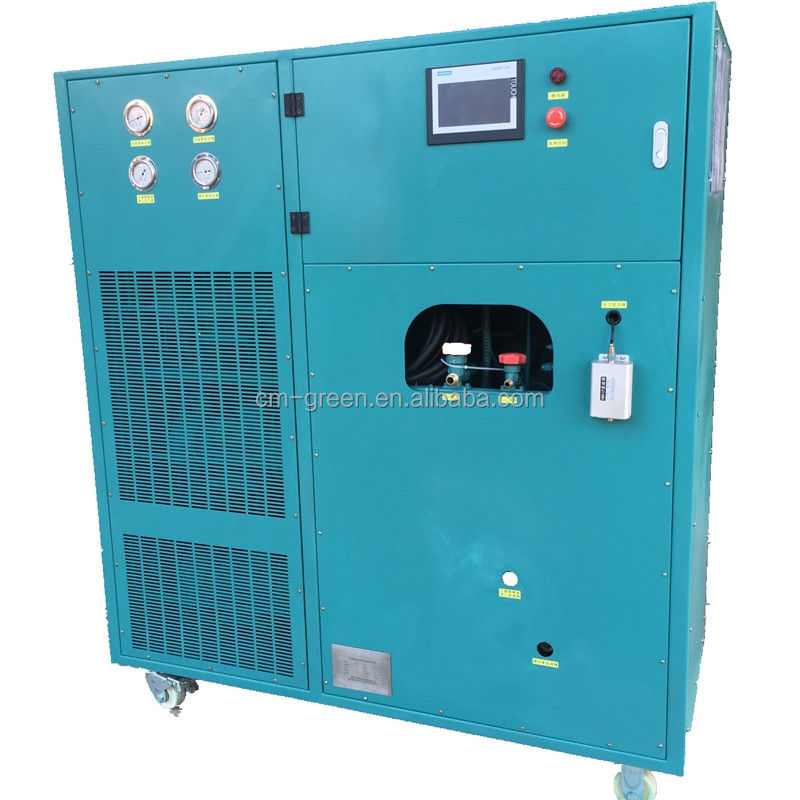

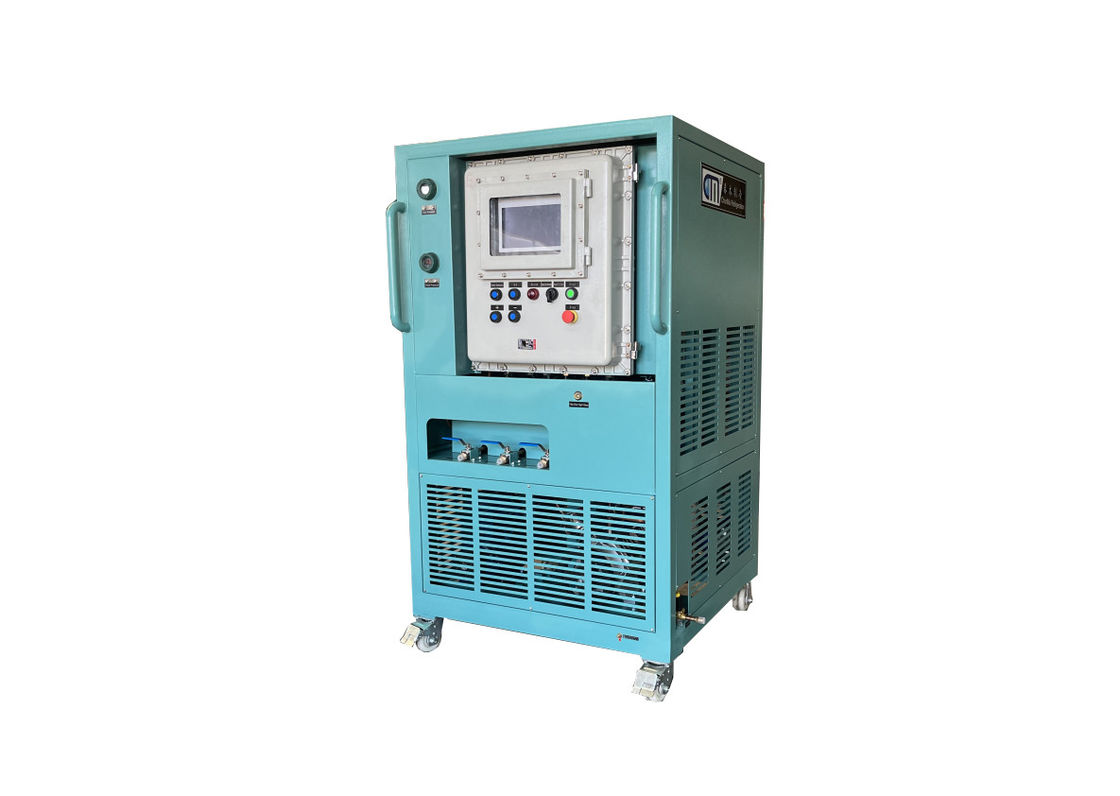

CM09 Series Refrigerant Recovery Reclaim Recycling Equipment for Repair Line of Air Conditioning

CM09 series refrigerant recovery&recycling machine is specially designed for removing moisture,acid and impurity from old and dirty refrigerant,it utilizes food grade material piston compressor with smart Siemens PLC control system to offer fast and deep reclaim rate based on CM 20 years compressor designed experience,the whole system specially designed according to AHRI740 standard, applied in various network which including screw chillers,commercial&industrial refrigeration system and freon manufacturing plant.
Features & Advantages
·1. Integrated functions of removing oil, acids and moisture including non-condensable gas.
·2. Oil less SS304 compressor for zero contamination
·3. Capable of handle most common refrigerants,like R22/R134A/R410A/R32 etc.
·4. Automatic oil drain&non-condensable gas discharge
·5. Over 99.8% refrigerant purity after recycling
·6. Once recovery&recycling process finished,machine stop working automatically
·7. Large wheels trolley design -- convenient for work site use;
·8. Overall protection device, safe credibility
·9. Controlled by Smart Siemens PLC programmer&touch screen
·10. Can be customized for flammable refrigerants
·11. Integrated of air cooling and water cooling

Specifications:

Model	CM0901	CM0902	CM0903
Horsepower	4HP	10HP	25HP
Compressor Displacement	5m³/h	20m³/h	57m³/h
Compressor Type	Oil-free V-Twin reciprocating	Oil-free three-cylinder reciprocating	Oil-free twin-cylinder reciprocating
Reclaim Rate	≤60Kg/h	≤200Kg/h	≤300Kg/h
Refrigerant Purity	≥99.8%	≥99.8%	≥99.8%
Moisture	≤10 ppm	≤10 ppm	≤10 ppm
Acidity	≤1 ppm	≤1 ppm	≤1 ppm
High Boiling Residue	≤0.01%	≤0.01%	≤0.01%
Non-Condensable Gas	≤1.5%	≤1.5%	≤1.5%
Applicable Refrigerant	R22,R134a,R410A etc	R22,R134a,R410A etc	R22,R134a,R410A etc
Voltage	220V 50Hz 1Ph/380V 50Hz 3Ph	380V 50Hz 3Ph	380V 50Hz 3Ph
