10HP 25HP Refrigerant Reclaim Unit Refrigerant Gas Recovery Machine

Highlight

10HP Refrigerant Reclaim Unit
,
25HP Refrigerant Reclaim Unit
,
10HP Refrigerant Gas Recovery Machine
Condition

New
Applicable Industries

Machinery Repair Shops, Manufacturing Plant
Weight (KG)

300
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Not Available
Warranty Of Core Components

1 Year
Core Components

Motor
Type

COMPRESSOR
Warranty

1 Year
After-sales Service Provided

Engineers Available To Service Machinery Overseas
Compressor

Oil-free
Refrigerant

R134A, R407C, R22, R410A
Application

For Household A/C, Car A/C, Refrigerators, Freezers,etc
Product Name

CM0901 Refrigerant Reclaiming Equipment Reclaim System
Cooler

Water Cooling
Ultimate Vacuum

10pa~30pa
Power

380V/50HZ
Other Name

Refrigerant Recovery Unit
Port

Shanghai
Place of Origin

Jiangsu, China
Brand Name

CM
Certification

CE
Model Number

CM09
Minimum Order Quantity

1 Unit
Price

$28,200.00/units 1-4 units
Packaging Details

wooden case;<br>CM09 series Refrigerant Reclaiming Machine R134A Refrigerant Reclaim System
Supply Ability

50 Unit/Units per Month

10HP 25HP Refrigerant Reclaim Unit Refrigerant Gas Recovery Machine

Name: 10HP 25HP Refrigerant Reclaim Unit Refrigerant Gas Recovery Machine
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
SKU: CM09
Price: 2.00 USD
Availability: InStock

button button

Get Price Contact Now

Auto Commercial Refrigerant Recovery Machine R32 R1234YF Pump 380V 50Hz 3Ph

auto R32 R1234YF refrigerant recovery pump

Product Description

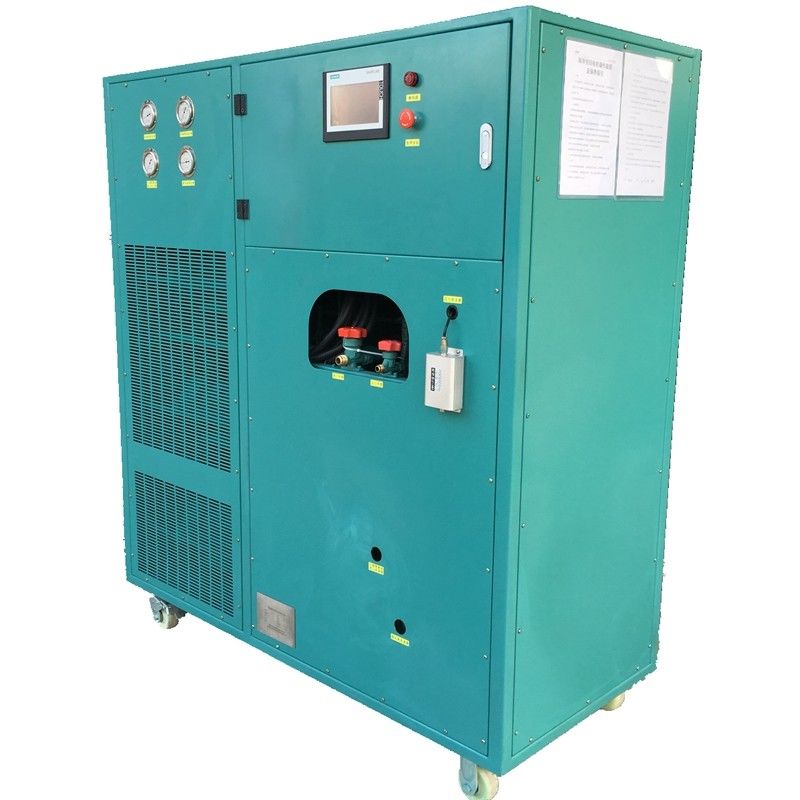

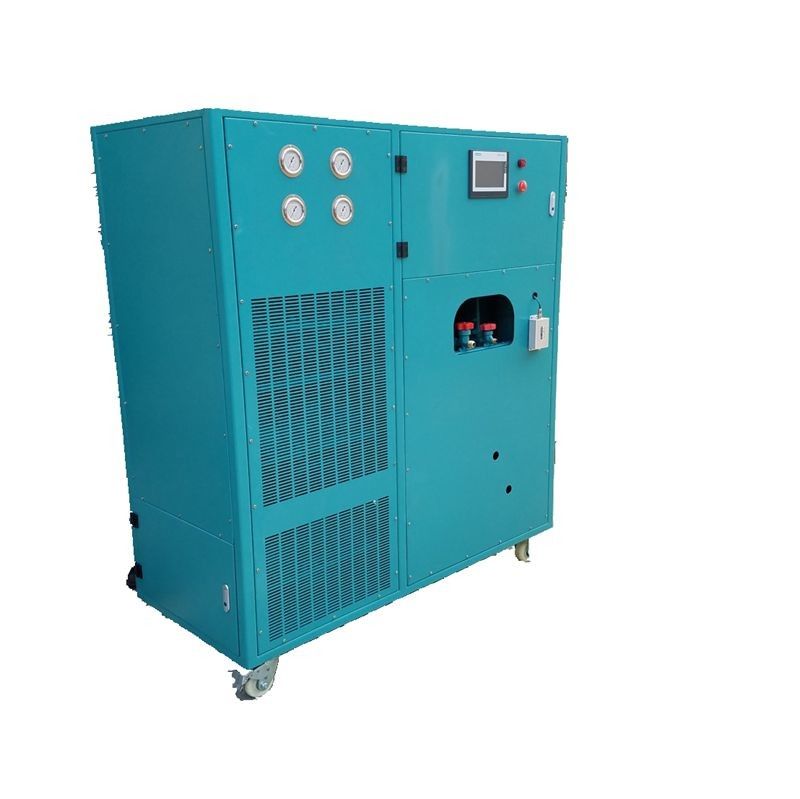

CM09 Series Refrigerant Recovery Reclaim Recycling Equipment for Repair Line of Air Conditioning

CM09 series refrigerant recovery&recycling machine is specially designed for removing moisture,acid and impurity from old and dirty refrigerant,it utilizes food grade material piston compressor with smart Siemens PLC control system to offer fast and deep reclaim rate based on CM 20 years compressor designed experience,the whole system specially designed according to AHRI740 standard, applied in various network which including screw chillers,commercial&industrial refrigeration system and freon manufacturing plant.
Features & Advantages
·1. Integrated functions of removing oil, acids and moisture including non-condensable gas.
·2. Oil less SS304 compressor for zero contamination
·3. Capable of handle most common refrigerants,like R22/R134A/R410A/R32 etc.
·4. Automatic oil drain&non-condensable gas discharge
·5. Over 99.8% refrigerant purity after recycling
·6. Once recovery&recycling process finished,machine stop working automatically
·7. Large wheels trolley design -- convenient for work site use;
·8. Overall protection device, safe credibility
·9. Controlled by Smart Siemens PLC programmer&touch screen
·10. Can be customized for flammable refrigerants
·11. Integrated of air cooling and water cooling

Specifications:

Model	CM0901	CM0902	CM0903
Horsepower	4HP	10HP	25HP
Compressor Displacement	5m³/h	20m³/h	57m³/h
Compressor Type	Oil-free V-Twin reciprocating	Oil-free three-cylinder reciprocating	Oil-free twin-cylinder reciprocating
Reclaim Rate	≤60Kg/h	≤200Kg/h	≤300Kg/h
Refrigerant Purity	≥99.8%	≥99.8%	≥99.8%
Moisture	≤10 ppm	≤10 ppm	≤10 ppm
Acidity	≤1 ppm	≤1 ppm	≤1 ppm
High Boiling Residue	≤0.01%	≤0.01%	≤0.01%
Non-Condensable Gas	≤1.5%	≤1.5%	≤1.5%
Applicable Refrigerant	R22,R134a,R410A etc	R22,R134a,R410A etc	R22,R134a,R410A etc
Voltage	220V 50Hz 1Ph/380V 50Hz 3Ph	380V 50Hz 3Ph	380V 50Hz 3Ph
