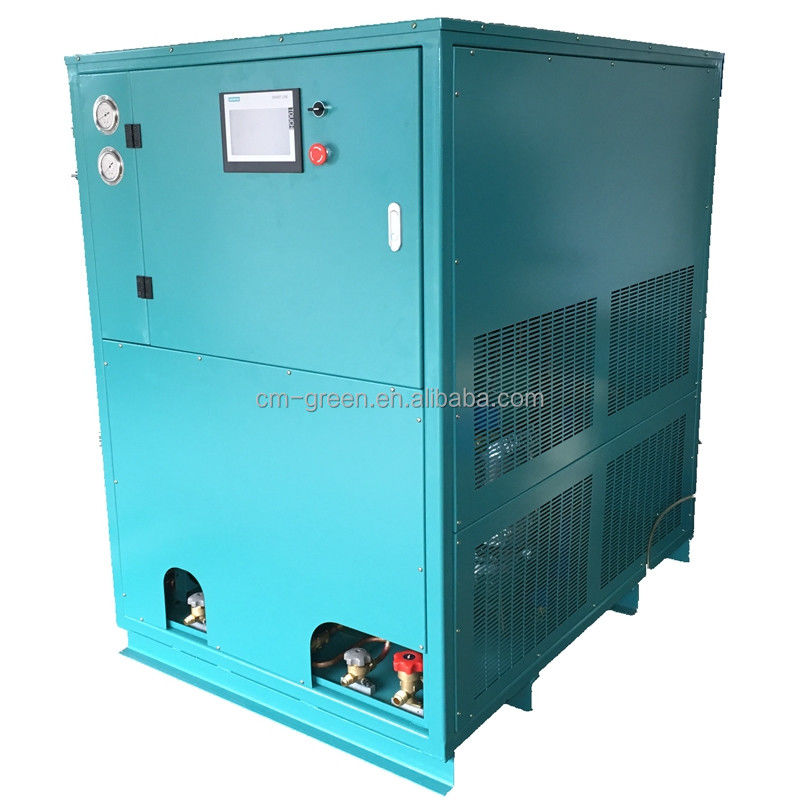

25HP Twin Cylinder Refrigerant Reclaim Machine With SS304 Compressor

Highlight

25HP Refrigerant Reclaim Machine
,
Twin Cylinder Refrigerant Reclaim Machine
,
25HP ac refrigerant recovery system
Condition

New
Applicable Industries

Machinery Repair Shops, Manufacturing Plant
Weight (KG)

300
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Not Available
Warranty Of Core Components

1 Year
Core Components

Motor
Type

COMPRESSOR
Warranty

1 Year
After-sales Service Provided

Engineers Available To Service Machinery Overseas
Compressor

4HP Oil-free
Refrigerant

R134A/R407C/R22/R410A.......
Application

Household A/c,automotive A/c, Refrigerator And Freezer, Etc
Product Name

Refrigerant Recovery Reclaim Equipment Machine
Purge Rate

≤60kg/h
Oil Separate Effiency

≥99%
Purity

≥99.5%
Moisture

≤0.0025%
Port

Shanghai
Place of Origin

Jiangsu, China
Brand Name

CM
Certification

CE ATEX
Model Number

CM09
Minimum Order Quantity

1 Unit
Price

$15,300.00/units 1-1 units
Packaging Details

wooden case;<br>CM0901 Oil Less 4HP A/C Repair Line Refrigerant Reclaim System Reclaiming Machine
Supply Ability

50 Unit/Units per Month

25HP Twin Cylinder Refrigerant Reclaim Machine With SS304 Compressor

Name: 25HP Twin Cylinder Refrigerant Reclaim Machine With SS304 Compressor
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
SKU: CM09
Price: 1.00 USD
Availability: InStock

button button

Get Price Contact Now

10HP 4HP Oil Less Refrigerant Recovery Unit , R134a Freon Recovery Machine

4HP 10HP refrigerant recovery unit a/c freon recovery machine R134a reclaim system gas charging station

Product Description

CM09 Series Refrigerant Recovery Reclaim Recycling Equipment for Repair Line of Air Conditioning

CM09 series refrigerant recovery&recycling machine is specially designed for removing moisture,acid and impurity from old and dirty refrigerant,it utilizes food grade material piston compressor with smart Siemens PLC control system to offer fast and deep reclaim rate based on CM 20 years compressor designed experience,the whole system specially designed according to AHRI740 standard, applied in various network which including screw chillers,commercial&industrial refrigeration system and freon manufacturing plant.
Features & Advantages
·1. Integrated functions of removing oil, acids and moisture including non-condensable gas.
·2. Oil less SS304 compressor for zero contamination
·3. Capable of handle most common refrigerants,like R22/R134A/R410A/R32 etc.
·4. Automatic oil drain&non-condensable gas discharge
·5. Over 99.8% refrigerant purity after recycling
·6. Once recovery&recycling process finished,machine stop working automatically
·7. Large wheels trolley design -- convenient for work site use;
·8. Overall protection device, safe credibility
·9. Controlled by Smart Siemens PLC programmer&touch screen
·10. Can be customized for flammable refrigerants
·11. Integrated of air cooling and water cooling

Specifications:

Model	CM0901	CM0902	CM0903
Horsepower	4HP	10HP	25HP
Compressor Displacement	5m³/h	20m³/h	57m³/h
Compressor Type	Oil-free V-Twin reciprocating	Oil-free three-cylinder reciprocating	Oil-free twin-cylinder reciprocating
Reclaim Rate	≤60Kg/h	≤200Kg/h	≤300Kg/h
Refrigerant Purity	≥99.8%	≥99.8%	≥99.8%
Moisture	≤10 ppm	≤10 ppm	≤10 ppm
Acidity	≤1 ppm	≤1 ppm	≤1 ppm
High Boiling Residue	≤0.01%	≤0.01%	≤0.01%
Non-Condensable Gas	≤1.5%	≤1.5%	≤1.5%
Applicable Refrigerant	R22,R134a,R410A etc	R22,R134a,R410A etc	R22,R134a,R410A etc
Voltage	220V 50Hz 1Ph/380V 50Hz 3Ph	380V 50Hz 3Ph	380V 50Hz 3Ph

Related Product

3-stations refrigerant filling machine

ac refrigerant gas charging machine

refrigerant recovery recharge unit

R32 R1234yf A/C recovery unit

2HP screw units recovery machine

4HP refrigerant recovery machine

2HP ac service recovery machine

25HP ISo gank gas recovery unit

3HP EX refrigerant gas recovery unit

Electric Oil Pump

Manual Oil Pump

Steel Cylinder

Vacuum Pump

Trolley Tube Pipe Cleaner

Portable Tube Pipe Cleaner

Our Company

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
