2.5kg/min 700mm Length Ac Refrigerant Recovery Machine With High Accuracy
-
Highlight
2.5kg/min Ac Refrigerant Recovery Machine
,700mm Length Ac Refrigerant Recovery Machine
,2.5kg/min ac freon reclaimer
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)120
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeRefrigerant Charging Machine
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
Filling Rate4kg/min
-
Booster Pump Power1/2 HP
-
Vacuum Pump Flow4L/s
-
Liquid Offer Connector1/2"
-
Liquid Out Connector1/4"
-
Size Of Scales360mm(L)*360mm(W)*120mm(H)
-
RefrigerantR22/R410A/R407C/R134A
-
Outer Size700mm(L)*500mm(W)*1750mm(H)
-
Workstations1 (3 Workstations Optional)
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM20A
-
Minimum Order Quantity1 Unit
-
Price$6,800.00/units 1-2 units
-
Packaging DetailsPlywood case on pallet Refrigerant Filling Machine Split Sub-package Refrigerant Charging Machine
-
Supply Ability50 Unit/Units per Week
2.5kg/min 700mm Length Ac Refrigerant Recovery Machine With High Accuracy
CM20a refrigerant filling system r134a r410a refrigerant split charging machine refrigerant cylinder charging station

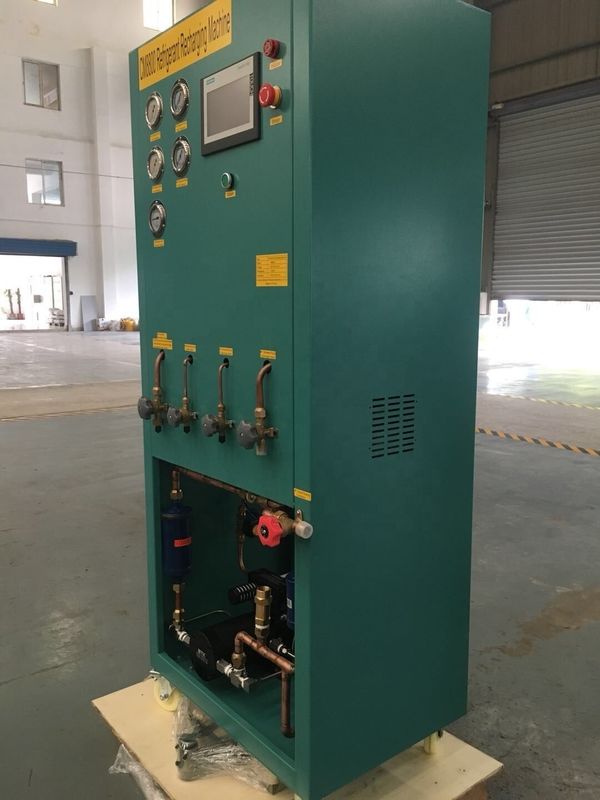

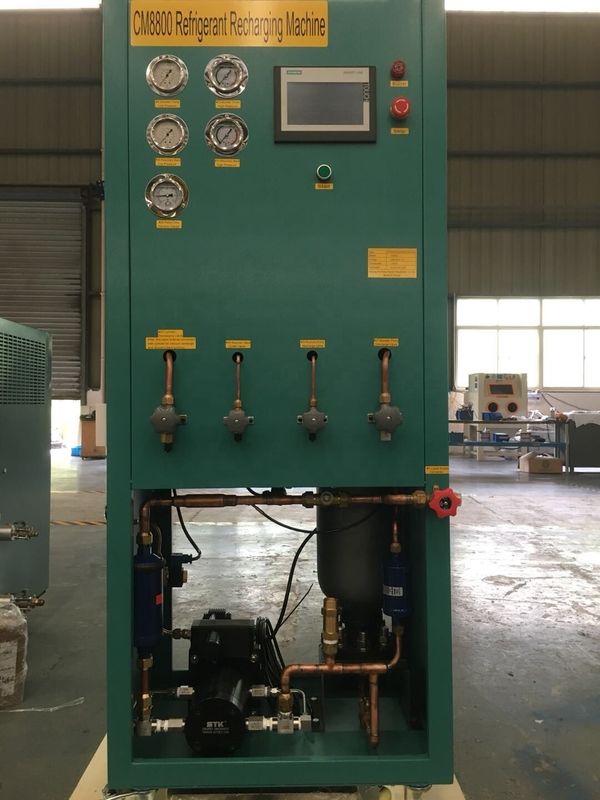

CM8800 Refrigerant split charging machine
For transferring refrigerant from ISO tank or 400-1000L tank to 12L to 60L tank.
Function:
1. Vacuum Separately: vacuum the gas from the recovery tank.
2. Pump out/Recharge: Pump out the store tank and recharge into a certain amount of refrigerant.
3. Recharge: Recharge a certain amount of refrigerant into the store tank with refrigerant already.
Features:
1. Adopt refrigerant split charging special use oil-less booster pump, suit for R134a/R22/R410A etc.
2. Integrates multi-functions: recharge, pump out & recharge and vacuum.
3. High accuracy to 0.5%, and resolution be 10g.
4. Without refrigerant loss in flexible shaft in refrigerant split charging process.
5. High vacuum speed,standard device with 4L/s vacuum pump.
6. Overall defense function.
7. High split charging speed to 2.5kg/min
Application:
1. Transferring refrigerant from ISO tank or 400~1000 tank to 12L to 16L tank.
2. Integrating functions of vacuum, recharging and pump back.
|
CM8800 Refrigerant Split Charging Machine Specifications
|
|
|
|
Booster Pump Power
|
1/2HP
|
|
|
Vacuum Pump Flow
|
4L/S
|
|
|
Liquid offer Connector
|
1/2'' Liquid out Connector: 1/4''(standard), 3/8'', 1/2 ''optional
|
|
|
Size of Scales
|
360mm(L) *360mm(W)*120mm(H)
|
|
|
Weight Range of Scales
|
40kg(standard), 100kg, 150kg optional
|
|
|
Outer Size
|
700mm(L) * 500mm(W) * 1750mm(H)
|
|
|
Package Weight
|
120kg
|
|
|
Package Size
|
750mm(L) * 620mm(W) * 1840mm(H)
|
|
Detailed Pictures
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/recharge/reclaim/vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
