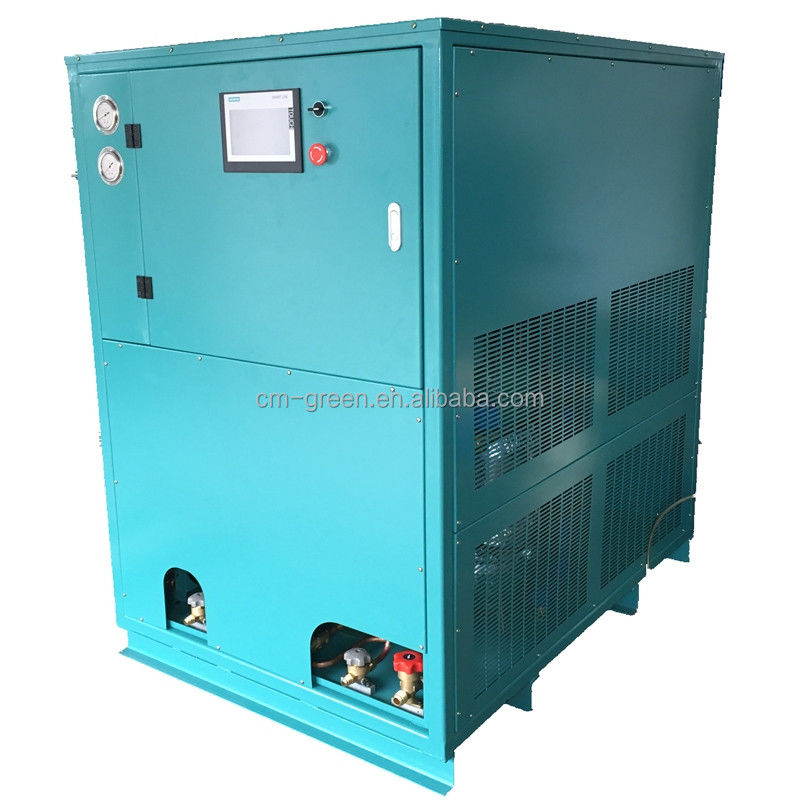

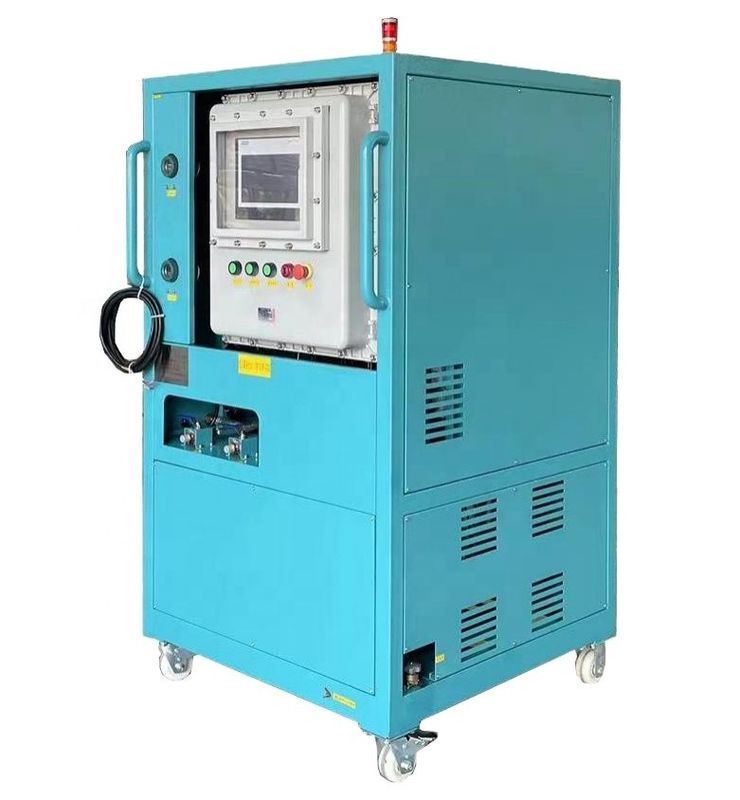

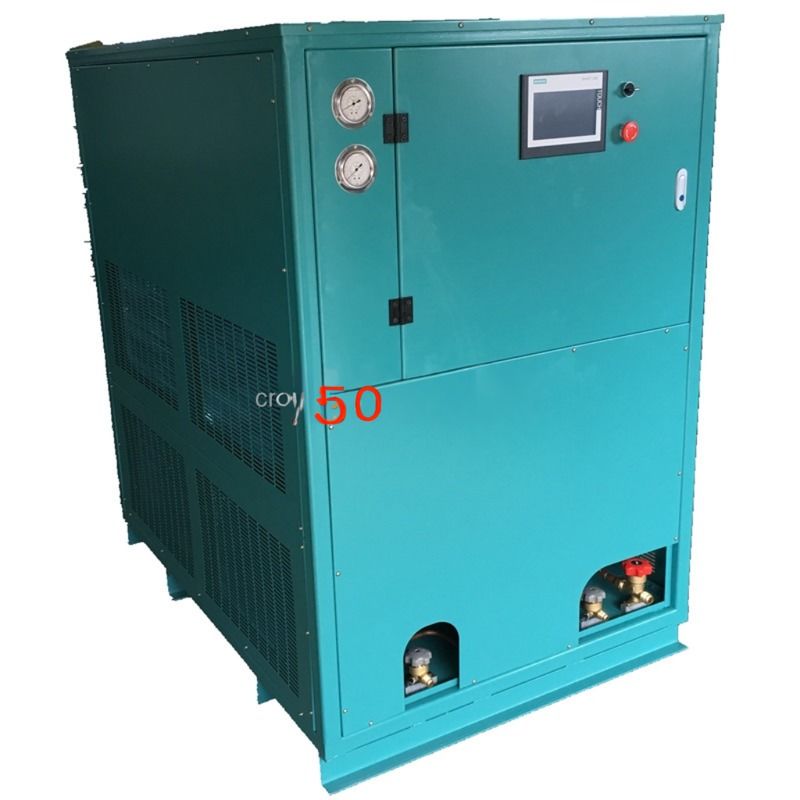

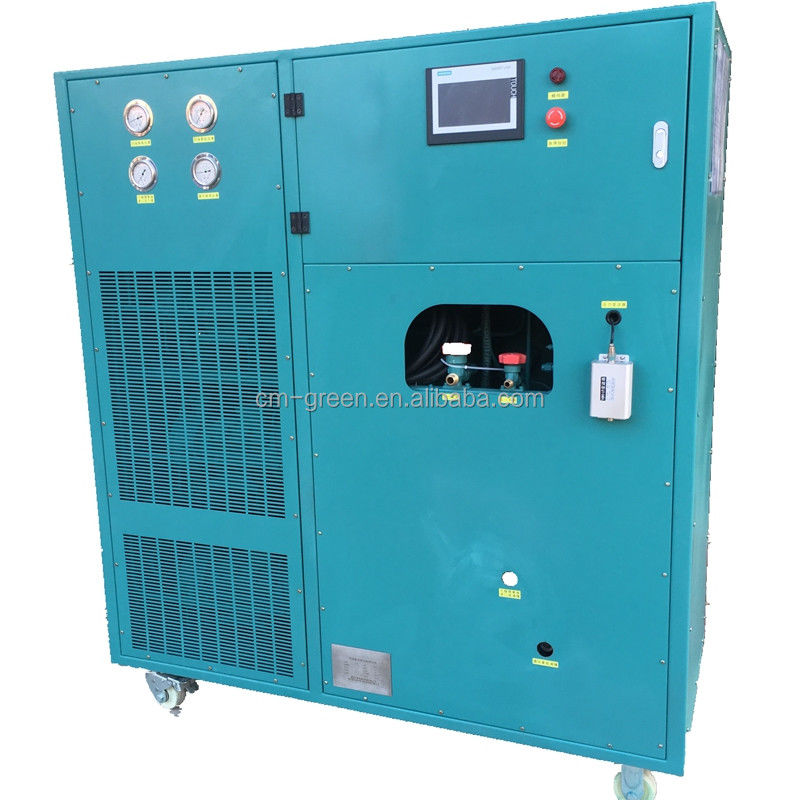

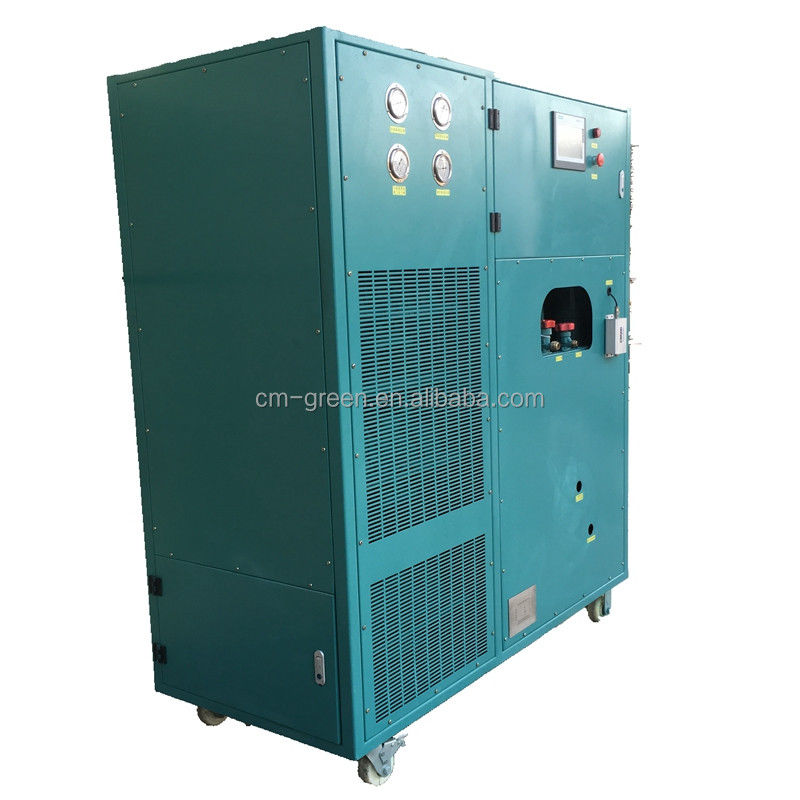

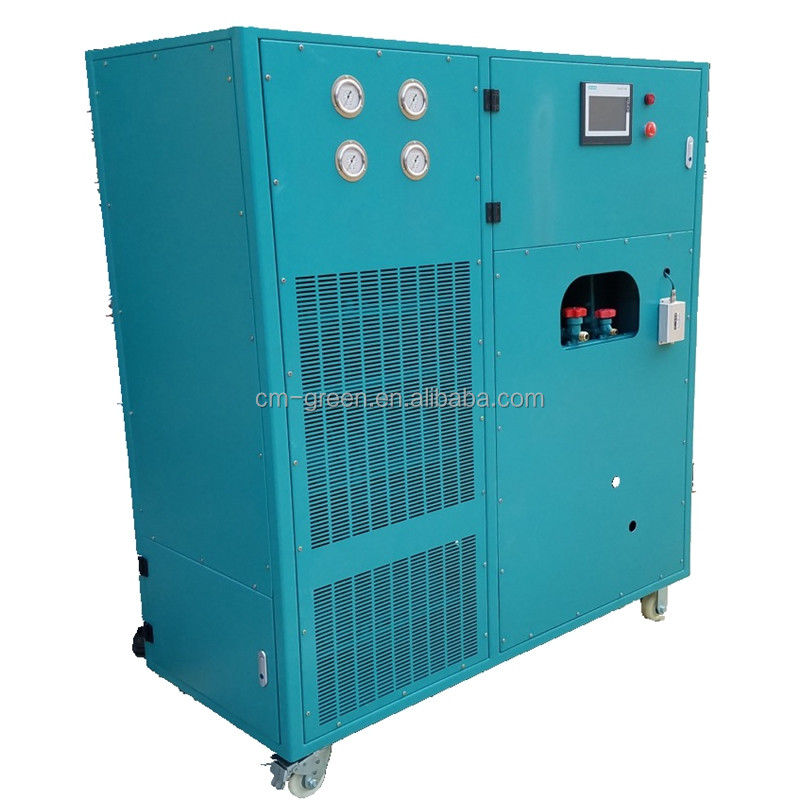

R134a R410a Refrigerant Recovery Reclaim Machine 4HP A/C Repair Recycling Machine
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)300
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
Compressor4HP Oil-free
-
RefrigerantR134A/R407C/R22/R410A.......
-
ApplicationHousehold A/c,automotive A/c, Refrigerator And Freezer, Etc
-
Product NameRefrigerant Reclaim Recycling Machine
-
Purge Rate≤60kg/h
-
Oil Separate Effiency≥99%
-
Purity≥99.5%
-
Moisture≤0.0025%
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationATEX
-
Model NumberCM09
-
Minimum Order Quantity1 Unit
-
Price$15,300.00/units 1-1 units
-
Packaging Detailswooden case;<br>CM0901 Oil Less 4HP A/C Repair Line Refrigerant Reclaim System Reclaiming Machine
-
Supply Ability50 Unit/Units per Month
R134a R410a Refrigerant Recovery Reclaim Machine 4HP A/C Repair Recycling Machine
CM09 Series Refrigerant Recovery Reclaim Recycling Equipment for Repair Line of Air Conditioning
CM09 series refrigerant recovery&recycling machine is specially designed for removing moisture,acid and impurity from old and dirty refrigerant,it utilizes food grade material piston compressor with smart Siemens PLC control system to offer fast and deep reclaim rate based on CM 20 years compressor designed experience,the whole system specially designed according to AHRI740 standard, applied in various network which including screw chillers,commercial&industrial refrigeration system and freon manufacturing plant.
Features & Advantages
·1. Integrated functions of removing oil, acids and moisture including non-condensable gas.
·2. Oil less SS304 compressor for zero contamination
·3. Capable of handle most common refrigerants,like R22/R134A/R410A/R32 etc.
·4. Automatic oil drain&non-condensable gas discharge
·5. Over 99.8% refrigerant purity after recycling
·6. Once recovery&recycling process finished,machine stop working automatically
·7. Large wheels trolley design -- convenient for work site use;
·8. Overall protection device, safe credibility
·9. Controlled by Smart Siemens PLC programmer&touch screen
·10. Can be customized for flammable refrigerants
·11. Integrated of air cooling and water cooling
Specifications:
|
Model
|
CM0901
|
CM0902
|
CM0903
|
|
Horsepower
|
4HP
|
10HP
|
25HP
|
|
Compressor Displacement
|
5m³/h
|
20m³/h
|
57m³/h
|
|
Compressor Type
|
Oil-free V-Twin reciprocating
|
Oil-free three-cylinder reciprocating
|
Oil-free twin-cylinder reciprocating
|
|
Reclaim Rate
|
≤60Kg/h
|
≤200Kg/h
|
≤300Kg/h
|
|
Refrigerant Purity
|
≥99.8%
|
≥99.8%
|
≥99.8%
|
|
Moisture
|
≤10 ppm
|
≤10 ppm
|
≤10 ppm
|
|
Acidity
|
≤1 ppm
|
≤1 ppm
|
≤1 ppm
|
|
High Boiling Residue
|
≤0.01%
|
≤0.01%
|
≤0.01%
|
|
Non-Condensable Gas
|
≤1.5%
|
≤1.5%
|
≤1.5%
|
|
Applicable Refrigerant
|
R22,R134a,R410A etc
|
R22,R134a,R410A etc
|
R22,R134a,R410A etc
|
|
Voltage
|
220V 50Hz 1Ph/380V 50Hz 3Ph
|
380V 50Hz 3Ph
|
380V 50Hz 3Ph
|
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
CM(ChunMu)@ChinaRefrigerationExpo
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Our products are sold all over the world, you can rest assured.
