High Accuracy 1/2 HP Refrigerant Refilling Machine Refrigerant Split Charging System
-
ConditionNew
-
Applicable IndustriesManufacturing Plant
-
Weight (KG)120
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeRefrigerant Charging Machine
-
Warranty1 Year
-
Product NameRefrigerant Split Charging Machine
-
Booster Pump Power1/2 HP
-
Vacuum Pump Flow4L/s
-
Liquid Offer Connector1/2"
-
Liquid Out Connector1/4"
-
Size Of Scales360mm(L)*360mm(W)*120mm(H)
-
RefrigerantR22/R410A/R407C/R134A
-
Outer Size700mm(L)*500mm(W)*1750mm(H)
-

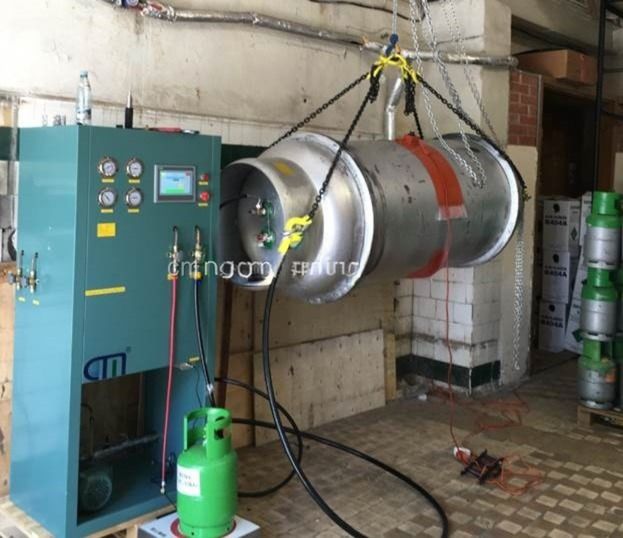

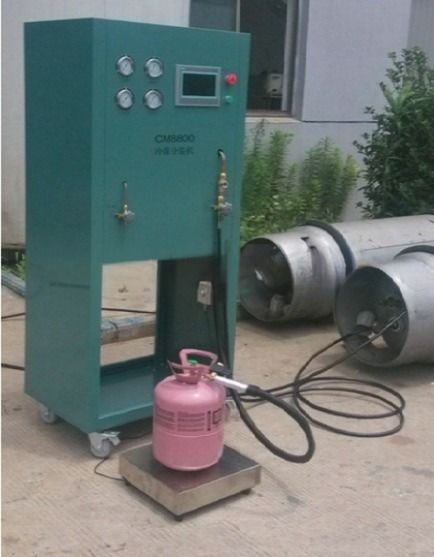

ApplicationFor Filling Refrigerants From ISO Tank To Small Cylinders
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE ATEX
-
Model NumberCM20A
-
Minimum Order Quantity1 Unit
-
Price$6,840.00/units 1-1 units
-
Packaging DetailsPlywood case Single-Stage Refrigerant Split Filling System for Refrigerant Transferring from ISO Tank
-
Supply Ability50 Unit/Units per Week
High Accuracy 1/2 HP Refrigerant Refilling Machine Refrigerant Split Charging System

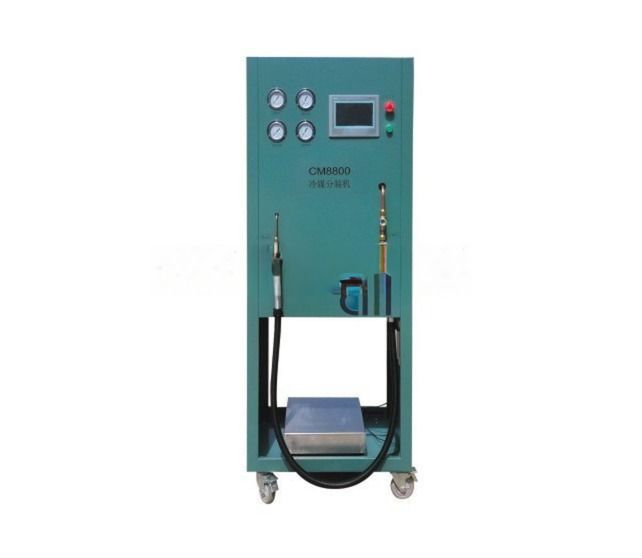

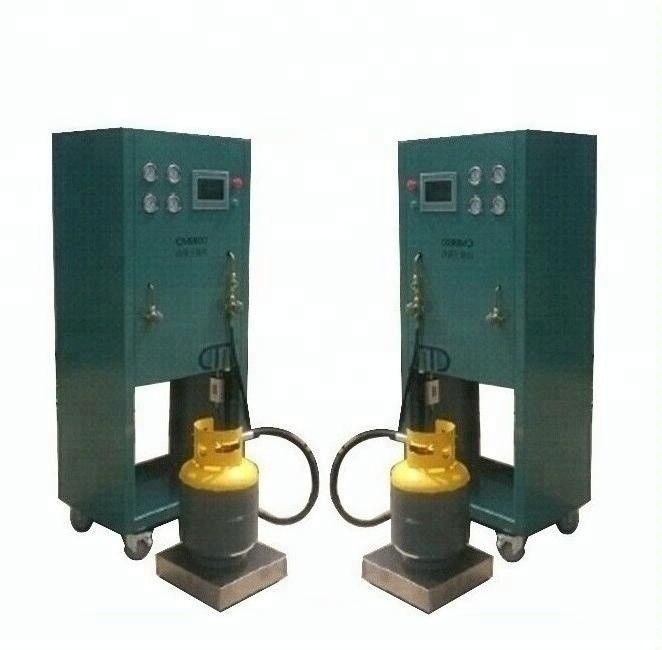

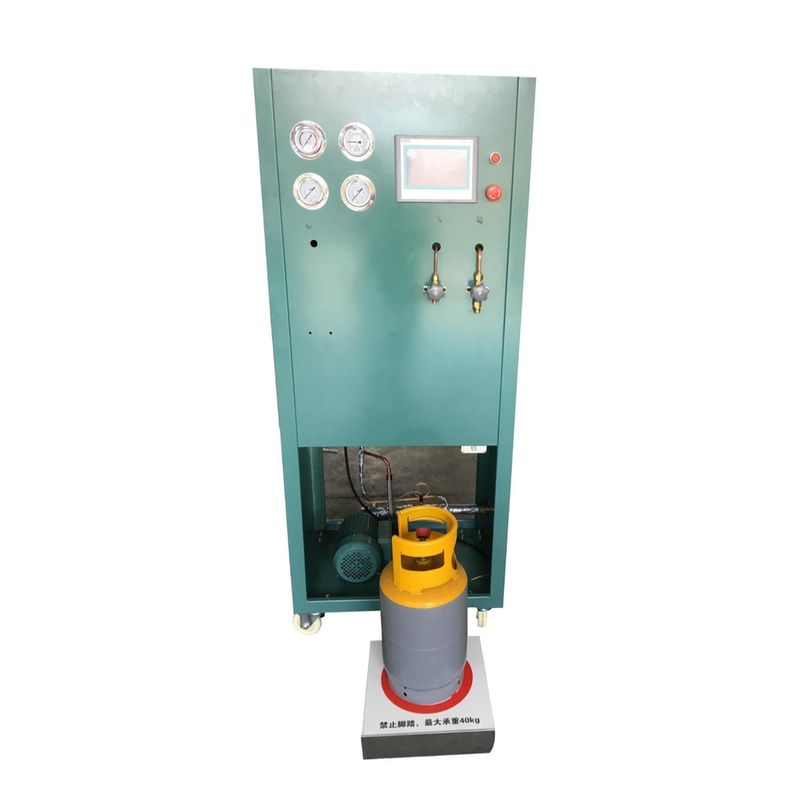

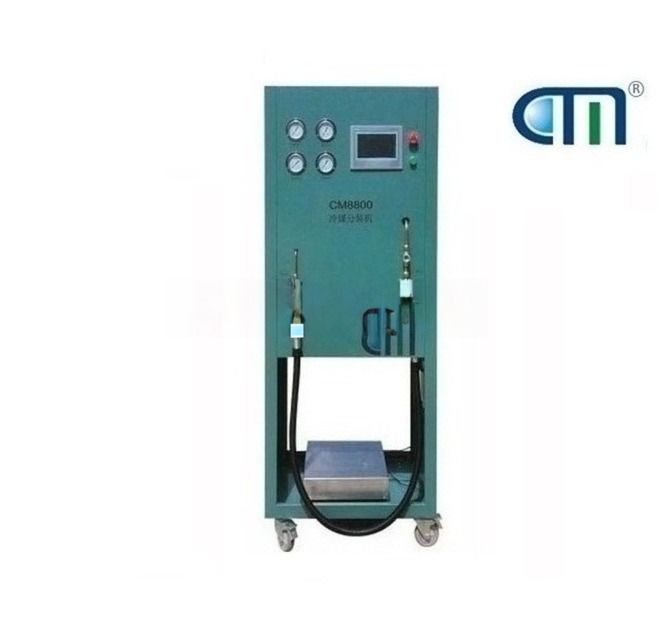

CM8800 Refrigerant split charging machine
Product Description
Specifications
|
Product name |
Refrigerant Split Filling System/Machine |
||||
|
Model |
CM8800 |
||||
|
Workstation |
1 |
2 |
3 |
4 |
6 |
|
Vacuum pump |
4L/S |
4L/S*2 |
4L/S*3 |
4L/S*4 |
4L/S*6 |
|
13.6L Cylinder Filling Rate |
≤15pcs/h |
≤30pcs/h |
≤45pcs/h |
≤60pcs/h |
≤85pcs/h |
|
Filling rate |
4kg/min |
||||
|
Booster pump power |
1/2HP oil free |
||||
|
Refrigerant |
R32/R22/R134a/R410A/R125/R50, etc |
||||
|
Liquid offer connector |
1/2” |
||||
|
Liquid out connector |
1/4”, 3/8”, 1/2” |
||||
|
Accuracy |
0.5% |
||||
|
Resolution |
10g |
||||
|
Size of scales(L*W*H) |
360x360x120mm |
||||
|
Weight range of scales |
40kg(standard), 100kg, 150kg |
||||
|
Main features |
1. Integrates vacuum and split filling functions, smart PLC control 2. Utilizes special booster oil free compressor 3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder 4. Transfer speed is fast, 4kg/h for each filling station 5. Filling accuracy is 0.5% 6. Without any loss of refrigerant during transfer process 7. Daily transfer capacity is 100-600pcs of 13.6L(30lbs) cylinders. 8. Low investment, fast return, compact design is convenient for moving and using. |
||||
|
Machine Size(L*W*H) |
700x500x1750mm |
||||
|
Net weight |
100KG |
||||
|
Outer size (L*W*H) |
750x620x1840mm |
||||
|
Weight |
120KG |
||||
Function:
1. Vacuum Separately: vacuum the gas from the recovery tank.
2. Pump out/Recharge: Pump out the store tank and recharge into a certain
amount of refrigerant.
3. Recharge: Recharge a certain amount of refrigerant into the store tank with
refrigerant already.
ChunMu Refrigeration(CM) was established in 1998, a comprehensive hi-tech enterprise specialized in R&D, manufacturing oil less refrigerant recovery,reclaim and charging equipment in HVAC/R industry. Our core technology of refrigerant recovey unit, refrigerant recovery and purify unit, refrigerant recovery recharge unit has already mature and reached international advance level, in recent years, we also research and develop R32 recovery unit, R1234yf recovery reclaim unit, high pressure/low pressure recovery unit, R290, R600 anti-explosive recovery machine, multiple-station refrigerant filling subpackage machine,etc.
Our aim is to help clients create profits to fulfil Zero Refrigerants Discharge and eco-friendly life environment for our people.
History
| 1998 |
CM founded in 1998, entered the HVACR industry as refrigerant recovery,reclaim and charging solution provider and manufacturer |
| 2004-2006 |
2004,successfully launched first generation portable type residential refrigerant recovery unit,featured by compact design,fast recovery rate with pull rod design,after then,it certificated by CE and ISO-9001 and become the most popular recovery unit in the world. |
| 2007-2009 |
2009,successfully launched commercial and industrial refrigerant recovery recycling system and been authorized by York of Johnson Control to be manufacture refrigerant recovery system with York brand,meanwhile,the industrial recovery machine passed the inspection of York engineering team which capable o |
| 2010-2014 |
2010,York ex chief engineer Dr Lee joined CM R&D engineering team, meanwhile 25HP rapid refrigerant recovery machine lanuched and been export to Saudi Arabia Ghawar oil field.By the fast recovery rate and unmatched performance,it's been highly praised by the users. f recovering 3 tons refrigerant within 4hours. |
Workshop
Exhibition and Clients Visit
Q1: Could I get some samples?
A1: Yes, sample orders welcomed, maybe you could purchase 1 sample for testing,sample not for free.
Q2:Do you have your own factory?
A2: Yes, we are professional manufacturer in this industry over 24 years.
Q3: Could I use my own logo or design on goods?
A3: Yes,Customized logo and design are available for mass production . but we have MOQ
for OEM.
Q4: May I visit your factory?
A4: Sure, warmly welcomed. Factory add.:No.27, Bofu Road, Intelligent Manufacturing Industry Zone, Liuhe District, Nanjing.
Q5: What is the payment team?
A5: T/T, L/C at sight, Western Union,etc.
Q6: What is the delivery time?
A6: Depends on the actual situation, if in stock, we can delivery goods within 2 days after getting the payment; Otherwise, our common lead time15-25 days after getting the deposit.
Q7: How can I trust you?
A7: We have our own factory in China, you can visit us for our field production any time. We also are "Alibaba" verified supplier over 10 years. You can place Trade Assurance Order and pay us through Alibaba, which is as the third party to assure our two sides profits, to be mutual and equal for us.
Q8: How long is your machine warranty period?
A8: The machine warranty period is 1 year after sale. After the warranty expires, we will provide technical and maintenance support for life. We also can supply the spare parts at favored price.
Q9: How do you obtain technical parameters of machine?
A9: Our technical parameters are our laboratory theoretical data, take refrigerant R410A for example, the numerical value of saturated gas pressure tested in the laboratory, under the actual on-site using condition, the machine has the highest initial recovery speed, but with the inlet pressure of the recycling machine will slowly become smaller and smaller, the recovery speed will also be slower and slower in parabola tendency.
