1. Applies the oil less compressor specially designed for low pressure refrigerant recovery 2. Water cooling design, fast recovery
speed, high vacuum, thorough recovery, maintenance free 3. Direction reversing valve design which need not exchange the hose when
do gas recovery and liquid recovery. 4. Mature system design and perfect safety system, 5. Combined the function of recovery and
vacuum, easy operation
4HP Oil Free Refrigerant Charging Machine For Manufacturing Plant
-
Highlight
4HP Refrigerant Charging Machine
,Oil Free Refrigerant Charging Machine
,4HP automatic refrigerant filling machine
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)190
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
CompressorOil-free
-
RefrigerantR123/R245FA/R141B/R1233zd
-
ApplicationLow Pressure Chillers
-
Product NameCMR123 Low Pressure Refrigerant Recovery Charging Machine R123 R514a
-
CoolerAir-cooled
-
Vacuum Degree-0.09Mpa
-
Power380V/50HZ
-
Compressor Displacement40m3/h
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Model NumberCMR123
-
Minimum Order Quantity1 Unit
-
Price$9,900.00/units 1-1 units
-
Packaging Detailswooden case;<br>CMR123 Low Pressure Refrigerant Recovery Machine Charging Station
-
Supply Ability100 Unit/Units per Month
4HP Oil Free Refrigerant Charging Machine For Manufacturing Plant
4HP Refrigerant Charging Machine , R123 R1233zd Oil Less Refrigerant Recovery Unit
R123 R1233zd refrigerant recovery pump 4HP low pressure oi less recovery charging machine
Product Description

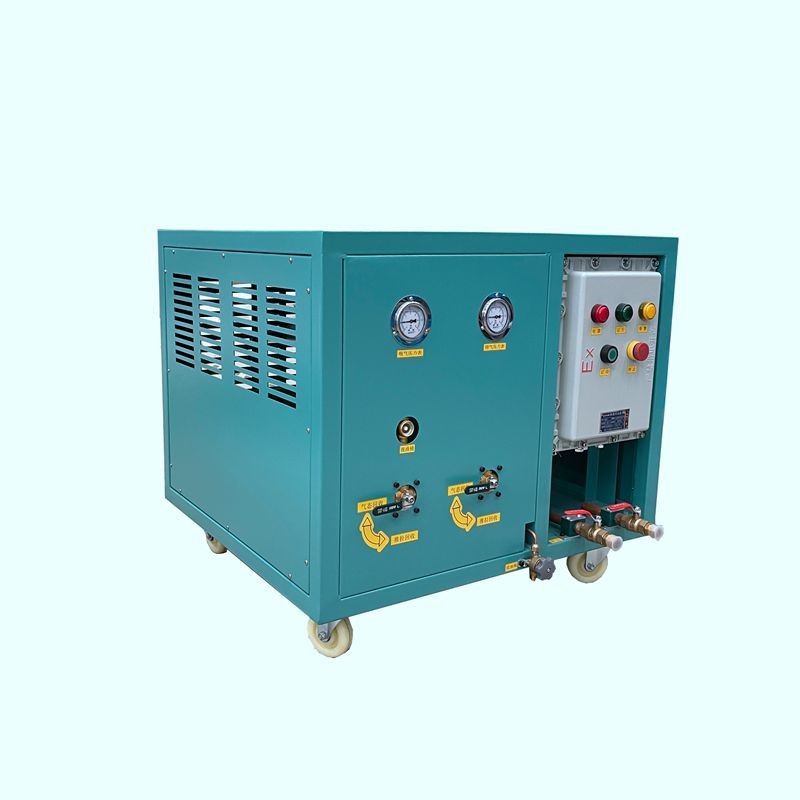

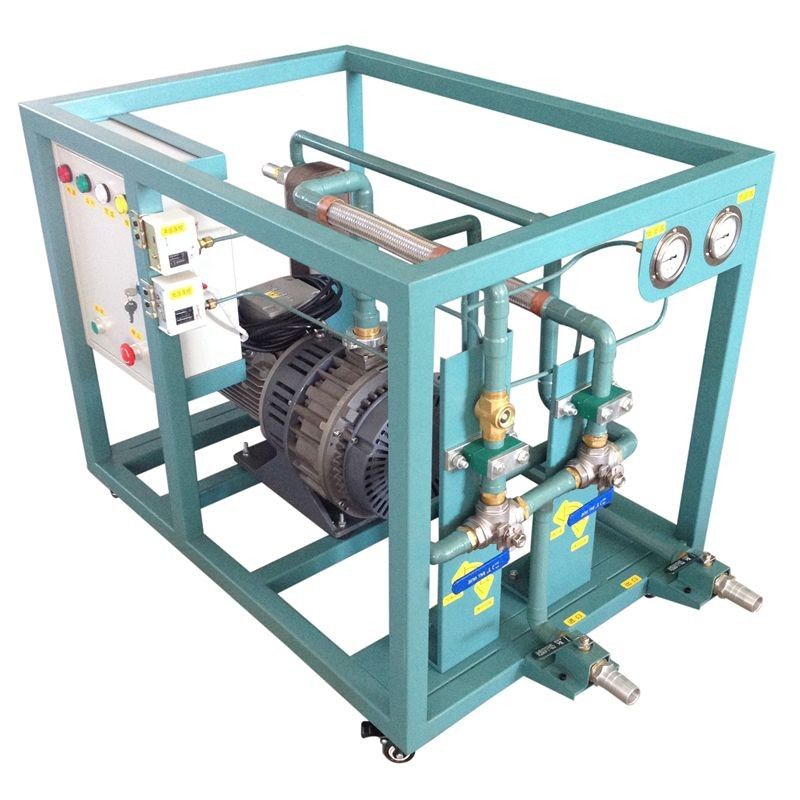

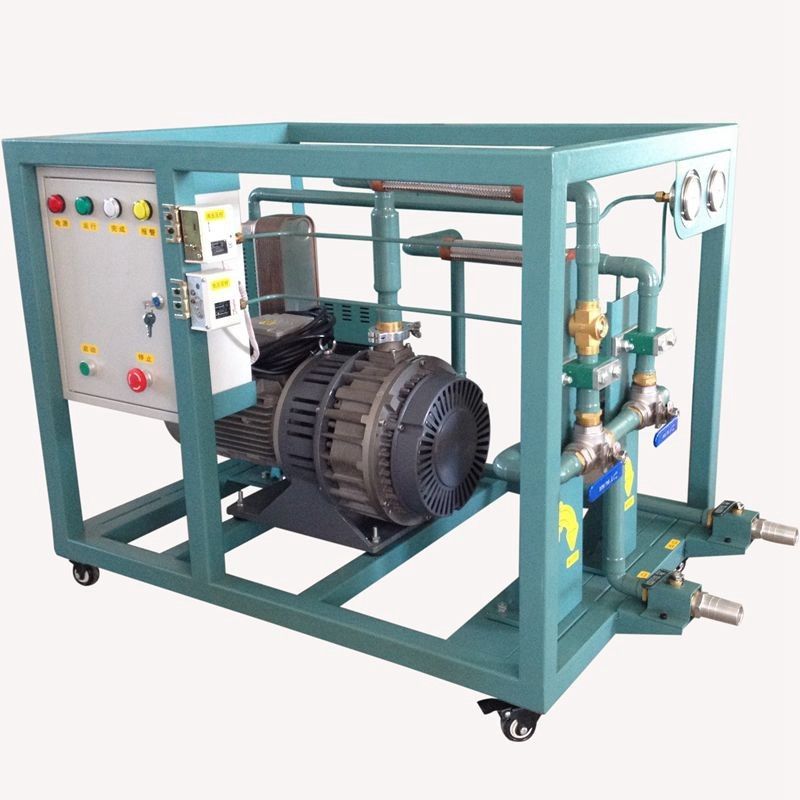

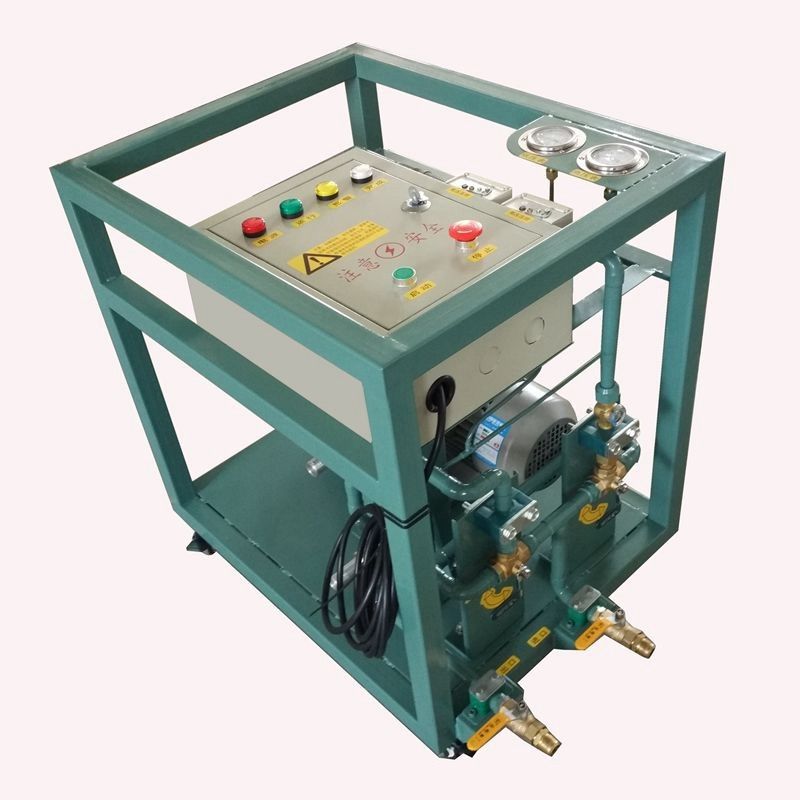

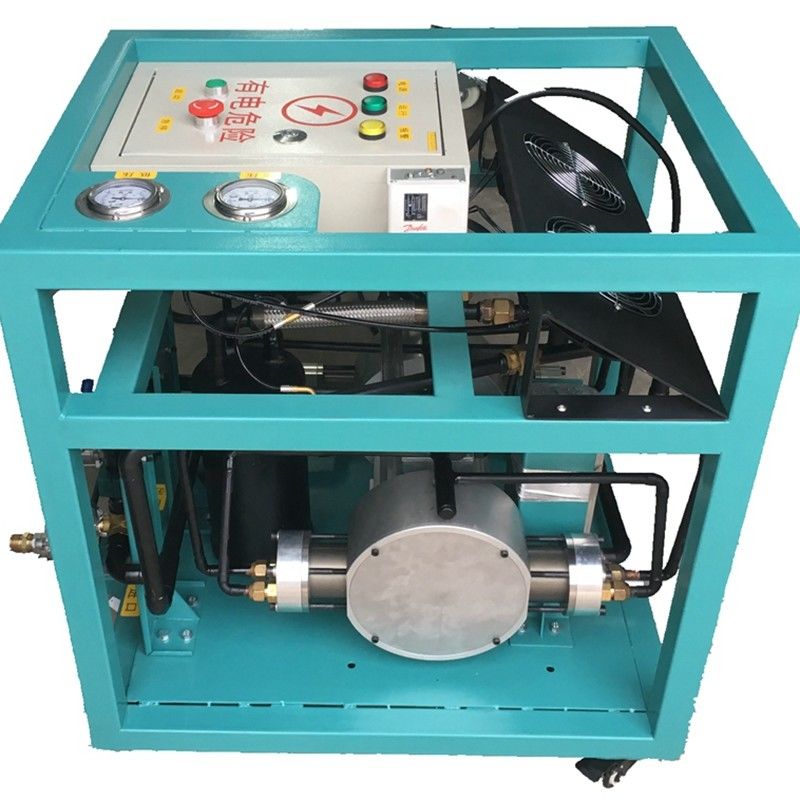

CMR123 low pressure refrigerant recovery/vacuum machine
CMR123 low pressure refrigerant recovery machine is specially for low pressure refrigerant R123, R245FA, R141b, R1233zd etc. It adopts s oil less compressor with fast recovery rate to make sure there is no cross contamination during the operation. Meanwhile Combined with functions of recovery and vacuum which is a suitable for HVAC/R equipment maintenance and refrigerant transfer.
|
Specification
|
|
|
|
|
|
|
||||||
|
Model
|
Compressor displacement
|
Vacuum degree
|
Liquid Recovery Rate
|
Vapor Recovery Rate
|
Engine Power
|
Power Source
|
||||||
|
CMR123-60
|
60m³/h
|
10Pa
|
6000kg/h
|
320kg/h
|
6HP
|
380V/50Hz
|
||||||
|
CMR123-35
|
35m³/h
|
10Pa
|
4000kg/h
|
180kg/h
|
4HP
|
380V/50Hz
|
||||||
|
CMR123-20
|
20m³/h
|
20Pa
|
2400kg/h
|
96kg/h
|
2HP
|
380V/50Hz
|
||||||
|
CMR123-10
|
10m³/h
|
30Pa
|
1200kg/h
|
48kg/h
|
1HP
|
380V/50Hz
|
||||||
Our Advantages
Main Features
Related Product
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Packing & Delivery
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
Exhibition
CM(ChunMu)@ChinaRefrigerationExpo
Our Company
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
Why Choose Us
>>You need our rich experience of solving difficulties…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.
>>You want the professional technician who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.
>>You want the product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique requirements.
>>You want professional R&D manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.
>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts free in case of quality discrepancy caused by us. If out of guarantee period, we still can provide technical support and favored charges for the spare parts.
>> Our Service:
- OEM & ODM, or any other unique customized demands are available.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation
→Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales
support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and
hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting,
solutions, regular return visit etc.
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.
>>You want the product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique requirements.
>>You want professional R&D manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.
>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts free in case of quality discrepancy caused by us. If out of guarantee period, we still can provide technical support and favored charges for the spare parts.
>> Our Service:
- OEM & ODM, or any other unique customized demands are available.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation
→Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales
support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and
hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting,
solutions, regular return visit etc.
