1. Applies the oil less compressor specially designed for low
pressure refrigerant recovery
2. Water cooling design, fast recovery speed, high vacuum,
thorough recovery, maintenance free
3. Direction reversing valve design which need not exchange
the hose when do gas recovery and liquid recovery.
4. Mature system design and perfect safety system,
5. Combined the function of recovery and vacuum, easy operation
CMR123 Refrigerant Recovery Vacuum Machine R123 R245fa R1233zd R141b Refrigerant Charging Filling Station
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)150
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor, Pump
-
TypeCOMPRESSOR
-
Warranty1 Year
-
After-sales Service ProvidedEngineers Available To Service Machinery Overseas
-
CompressorOil-free
-
RefrigerantR123/R245FA/R141B/R1233zd
-
ApplicationLow Pressure Chillers
-
Product NameCMR123 Refrigerant Recovery Unit For Low Pressure Refrigerants
-
CoolerAir Cooling
-
Ultimate Vacuum10pa~30pa
-
Power380V/50HZ
-
Other NameRefrigerant Recovery Unit
-
Gas Displacement20m3/h
-
PortShanghai Ningbo Tianjin Qingdao
-
Place of OriginJiangsu, China
-
Brand NameCM
-
Price$6,600.00/units 1-2 units
-
Packaging Detailswooden case;<br>CMR123 Low Pressure Refrigerant Recovery Machine
-
Supply Ability100 Unit/Units per Month
CMR123 Refrigerant Recovery Vacuum Machine R123 R245fa R1233zd R141b Refrigerant Charging Filling Station
Product Description
CMR123 low pressure refrigerant recovery/vacuum machine
CMR123 low pressure refrigerant recovery machine is specially for low pressure refrigerant R123, R245FA, R141b, R1233zd etc. It adopts s oil less compressor with fast recovery rate to make sure there is no cross contamination during the operation. Meanwhile Combined with functions of recovery and vacuum which is a suitable for HVAC/R equipment maintenance and refrigerant transfer.
CMR123 refrigerant recovery unit Main Features
1.Adopt professional oil-less vacuum compressor for low pressure refrigerants
2.Water cooling design allow the fast recovery rate, high vacuum, complete recovery and no maintenance required
3.With reversing valve design makes it no need to replace the hose/pipe when recover the vapor gas and liquid refrigerant.
4.Mature system design and overall protection system ensure the machine running safely
5.can be customized according to requirement of customers
|
Specification
|
|
|
|
|
|
|
||||||
|
Model
|
Compressor displacement
|
Vacuum degree
|
Liquid Recovery Rate
|
Vapor Recovery Rate
|
Engine Power
|
Power Source
|
||||||
|
CMR123-60
|
60m³/h
|
10Pa
|
6000kg/h
|
320kg/h
|
6HP
|
380V/50Hz
|
||||||
|
CMR123-35
|
35m³/h
|
10Pa
|
4000kg/h
|
180kg/h
|
4HP
|
380V/50Hz
|
||||||
|
CMR123-20
|
20m³/h
|
20Pa
|
2400kg/h
|
96kg/h
|
2HP
|
380V/50Hz
|
||||||
|
CMR123-10
|
10m³/h
|
30Pa
|
1200kg/h
|
48kg/h
|
1HP
|
380V/50Hz
|
||||||
Features
Main Feature and Advantages

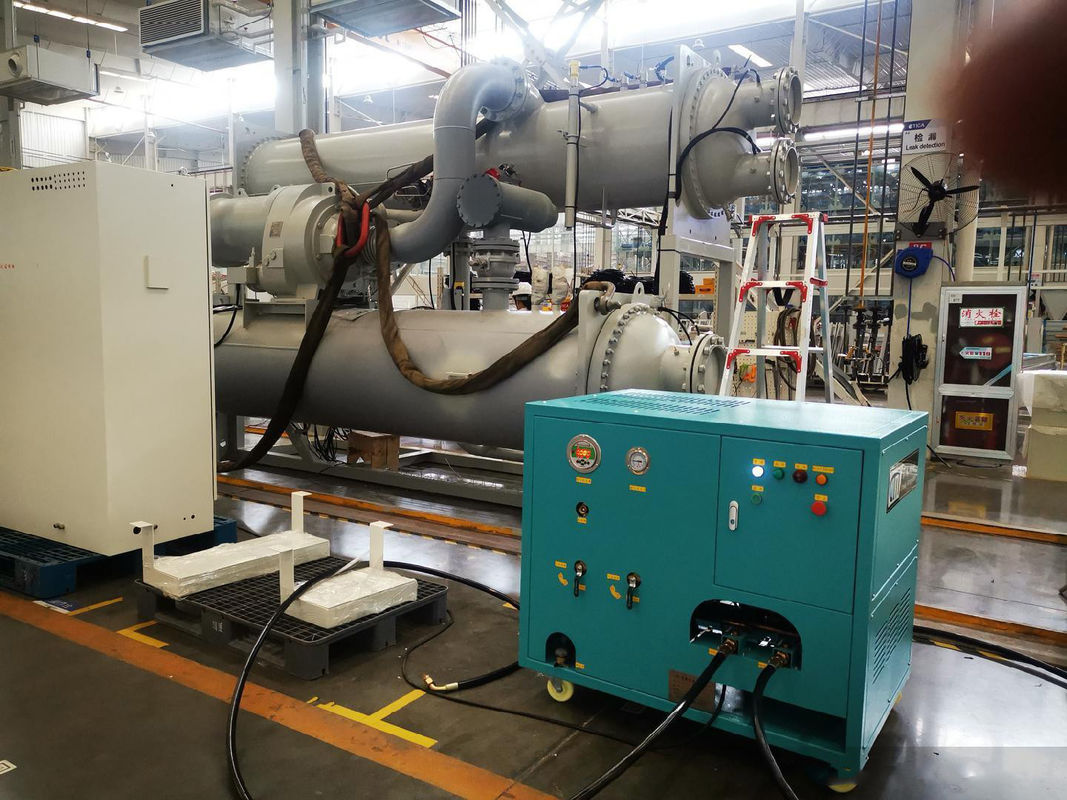

Customer Project
Related Product
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
Packing & Delivery
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
Exhibition
CM(ChunMu)@ChinaRefrigerationExpo
Our Company
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
