R134a Gas Recycling Machine Gas Refrigerant Reclaiming Refrigerant Reclaim System

Condition

New
Applicable Industries

Machinery Repair Shops, Manufacturing Plant, Retail, Air Conditioner Repair
Weight (KG)

250
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Provided
Warranty Of Core Components

1 Year
Core Components

PLC, Pressure Vessel, Pump, Compressor
Type

Oil-less
Warranty

1 Year, 1 Year
Product Name

Refrigerant Reclaim System
Voltage

220V-380V/50-60HZ
Application

Ac,refrigerator,heat Pump,condensing Unit
Charging Speed

100g/s
Vacuum Rate

8L/S
Vacuum Degree

≤ 5Pa
Charging Amount Range

20-999999g
Refrigerants Type

R404, R410A, R22A, R134A, R449A, R407 Ect
Port

Shanghai
Place of Origin

Jiangsu, China
Brand Name

ChunMu
Certification

CE
Price

$15,200.00/cartons 1-9 cartons
Packaging Details

Fully closed carton
Supply Ability

200 Unit/Units per Month

R134a Gas Recycling Machine Gas Refrigerant Reclaiming Refrigerant Reclaim System

Name: R134a Gas Recycling Machine Gas Refrigerant Reclaiming Refrigerant Reclaim System
Brand: Nanjing Wonfulay Precision Machinery Co., Ltd.
Price: 5.00 USD
Availability: InStock

button button

Get Price Contact Now

Product Description

Refrigerant Reclaim System CM09 Series Refrigerant Recovery Reclaim Recycling Equipment for Repair Line of Air Conditioning

CM09 series refrigerant recovery&recycling machine is specially designed for removing moisture,acid and impurity from old and dirty refrigerant,it utilizes food grade material piston compressor with smart Siemens PLC control system to offer fast and deep reclaim rate based on CM 20 years compressor designed experience,the whole system specially designed according to AHRI740 standard, applied in various network which including screw chillers,commercial&industrial refrigeration system and freon manufacturing plant.

Item.

Refrigerant Reclaim System CM09 RS100

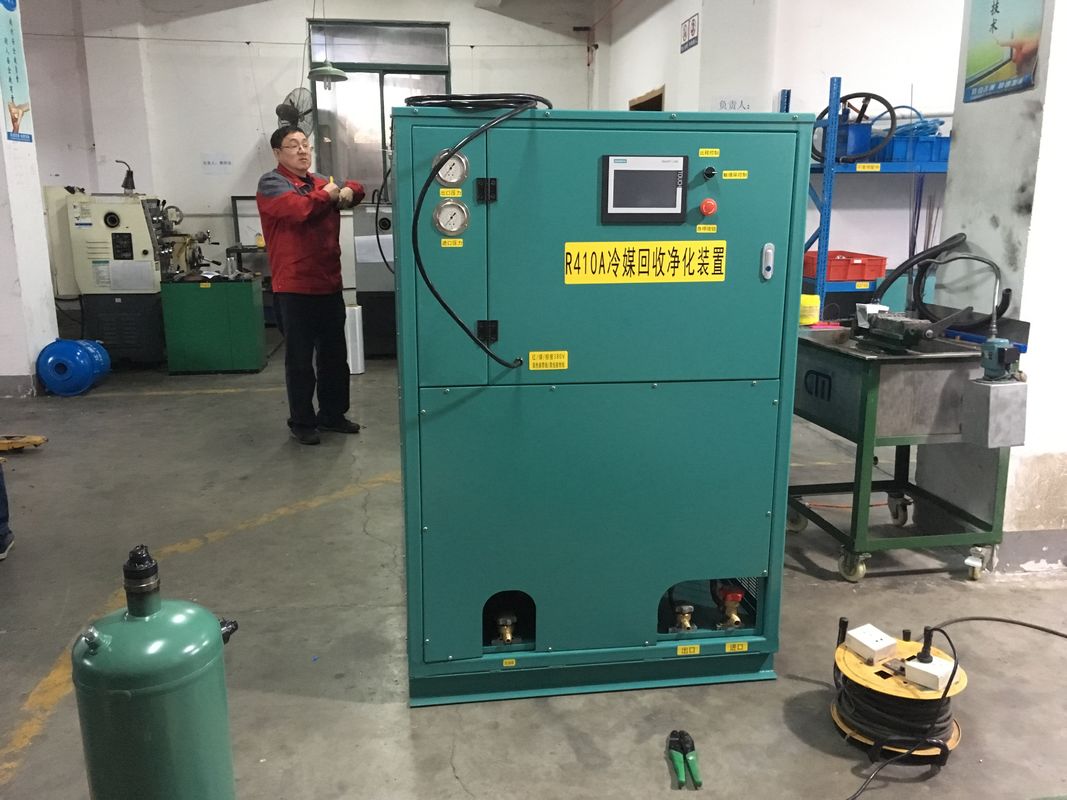

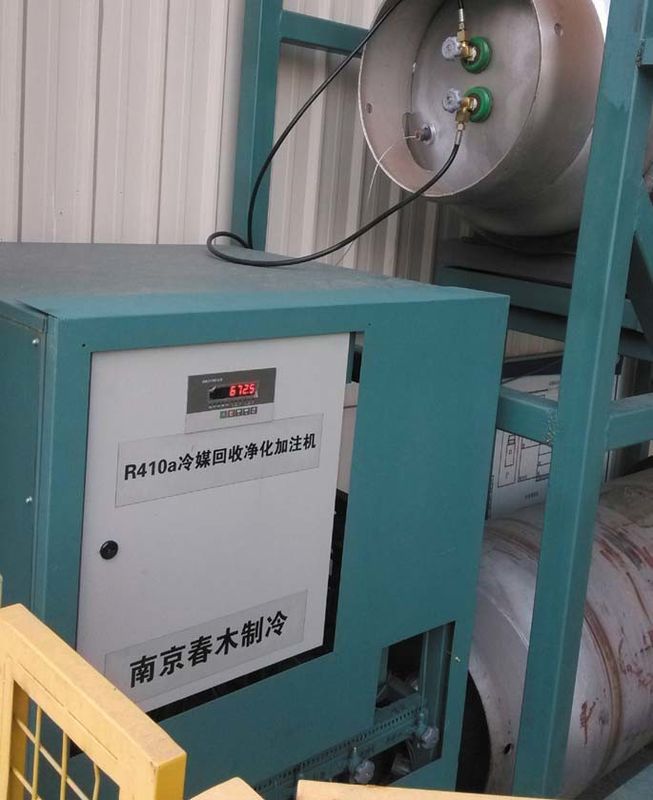

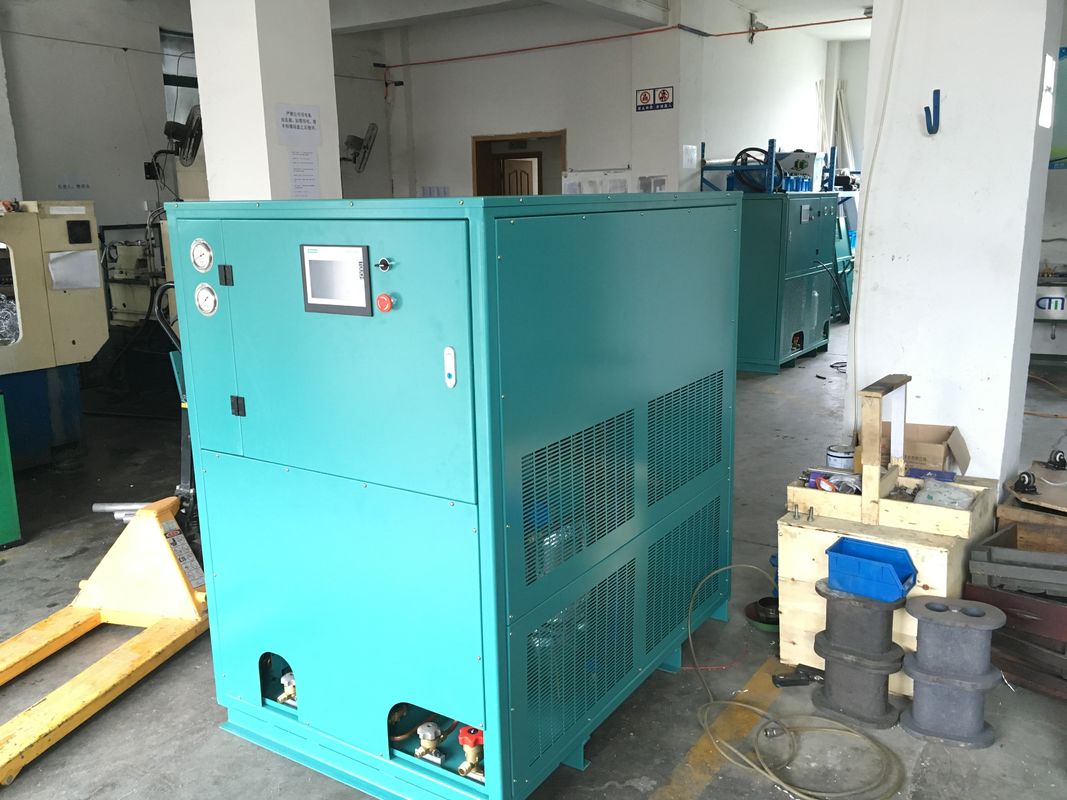

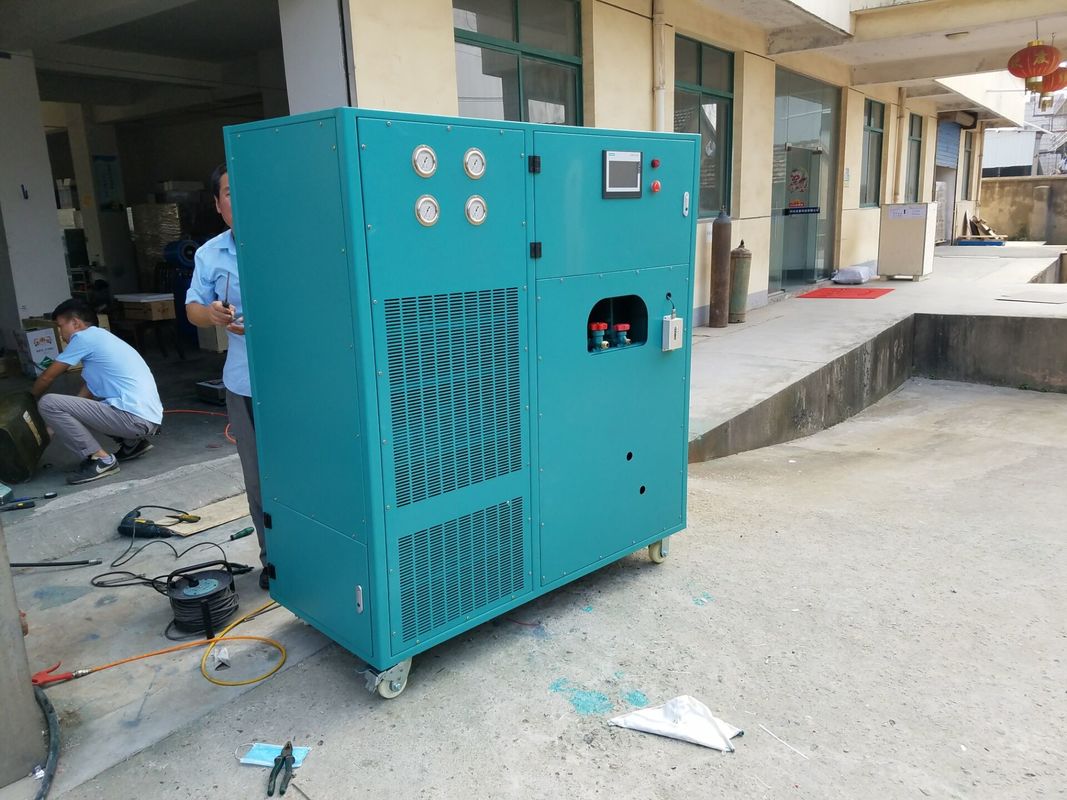

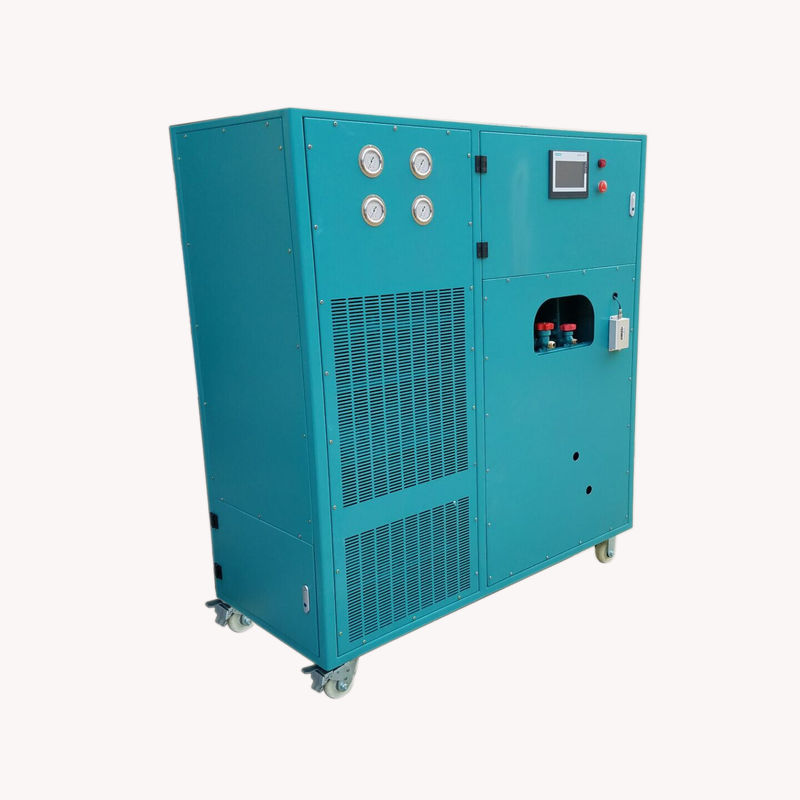

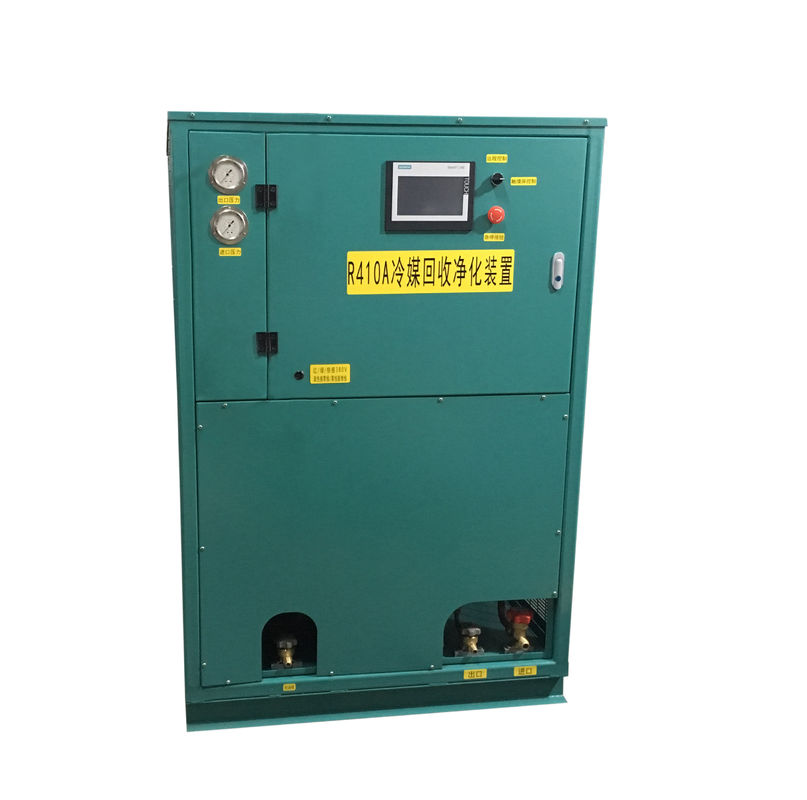

Details Images

Our Advantages

FEATURES

Features & Advantages
·1. Integrated functions of removing oil, acids and moisture including non-condensable gas.
·2. Oil less SS304 compressor for zero contamination
·3. Capable of handle most common refrigerants,like R22/R134A/R410A/R32 etc.
·4. Automatic oil drain&non-condensable gas discharge
·5. Over 99.8% refrigerant purity after recycling
·6. Once recovery&recycling process finished,machine stop working automatically
·7. Large wheels trolley design -- convenient for work site use;
·8. Overall protection device, safe credibility
·9. Controlled by Smart Siemens PLC programmer&touch screen
·10. Can be customized for flammable refrigerants
·11. Integrated of air cooling and water cooling

Product Paramenters

Model	Refrigerant Reclaim System CM0902
Refrigerant Type	R22,R134a,R410A etc
Working Pressure	1.5~3.8Mpa
Horsepower	0.75kw
Voltage	AC220V or 380V 4PH 10PH 25PH
Acidity	≤1 ppm
High Boiling Residue	≤0.01%
Non-Condensable Gas	≤1.5%
Vacuum Pump Flow Rate	8L/S
Required Air Source Pressure	0.5-0.7Mpa
Required Air Source Flow	0.5 m3/Min
Working Temp.	-10°C ~ 40°C

Cooperation Partners & Cases

We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.

No.	Partner Name	Main Product Type	Cooperation Time
1	YORK Air Conditioning	Refrigerant recovery machine	11 years
2	CARRIER Air Conditioning	Refrigerant recovery/recharge machine	06 years
3	MCQUAY Air Conditioning	Refrigerant recovery/recharge machine	09 years
4	CLIMAVENETA Air Conditioning	Refrigerant recovery/recharge machine	04 years
5	TICA Air Conditioning	Refrigerant recovery/recharge machine	08 years

CERTIFICATES

SPECIAL UNITS:

Packing&Shipping

1. Single packing: Mini wooden pallet + Carton

2. Bulk packing: Large pallet + Straps + Wrapping film

Company Introduction

CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.

WHY CHOOSE CM REFRIGERATION

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.

>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.

>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.

>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.

>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.

>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
