R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service

R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service

  • Condition
    New
  • Applicable Industries
    Machinery Repair Shops, Manufacturing Plant
  • Weight (KG)
    190
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Not Available
  • Warranty Of Core Components
    1 Year
  • Core Components
    Motor, Pump
  • Type
    COMPRESSOR
  • Warranty
    1 Year
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Compressor
    Oil-free
  • Refrigerant
    R123/R245FA/R141B/R1233zd
  • Application
    Low Pressure Chillers
  • Product Name
    CMR123-40 Refrigerant Recovery Station
  • Cooler
    Water Cooling
  • Ultimate Vacuum
    10pa~30pa
  • Power
    380V/50HZ
  • Other Name
    Refrigerant Recovery Unit
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE
  • Price
    $9,900.00/units 1-4 units
  • Packaging Details
    wooden case;<br>CMR123 Low Pressure Refrigerant Recovery Machine
  • Supply Ability
    100 Unit/Units per Month

R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service

Product Description

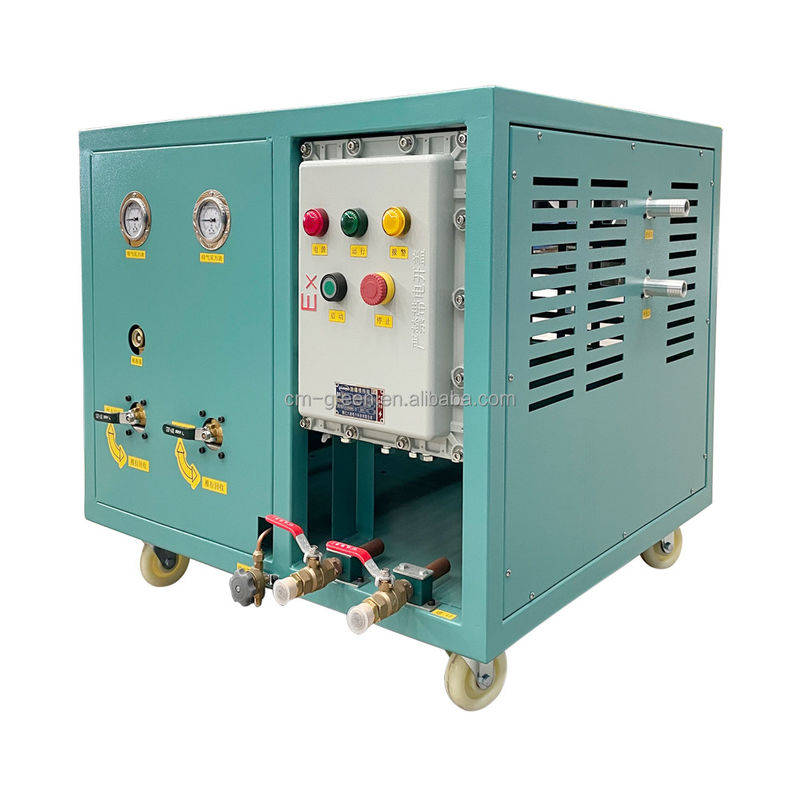

CMR123 low pressure refrigerant recovery/vacuum machine

CMR123 low pressure refrigerant recovery machine is specially for low pressure refrigerant R123, R245FA, R141b, R1233zd etc. It adopts s oil less compressor with fast recovery rate to make sure there is no cross contamination during the operation. Meanwhile Combined with functions of recovery and vacuum which is a suitable for HVAC/R equipment maintenance and refrigerant transfer.

CMR123 refrigerant recovery unit Main Features
1.Adopt professional oil-less vacuum compressor for low pressure refrigerants
2.Water cooling design allow the fast recovery rate, high vacuum, complete recovery and no maintenance required
3.With reversing valve design makes it no need to replace the hose/pipe when recover the vapor gas and liquid refrigerant.
4.Mature system design and overall protection system ensure the machine running safely
5.can be customized according to requirement of customers

Specification
Model
Compressor displacement
Vacuum degree
Liquid Recovery Rate
Vapor Recovery Rate
Engine Power
Power Source
CMR123-60
60m³/h
10Pa
6000kg/h
320kg/h
6HP
380V/50Hz
CMR123-35
35m³/h
10Pa
4000kg/h
180kg/h
4HP
380V/50Hz
CMR123-20
20m³/h
20Pa
2400kg/h
96kg/h
2HP
380V/50Hz
CMR123-10
10m³/h
30Pa
1200kg/h
48kg/h
1HP
380V/50Hz
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 0
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 1
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 2
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 3
Related Product
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 4
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 5
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 6

Electric Oil Pump

Manual Oil Pump

Steel Cylinder

R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 7
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 8
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 9

Vacuum Pump

Trolley Tube Pipe Cleaner

Portable Tube Pipe Cleaner

Packing & Delivery
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 10
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 11
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 12
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 13

Packing: carton, pallet, wooden case.

Delivery time: within 7-30 days after receiving the payment.

Exhibition
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 14
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 15
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 16
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 17

CM(ChunMu)@ChinaRefrigerationExpo

Our Company
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 18
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 19
R1233ZD Water Cooling Low Pressure Refrigerant Recovery Machine For Chiller Service 20

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
